Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 3 illustrations

Illustrations

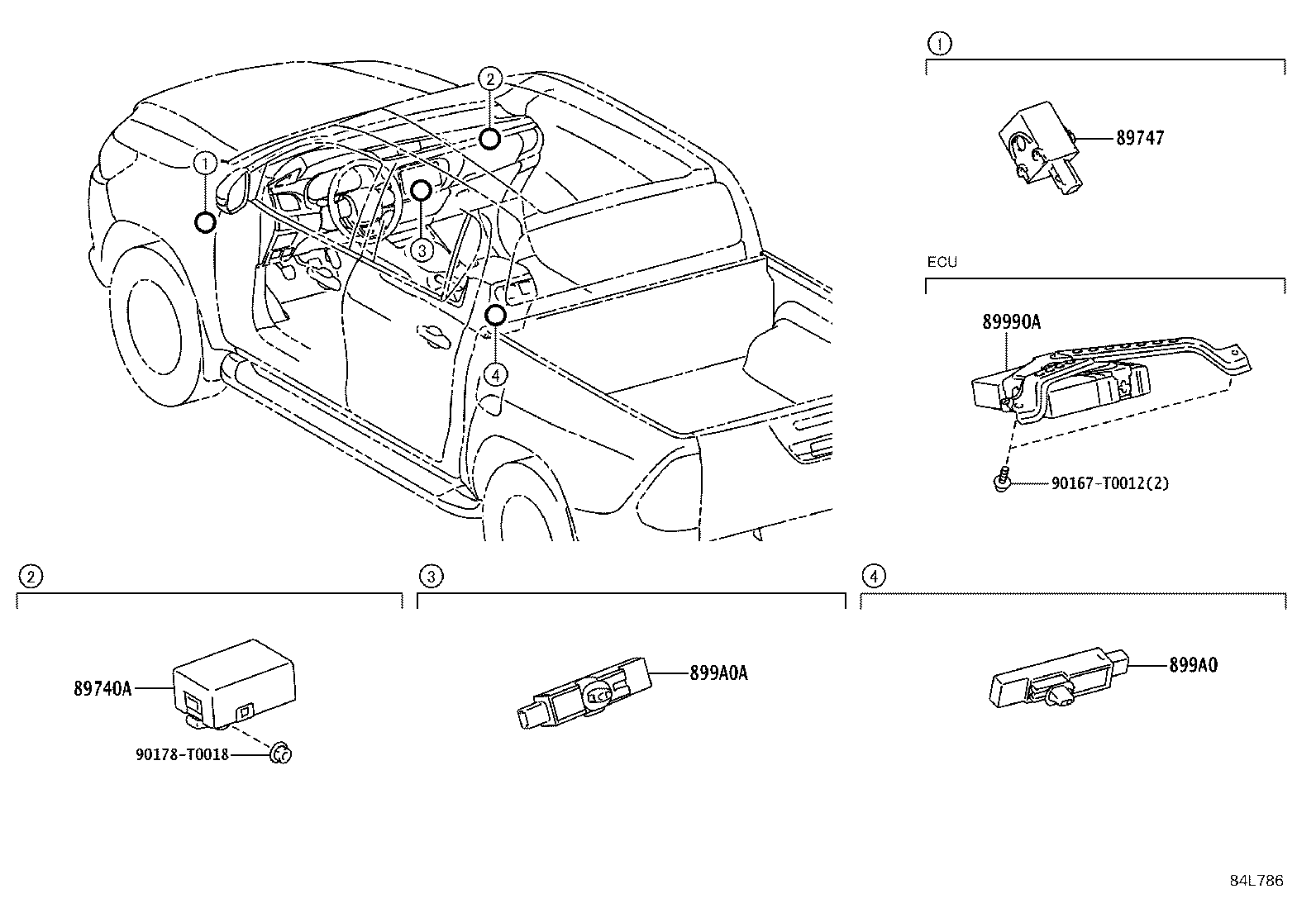

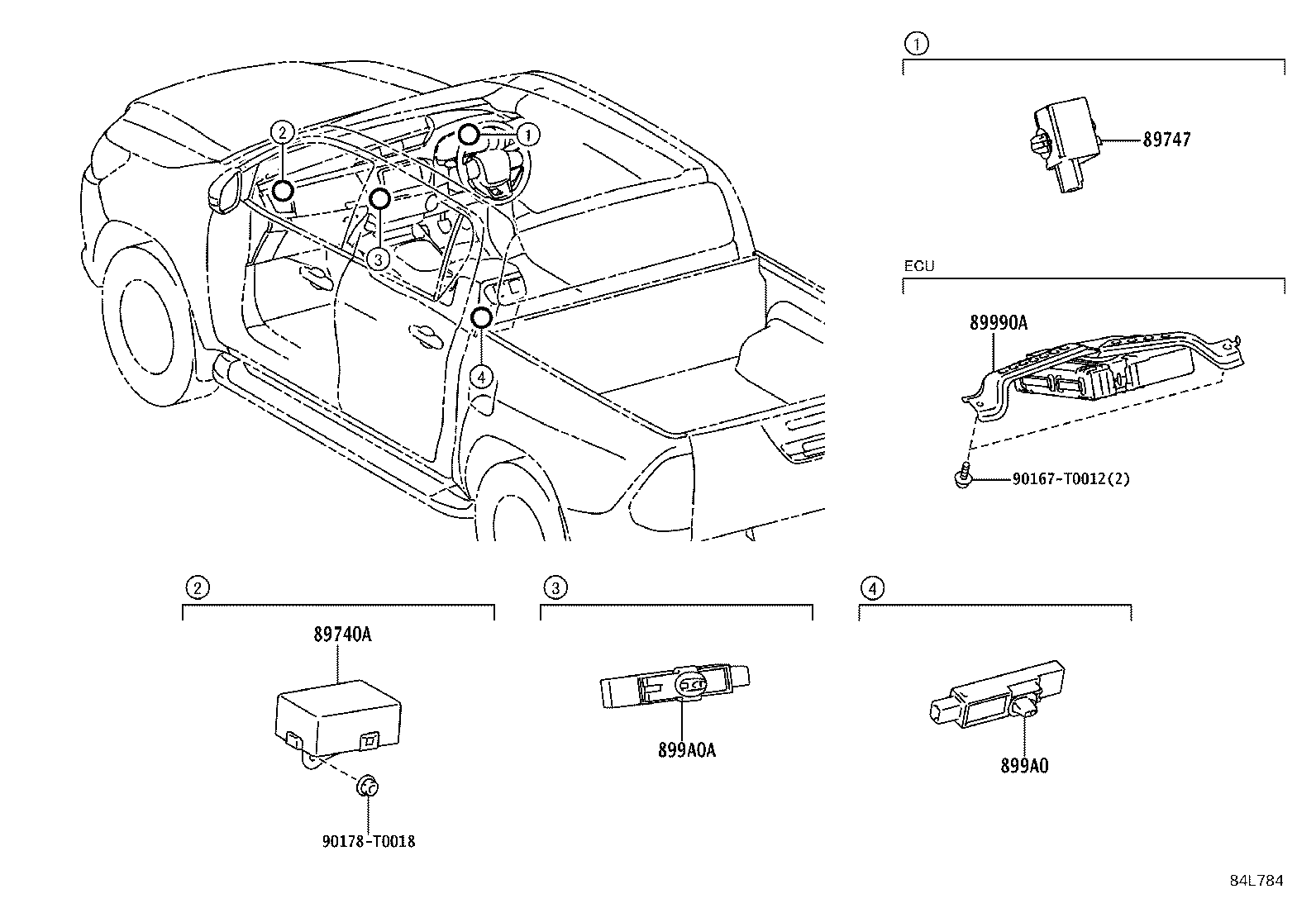

Figure 84L785 84L785 2020-06 → — Figure 84L786 84L786 2020-06 → — Figure 84L784 84L784 2020-09 → —

Part groups

PNCDescription
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
