Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

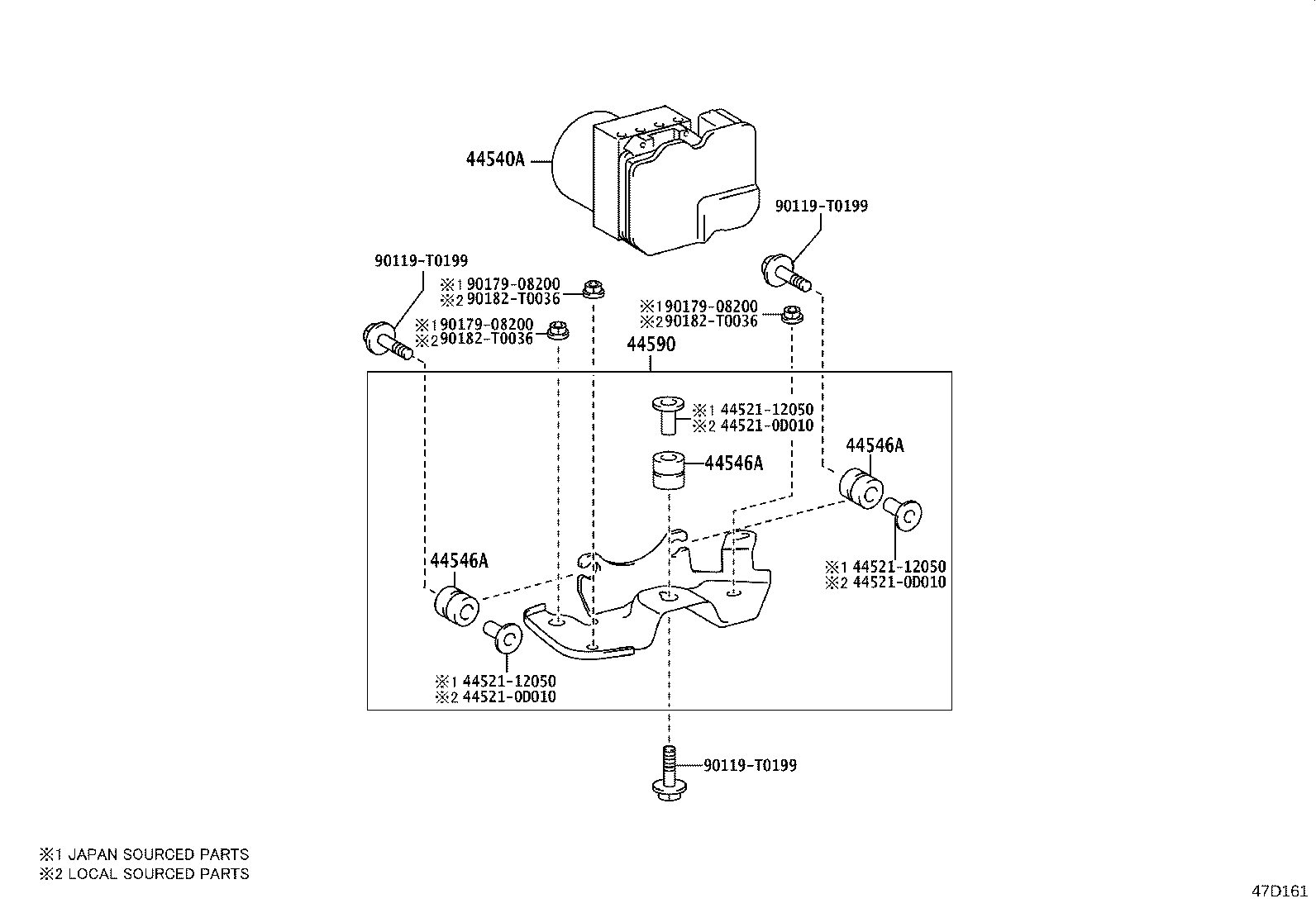

Exploded illustration 47D161 90119T0199 — not listed in this catalogue 90119T0199 — not listed in this catalogue 90119T0199 — not listed in this catalogue 44546A — CUSHION, BRAKE ACTUATOR BOLT (4 parts) 44546A — CUSHION, BRAKE ACTUATOR BOLT (4 parts) 44540A — ACTUATOR ASSY, VSC (56 parts) 44546A — CUSHION, BRAKE ACTUATOR BOLT (4 parts) 445210D010 — not listed in this catalogue 4452112050 — not listed in this catalogue 9017908200 — not listed in this catalogue 9017908200 — not listed in this catalogue 9017908200 — not listed in this catalogue 90182T0036 — not listed in this catalogue 90182T0036 — not listed in this catalogue 90182T0036 — not listed in this catalogue 44590 — BRACKET ASSY, BRAKE ACTUATOR (3 parts) 445210D010 — not listed in this catalogue 4452112050 — not listed in this catalogue 445210D010 — not listed in this catalogue 4452112050 — not listed in this catalogue
47D161 · 5 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
44540A — Actuator Assy, Vsc
44050-0KB90 note Actuator Assy, Vsc
2021-09 → 2021-10 ended
GUN135 SCB —
44050-0KB90 note Actuator Assy, Vsc
2021-09 → 2021-10 ended
GUN135 SCB —
44050-0KC20 note Actuator Assy, Vsc
2021-09 → 2021-10 ended
GUN125 SCB —
44050-0KC20 note Actuator Assy, Vsc
2021-09 → 2021-10 ended
GUN125 SCB —
44050-0KC70 note Actuator Assy, Vsc
2021-09 → 2021-10 ended
GUN135 H —
44050-0KC70 Actuator Assy, Vsc
2021-08 → 2021-10 ended
GUN135 THP 6F —
44050-0KC70 note Actuator Assy, Vsc
2021-08 → 2021-10 ended
GUN135 6FC;GUN135 (DCB,XTR) SAP +1 —
44050-0KC70 note Actuator Assy, Vsc
2021-08 → 2021-10 ended
GUN135 6FC;GUN135 (DCB,XTR) SAP +1 —
44050-0KD20 note Actuator Assy, Vsc
2021-09 → 2021-10 ended
GUN12# SAP H —
44050-0KD20 note Actuator Assy, Vsc
2021-08 → 2021-10 ended
GUN125 6FC S;GUN125 (DCB,XTR) +2 —
44050-0KD20 note Actuator Assy, Vsc
2021-08 → 2021-10 ended
GUN125 6FC S;GUN125 (DCB,XTR) +2 —
44050-0KD20 Actuator Assy, Vsc
2021-08 → 2021-10 ended
GUN126 THP;GUN125 THP 6F —
44050-0KE80 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN135 SCB —
44050-0KE80 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN135 SCB —
44050-0KE90 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN125 SCB —
44050-0KE90 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN125 SCB —
44050-0KF00 note Actuator Assy, Vsc
2021-11 → 2022-07 ended
GUN135 6FC —
44050-0KF00 note Actuator Assy, Vsc
2021-11 → 2022-07 ended
GUN135 6FC —
44050-0KF00 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN135 H —
44050-0KF00 Actuator Assy, Vsc
2021-11 → 2022-07 ended
GUN135 THP 6F —
44050-0KF00 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN135 (DCB,XTR) SAP (L,S) —
44050-0KF00 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN135 (DCB,XTR) SAP (L,S) —
44050-0KF10 Actuator Assy, Vsc
2021-11 → 2022-07 ended
GUN126 THP;GUN125 THP 6F —
44050-0KF10 note Actuator Assy, Vsc
2021-11 → 2022-07 ended
GUN125 6FC S —
44050-0KF10 note Actuator Assy, Vsc
2021-11 → 2022-07 ended
GUN125 6FC S —
44050-0KF10 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN12# SAP H —
44050-0KF10 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN125 (DCB,XTR) SAP (L,S) —
44050-0KF10 note Actuator Assy, Vsc
2021-11 → 2023-01 ended
GUN125 (DCB,XTR) SAP (L,S) —
44050-71890 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN135 6F —
44050-71890 Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN135 6FC —
44050-71A90 Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN125 6FC S —
44050-71A90 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN126 H —
44050-71A90 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN126 S;GUN125 6F —
44050-71B10 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN125 6FC S —
44050-71B10 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN126 H —
44050-71B10 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN125 6F —
44050-71B10 Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN125 H —
44050-71B70 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN126 H;GUN125 6F —
44050-71B70 note Actuator Assy, Vsc
2021-08 → 2021-09 ended
GUN125 6FC S —
44050-71J21 Actuator Assy, Vsc
2021-09 → 2023-01 ended
GUN125 SCB —
44050-71M80 Actuator Assy, Vsc
2021-09 → 2023-01 ended
GUN135 SCB —
44050-71M90 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN135 THP 6F —
44050-71M90 Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN135 6FC —
44050-71M90 Actuator Assy, Vsc
2021-09 → 2023-01 ended
GUN135 (DCB,XTR) SAP —
44050-71N00 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN126 THP H —
44050-71N00 Actuator Assy, Vsc
2021-09 → 2023-01 ended
GUN12# (DCB,XTR) SAP —
44050-71N00 Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN125 6FC S —
44050-71N00 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN126 S;GUN125 THP 6F —
44050-71N10 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN125 6FC S —
44050-71N10 note Actuator Assy, Vsc
2021-09 → 2023-01 ended
GUN12# SAP H —
44050-71N10 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN126 THP H —
44050-71N10 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN125 THP 6F —
44050-71N10 Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN125 THP H —
44050-71N20 note Actuator Assy, Vsc
2021-09 → 2023-01 ended
GUN12# SAP H —
44050-71N20 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN126 THP H;GUN125 THP +1 —
44050-71N20 note Actuator Assy, Vsc
2021-09 → 2022-07 ended
GUN125 6FC S —
44546A — Cushion, Brake Actuator Bolt
44546-0K010 note Cushion, Brake Actuator Bolt
2021-08 → 2022-07 ended
GUN12#,135 THP —
44546-0K010 note Cushion, Brake Actuator Bolt
2021-08 → 2023-01 ended
GUN12#,135 SAP —
44546-12120 note Cushion, Brake Actuator Bolt
2021-08 → 2022-07 ended
GUN12#,135 THP —
44546-12120 note Cushion, Brake Actuator Bolt
2021-08 → 2023-01 ended
GUN12#,135 SAP —
44590 — Bracket Assy, Brake Actuator
44590-0K170 Bracket Assy, Brake Actuator
2021-09 → 2023-01 ended
GUN12# RHD —
44590-0K200 Bracket Assy, Brake Actuator
2021-08 → 2022-07 ended
GUN12#,135 THP —
44590-0K220 Bracket Assy, Brake Actuator
2021-09 → 2023-01 ended
GUN12#,135 LHD SAP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
