Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

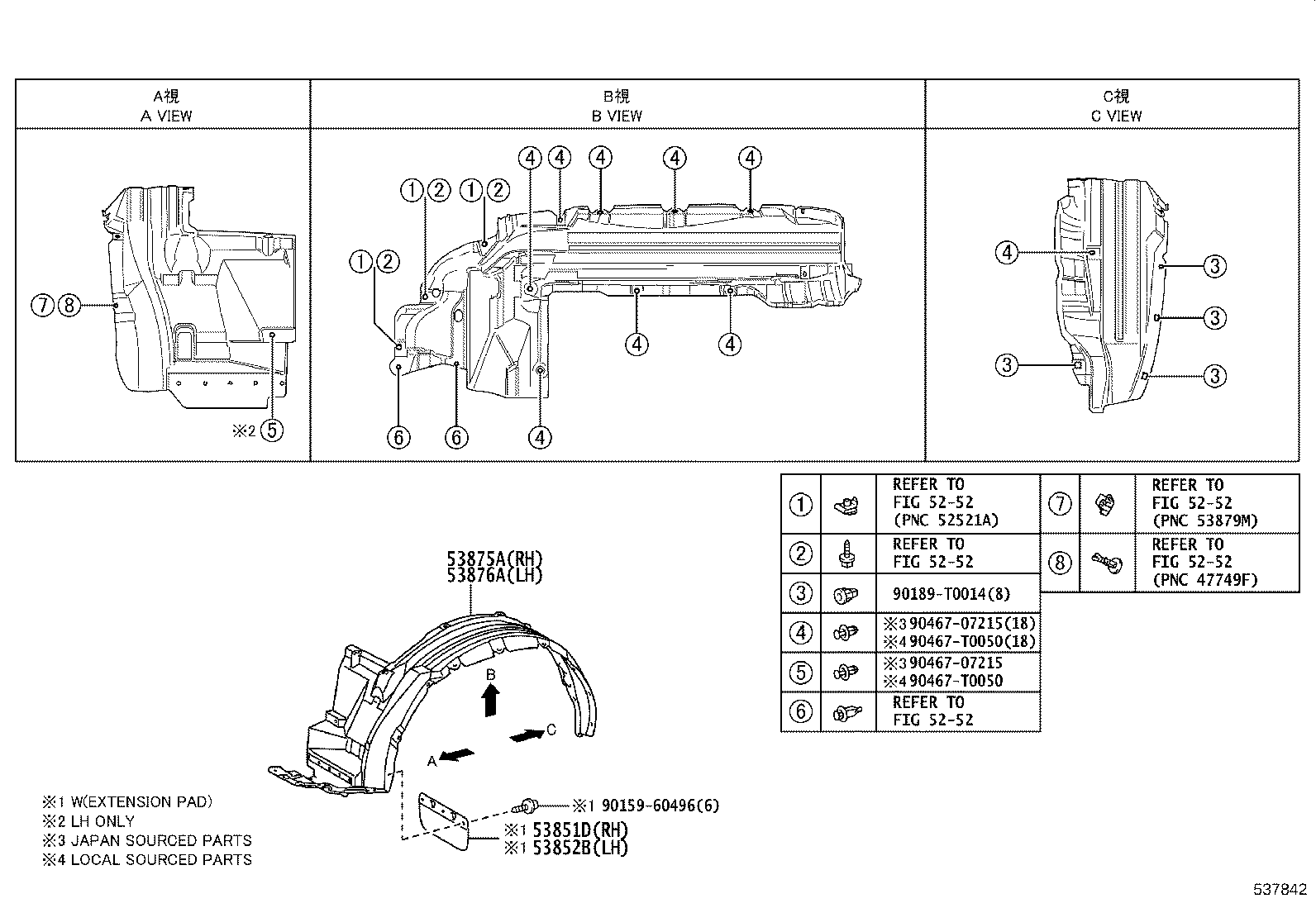

Exploded illustration 537842 5252 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue 90189T0014 — not listed in this catalogue 53875A — LINER, FRONT FENDER, RH (8 parts) 53876A — LINER, FRONT FENDER, LH (8 parts) 53851D — PAD, FRONT WHEEL OPENING EXTENSION, RH (2 parts) 53852B — PAD, FRONT WHEEL OPENING EXTENSION, LH (2 parts) 9015960496 — not listed in this catalogue 9046707215 — not listed in this catalogue 90467T0050 — not listed in this catalogue 9046707215 — not listed in this catalogue 90467T0050 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue
537842 · 4 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
53851D — Pad, Front Wheel Opening Extension, RH
53851-0K080 Pad, Front Wheel Opening Extension, RH
2021-08 → 2022-07 ended
GUN12#,135 THP —
53851-0K090 Pad, Front Wheel Opening Extension, RH
2021-09 → 2023-01 ended
GUN12#,135 SAP —
53852B — Pad, Front Wheel Opening Extension, LH
53851-0K080 Pad, Front Wheel Opening Extension, LH
2021-08 → 2022-07 ended
GUN12#,135 THP —
53851-0K090 Pad, Front Wheel Opening Extension, LH
2021-09 → 2023-01 ended
GUN12#,135 SAP —
53875A — Liner, Front Fender, RH
53805-0K160 Liner, Front Fender, RH
2021-09 → 2023-01 ended
GUN125,135 SCB —
53805-0K320 note Liner, Front Fender, RH
2021-08 → 2022-04 ended
GUN12# THP H —
53805-0K320 Liner, Front Fender, RH
2021-08 → 2022-07 ended
GUN12#,135 THP —
53805-0K330 note Liner, Front Fender, RH
2021-09 → 2023-01 ended
GUN125 RHD SCB —
53805-0K330 Liner, Front Fender, RH
2021-09 → 2023-01 ended
GUN12#,135 (DCB,XTR) SAP —
53805-0K330 note Liner, Front Fender, RH
2021-09 → 2022-04 ended
GUN12# SAP H —
53805-YP070 note Liner, Front Fender, RH
2021-08 → 2022-07 ended
GUN12# THP H —
53805-YP080 note Liner, Front Fender, RH
2021-09 → 2023-01 ended
GUN12# SAP H —
53876A — Liner, Front Fender, LH
53806-0K160 Liner, Front Fender, LH
2021-09 → 2023-01 ended
GUN125,135 SCB —
53806-0K320 note Liner, Front Fender, LH
2021-08 → 2022-04 ended
GUN12# THP H —
53806-0K320 Liner, Front Fender, LH
2021-08 → 2022-07 ended
GUN12#,135 THP —
53806-0K330 note Liner, Front Fender, LH
2021-09 → 2022-04 ended
GUN12# SAP H —
53806-0K330 Liner, Front Fender, LH
2021-09 → 2023-01 ended
GUN12#,135 (DCB,XTR) SAP —
53806-0K330 note Liner, Front Fender, LH
2021-09 → 2023-01 ended
GUN125 RHD SCB —
53806-YP070 note Liner, Front Fender, LH
2021-08 → 2022-07 ended
GUN12# THP H —
53806-YP080 note Liner, Front Fender, LH
2021-09 → 2023-01 ended
GUN12# SAP H —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
