Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

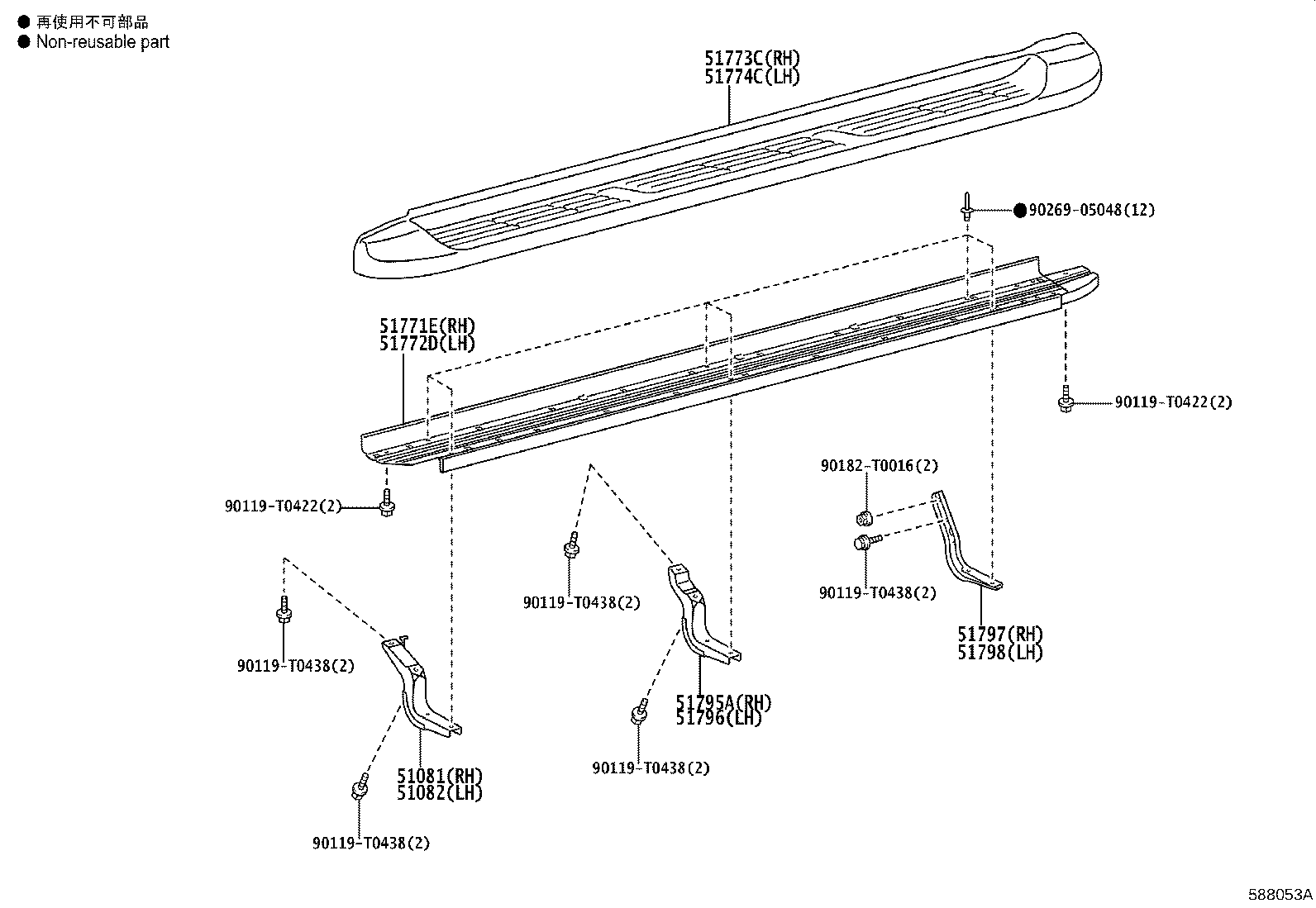

Exploded illustration 588053A 51773C — COVER, STEP PLATE, RH (8 parts) 51774C — COVER, STEP PLATE, LH (8 parts) 90119T0422 — not listed in this catalogue 90119T0422 — not listed in this catalogue 51795A — BRACKET, SIDE STEP, NO.2 RH (6 parts) 51796 — BRACKET, SIDE STEP, NO.2 LH (6 parts) 90119T0438 — not listed in this catalogue 90119T0438 — not listed in this catalogue 51081 — STAY SUB-ASSY, SIDE STEP, NO.1 RH (4 parts) 51082 — STAY SUB-ASSY, SIDE STEP, NO.1 LH (4 parts) 90119T0438 — not listed in this catalogue 90119T0438 — not listed in this catalogue 51797 — BRACKET, SIDE STEP, NO.3 RH (4 parts) 51798 — BRACKET, SIDE STEP, NO.3 LH (4 parts) 90119T0438 — not listed in this catalogue 90182T0016 — not listed in this catalogue 51771E — PLATE, STEP, RH (8 parts) 51772D — PLATE, STEP, LH (8 parts) 9026905048 — not listed in this catalogue
588053A · 10 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
51081 — Stay Sub-assy, Side Step, NO.1 RH
51081-0K060 note Stay Sub-assy, Side Step, NO.1 RH
2021-08 → 2022-07 ended
GUN135 THP —
51081-0K060 Stay Sub-assy, Side Step, NO.1 RH
2021-08 → 2022-07 ended
GUN12# THP —
51081-0K070 note Stay Sub-assy, Side Step, NO.1 RH
2021-09 → 2023-01 ended
GUN135 SAP (H,S) —
51081-0K070 Stay Sub-assy, Side Step, NO.1 RH
2021-09 → 2023-01 ended
GUN12# SAP —
51082 — Stay Sub-assy, Side Step, NO.1 LH
51082-0K060 Stay Sub-assy, Side Step, NO.1 LH
2021-08 → 2022-07 ended
GUN12# THP —
51082-0K060 note Stay Sub-assy, Side Step, NO.1 LH
2021-08 → 2022-07 ended
GUN135 THP —
51082-0K070 Stay Sub-assy, Side Step, NO.1 LH
2021-09 → 2023-01 ended
GUN12# SAP —
51082-0K070 note Stay Sub-assy, Side Step, NO.1 LH
2021-09 → 2023-01 ended
GUN135 SAP (H,S) —
51771E — Plate, Step, RH
51771-0K260 note Plate, Step, RH
2021-09 → 2023-01 ended
GUN135 SCB S —
51771-0K260 Plate, Step, RH
2021-09 → 2023-01 ended
GUN125 SCB —
51771-0K300 Plate, Step, RH
2021-09 → 2023-01 ended
GUN12# XTR —
51771-0K300 note Plate, Step, RH
2021-09 → 2023-01 ended
GUN135 XTR CBU —
51771-0K330 note Plate, Step, RH
2021-08 → 2022-07 ended
GUN135 THP —
51771-0K330 Plate, Step, RH
2021-08 → 2022-07 ended
GUN12# THP —
51771-0K360 Plate, Step, RH
2021-09 → 2023-01 ended
GUN12# DCB SAP —
51771-0K360 note Plate, Step, RH
2021-09 → 2023-01 ended
GUN135 DCB SAP —
51772D — Plate, Step, LH
51772-0K260 Plate, Step, LH
2021-09 → 2023-01 ended
GUN125 SCB —
51772-0K260 note Plate, Step, LH
2021-09 → 2023-01 ended
GUN135 SCB S —
51772-0K300 note Plate, Step, LH
2021-09 → 2023-01 ended
GUN135 XTR CBU —
51772-0K300 Plate, Step, LH
2021-09 → 2023-01 ended
GUN12# XTR —
51772-0K330 Plate, Step, LH
2021-08 → 2022-07 ended
GUN12# THP —
51772-0K330 note Plate, Step, LH
2021-08 → 2022-07 ended
GUN135 THP —
51772-0K360 Plate, Step, LH
2021-09 → 2023-01 ended
GUN12# DCB SAP —
51772-0K360 note Plate, Step, LH
2021-09 → 2023-01 ended
GUN135 DCB SAP —
51773C — Cover, Step Plate, RH
51701-0K010 note Cover, Step Plate, RH
2021-08 → 2022-07 ended
GUN12# THP —
51701-0K010 note Cover, Step Plate, RH
2021-08 → 2022-07 ended
GUN135 THP —
51701-0K040 note Cover, Step Plate, RH
2021-09 → 2023-01 ended
GUN12# DCB SAP —
51701-0K040 note Cover, Step Plate, RH
2021-09 → 2023-01 ended
GUN135 DCB SAP —
51701-0K060 note Cover, Step Plate, RH
2021-09 → 2023-01 ended
GUN125 SCB —
51701-0K060 note Cover, Step Plate, RH
2021-09 → 2023-01 ended
GUN135 SCB S —
51701-0K090 note Cover, Step Plate, RH
2021-09 → 2023-01 ended
GUN12# XTR —
51701-0K090 note Cover, Step Plate, RH
2021-09 → 2023-01 ended
GUN135 XTR CBU —
51774C — Cover, Step Plate, LH
51702-0K010 note Cover, Step Plate, LH
2021-08 → 2022-07 ended
GUN12# THP —
51702-0K010 note Cover, Step Plate, LH
2021-08 → 2022-07 ended
GUN135 THP —
51702-0K040 note Cover, Step Plate, LH
2021-09 → 2023-01 ended
GUN12# DCB SAP —
51702-0K040 note Cover, Step Plate, LH
2021-09 → 2023-01 ended
GUN135 DCB SAP —
51702-0K060 note Cover, Step Plate, LH
2021-09 → 2023-01 ended
GUN125 SCB —
51702-0K060 note Cover, Step Plate, LH
2021-09 → 2023-01 ended
GUN135 SCB S —
51702-0K090 note Cover, Step Plate, LH
2021-09 → 2023-01 ended
GUN12# XTR —
51702-0K090 note Cover, Step Plate, LH
2021-09 → 2023-01 ended
GUN135 XTR CBU —
51795A — Bracket, Side Step, NO.2 RH
51795-0K120 Bracket, Side Step, NO.2 RH
2021-08 → 2022-07 ended
GUN12# THP —
51795-0K120 note Bracket, Side Step, NO.2 RH
2021-08 → 2022-07 ended
GUN135 THP —
51795-0K140 Bracket, Side Step, NO.2 RH
2021-09 → 2023-01 ended
GUN12# (DCB,XTR) SAP —
51795-0K140 note Bracket, Side Step, NO.2 RH
2021-09 → 2023-01 ended
GUN135 (DCB,XTR) SAP CBU —
51795-0K160 note Bracket, Side Step, NO.2 RH
2021-09 → 2023-01 ended
GUN135 SCB S —
51795-0K160 Bracket, Side Step, NO.2 RH
2021-09 → 2023-01 ended
GUN125 SCB —
51796 — Bracket, Side Step, NO.2 LH
51795-0K120 Bracket, Side Step, NO.2 LH
2021-08 → 2022-07 ended
GUN12# THP —
51795-0K120 note Bracket, Side Step, NO.2 LH
2021-08 → 2022-07 ended
GUN135 THP —
51795-0K140 Bracket, Side Step, NO.2 LH
2021-09 → 2023-01 ended
GUN12# (DCB,XTR) SAP —
51795-0K140 note Bracket, Side Step, NO.2 LH
2021-09 → 2023-01 ended
GUN135 (DCB,XTR) SAP CBU —
51795-0K160 Bracket, Side Step, NO.2 LH
2021-09 → 2023-01 ended
GUN125 SCB —
51795-0K160 note Bracket, Side Step, NO.2 LH
2021-09 → 2023-01 ended
GUN135 SCB S —
51797 — Bracket, Side Step, NO.3 RH
51797-0K180 Bracket, Side Step, NO.3 RH
2021-08 → 2022-07 ended
GUN12# THP —
51797-0K180 note Bracket, Side Step, NO.3 RH
2021-08 → 2022-07 ended
GUN135 THP —
51797-0K200 Bracket, Side Step, NO.3 RH
2021-09 → 2023-01 ended
GUN12# (DCB,XTR) SAP —
51797-0K200 note Bracket, Side Step, NO.3 RH
2021-09 → 2023-01 ended
GUN135 (DCB,XTR) SAP CBU —
51798 — Bracket, Side Step, NO.3 LH
51798-0K180 Bracket, Side Step, NO.3 LH
2021-08 → 2022-07 ended
GUN12# THP —
51798-0K180 note Bracket, Side Step, NO.3 LH
2021-08 → 2022-07 ended
GUN135 THP —
51798-0K200 Bracket, Side Step, NO.3 LH
2021-09 → 2023-01 ended
GUN12# (DCB,XTR) SAP —
51798-0K200 note Bracket, Side Step, NO.3 LH
2021-09 → 2023-01 ended
GUN135 (DCB,XTR) SAP CBU —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
