Toyota Hilux (DCB/SCB/XTR)
2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe
Supported model
Data version 2023-09

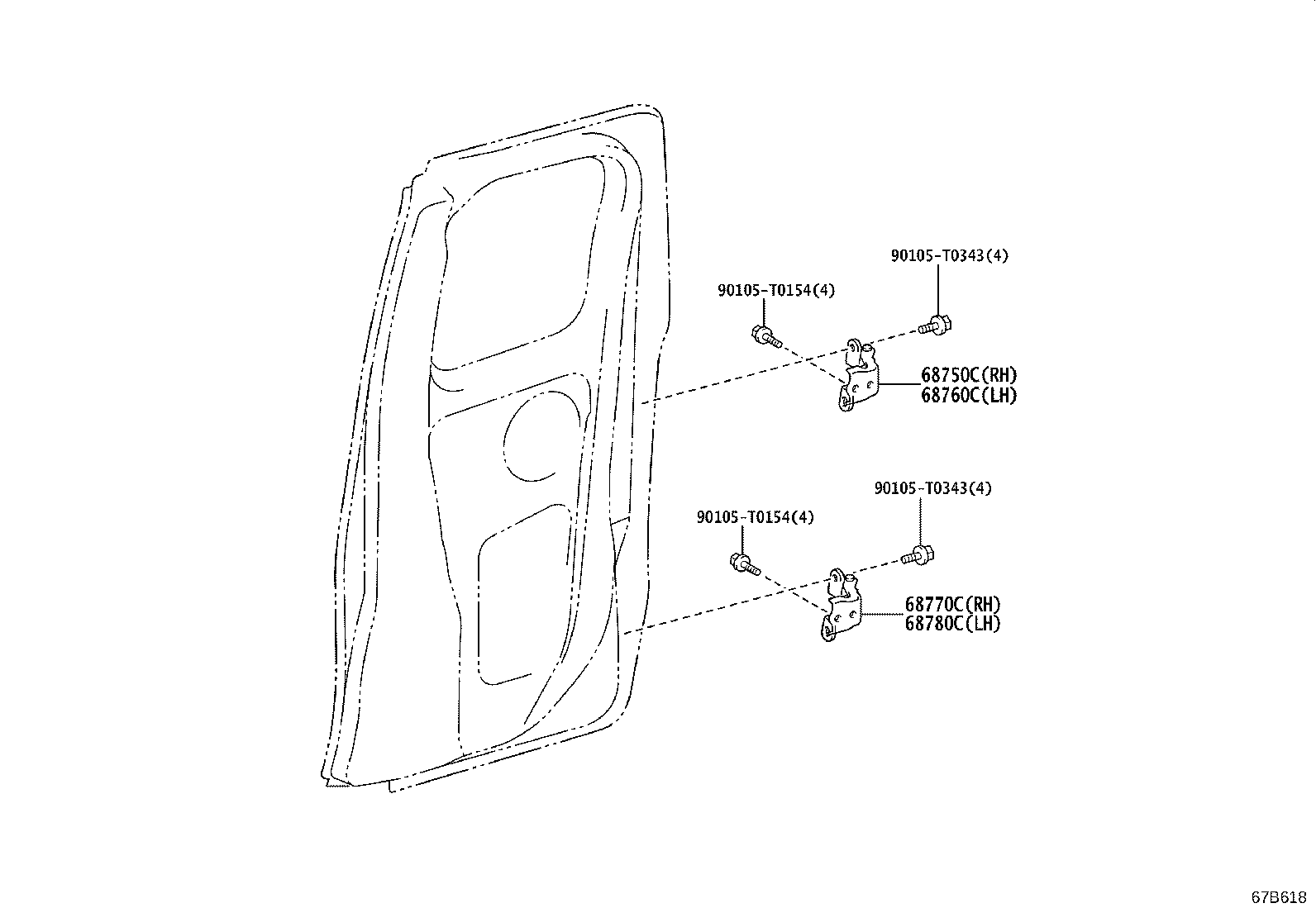

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68750C — Hinge Assy, Access Panel, Upper RH | ||||
| 68750-0K070 |
Hinge Assy, Access Panel, Upper RH
2021-09 → 2023-01
ended
|
GUN12#,135 XTR | — | |
| 68760C — Hinge Assy, Access Panel, Upper LH | ||||
| 68760-0K070 |
Hinge Assy, Access Panel, Upper LH
2021-09 → 2023-01
ended
|
GUN12#,135 XTR | — | |
| 68770C — Hinge Assy, Access Panel, Lower RH | ||||
| 68760-0K070 |
Hinge Assy, Access Panel, Lower RH
2021-09 → 2023-01
ended
|
GUN12#,135 XTR | — | |
| 68780C — Hinge Assy, Access Panel, Lower LH | ||||
| 68750-0K070 |
Hinge Assy, Access Panel, Lower LH
2021-09 → 2023-01
ended
|
GUN12#,135 XTR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
