Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

6 part groups · 2 illustrations

Illustrations

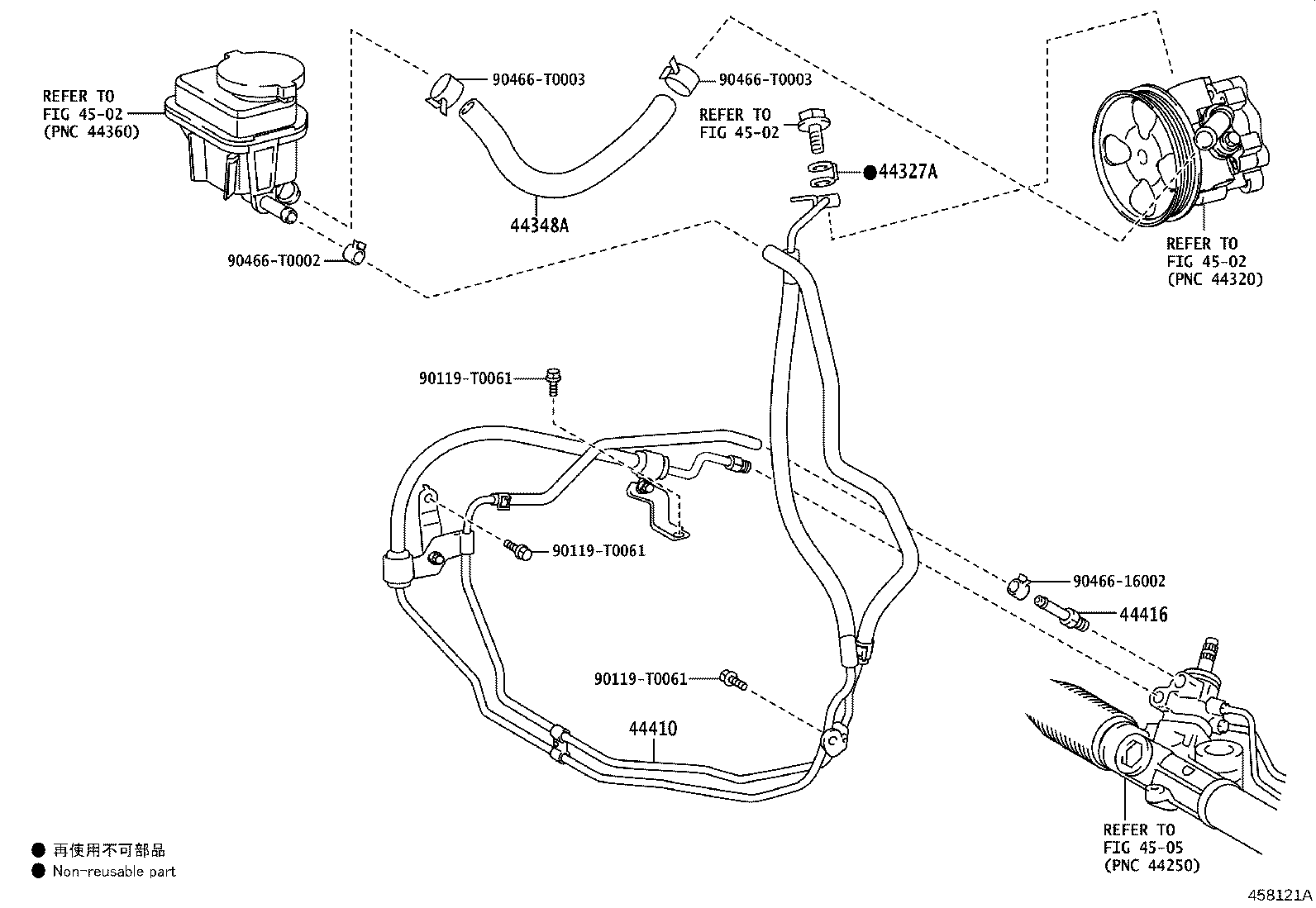

Figure 458120A 458120A 2021-08 → — Figure 458121A 458121A 2021-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
