Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

13 part groups · 2 illustrations

Illustrations

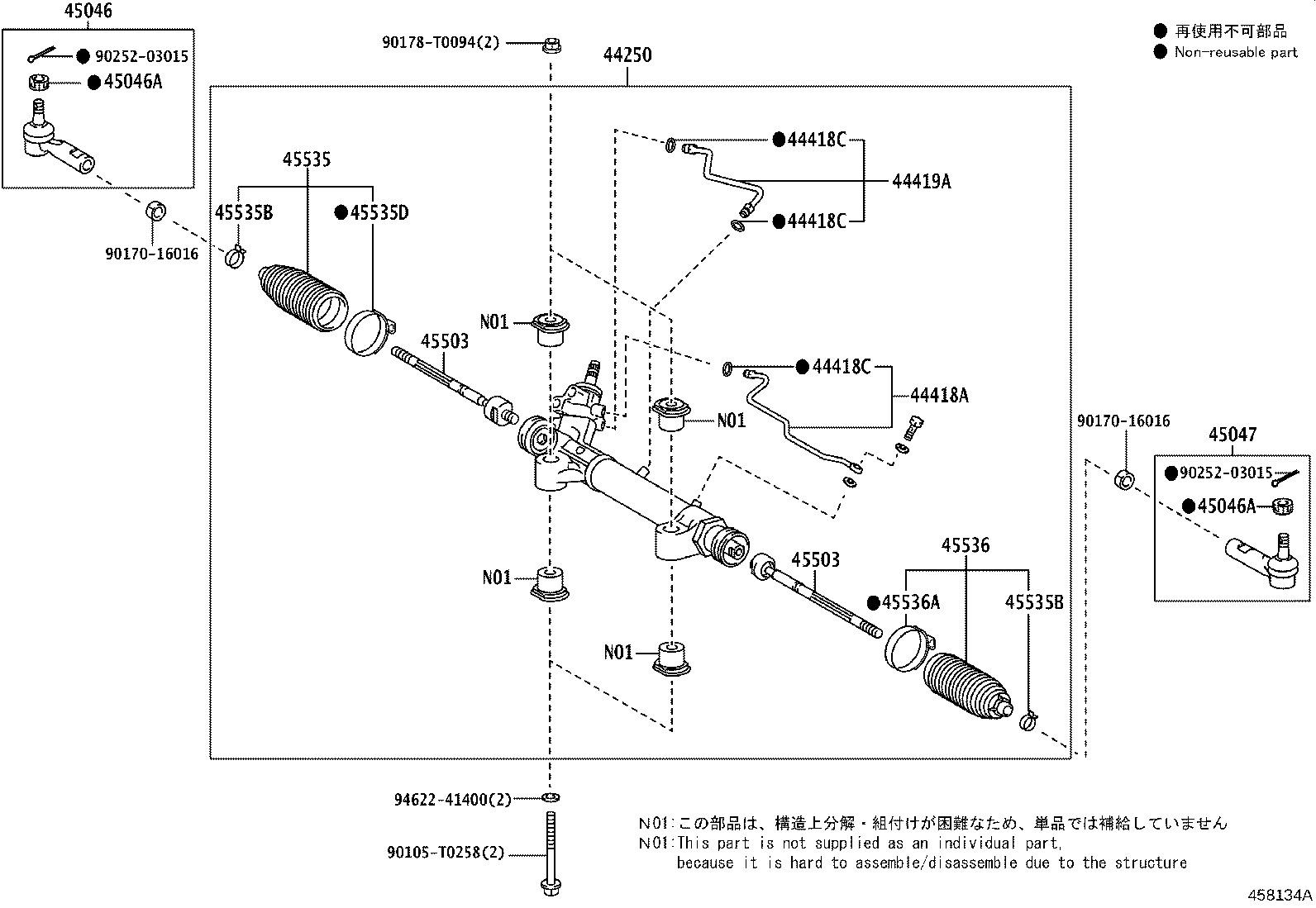

Figure 458132B 458132B 2021-08 → — Figure 458134A 458134A 2021-09 → —

Part groups

PNCDescription
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44418A Tube, Steering Right Turn Pressure
44418C Ring, O(FOR STEERING TURN PRESSURE TUBE)
44419A Tube, Steering Left Turn Pressure
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
