Toyota Hilux (DCB/SCB/XTR)
2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe
Supported model
Data version 2023-09

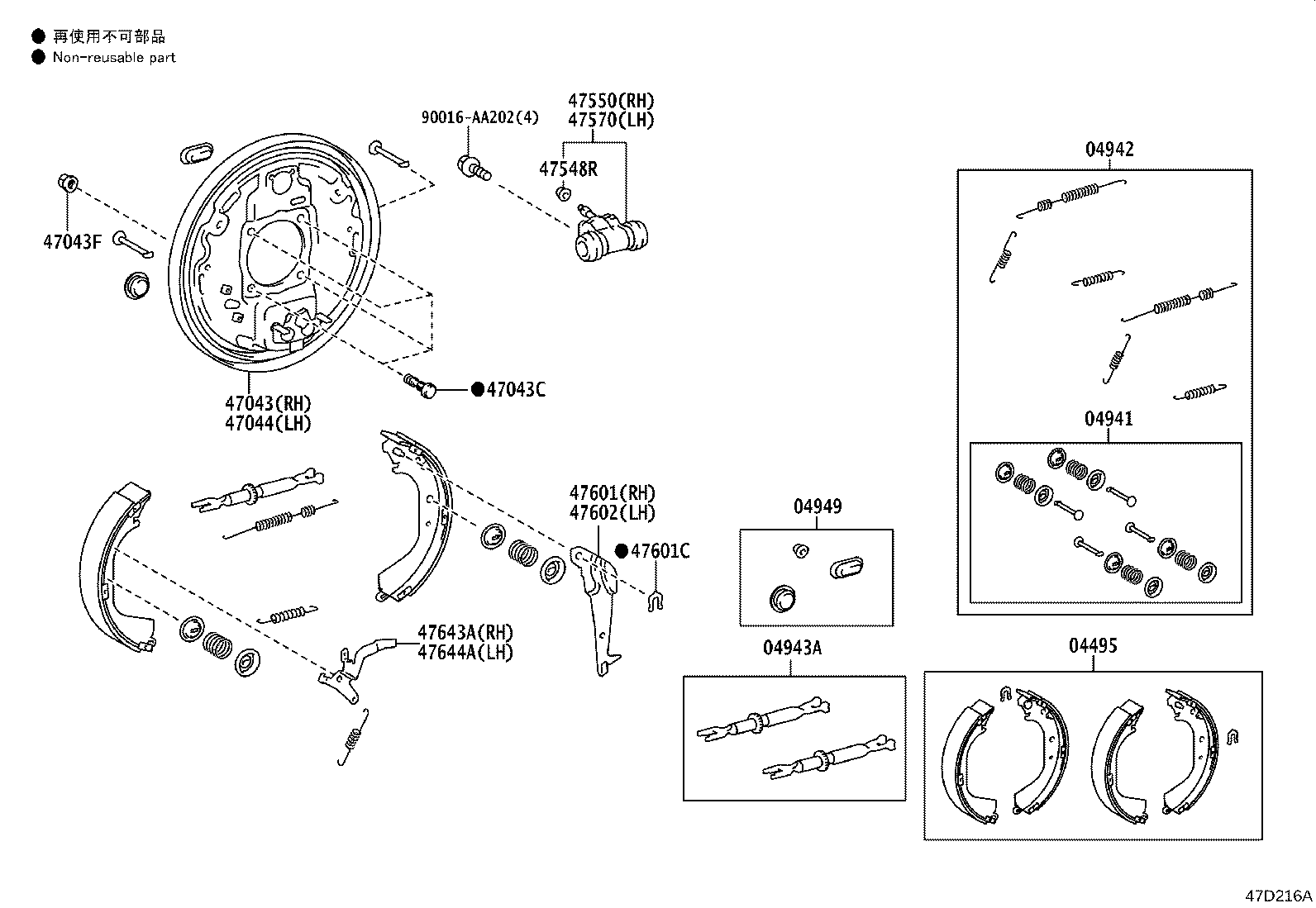

Rear Drum Brake Wheel Cylinder & Backing Plate
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04495 | Shoe Kit, Rear Brake |
| 04941 | Spring Kit, Rear Brake Shoe Hold Down |
| 04942 | Spring Kit, Rear Brake |
| 04943A | Strut Kit, Rear Brake |
| 04949 | Plug Kit, Rear Brake |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47643A | Lever, Rear Brake Automatic Adjust, RH |
| 47644A | Lever, Rear Brake Automatic Adjust, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
