Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

13 part groups · 2 illustrations

Illustrations

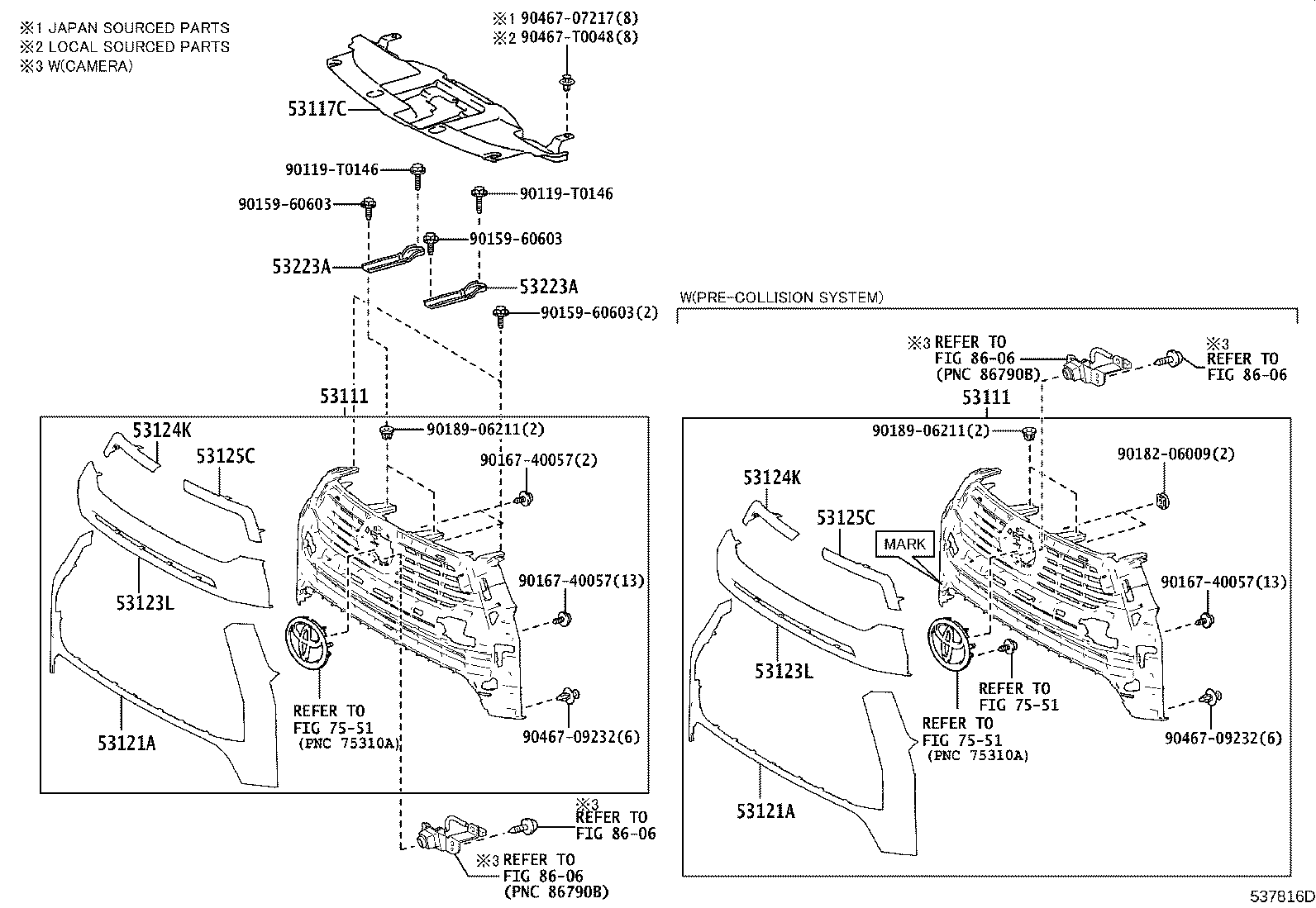

Figure 537815B 537815B 2021-08 → — Figure 537816D 537816D 2021-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53121A Moulding, Radiator Grille
53121F Moulding, Radiator Grille, Upper RH
53122A Moulding, Radiator Grille, Lower
53123L Moulding, Radiator Grille, NO.3
53124C Moulding, Radiator Grille, Upper LH
53124K Moulding, Radiator Grille, NO.4
53125A Moulding, Radiator Grille, Center RH
53125C Moulding, Radiator Grille, NO.5
53126A Moulding, Radiator Grille, Center LH
53129B Moulding, Radiator Grille, NO.9
53223A Bracket, Radiator Grille Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
