Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

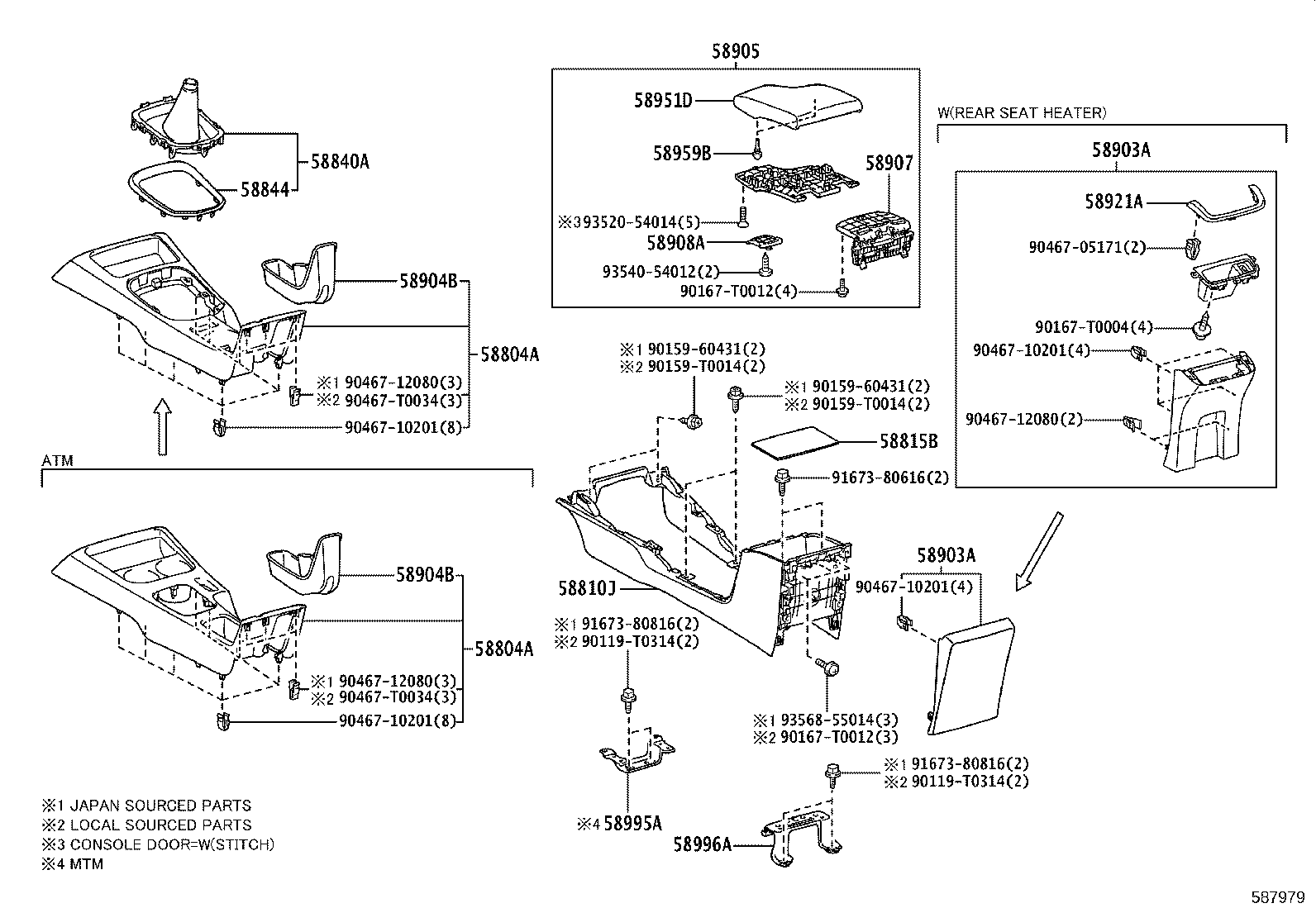

Figure 587978 587978 2021-08 → — Figure 587979 587979 2021-08 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58815B Carpet, Console Box
58833A Cover, Console, Upper
58840A Cover Assy, Shifting Hole
58844 Bezel, Console Box
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58921A Panel, Rear Console, Upper
58951D Door, Console Compartment, Outer
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
