Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09

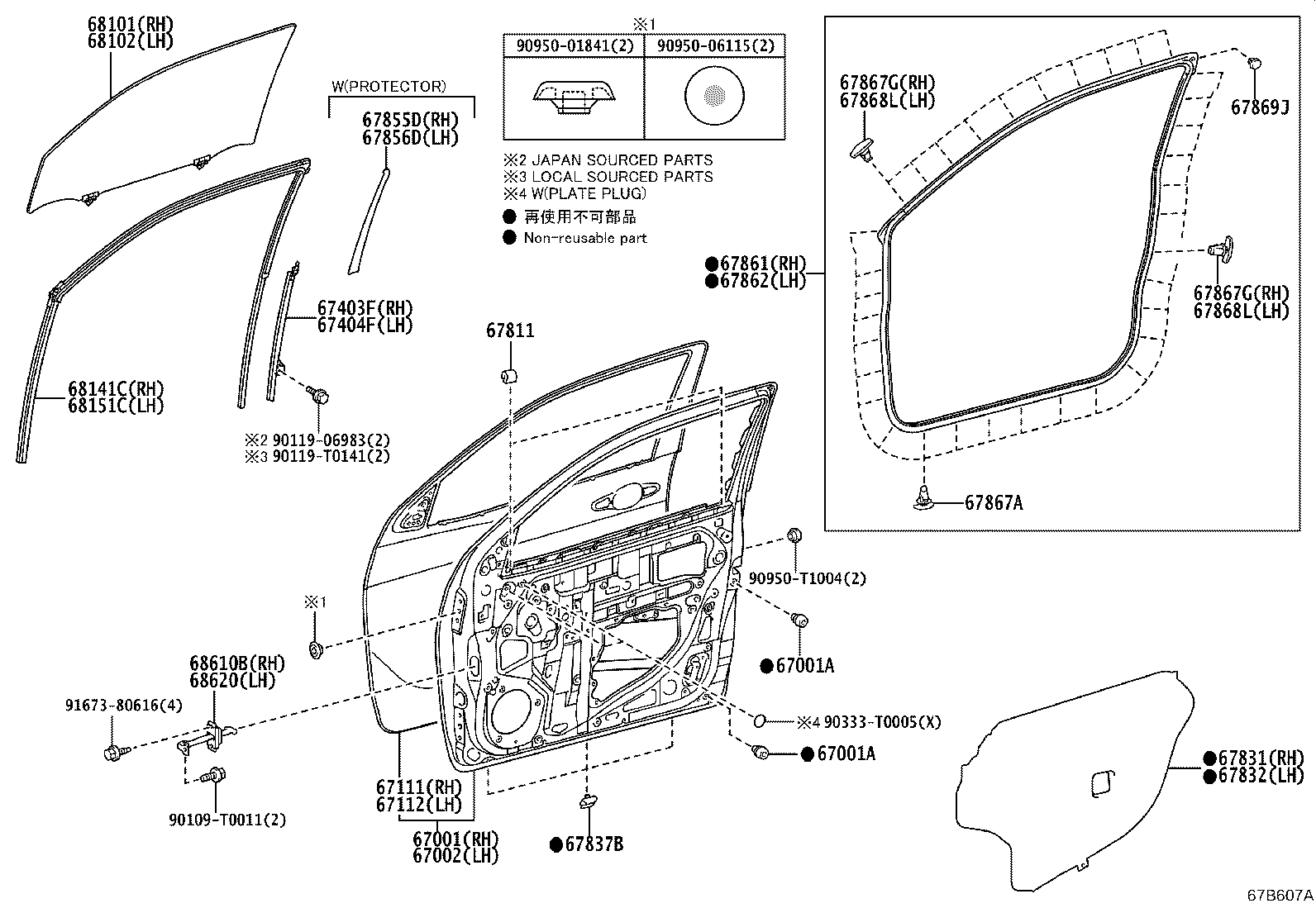

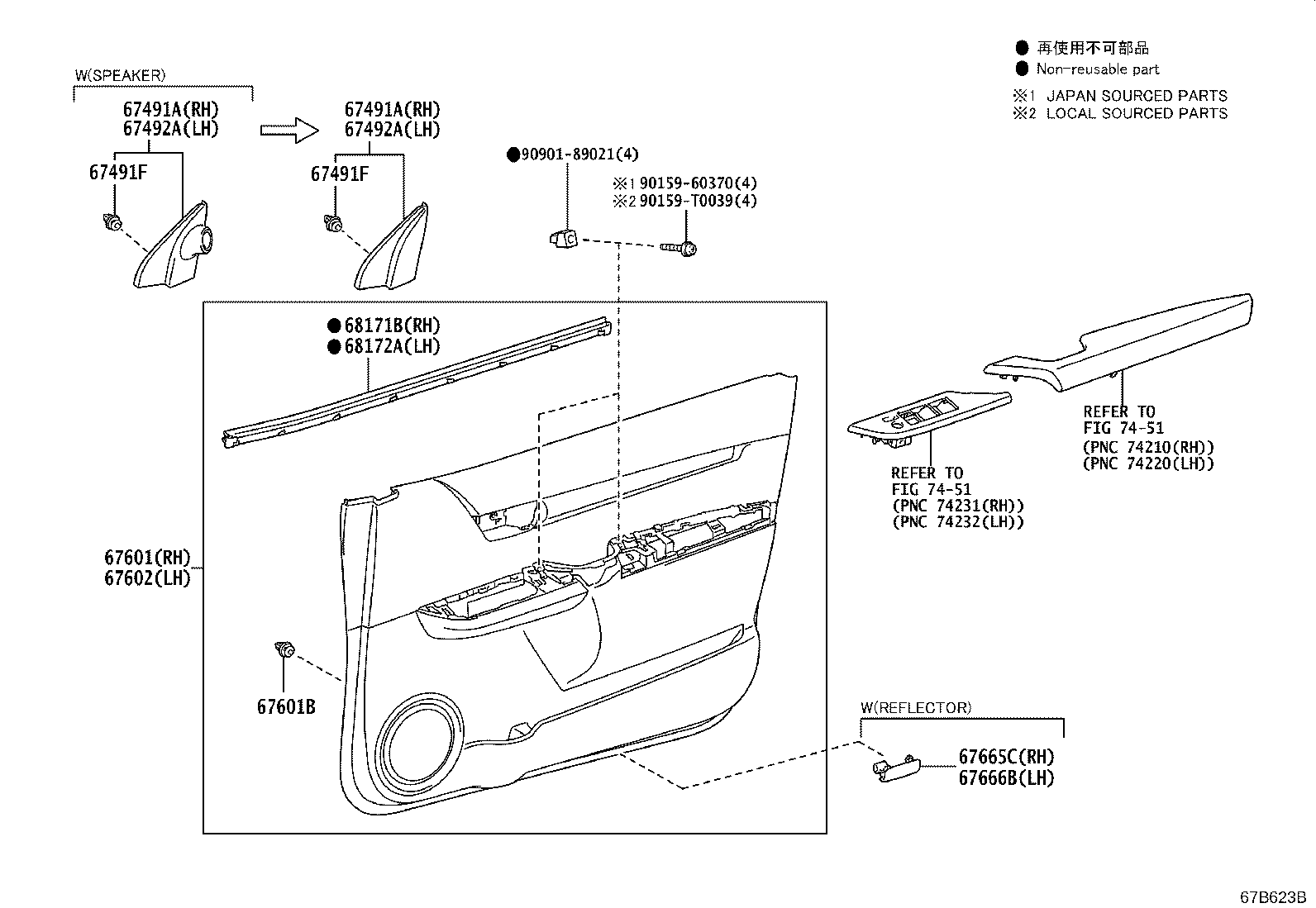

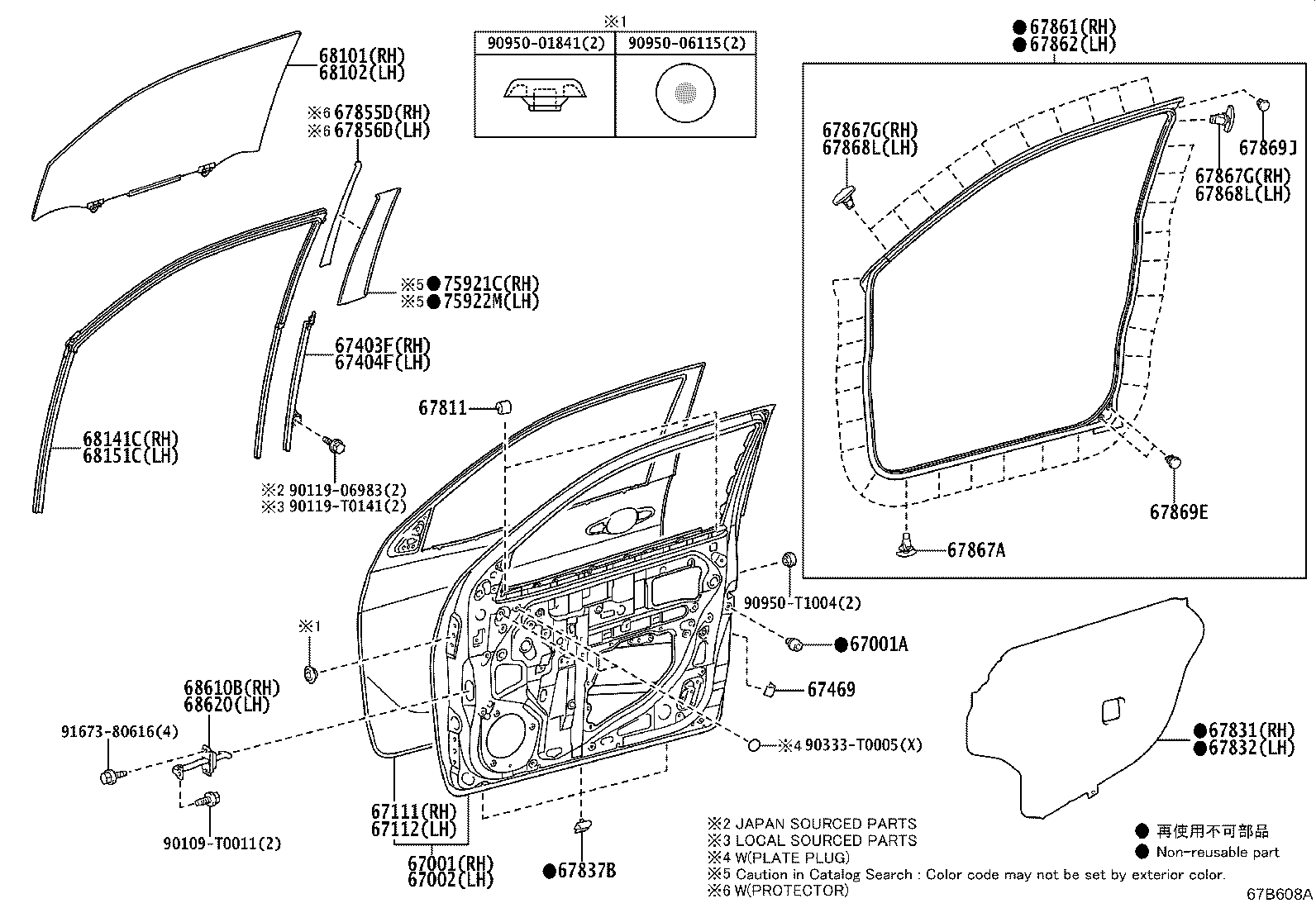

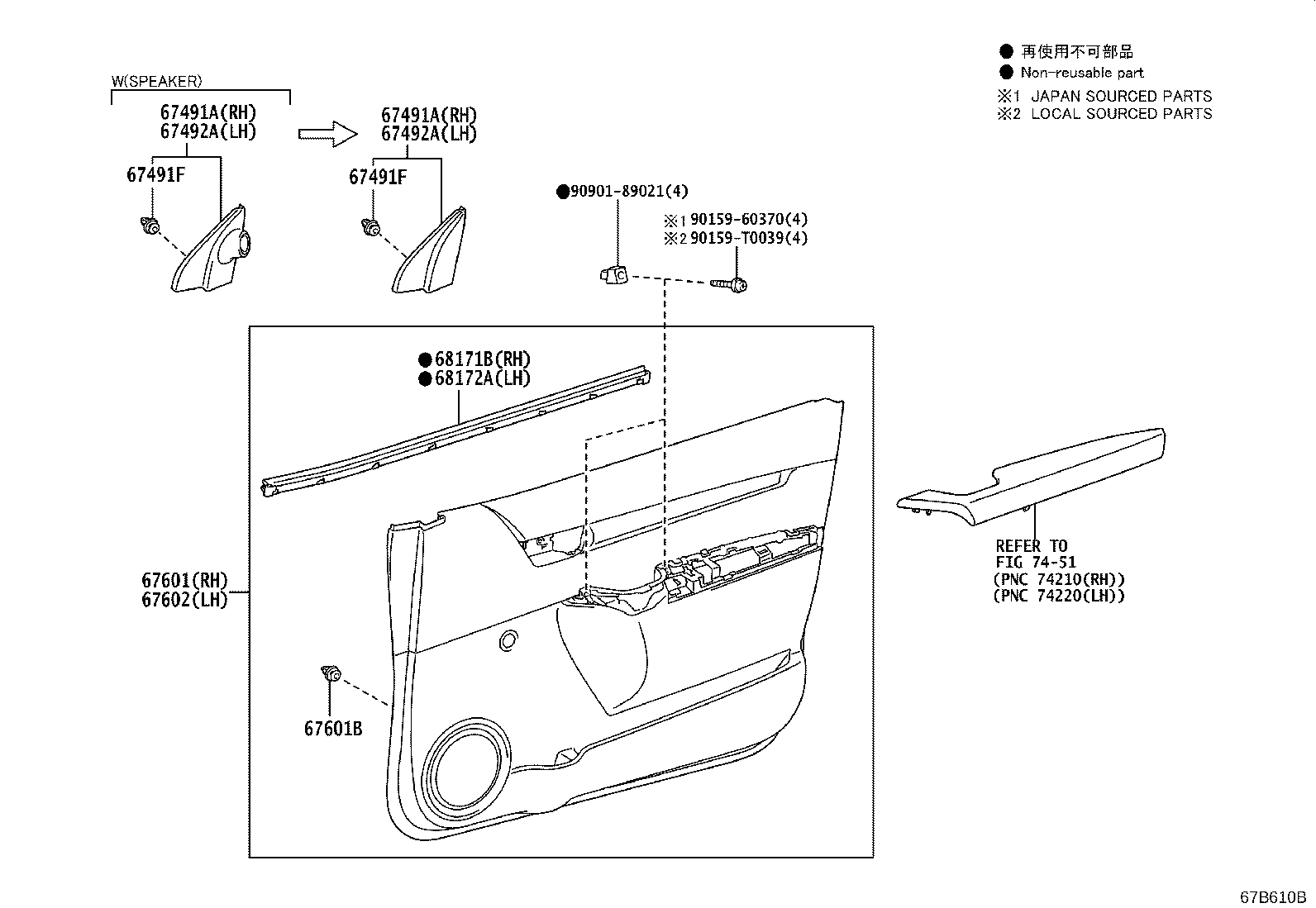

Front Door Panel & Glass

39 part groups · 5 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67469	Protector, Front Door Guide
67491A	Garnish, Front Door Lower Frame Bracket, RH
67491F	Clip(FOR DOOR TRIM)
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67665C	Reflector, Front Door Trim, RH
67666B	Reflector, Front Door Trim, LH
67811	Pad, Front Door Silencer
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67837B	Seal, Front Door Dust Proof
67855D	Protector, Front Door Panel, RH
67856D	Protector, Front Door Panel, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867A	Clip, Door Weatherstrip(FOR FRONT DOOR)
67867G	Retainer, Door Weatherstrip, RH
67868L	Retainer, Door Weatherstrip, LH
67869E	Clip, Front Door Weatherstrip
67869J	Clip, Front Door Weatherstrip
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
