Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

23 part groups · 5 illustrations

Illustrations

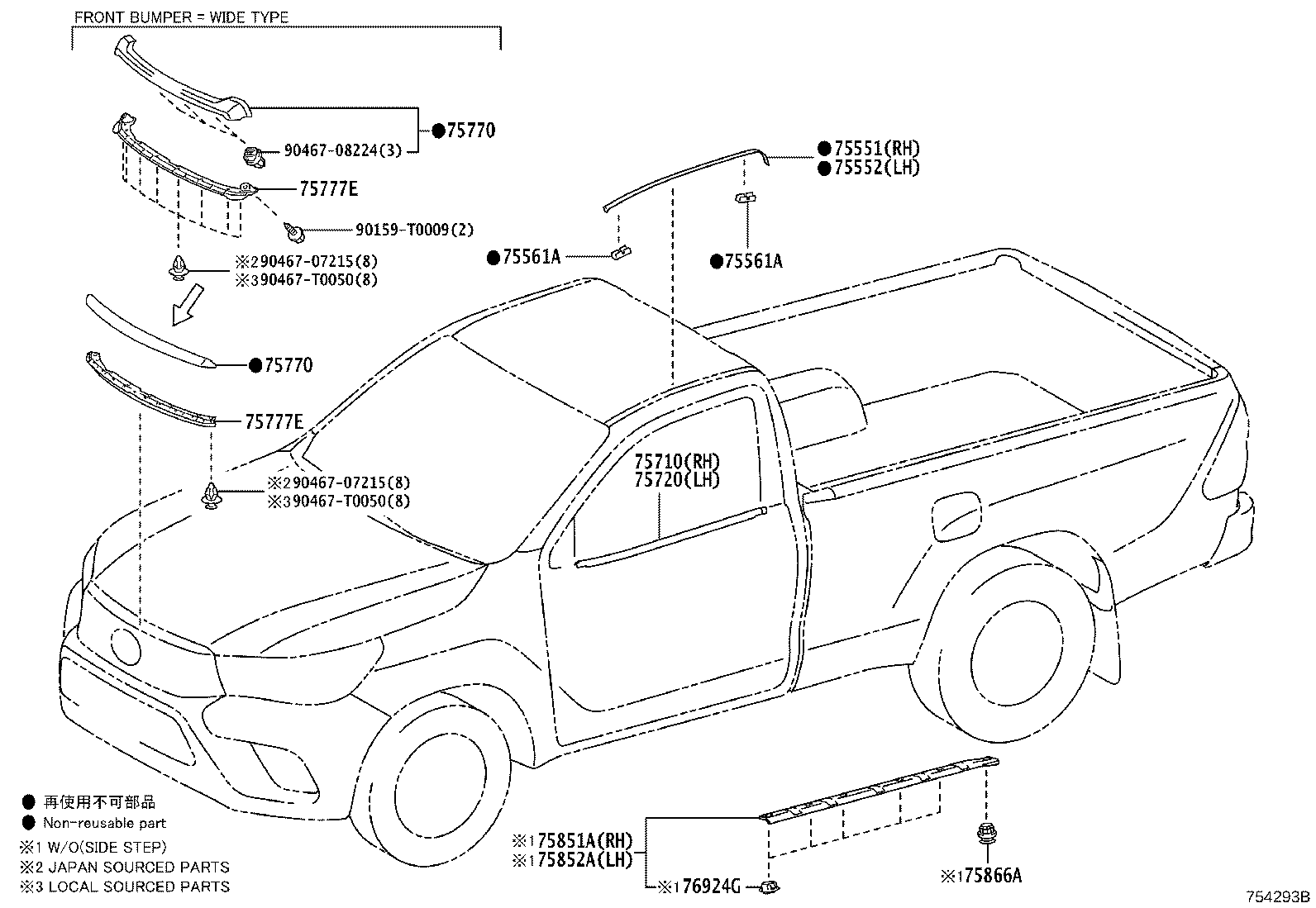

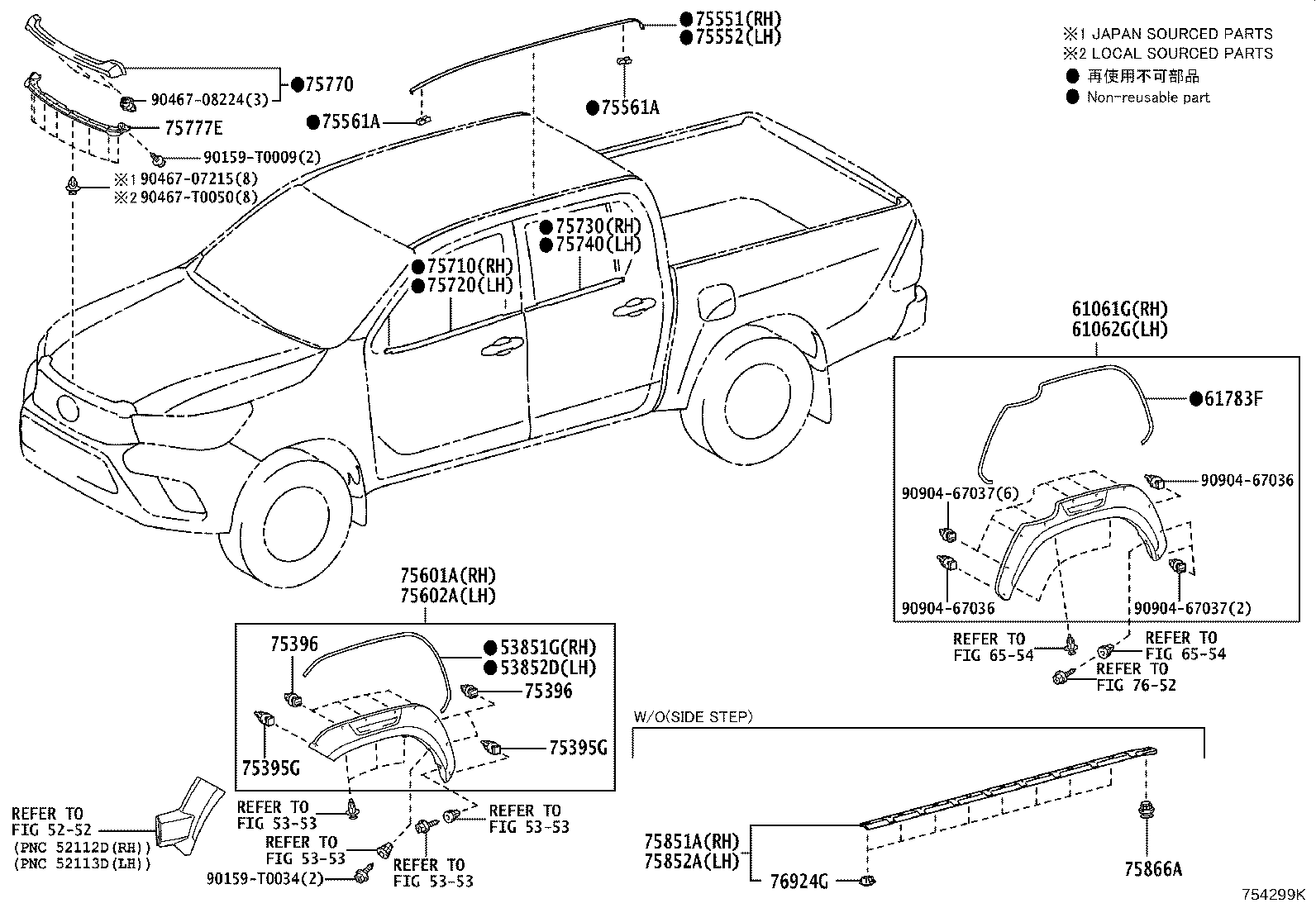

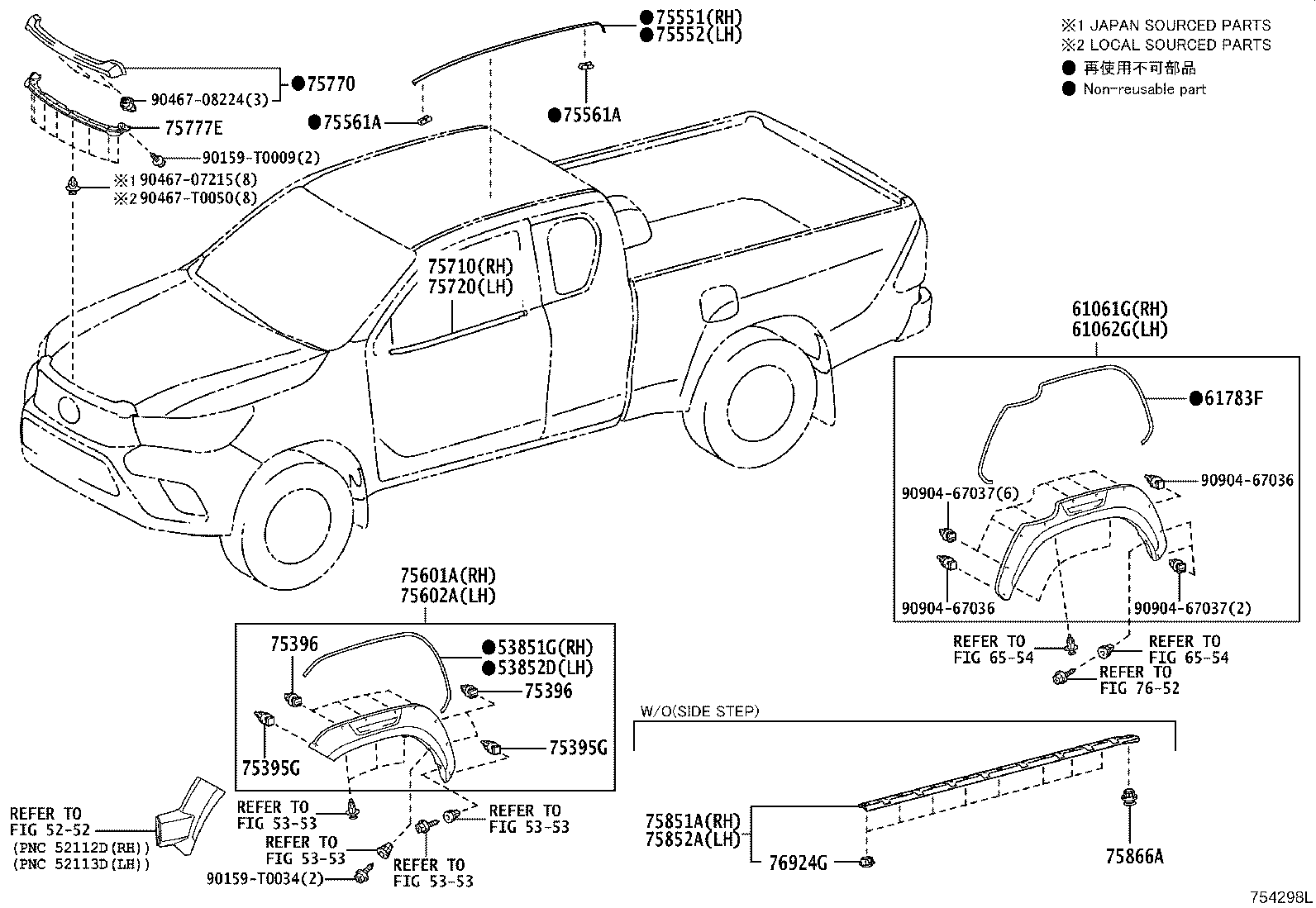

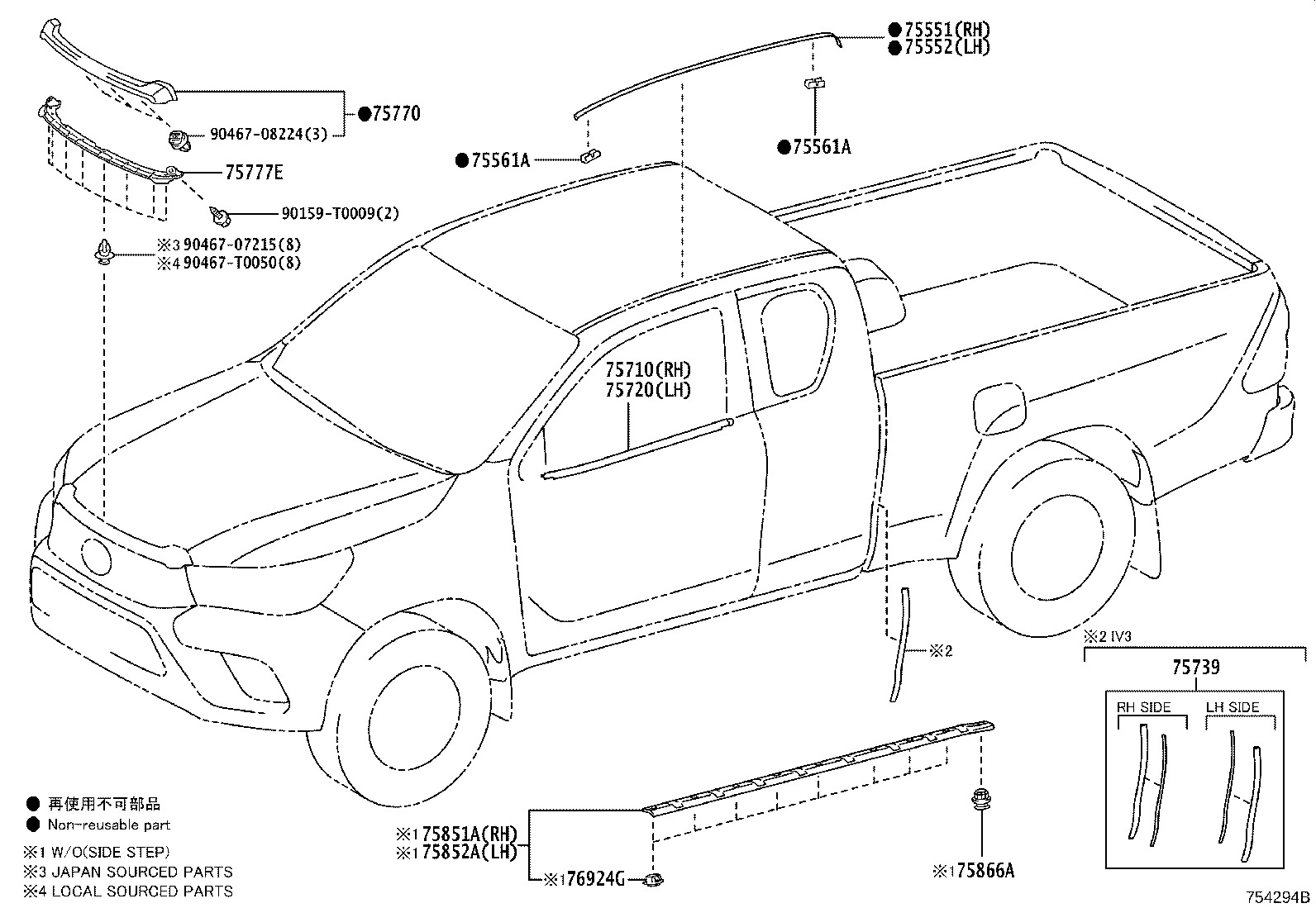

Figure 754292B 754292B 2021-08 → — Figure 754293B 754293B 2021-09 → — Figure 754294B 754294B 2021-09 → — Figure 754299K 754299K 2021-08 → — Figure 754298L 754298L 2021-09 → —

Part groups

PNCDescription
53851G Pad, Front Wheel Opening Extension, RH
53852D Pad, Front Wheel Opening Extension, LH
61061G Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61062G Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61783F Pad, Rear Wheel Opening Extension NO.1
75395G Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561A Clip, Roof Drip Side Finish Moulding
75601A Moulding Sub-assy, Front Fender, RH
75602A Moulding Sub-assy, Front Fender, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75739 Moulding, Door Edge Protection
75740 Moulding Assy, Rear Door Belt, LH
75770 Moulding Assy, Hood, Front
75777E Pad, Hood Front Moulding
75851A Moulding, Rocker Panel, Front RH
75852A Moulding, Rocker Panel, Front LH
75866A Retainer, Rocker Panel Moulding
76924G Retainer, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
