Toyota Hilux (DCB/SCB/XTR)

2021-08 → 2023-01 · chassis GUN125,126,135 · catalogue 6725B0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

9 part groups · 3 illustrations

Illustrations

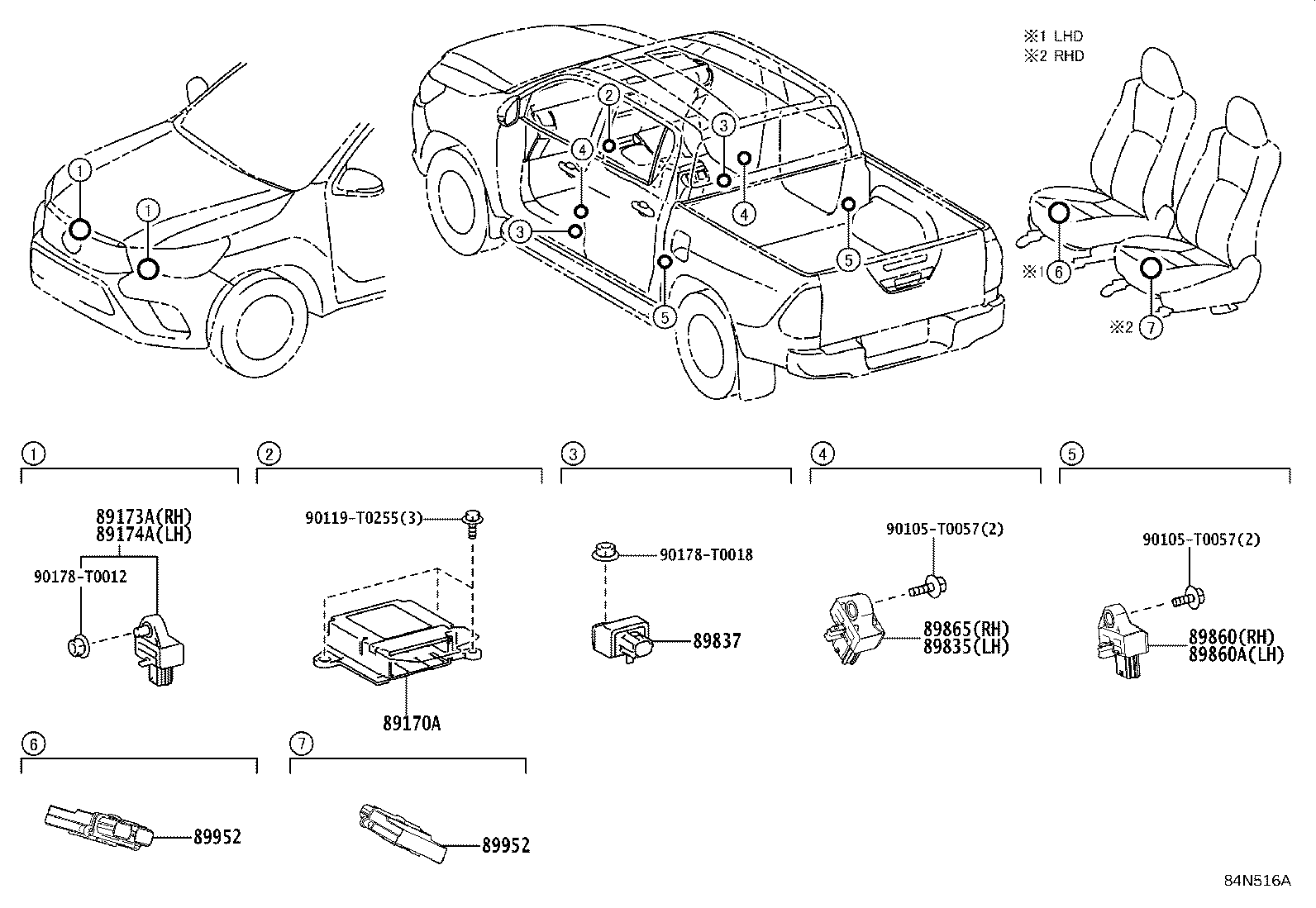

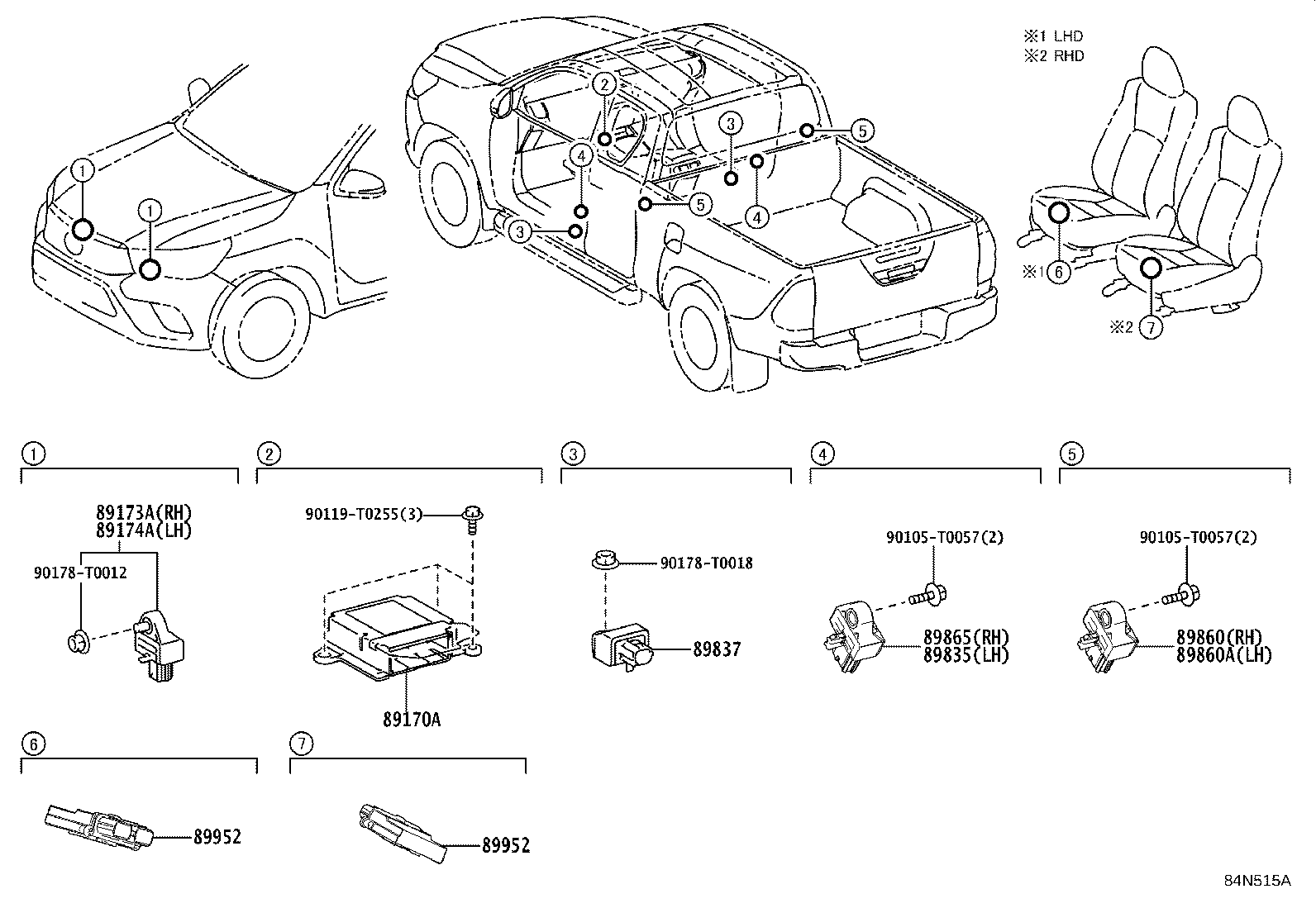

Figure 84N514A 84N514A 2021-08 → — Figure 84N515A 84N515A 2021-08 → — Figure 84N516A 84N516A 2021-08 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89835 Sensor, Door Side Airbag, LH
89837 Sensor, Front Floor Side Airbag
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89865 Sensor, Door Side Airbag, RH
89952 Computer, Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
