Toyota Hilux (DCB/SCB/XTR)
2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe
Supported model
Data version 2024-09

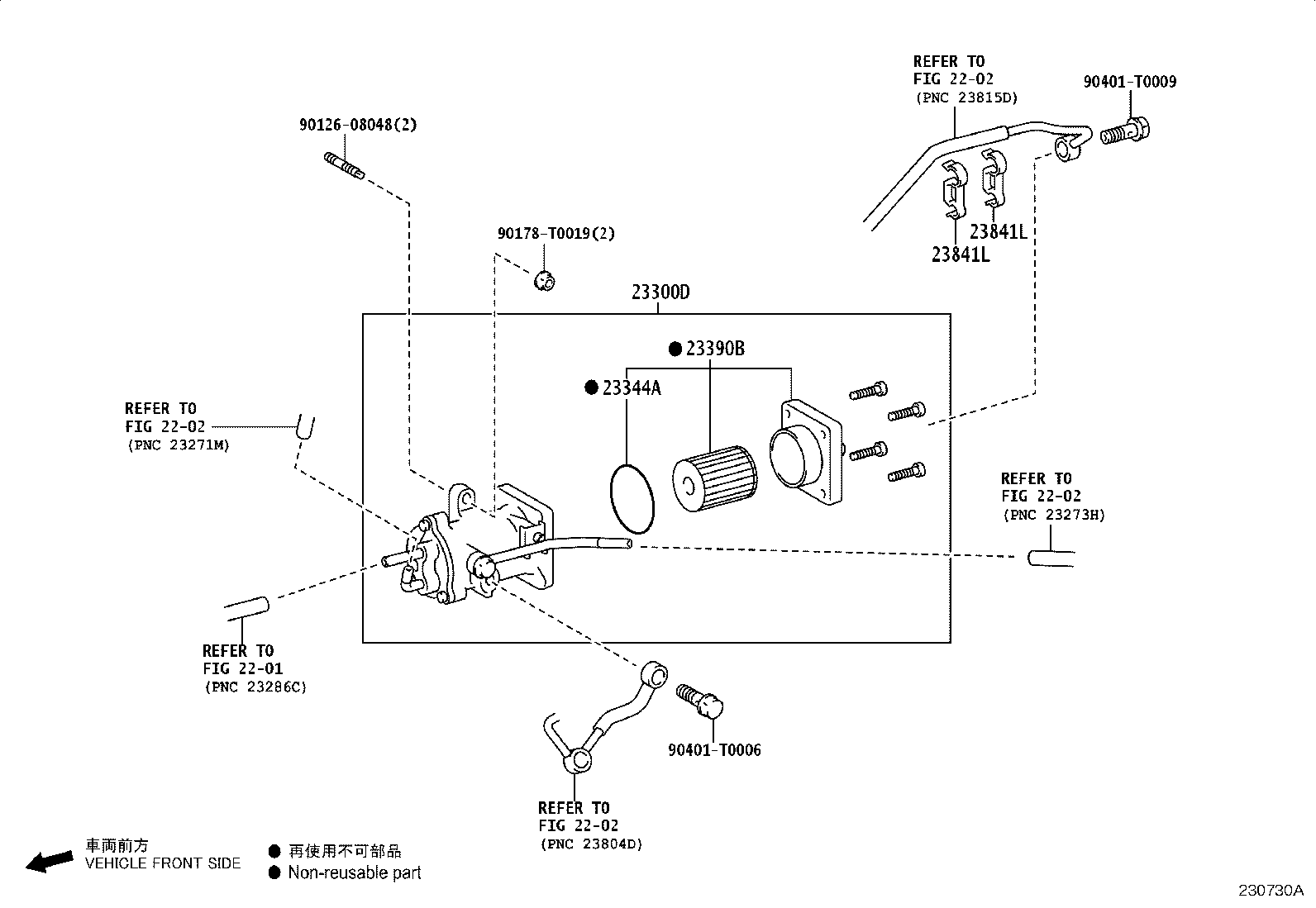

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23300D — Filter Assy, Fuel(FOR DIESEL) | ||||
| 23300-0E011 note |
Filter Assy, Fuel(FOR DIESEL)
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23300-0E011 note |
Filter Assy, Fuel(FOR DIESEL)
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23300-0E011 |
Filter Assy, Fuel(FOR DIESEL)
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN12#,135 THP | — | |
| 23300-0E011 |
Filter Assy, Fuel(FOR DIESEL)
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN12#,135 SAP | — | |
| 23300-0E011 note |
Filter Assy, Fuel(FOR DIESEL)
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23344A — Gasket, Fuel Filter Element | ||||
| 23344-0E010 note |
Gasket, Fuel Filter Element
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23344-0E010 note |
Gasket, Fuel Filter Element
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23344-0E010 note |
Gasket, Fuel Filter Element
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23344-0E010 |
Gasket, Fuel Filter Element
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN12#,135 THP | — | |
| 23344-0E010 |
Gasket, Fuel Filter Element
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN12#,135 SAP | — | |
| 23390B — Element Assy, Fuel Filter, NO.2 | ||||
| 23390-0E011 note |
Element Assy, Fuel Filter, NO.2
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23390-0E011 |
Element Assy, Fuel Filter, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN12#,135 SAP | — | |
| 23390-0E011 |
Element Assy, Fuel Filter, NO.2
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN12#,135 THP | — | |
| 23390-0E011 note |
Element Assy, Fuel Filter, NO.2
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23390-0E011 note |
Element Assy, Fuel Filter, NO.2
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23841L — Clamp, Fuel Pipe | ||||
| 23841-0E010 note |
Clamp, Fuel Pipe
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23841-0E010 note |
Clamp, Fuel Pipe
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23841-0E010 note |
Clamp, Fuel Pipe
2022-08 → 2023-05
ended
|
1GDFTV GUN126 THP | — | |
| 23841-0E010 |
Clamp, Fuel Pipe
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN12#,135 THP | — | |
| 23841-0E010 |
Clamp, Fuel Pipe
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN12#,135 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
