Toyota Hilux (DCB/SCB/XTR)

2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

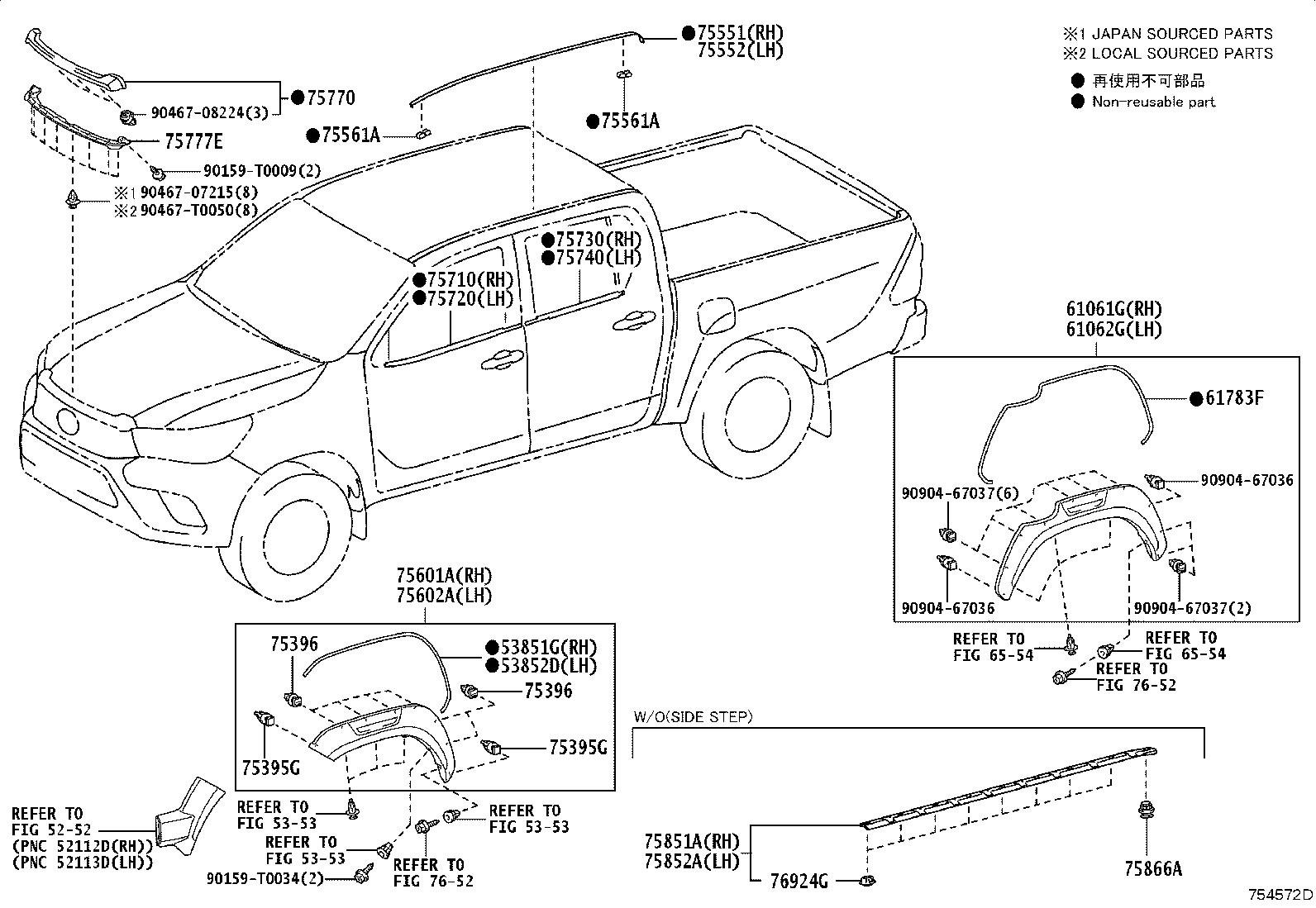

Exploded illustration 754572D 5353 — not listed in this catalogue 5353 — not listed in this catalogue 7652 — not listed in this catalogue 5353 — not listed in this catalogue 75851A — MOULDING, ROCKER PANEL, FRONT RH (7 parts) 75852A — MOULDING, ROCKER PANEL, FRONT LH (7 parts) 75710 — MOULDING ASSY, FRONT DOOR BELT, RH (7 parts) 75720 — MOULDING ASSY, FRONT DOOR BELT, LH (7 parts) 75730 — MOULDING ASSY, REAR DOOR BELT, RH (6 parts) 75740 — MOULDING ASSY, REAR DOOR BELT, LH (6 parts) 75551 — MOULDING, ROOF DRIP SIDE FINISH, RH (4 parts) 75552 — MOULDING, ROOF DRIP SIDE FINISH, LH (4 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75866A — RETAINER, ROCKER PANEL MOULDING (4 parts) 76924G — RETAINER, ROCKER PANEL MOULDING (6 parts) 90159T0009 — not listed in this catalogue 9046708224 — not listed in this catalogue 75770 — MOULDING ASSY, HOOD, FRONT (23 parts) 75777E — PAD, HOOD FRONT MOULDING (5 parts) 53851G — PAD, FRONT WHEEL OPENING EXTENSION, RH (5 parts) 53852D — PAD, FRONT WHEEL OPENING EXTENSION, LH (5 parts) 61061G — EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH (6 parts) 61062G — EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH (6 parts) 61783F — PAD, REAR WHEEL OPENING EXTENSION NO.1 (12 parts) 75395G — CLIP, OUTSIDE MOULDING, NO.1 (5 parts) 75395G — CLIP, OUTSIDE MOULDING, NO.1 (5 parts) 75396 — CLIP, OUTSIDE MOULDING, NO.2 (5 parts) 75396 — CLIP, OUTSIDE MOULDING, NO.2 (5 parts) 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (5 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (5 parts) 90159T0034 — not listed in this catalogue 9090467036 — not listed in this catalogue 9090467036 — not listed in this catalogue 9090467037 — not listed in this catalogue 9090467037 — not listed in this catalogue 9046707215 — not listed in this catalogue 90467T0050 — not listed in this catalogue 6554 — not listed in this catalogue 6554 — not listed in this catalogue 7652 — not listed in this catalogue 5252 — not listed in this catalogue
754572D · 25 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
142 parts on this figure
Part number Description Fitment Price
53851G — Pad, Front Wheel Opening Extension, RH
53851-YP010 note Pad, Front Wheel Opening Extension, RH
2022-08 → 2023-07 ended
GUN125 THP H —
53851-YP010 note Pad, Front Wheel Opening Extension, RH
2022-08 → 2023-07 ended
GUN126 THP H —
53851-YP020 note Pad, Front Wheel Opening Extension, RH
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
53851-YP020 note Pad, Front Wheel Opening Extension, RH
2023-01 → 2024-01 ended
GUN126 6F;GUN125 SAP H;GUN126 +2 —
53851-YP120 note Pad, Front Wheel Opening Extension, RH
2023-01 → 2023-07 ended
GUN126 THP H —
53852D — Pad, Front Wheel Opening Extension, LH
53852-YP010 note Pad, Front Wheel Opening Extension, LH
2022-08 → 2023-07 ended
GUN126 THP H —
53852-YP010 note Pad, Front Wheel Opening Extension, LH
2022-08 → 2023-07 ended
GUN125 THP H —
53852-YP020 note Pad, Front Wheel Opening Extension, LH
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
53852-YP020 note Pad, Front Wheel Opening Extension, LH
2023-01 → 2024-01 ended
GUN126 6F;GUN125 SAP H;GUN126 +2 —
53852-YP120 note Pad, Front Wheel Opening Extension, LH
2023-01 → 2023-07 ended
GUN126 THP H —
61061G — Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61061-YP010 note Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2022-08 → 2023-07 ended
GUN125 THP H —
61061-YP010 note Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2022-08 → 2023-07 ended
GUN126 THP H —
61061-YP020 note Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
61061-YP020 note Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2023-01 → 2024-01 ended
GUN126 DCB 6F;GUN125 DCB +2 —
61061-YP040 note Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2023-01 → 2024-01 ended
GUN12# XTR H —
61061-YP070 note Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2023-01 → 2023-07 ended
GUN126 THP H —
61062G — Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61062-YP010 note Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2022-08 → 2023-07 ended
GUN126 THP H —
61062-YP010 note Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2022-08 → 2023-07 ended
GUN125 THP H —
61062-YP020 note Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
61062-YP020 note Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2023-01 → 2024-01 ended
GUN126 DCB 6F;GUN125 DCB +2 —
61062-YP040 note Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2023-01 → 2024-01 ended
GUN12# XTR H —
61062-YP070 note Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2023-01 → 2023-07 ended
GUN126 THP H —
61783F — Pad, Rear Wheel Opening Extension NO.1
61783-YP010 note Pad, Rear Wheel Opening Extension NO.1
2022-08 → 2023-07 ended
GUN126 THP H —
61783-YP010 note Pad, Rear Wheel Opening Extension NO.1
2022-08 → 2023-07 ended
GUN125 THP H —
61783-YP020 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
61783-YP020 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2024-01 ended
GUN126 DCB 6F;GUN125 DCB +2 —
61783-YP040 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2024-01 ended
GUN12# XTR H —
61783-YP120 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2023-07 ended
GUN126 THP H —
61784-YP010 note Pad, Rear Wheel Opening Extension NO.1
2022-08 → 2023-07 ended
GUN126 THP H —
61784-YP010 note Pad, Rear Wheel Opening Extension NO.1
2022-08 → 2023-07 ended
GUN125 THP H —
61784-YP020 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
61784-YP020 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2024-01 ended
GUN126 DCB 6F;GUN125 DCB +2 —
61784-YP040 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2024-01 ended
GUN12# XTR H —
61784-YP120 note Pad, Rear Wheel Opening Extension NO.1
2023-01 → 2023-07 ended
GUN126 THP H —
75395G — Clip, Outside Moulding, NO.1
75395-0K010 note Clip, Outside Moulding, NO.1
2022-08 → 2024-01 ended
GUN126 DCB SAP 6FC —
75395-0K010 note Clip, Outside Moulding, NO.1
2022-08 → 2024-01 ended
GUN126 6F;GUN125 SAP H;GUN126 +2 —
75395-0K010 note Clip, Outside Moulding, NO.1
2023-01 → 2023-07 ended
GUN126 THP H —
75395-0K010 note Clip, Outside Moulding, NO.1
2022-08 → 2023-07 ended
GUN126 THP H —
75395-0K010 note Clip, Outside Moulding, NO.1
2022-08 → 2023-07 ended
GUN125 THP H —
75396 — Clip, Outside Moulding, NO.2
75396-35020 note Clip, Outside Moulding, NO.2
2022-08 → 2023-07 ended
GUN126 THP H —
75396-35020 note Clip, Outside Moulding, NO.2
2022-08 → 2024-01 ended
GUN126 6F;GUN125 SAP H;GUN126 +2 —
75396-35020 note Clip, Outside Moulding, NO.2
2022-08 → 2024-01 ended
GUN126 DCB SAP 6FC —
75396-35020 note Clip, Outside Moulding, NO.2
2023-01 → 2023-07 ended
GUN126 THP H —
75396-35020 note Clip, Outside Moulding, NO.2
2022-08 → 2023-07 ended
GUN125 THP H —
75551 — Moulding, Roof Drip Side Finish, RH
75551-0K160 note Moulding, Roof Drip Side Finish, RH
2022-08 → 2023-07 ended
GUN12#,135 THP —
75551-0K160 note Moulding, Roof Drip Side Finish, RH
2022-08 → 2024-01 ended
GUN12#,135 DCB SAP —
75551-0K170 note Moulding, Roof Drip Side Finish, RH
2023-01 → 2024-01 ended
GUN125,135 SCB —
75551-0K180 note Moulding, Roof Drip Side Finish, RH
2023-01 → 2024-01 ended
GUN12# XTR —
75552 — Moulding, Roof Drip Side Finish, LH
75552-0K160 note Moulding, Roof Drip Side Finish, LH
2022-08 → 2023-07 ended
GUN12#,135 THP —
75552-0K160 note Moulding, Roof Drip Side Finish, LH
2022-08 → 2024-01 ended
GUN12#,135 DCB SAP —
75552-0K170 note Moulding, Roof Drip Side Finish, LH
2023-01 → 2024-01 ended
GUN125,135 SCB —
75552-0K180 note Moulding, Roof Drip Side Finish, LH
2023-01 → 2024-01 ended
GUN12# XTR —
75561A — Clip, Roof Drip Side Finish Moulding
75561-33030 Clip, Roof Drip Side Finish Moulding
2022-08 → 2023-07 ended
GUN12#,135 THP —
75561-33030 Clip, Roof Drip Side Finish Moulding
2022-08 → 2024-01 ended
GUN12#,135 SAP —
75601A — Moulding Sub-assy, Front Fender, RH
53087-YP010 note Moulding Sub-assy, Front Fender, RH
2022-08 → 2023-07 ended
GUN125 THP H —
53087-YP010 note Moulding Sub-assy, Front Fender, RH
2022-08 → 2023-07 ended
GUN126 THP H —
53087-YP020 note Moulding Sub-assy, Front Fender, RH
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
53087-YP020 note Moulding Sub-assy, Front Fender, RH
2023-01 → 2024-01 ended
GUN126 6F;GUN125 SAP H;GUN126 +2 —
53087-YP050 note Moulding Sub-assy, Front Fender, RH
2023-01 → 2023-07 ended
GUN126 THP H —
75602A — Moulding Sub-assy, Front Fender, LH
53088-YP010 note Moulding Sub-assy, Front Fender, LH
2022-08 → 2023-07 ended
GUN126 THP H —
53088-YP010 note Moulding Sub-assy, Front Fender, LH
2022-08 → 2023-07 ended
GUN125 THP H —
53088-YP020 note Moulding Sub-assy, Front Fender, LH
2023-01 → 2024-01 ended
GUN126 6F;GUN125 SAP H;GUN126 +2 —
53088-YP020 note Moulding Sub-assy, Front Fender, LH
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
53088-YP050 note Moulding Sub-assy, Front Fender, LH
2023-01 → 2023-07 ended
GUN126 THP H —
75710 — Moulding Assy, Front Door Belt, RH
68160-0K010 Moulding Assy, Front Door Belt, RH
2022-08 → 2023-07 ended
GUN12#,135 THP S —
68160-0K010 note Moulding Assy, Front Door Belt, RH
2022-08 → 2023-07 ended
GUN12# THP H —
68160-0K010 Moulding Assy, Front Door Belt, RH
2022-08 → 2024-01 ended
GUN125,135 DCB SAP (L,S) —
68160-0K010 note Moulding Assy, Front Door Belt, RH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
68160-0K040 Moulding Assy, Front Door Belt, RH
2023-01 → 2024-01 ended
GUN12#,135 SCB,XTR —
68160-0K070 Moulding Assy, Front Door Belt, RH
2022-08 → 2023-07 ended
GUN12# THP H —
68160-0K070 Moulding Assy, Front Door Belt, RH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
75720 — Moulding Assy, Front Door Belt, LH
68210-0K010 Moulding Assy, Front Door Belt, LH
2022-08 → 2024-01 ended
GUN125,135 DCB SAP (L,S) —
68210-0K010 note Moulding Assy, Front Door Belt, LH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
68210-0K010 Moulding Assy, Front Door Belt, LH
2022-08 → 2023-07 ended
GUN12#,135 THP S —
68210-0K010 note Moulding Assy, Front Door Belt, LH
2022-08 → 2023-07 ended
GUN12# THP H —
68210-0K040 Moulding Assy, Front Door Belt, LH
2023-01 → 2024-01 ended
GUN12#,135 SCB,XTR —
68210-0K070 Moulding Assy, Front Door Belt, LH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
68210-0K070 Moulding Assy, Front Door Belt, LH
2022-08 → 2023-07 ended
GUN12# THP H —
75730 — Moulding Assy, Rear Door Belt, RH
68180-0K010 Moulding Assy, Rear Door Belt, RH
2022-08 → 2023-07 ended
GUN12#,135 THP S —
68180-0K010 note Moulding Assy, Rear Door Belt, RH
2022-08 → 2023-07 ended
GUN12# THP H —
68180-0K010 Moulding Assy, Rear Door Belt, RH
2022-08 → 2024-01 ended
GUN125,135 DCB SAP (L,S) —
68180-0K010 note Moulding Assy, Rear Door Belt, RH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
68180-0K120 Moulding Assy, Rear Door Belt, RH
2022-08 → 2023-07 ended
GUN12# THP H —
68180-0K120 Moulding Assy, Rear Door Belt, RH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
75740 — Moulding Assy, Rear Door Belt, LH
68230-0K010 Moulding Assy, Rear Door Belt, LH
2022-08 → 2023-07 ended
GUN12#,135 THP S —
68230-0K010 note Moulding Assy, Rear Door Belt, LH
2022-08 → 2023-07 ended
GUN12# THP H —
68230-0K010 Moulding Assy, Rear Door Belt, LH
2022-08 → 2024-01 ended
GUN125,135 DCB SAP (L,S) —
68230-0K010 note Moulding Assy, Rear Door Belt, LH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
68230-0K120 Moulding Assy, Rear Door Belt, LH
2022-08 → 2024-01 ended
GUN12# DCB SAP H —
68230-0K120 Moulding Assy, Rear Door Belt, LH
2022-08 → 2023-07 ended
GUN12# THP H —
75770 — Moulding Assy, Hood, Front
75770-0K390 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN12#,135 THP S —
75770-0K401 note Moulding Assy, Hood, Front
2023-01 → 2024-01 ended
GUN125,135 SCB —
75770-0K440 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN125 THP H —
75770-0K440 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN126 THP H —
75770-0K440 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN126 S —
75770-0K440 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN126 THP H —
75770-0K440 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN126 S —
75770-0K440 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN125,135 THP S —
75770-0K450 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN126 THP H —
75770-0K450 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN125 THP 6F —
75770-0K450 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN125 THP H —
75770-0K450 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN125 THP S —
75770-0K450 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN126 S —
75770-0K460 note Moulding Assy, Hood, Front
2023-01 → 2024-01 ended
GUN125 RHD SCB —
75770-0K460 note Moulding Assy, Hood, Front
2023-01 → 2024-01 ended
GUN125,135 (DCB,XTR) SAP S —
75770-0K480 note Moulding Assy, Hood, Front
2023-01 → 2023-11 ended
GUN126 RHD;GUN126 XTR;GUN125 SAP +4 —
75770-0K480 note Moulding Assy, Hood, Front
2023-01 → 2023-11 ended
GUN126 RHD 6FC —
75770-0K480 note Moulding Assy, Hood, Front
2023-01 → 2024-01 ended
GUN12# SAP H —
75770-0K490 note Moulding Assy, Hood, Front
2023-02 → 2024-01 ended
GUN125 L —
75770-YP030 note Moulding Assy, Hood, Front
2022-08 → 2023-07 ended
GUN12# THP H —
75770-YP040 note Moulding Assy, Hood, Front
2023-01 → 2024-01 ended
GUN12# SAP H —
75770-YP070 note Moulding Assy, Hood, Front
2023-01 → 2023-07 ended
GUN126 THP H —
75770-YY020 note Moulding Assy, Hood, Front
2023-01 → 2024-01 ended
GUN126 DCB SAP 6FC —
75777E — Pad, Hood Front Moulding
53393-0K020 Pad, Hood Front Moulding
2023-01 → 2024-01 ended
GUN125,135 SCB —
53393-0K041 Pad, Hood Front Moulding
2022-08 → 2023-07 ended
GUN12#,135 THP —
53393-0K051 note Pad, Hood Front Moulding
2023-01 → 2023-11 ended
GUN126 RHD 6FC —
53393-0K051 Pad, Hood Front Moulding
2023-01 → 2024-01 ended
GUN12#,135 (DCB,XTR) SAP —
53393-0K051 note Pad, Hood Front Moulding
2023-01 → 2024-01 ended
GUN125 RHD SCB —
75851A — Moulding, Rocker Panel, Front RH
75851-0K010 Moulding, Rocker Panel, Front RH
2022-08 → 2023-07 ended
GUN135 THP —
75851-0K010 note Moulding, Rocker Panel, Front RH
2022-08 → 2023-07 ended
GUN12# THP —
75851-0K060 Moulding, Rocker Panel, Front RH
2023-01 → 2024-01 ended
GUN125 L;GUN135 DCB SAP —
75851-0K060 note Moulding, Rocker Panel, Front RH
2023-01 → 2024-01 ended
GUN12# DCB SAP (H,S) —
75851-0K080 note Moulding, Rocker Panel, Front RH
2023-01 → 2024-01 ended
GUN125 SCB —
75851-0K080 Moulding, Rocker Panel, Front RH
2023-01 → 2024-01 ended
GUN135 SCB —
75851-0K100 note Moulding, Rocker Panel, Front RH
2023-01 → 2024-01 ended
GUN12# XTR —
75852A — Moulding, Rocker Panel, Front LH
75852-0K010 Moulding, Rocker Panel, Front LH
2022-08 → 2023-07 ended
GUN135 THP —
75852-0K010 note Moulding, Rocker Panel, Front LH
2022-08 → 2023-07 ended
GUN12# THP —
75852-0K060 Moulding, Rocker Panel, Front LH
2023-01 → 2024-01 ended
GUN125 L;GUN135 DCB SAP —
75852-0K060 note Moulding, Rocker Panel, Front LH
2023-01 → 2024-01 ended
GUN12# DCB SAP (H,S) —
75852-0K080 Moulding, Rocker Panel, Front LH
2023-01 → 2024-01 ended
GUN135 SCB —
75852-0K080 note Moulding, Rocker Panel, Front LH
2023-01 → 2024-01 ended
GUN125 SCB —
75852-0K100 note Moulding, Rocker Panel, Front LH
2023-01 → 2024-01 ended
GUN12# XTR —
75866A — Retainer, Rocker Panel Moulding
76923-52021 Retainer, Rocker Panel Moulding
2022-08 → 2023-07 ended
GUN135 THP —
76923-52021 note Retainer, Rocker Panel Moulding
2022-08 → 2024-01 ended
GUN12# SAP (H,S) —
76923-52021 Retainer, Rocker Panel Moulding
2022-08 → 2024-01 ended
GUN125 L;GUN135 SAP —
76923-52021 note Retainer, Rocker Panel Moulding
2022-08 → 2023-07 ended
GUN12# THP —
76924G — Retainer, Rocker Panel Moulding
76924-0K010 Retainer, Rocker Panel Moulding
2022-08 → 2023-07 ended
GUN135 THP —
76924-0K010 note Retainer, Rocker Panel Moulding
2022-08 → 2023-07 ended
GUN12# THP —
76924-0K020 Retainer, Rocker Panel Moulding
2023-01 → 2024-01 ended
GUN135 SCB —
76924-0K020 note Retainer, Rocker Panel Moulding
2023-01 → 2024-01 ended
GUN125 SCB —
76924-0K020 Retainer, Rocker Panel Moulding
2023-01 → 2024-01 ended
GUN125 L;GUN135 DCB SAP —
76924-0K020 note Retainer, Rocker Panel Moulding
2023-01 → 2024-01 ended
GUN12# (DCB,XTR) SAP (H,S) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
