Toyota Hilux (DCB/SCB/XTR)
2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe
Supported model
Data version 2024-09

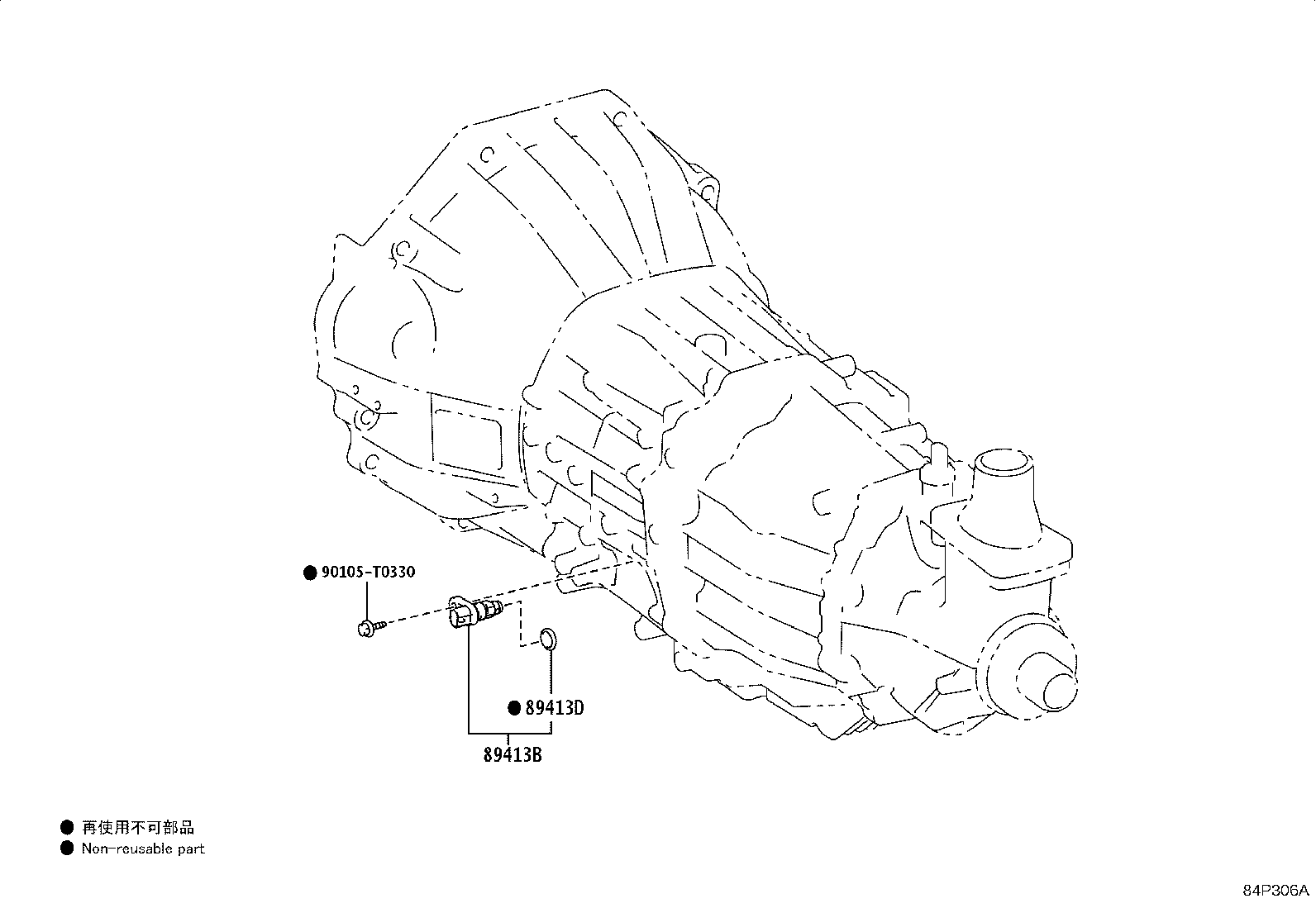

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89413B — Sensor, Transmission Revolution | ||||
| 89413-28011 |
Sensor, Transmission Revolution
2023-01 → 2024-01
ended
|
GUN126 RHD 6F | — | |
| 89413-28011 note |
Sensor, Transmission Revolution
2023-01 → 2024-01
ended
|
GUN126 LHD 6F | — | |
| 89413D — Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2022-08 → 2023-07
ended
|
GUN12#,135 THP 6FC | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2022-08 → 2024-01
ended
|
GUN12# SAP 6FC | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-01 → 2024-01
ended
|
GUN126 RHD 6F | — | |
| 90301-11008 note |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-01 → 2024-01
ended
|
GUN126 LHD 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
