Toyota Hilux (DCB/SCB/XTR)
2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe
Supported model
Data version 2024-09

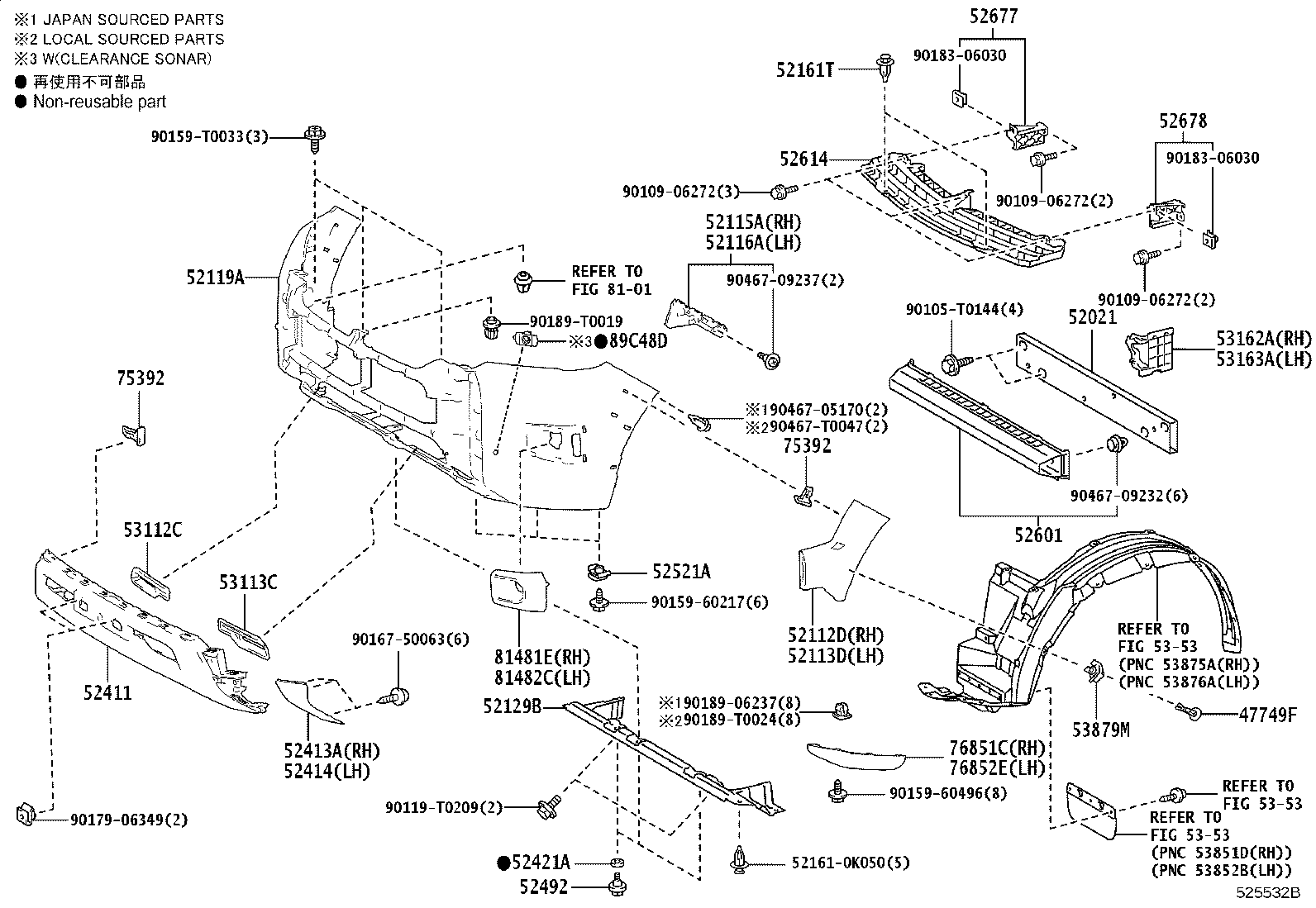

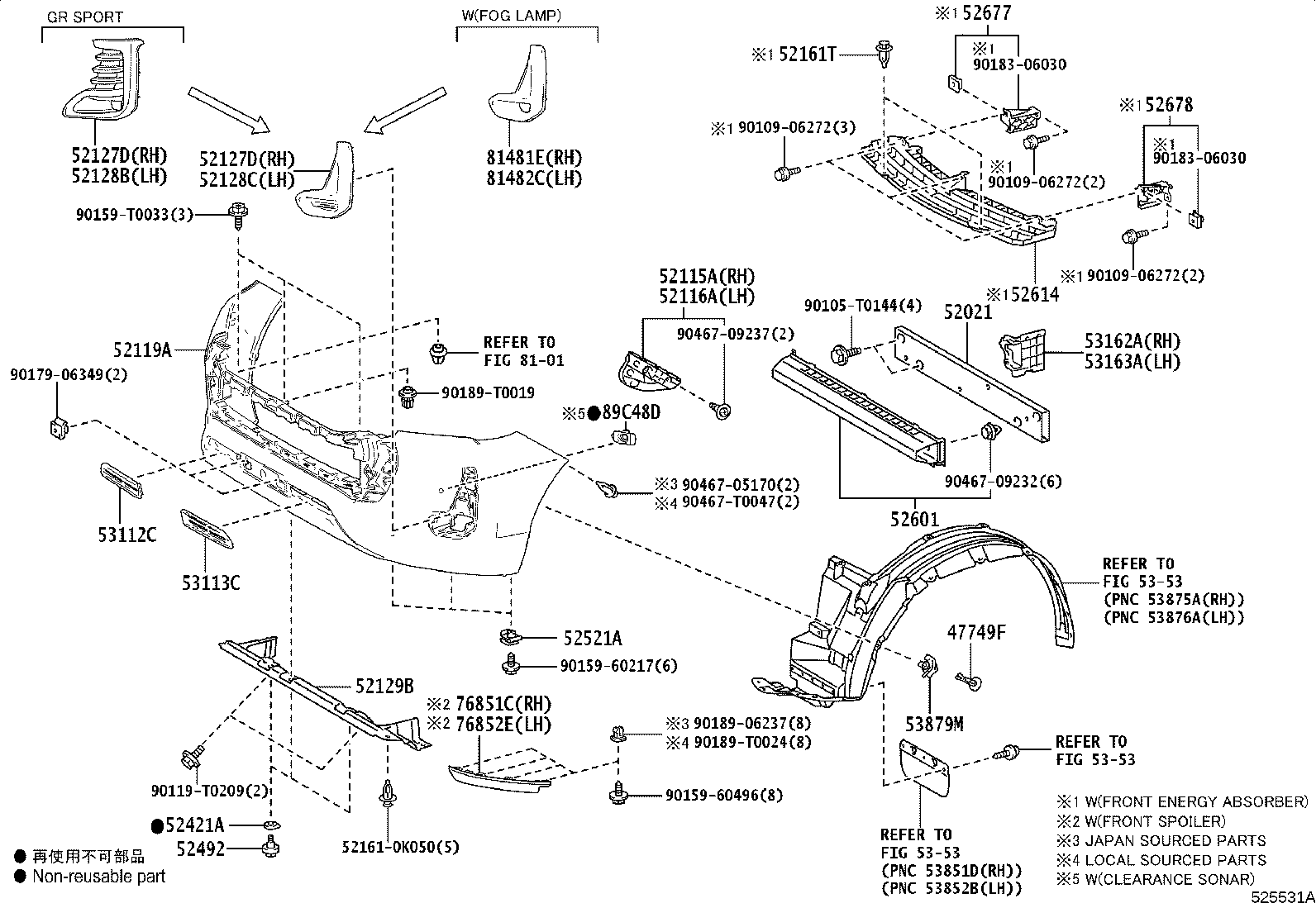

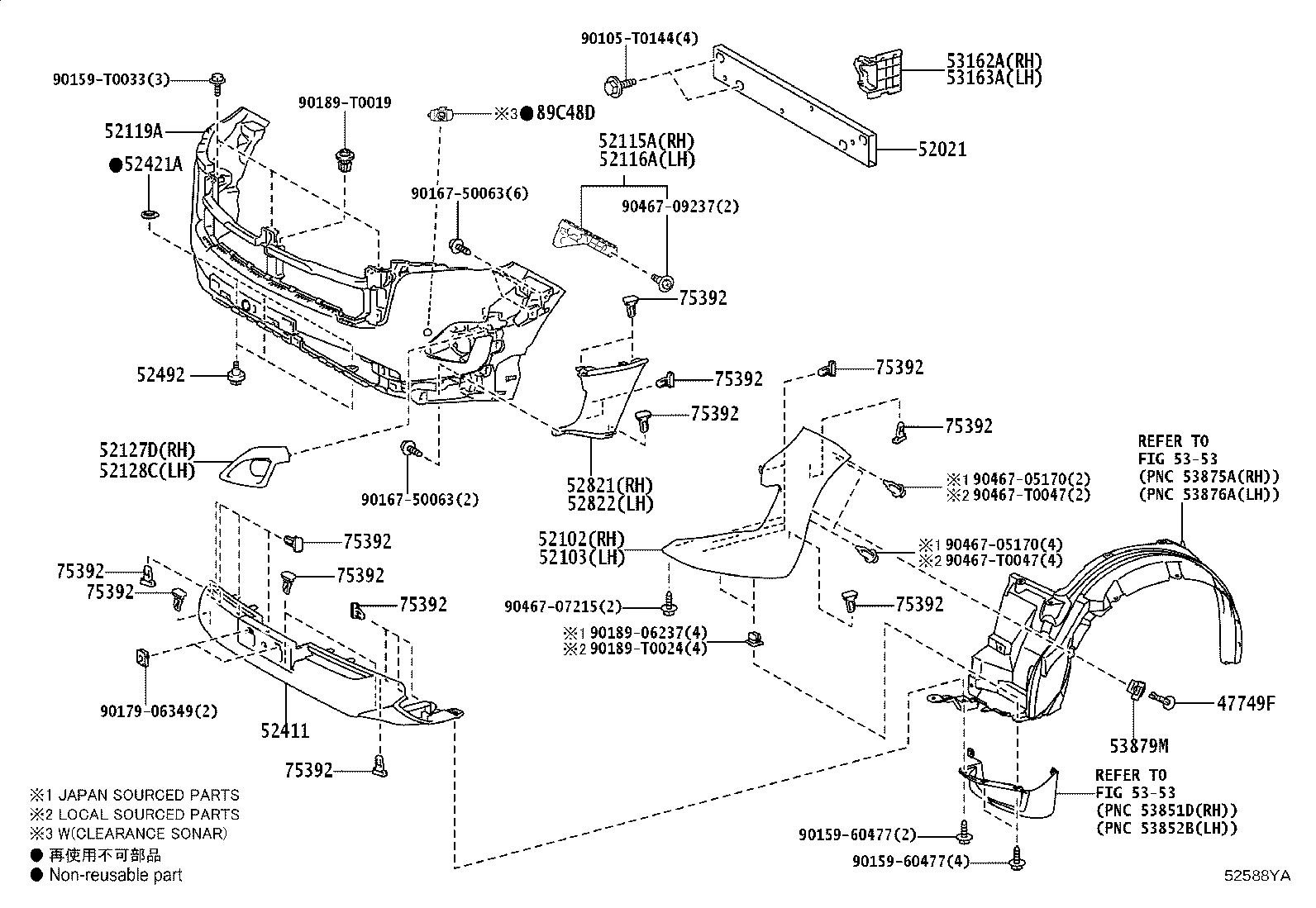

Front Bumper & Bumper Stay
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52102 | Bracket Sub-assy, Front Bumper, RH |
| 52103 | Bracket Sub-assy, Front Bumper, LH |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52161T | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52413A | Pad, Front Bumper Guard, RH |
| 52414 | Pad, Front Bumper Guard, LH |
| 52421A | Pad, Front Bumper |
| 52492 | Bolt, Bumper Pad, NO.2 |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52601 | Absorber Sub-assy, Front Bumper Energy |
| 52614 | Absorber, Front Bumper Energy, NO.2 |
| 52677 | Support, Front Bumper Side, NO.2, RH |
| 52678 | Support, Front Bumper Side, NO.2, LH |
| 52821 | Duct, Air Intake, RH |
| 52822 | Duct, Air Intake, LH |
| 53112C | Grille, Radiator, Lower RH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113C | Grille, Radiator, Lower LH |
| 53162A | Deflector, Front Bumper Stone, RH |
| 53163A | Deflector, Front Bumper Stone, LH |
| 53879M | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 76851C | Front Spoiler |
| 76852E | Spoiler, Front, LH |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
