Toyota Hilux (DCB/SCB/XTR)

2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

14 part groups · 5 illustrations

Illustrations

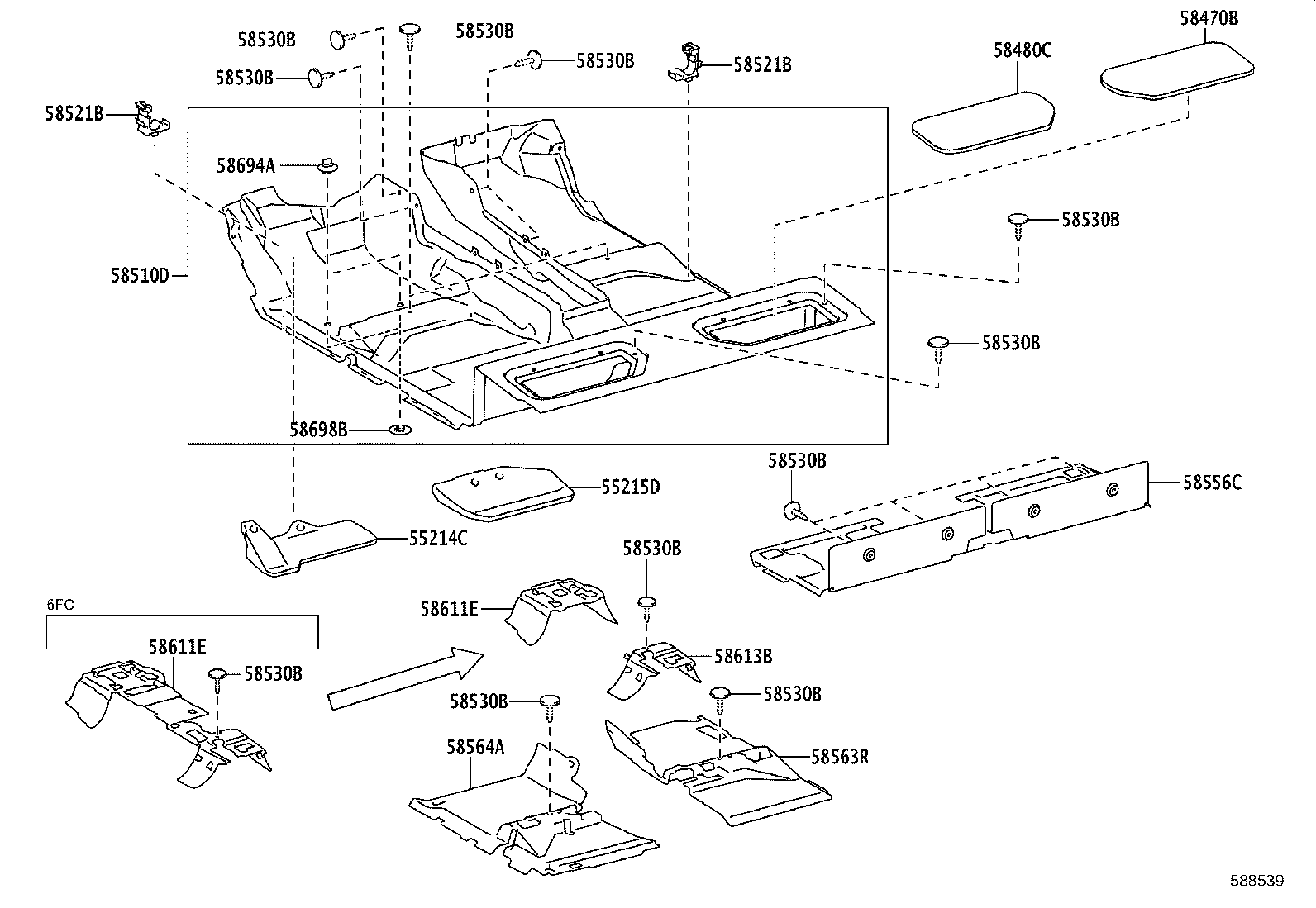

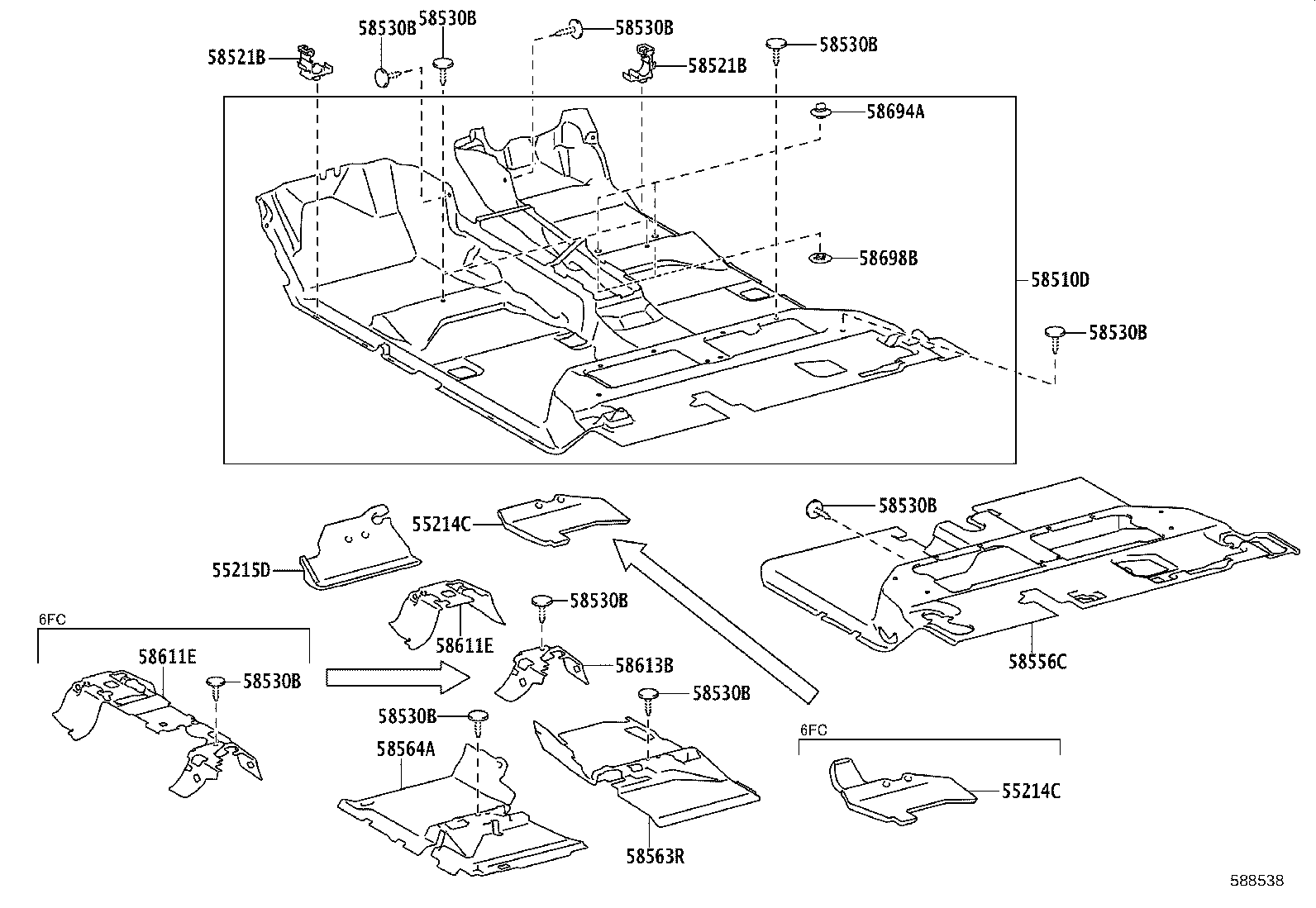

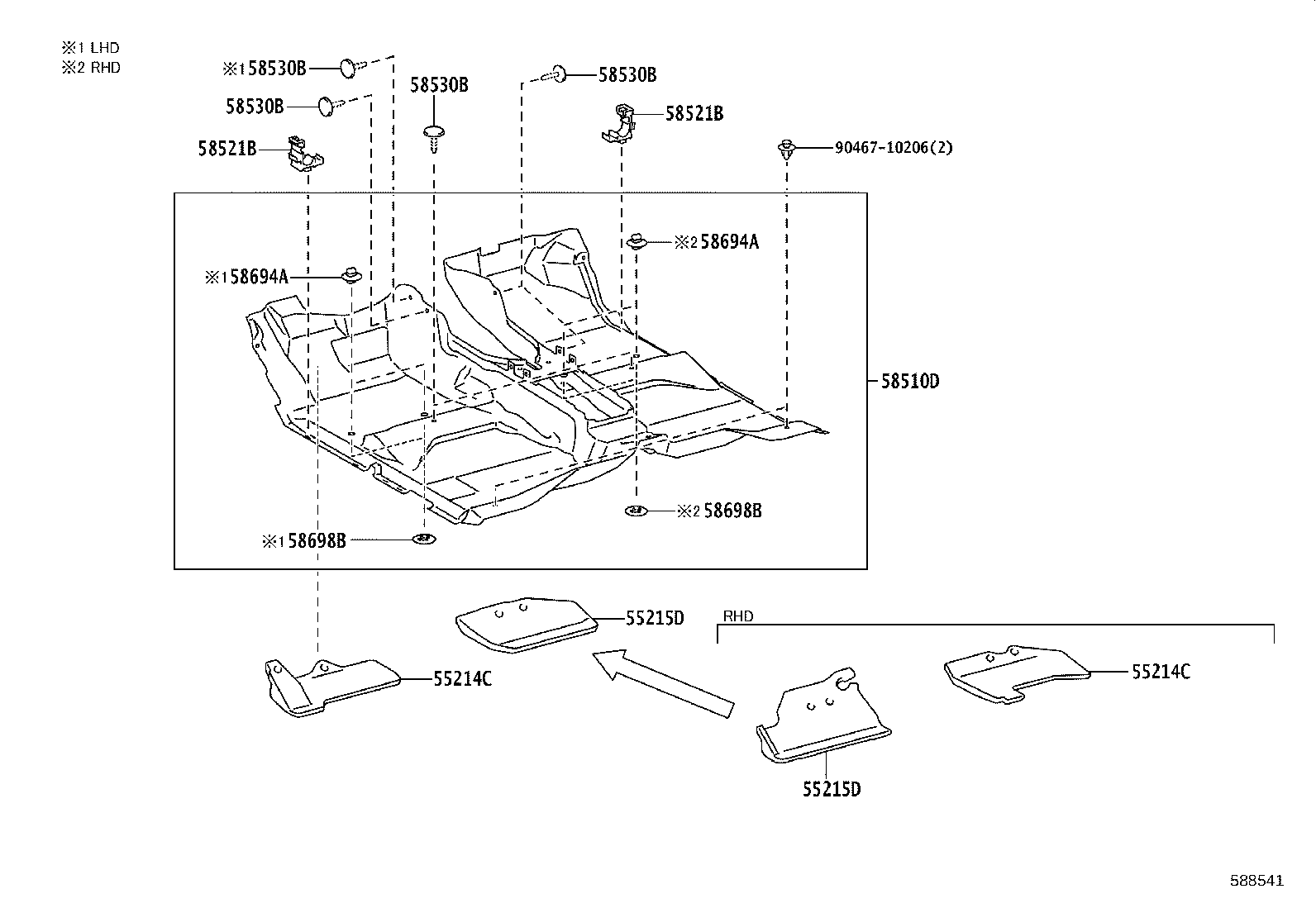

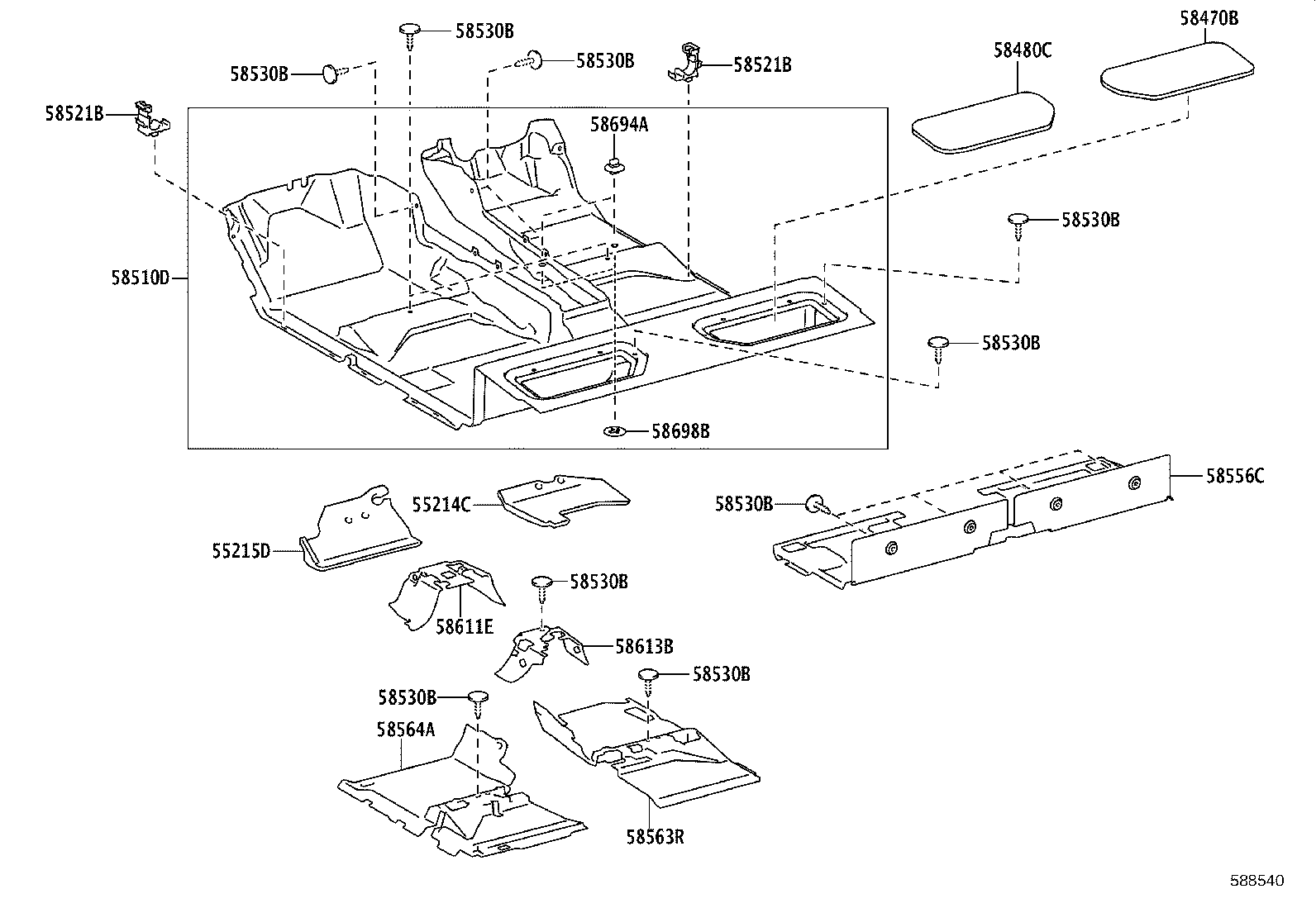

Figure 588537 588537 2022-08 → — Figure 588538 588538 2023-01 → — Figure 588539 588539 2023-01 → — Figure 588540 588540 2023-01 → — Figure 588541 588541 2023-01 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58470B Cover Assy, Seat Floor Service Hole, RH
58480C Cover Assy, Seat Floor Service Hole, LH
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58563R Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58611E Sheet, Front Floor Silencer
58613B Sheet, Front Floor Silencer, Center
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
