Toyota Hilux (DCB/SCB/XTR)

2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

13 part groups · 3 illustrations

Illustrations

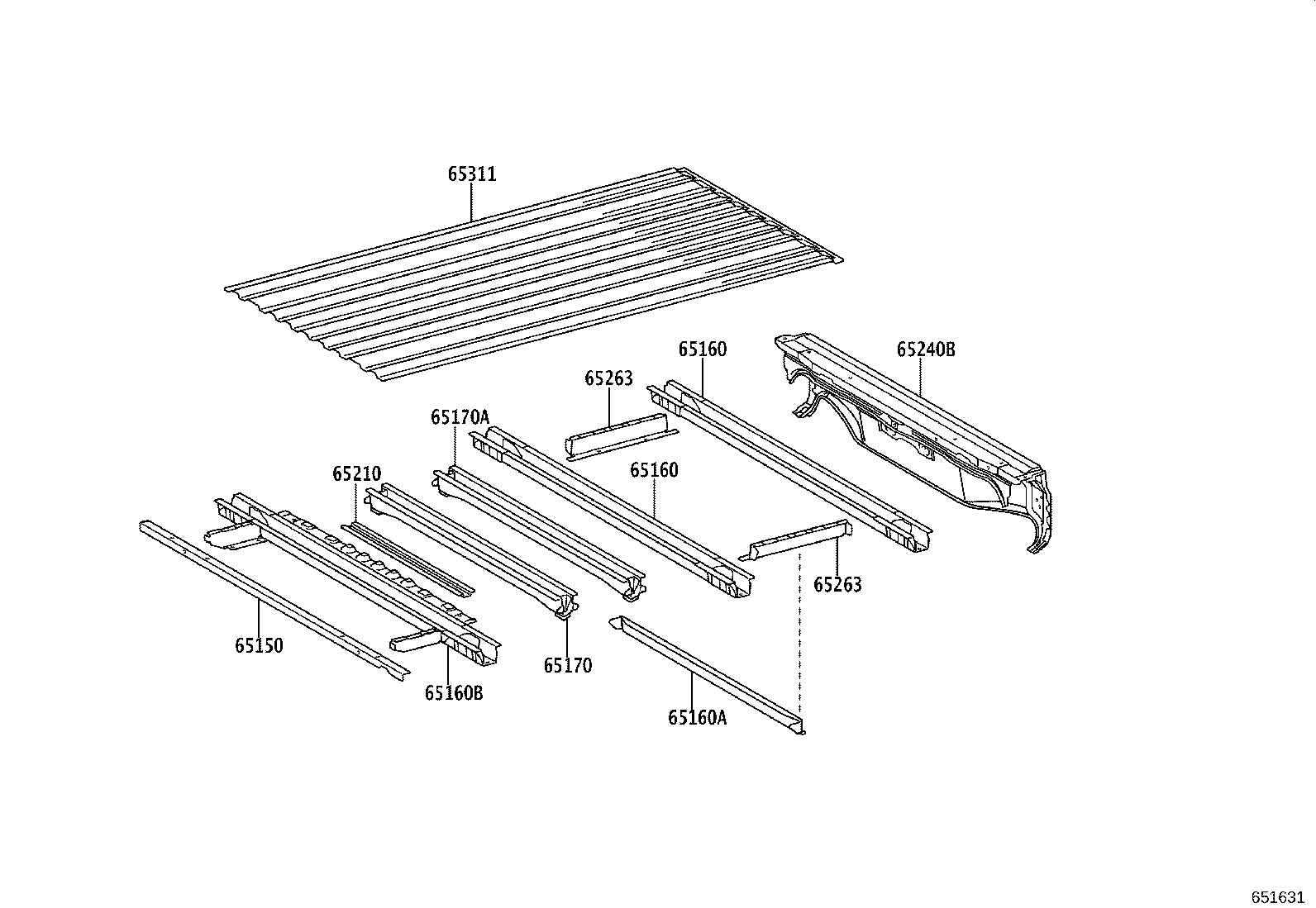

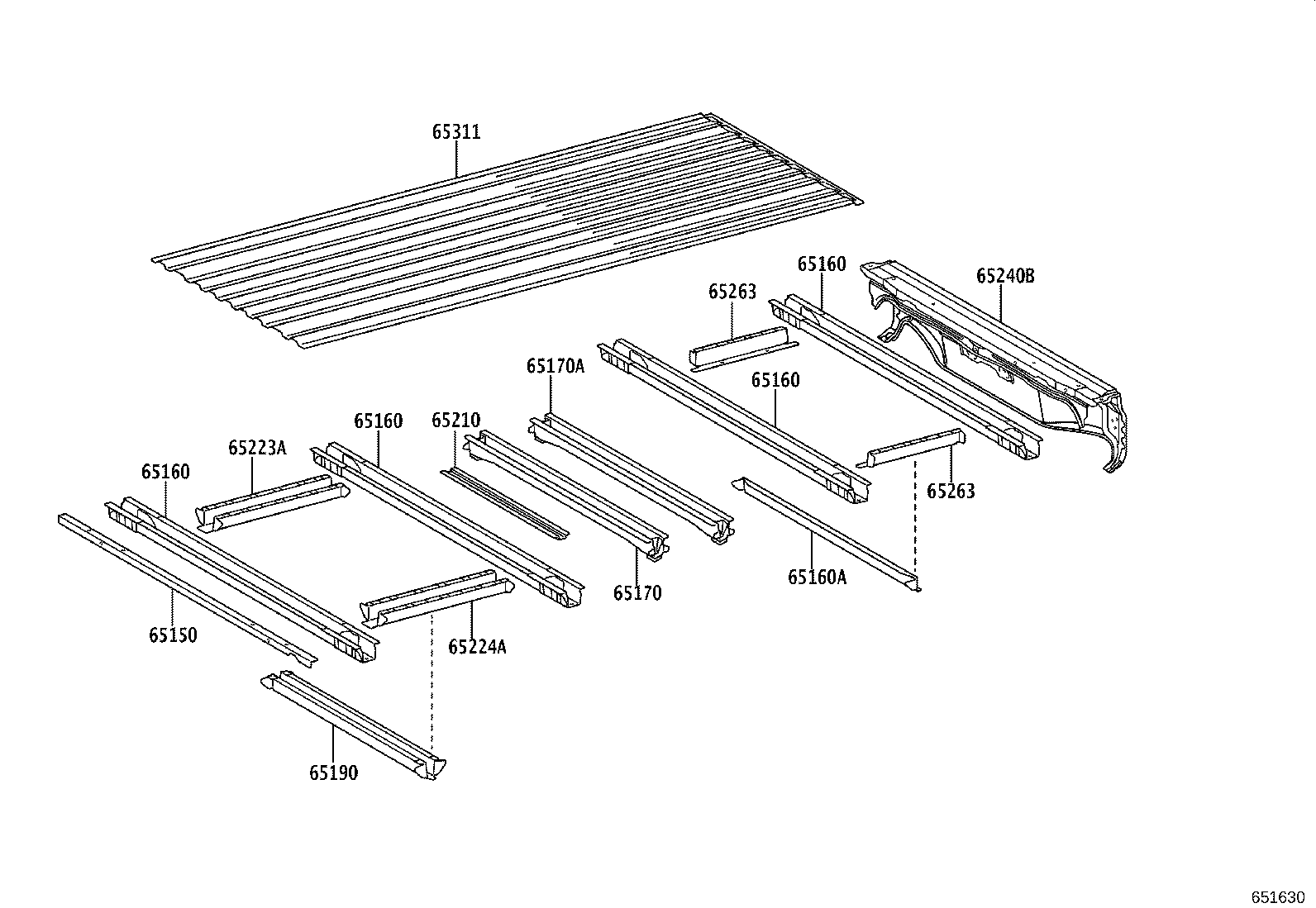

Figure 651629 651629 2022-08 → — Figure 651630 651630 2022-08 → — Figure 651631 651631 2022-08 → —

Part groups

PNCDescription
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65190 Sill Assy, Cross, NO.5
65210 Sill Assy, Cross, NO.6
65223A Reinforcement, Floor Panel, Front RH
65224A Reinforcement, Floor Panel, Front LH
65240B Sill Assy, Cross, NO.9
65263 Reinforcement, Floor Side Frame
65311 Panel, Floor, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
