Toyota Hilux (DCB/SCB/XTR)

2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

26 part groups · 3 illustrations

Illustrations

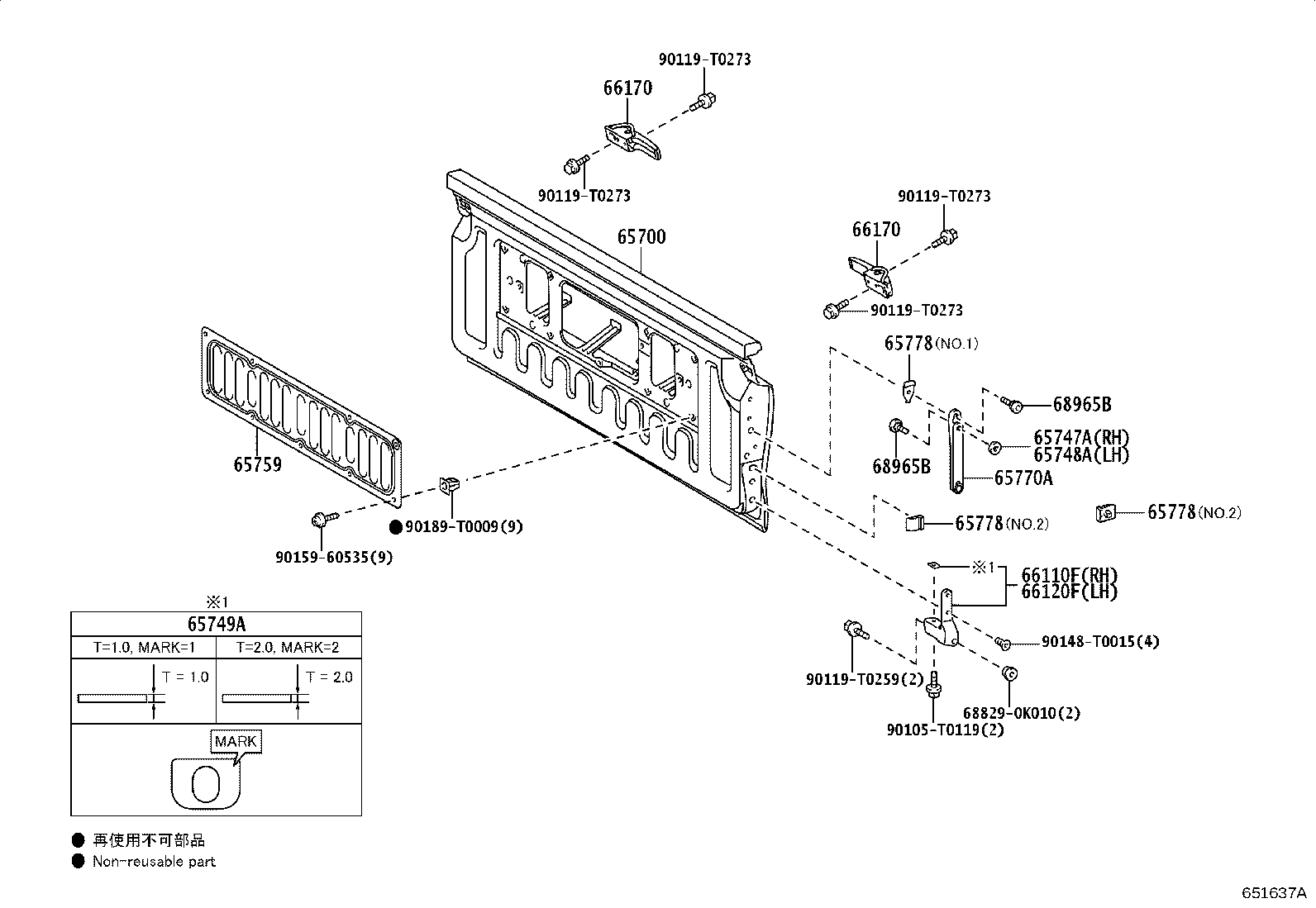

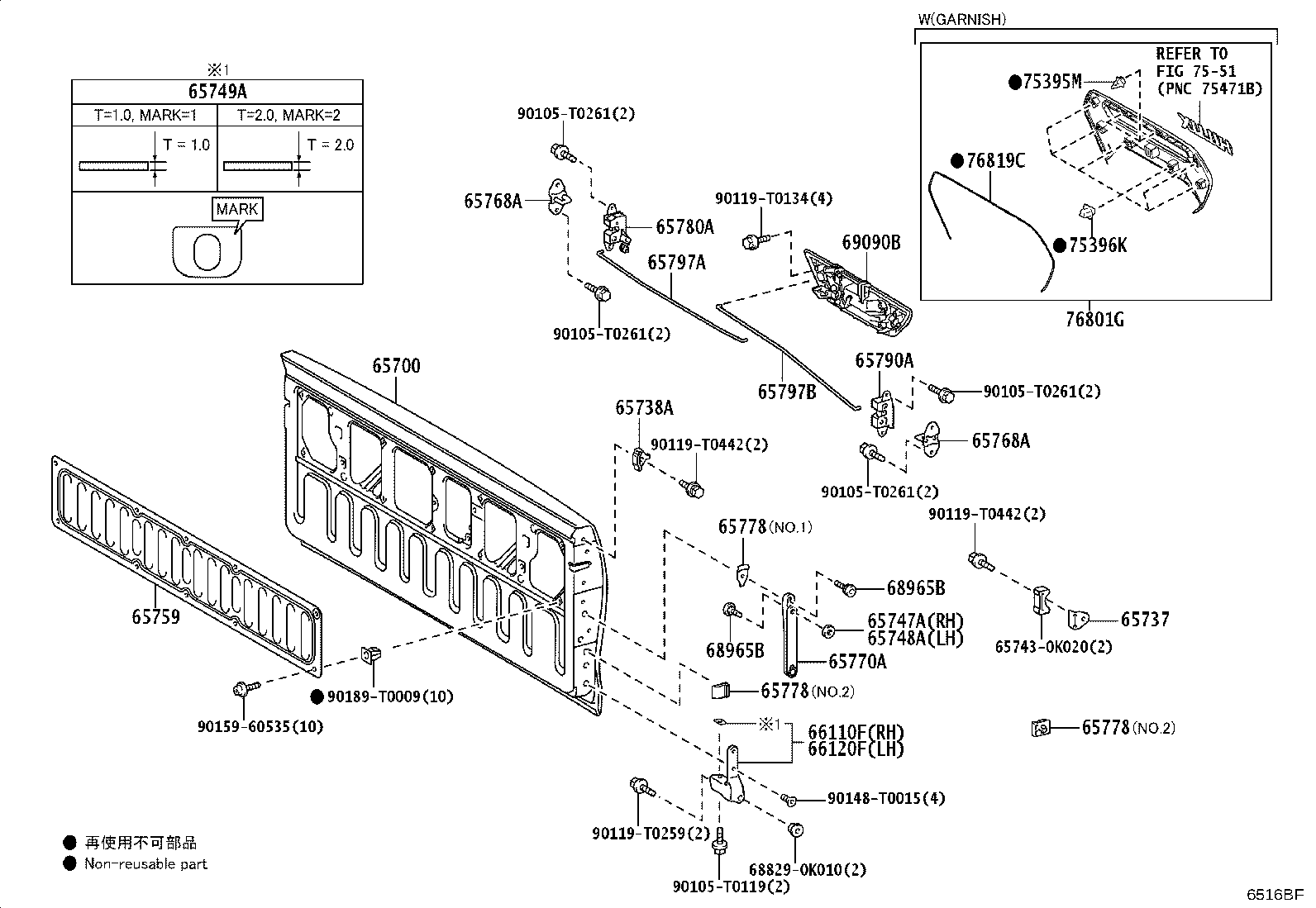

Figure 651634 651634 2022-08 → — Figure 651637A 651637A 2022-08 → — Figure 6516BF 6516BF 2022-07 → —

Part groups

PNCDescription
58227H Cover, Header Panel, NO.1
65414 Stopper, Guard Frame
65470 Board Assy, Header
65700 Gate Assy, Rear Body Tail
65737 Stop, Tail Gate
65738A Stopper, Tail Gate Lock Hinge, NO.1
65747A Plate, Tail Gate Seal, RH
65748A Plate, Tail Gate Seal, LH
65749A Pad, Tail Gate Hinge
65759 Cover, Tail Gate Service Hole
65768A Striker, Tail Gate Lock
65770A Stay Assy, Tail Gate
65778 Stopper, Tail Gate Stay
65780A Lock Assy, Tail Gate, RH
65790A Lock Assy, Tail Gate, LH
65797A Link, Tail Gate Lock Control
65797B Link, Tail Gate Lock Control
66110F Hinge Assy, Tail Gate, RH
66120F Hinge Assy, Tail Gate, LH
66170 Latch Assy, Rear Body Tail Gate
68965B Shaft, Tail Gate Stay
69090B Handle Assy, Tail Gate
75395M Clip, Outside Moulding, NO.1
75396K Clip, Outside Moulding, NO.2
76801G Garnish Sub-assy, Tail Gate, Outside
76819C Seal, Tail Gate Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
