Toyota Hilux (DCB/SCB/XTR)
2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe
Supported model
Data version 2024-09
Rear Door Lock & Handle

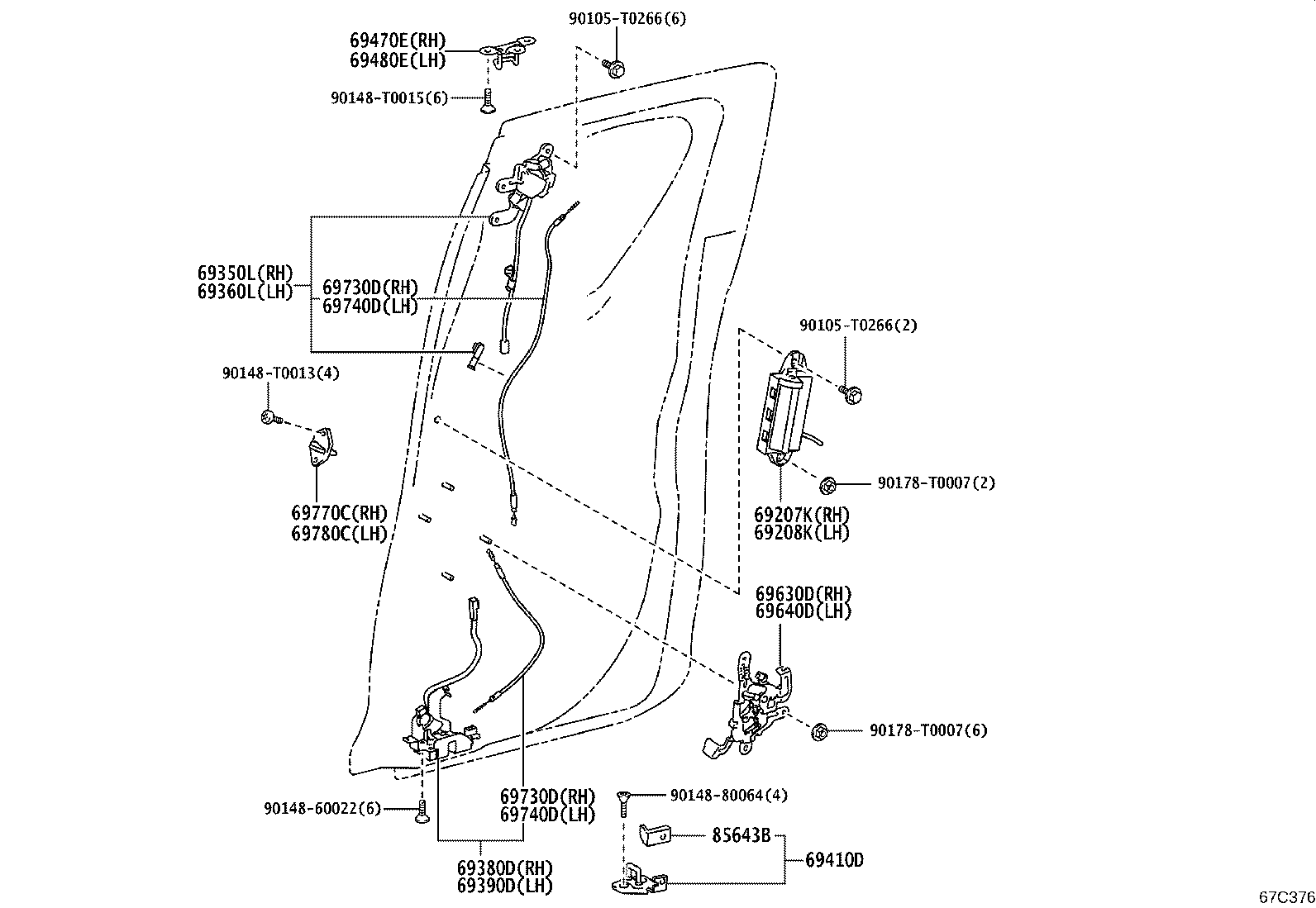

43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 69037 | Cover Sub-assy, Rear Door Lock, RH |
| 69038A | Cover Sub-assy, Rear Door Lock, LH |
| 69203A | Frame Sub-assy, Rear Door Outside Handle, RH |
| 69204A | Frame Sub-assy, Rear Door Outside Handle, LH |
| 69205A | Handle Sub-assy, Rear Door Inside, RH |
| 69205C | Cushion(FOR REAR DOOR INSIDE HANDLE) |
| 69206C | Handle Sub-assy, Rear Door Inside, LH |
| 69207K | Handle Sub-assy, Access Panel Inside, RH |
| 69208K | Handle Sub-assy, Access Panel Inside, LH |
| 69227M | Cover, Rear Door Outside Handle |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69237B | Nut, Rear Door Handle |
| 69239D | Bush, Rear Door Handle |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69241G | Pad, Rear Door Outside Handle, Front |
| 69242G | Pad, Rear Door Outside Handle, Rear |
| 69283A | Plug, Rear Door Inside Handle Bezel, RH |
| 69284D | Plug, Rear Door Inside Handle Bezel, LH |
| 69296A | Screw, Door Inside Handle |
| 69318D | Seal, Door Lock Wiring Harness |
| 69330 | Lock Assy, Rear Door, RH |
| 69340 | Lock Assy, Rear Door, LH |
| 69350L | Lock Assy, Access Panel, Upper RH |
| 69360L | Lock Assy, Access Panel, Upper LH |
| 69380D | Lock Assy, Access Panel, Lower RH |
| 69390D | Lock Assy, Access Panel, Lower LH |
| 69410D | Plate Assy, Access Panel Lock Striker |
| 69420 | Plate Assy, Rear Door Lock Striker |
| 69470E | Striker Assy, Access Panel Upper Lock, RH |
| 69480E | Striker Assy, Access Panel Upper Lock, LH |
| 69630D | Control Assy, Access Panel Lock Remote, RH |
| 69640D | Control Assy, Access Panel Lock Remote, LH |
| 69730D | Cable Assy, Rear Door Lock Remote Control, RH |
| 69730M | Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER) |
| 69740D | Cable Assy, Rear Door Lock Remote Control LH |
| 69740E | Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER) |
| 69770C | Lever Assy, Access Panel Lock Cancel, RH |
| 69770E | Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB) |
| 69780C | Lever Assy, Access Panel Lock Cancel, LH |
| 69780E | Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB) |
| 85643B | Cushion, Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
