Toyota Hilux (DCB/SCB/XTR)

2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe

Supported model Data version 2024-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

5 part groups · 2 illustrations

Illustrations

Figure 81B208

81B208 2022-08 → —

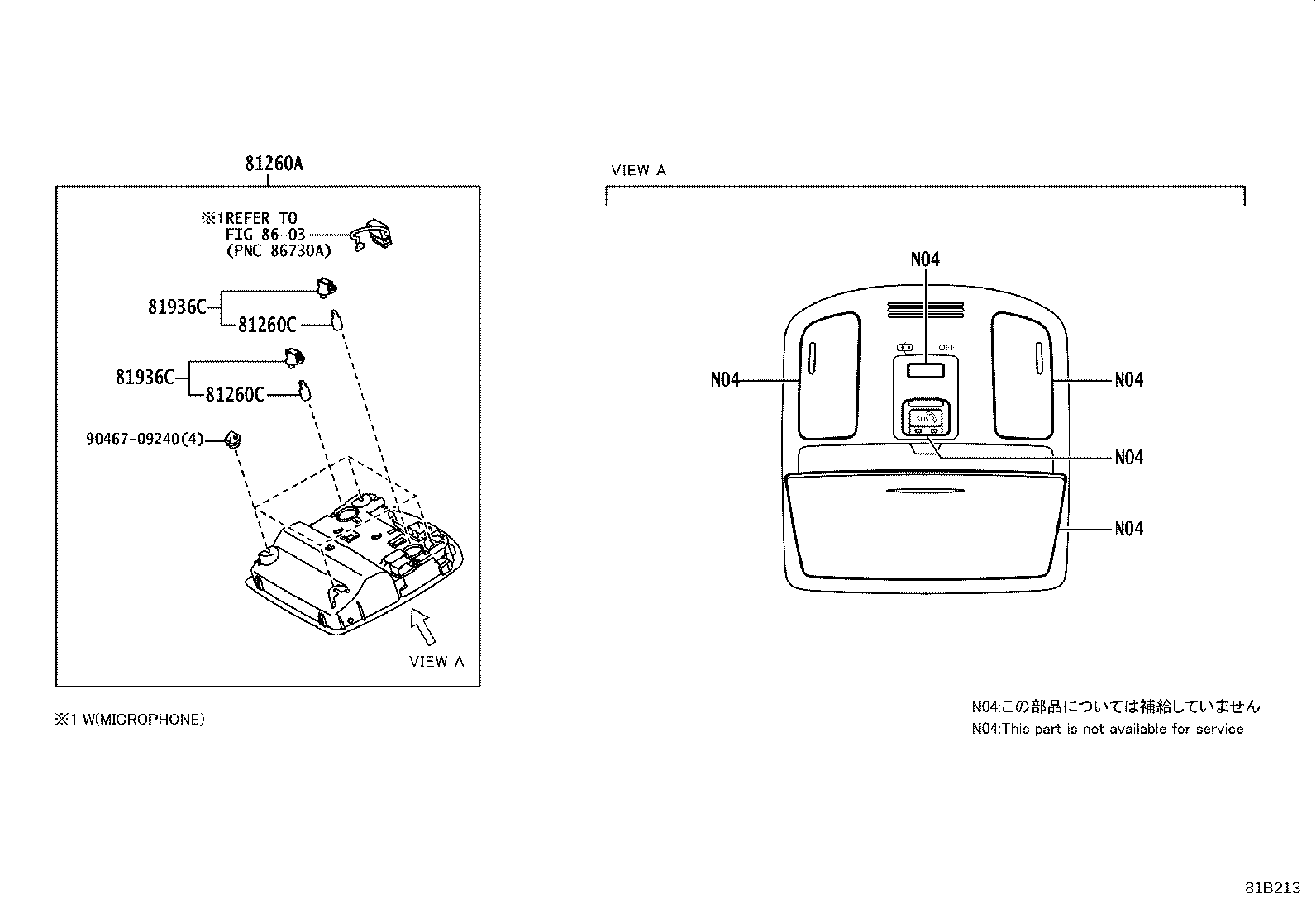

Figure 81B213

81B213 2022-08 → —

Part groups

PNC	Description
81240	Lamp Assy, Room, NO.1
81240B	Bulb, Room Lamp, NO.1
81260A	Lamp Assy, Map
81260C	Bulb(FOR MAP LAMP)
81936C	Bulb Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
