Toyota Hilux (DCB/SCB/XTR)
2022-08 → 2024-01 · chassis GUN12#,135 · catalogue 6725C0 · Europe
Supported model
Data version 2024-09
Heating & Air Conditioning - Control & Air Duct
31 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

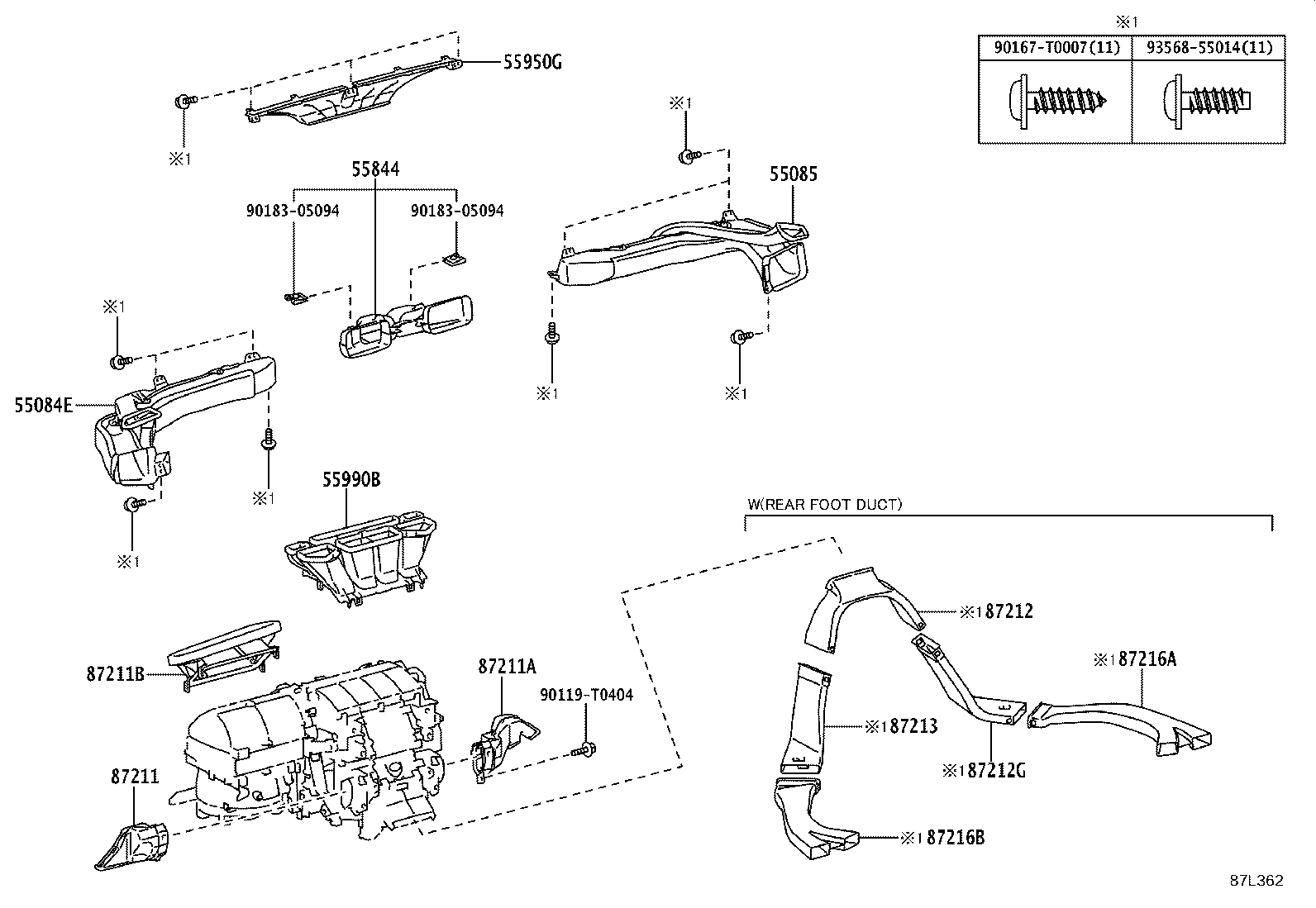

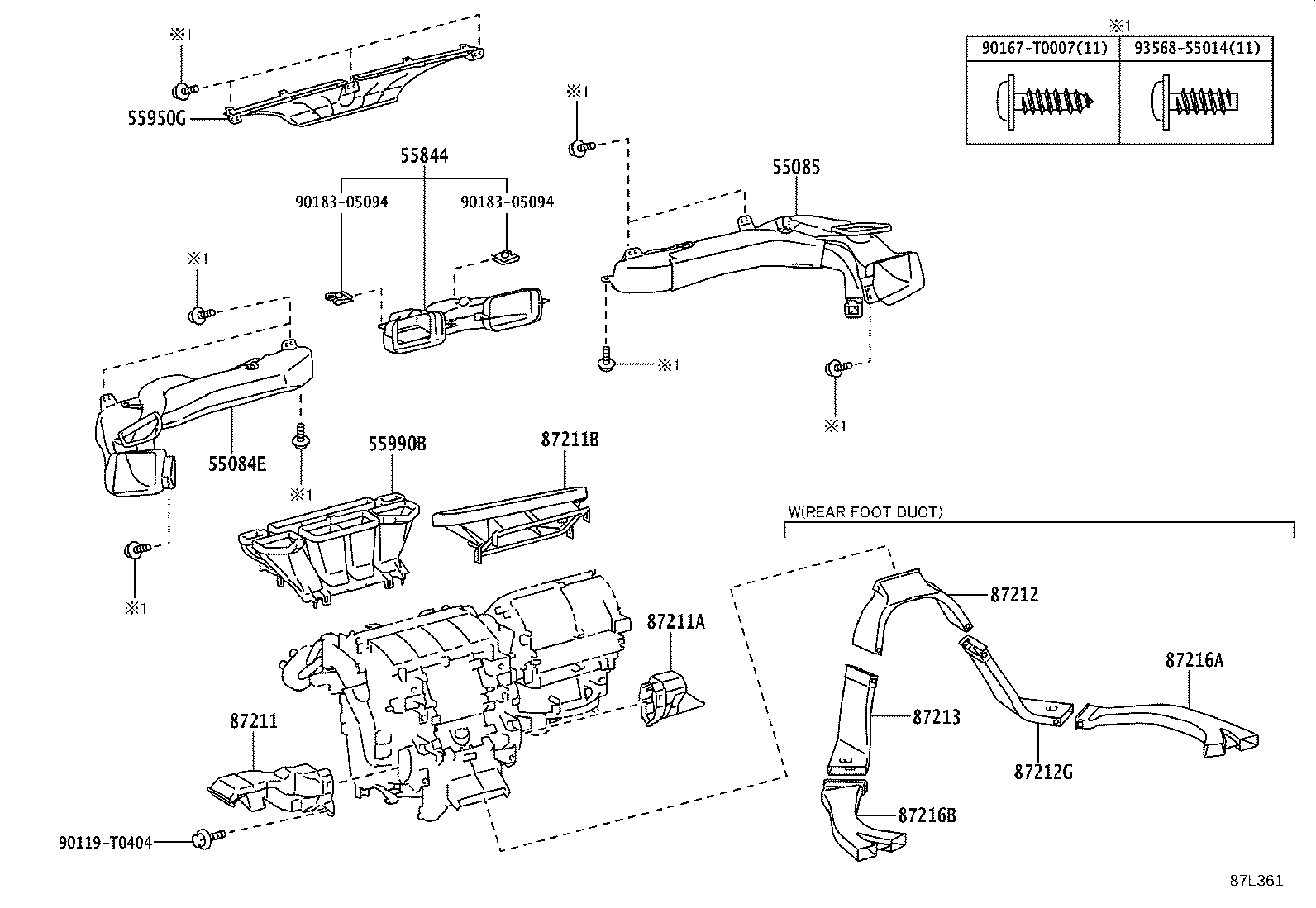

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55844 | Duct, Heater TO Register, NO.2 |

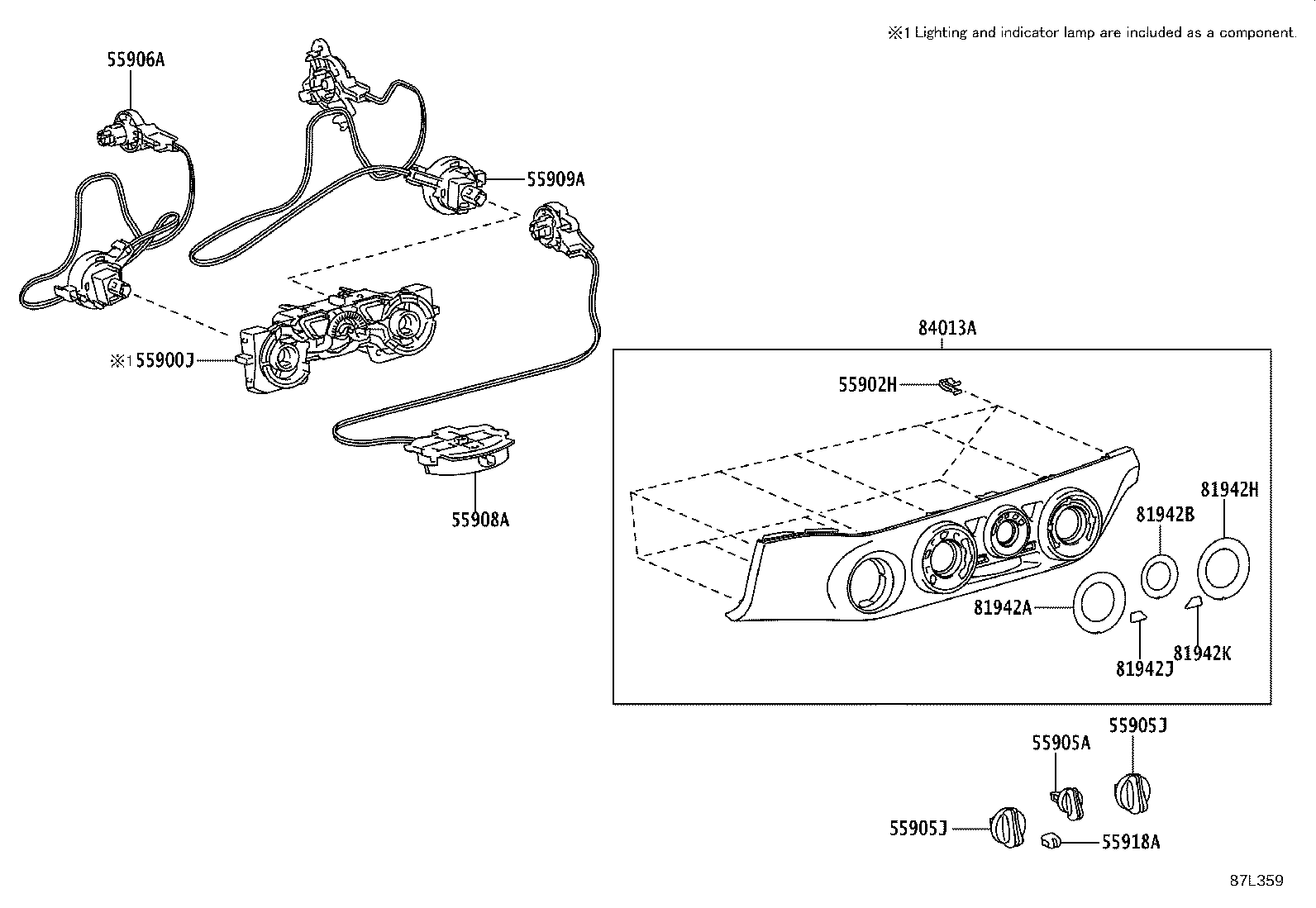

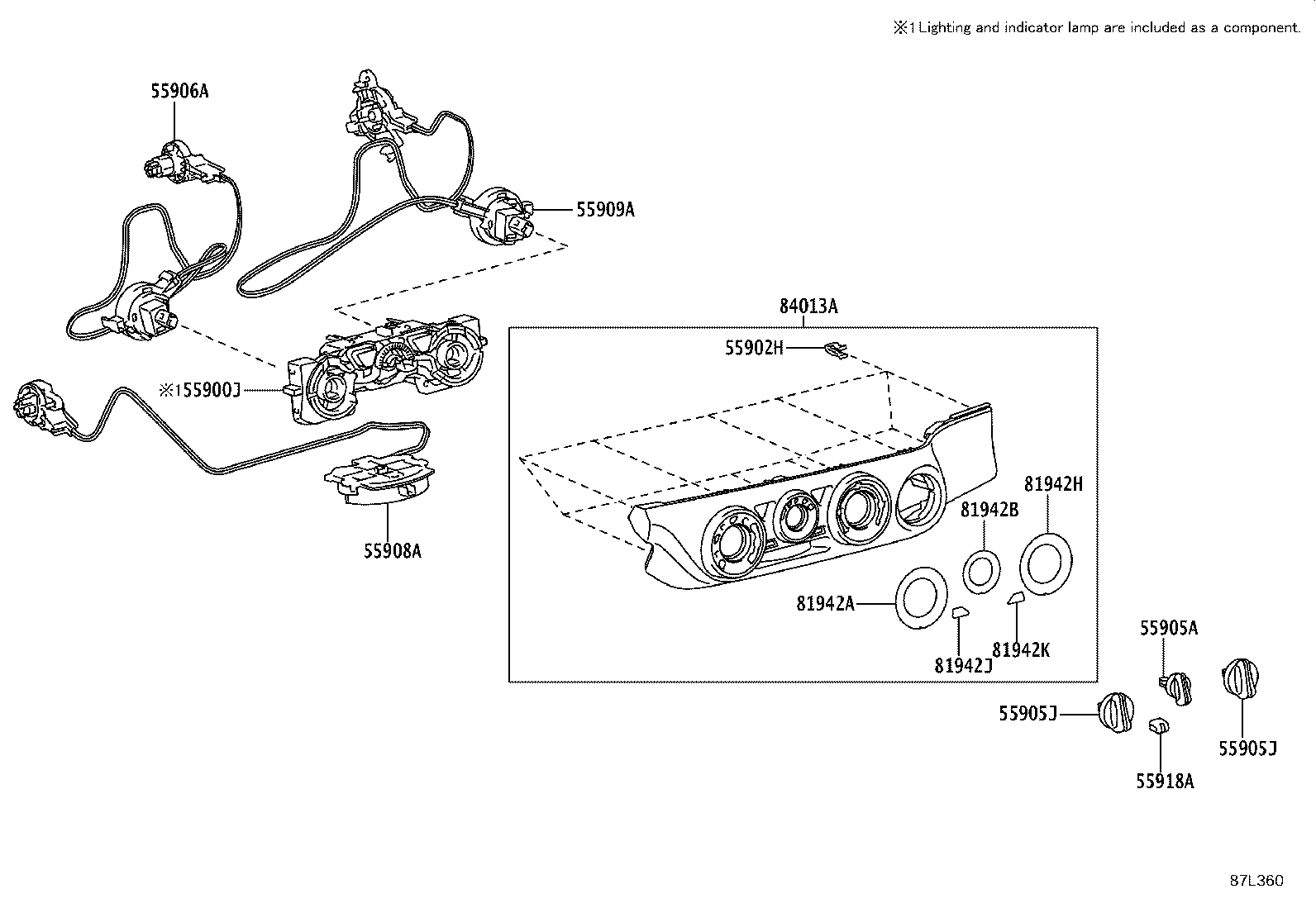

| 55900H | Control Assy, Air Conditioner(AUTO) |
| 55900J | Control Assy, Air Conditioner(MANUAL) |
| 55902H | Clip(FOR AIR CONDITIONER PANEL) |
| 55905A | Knob, Heater Control |
| 55905J | Knob Sub-assy, Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55918A | Lever, Air Inlet Damper Control |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 81942B | Sheet, Heater Control Name, NO.2 |
| 81942H | Sheet, Heater Control Name, NO.3 |
| 81942J | Sheet, Heater Control Name, NO.4 |
| 81942K | Sheet, Heater Control Name, NO.5 |
| 84013A | Panel Sub-assy, Integration |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212G | Duct, Air, Rear NO.3 |
| 87213 | Duct, Air, Rear NO.2 |
| 87216A | Duct, Air, Rear NO.5 |
| 87216B | Duct, Air, Rear NO.4 |

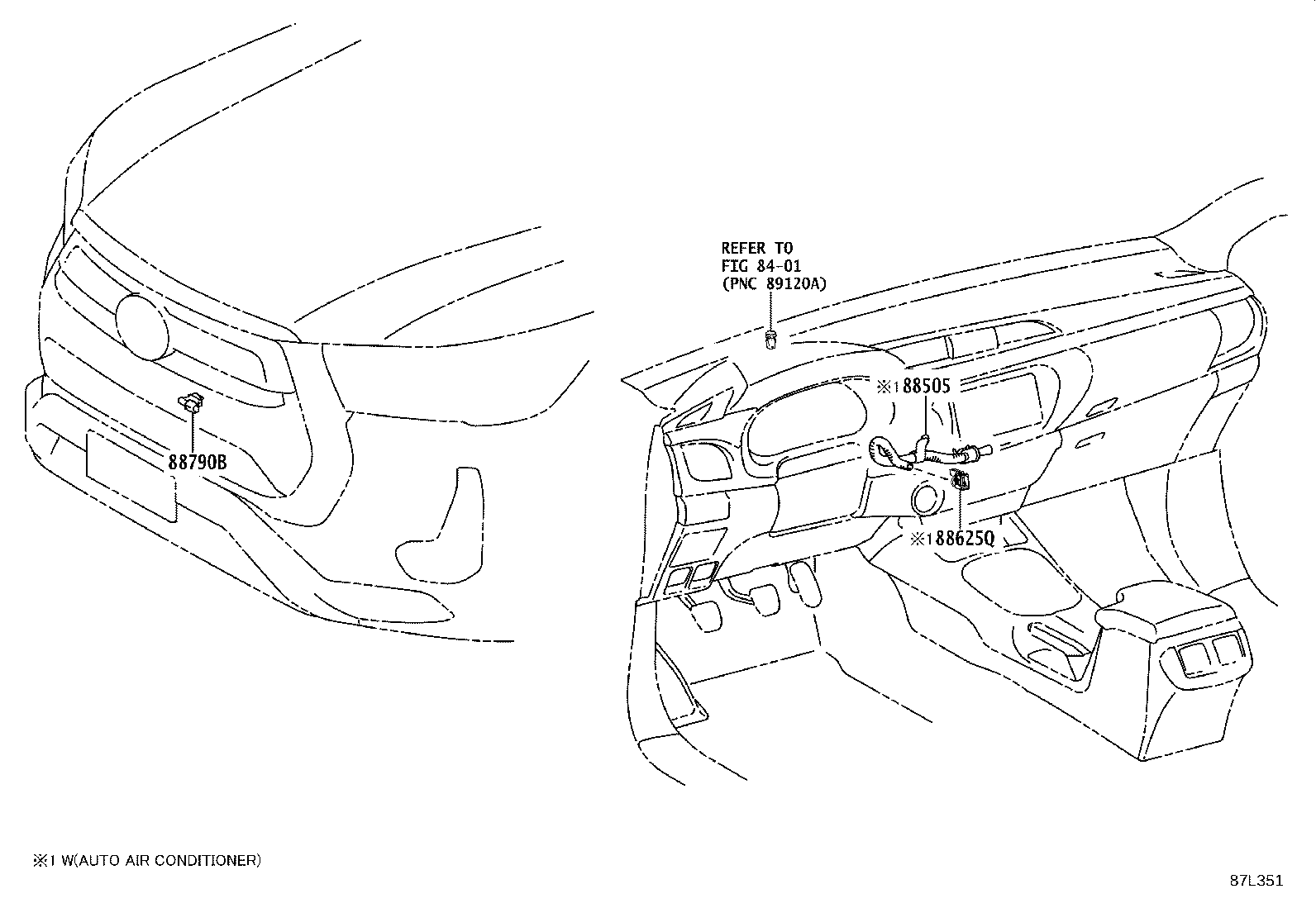

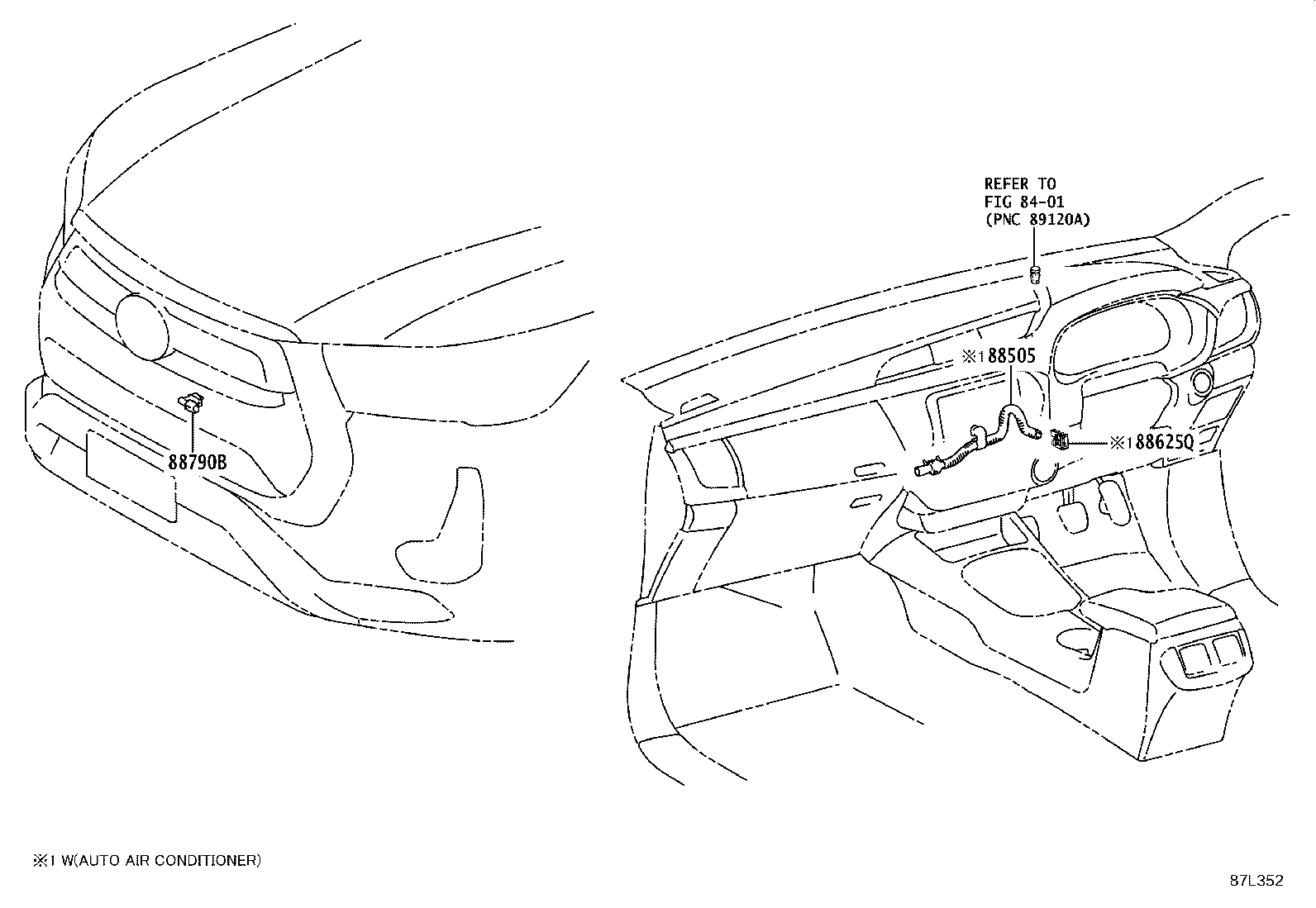

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
