Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

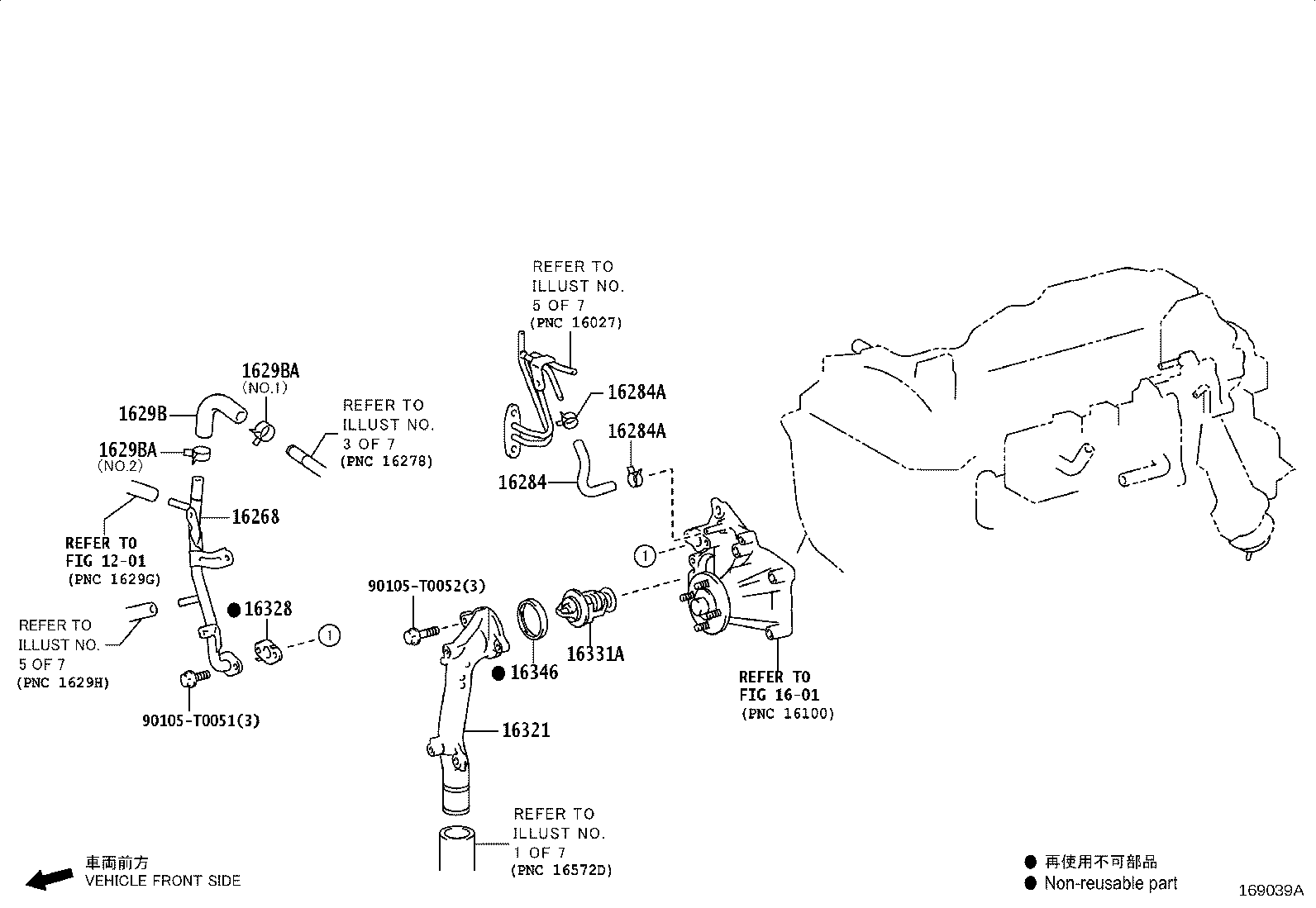

Exploded illustration 169039A 1601 — not listed in this catalogue 16284 — HOSE, TURBO WATER, NO.1 (9 parts) 90105T0052 — not listed in this catalogue 90105T0051 — not listed in this catalogue 16268 — PIPE, WATER BY-PASS, NO.1 (2 parts) 16284A — CLIP(FOR TURBO WATER HOSE NO.1) (2 parts) 16284A — CLIP(FOR TURBO WATER HOSE NO.1) (2 parts) 16346 — GASKET, THERMOSTAT (2 parts) 16321 — INLET, WATER (9 parts) 16331A — THERMOSTAT (2 parts) 16328 — GASKET, WATER INLET PIPE (9 parts) 1629B — HOSE, WATER BY-PASS, NO.15 (2 parts) 1629BA — CLIP(FOR WATER BY-PASS HOSE NO.15) (4 parts) 1629BA — CLIP(FOR WATER BY-PASS HOSE NO.15) (4 parts) 1201 — not listed in this catalogue
169039A · 11 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
16268 — Pipe, Water By-pass, NO.1
16268-0E050 note Pipe, Water By-pass, NO.1
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16268-0E050 note Pipe, Water By-pass, NO.1
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16284 — Hose, Turbo Water, NO.1
16284-0E010 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16284-0E010 note Hose, Turbo Water, NO.1
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16284-0E020 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16284-0E020 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16284-0E020 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16284-0E020 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16284-0E020 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16284-0E020 note Hose, Turbo Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16284-0E020 note Hose, Turbo Water, NO.1
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16284A — Clip(FOR TURBO WATER HOSE NO.1)
90466-T0059 note Clip(FOR TURBO WATER HOSE NO.1)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0059 note Clip(FOR TURBO WATER HOSE NO.1)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
1629B — Hose, Water By-pass, NO.15
1629B-0E010 Hose, Water By-pass, NO.15
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
1629B-0E010 Hose, Water By-pass, NO.15
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
1629BA — Clip(FOR WATER BY-PASS HOSE NO.15)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.15)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.15)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.15)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.15)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16321 — Inlet, Water
16321-0E010 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16321-0E010 note Inlet, Water
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16321-0E020 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16321-0E020 note Inlet, Water
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16321-0E020 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16321-0E020 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16321-0E020 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16321-0E020 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16321-0E020 note Inlet, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16328 — Gasket, Water Inlet Pipe
16328-0E010 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16328-0E010 note Gasket, Water Inlet Pipe
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16328-0E020 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16328-0E020 note Gasket, Water Inlet Pipe
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16328-0E020 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16328-0E020 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16328-0E020 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16328-0E020 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16328-0E020 note Gasket, Water Inlet Pipe
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16331A — Thermostat
90916-03118 note Thermostat
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90916-03118 note Thermostat
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16346 — Gasket, Thermostat
16346-0K010 Gasket, Thermostat
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16346-0K010 Gasket, Thermostat
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
