Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

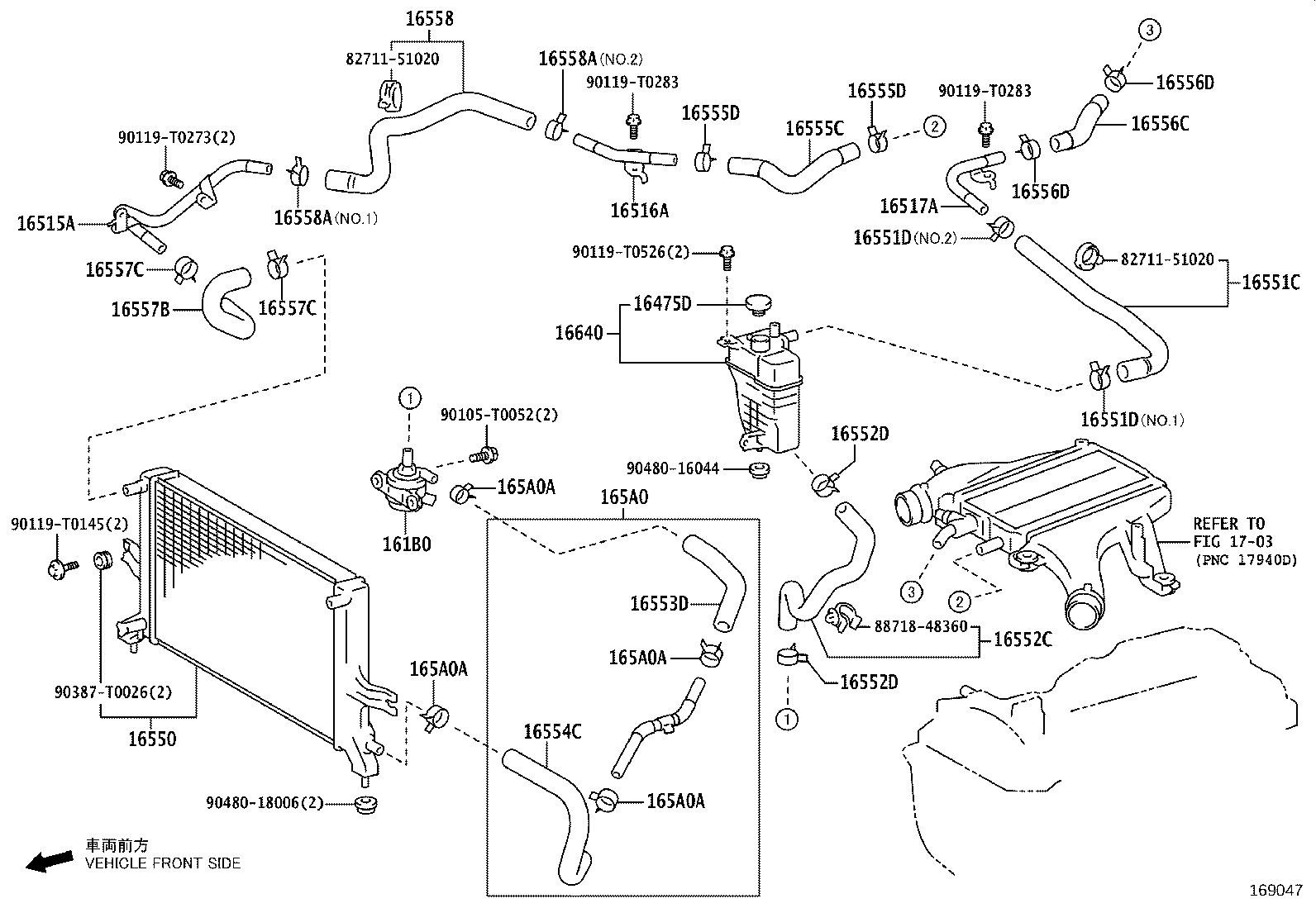

Exploded illustration 169047 16558A — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.8) (12 parts) 16551D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) (12 parts) 16551D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) (12 parts) 16558A — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.8) (12 parts) 16556D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) (4 parts) 16556D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) (4 parts) 16517A — PIPE, INTERCOOLER COOLING WATER, NO.3 (4 parts) 16556C — HOSE, INTERCOOLER COOLING WATER, NO.6 (4 parts) 16551C — HOSE, INTERCOOLER COOLING WATER, NO.1 (8 parts) 16550 — RADIATOR ASSY, INTERCOOLER COOLING (8 parts) 16552C — HOSE, INTERCOOLER COOLING WATER, NO.2 (9 parts) 16552D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) (8 parts) 16552D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) (8 parts) 16555C — HOSE, INTERCOOLER COOLING WATER, NO.5 (4 parts) 16516A — PIPE, INTERCOOLER COOLING WATER, NO.2 (4 parts) 16558 — HOSE, INTERCOOLER COOLING WATER, NO.8 (8 parts) 16557B — HOSE, INTERCOOLER COOLING WATER, NO.7 (8 parts) 165A0A — CLIP, HOSE (8 parts) 165A0 — HOSE ASSY, INTERCOOLER COOLING WATER, NO.1 (8 parts) 165A0A — CLIP, HOSE (8 parts) 165A0A — CLIP, HOSE (8 parts) 16553D — HOSE, INTERCOOLER COOLING WATER, NO.3 (8 parts) 16554C — HOSE, INTERCOOLER COOLING WATER, NO.4 (8 parts) 16557C — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7) (8 parts) 16557C — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7) (8 parts) 16515A — PIPE, INTERCOOLER COOLING WATER, NO.1 (8 parts) 16555D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) (4 parts) 16555D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) (4 parts) 165A0A — CLIP, HOSE (8 parts) 90119T0145 — not listed in this catalogue 90387T0026 — not listed in this catalogue 9048016044 — not listed in this catalogue 90119T0283 — not listed in this catalogue 90119T0283 — not listed in this catalogue 8271151020 — not listed in this catalogue 8871848360 — not listed in this catalogue 8271151020 — not listed in this catalogue 90119T0273 — not listed in this catalogue 9048018006 — not listed in this catalogue 1703 — not listed in this catalogue 161B0 — PUMP ASSY, ELECTRIC WATER (4 parts) 90105T0052 — not listed in this catalogue 90119T0526 — not listed in this catalogue 16475D — CAP, RESERVE TANK (8 parts) 16640 — TANK ASSY, INTERCOOLER RESERVE (9 parts)
169047 · 32 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
166 parts on this figure
Part number Description Fitment Price
161B0 — Pump Assy, Electric Water
161B0-47010 note Pump Assy, Electric Water
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
161B0-47010 note Pump Assy, Electric Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
161B0-47010 Pump Assy, Electric Water
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
161B0-47010 Pump Assy, Electric Water
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16475D — Cap, Reserve Tank
16475-28140 Cap, Reserve Tank
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16475-28140 note Cap, Reserve Tank
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16475-28140 note Cap, Reserve Tank
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16475-28140 note Cap, Reserve Tank
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16475-28140 note Cap, Reserve Tank
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16475-28140 note Cap, Reserve Tank
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16475-28140 note Cap, Reserve Tank
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16475-28140 Cap, Reserve Tank
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16515A — Pipe, Intercooler Cooling Water, NO.1
16516-0E020 Pipe, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16516-0E020 note Pipe, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16516-0E020 note Pipe, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16516-0E020 note Pipe, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16516-0E020 note Pipe, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16516-0E020 note Pipe, Intercooler Cooling Water, NO.1
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16516-0E020 note Pipe, Intercooler Cooling Water, NO.1
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16516-0E020 Pipe, Intercooler Cooling Water, NO.1
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16516A — Pipe, Intercooler Cooling Water, NO.2
16516-0E010 Pipe, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16516-0E010 Pipe, Intercooler Cooling Water, NO.2
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16516-0E010 note Pipe, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16516-0E010 note Pipe, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16517A — Pipe, Intercooler Cooling Water, NO.3
16517-0E010 Pipe, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16517-0E010 note Pipe, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16517-0E010 note Pipe, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16517-0E010 Pipe, Intercooler Cooling Water, NO.3
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16550 — Radiator Assy, Intercooler Cooling
16550-0E010 note Radiator Assy, Intercooler Cooling
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16550-0E010 Radiator Assy, Intercooler Cooling
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16550-0E010 note Radiator Assy, Intercooler Cooling
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16550-0E010 note Radiator Assy, Intercooler Cooling
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16550-0E010 note Radiator Assy, Intercooler Cooling
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16550-0E010 note Radiator Assy, Intercooler Cooling
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16550-0E010 note Radiator Assy, Intercooler Cooling
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16550-0E010 Radiator Assy, Intercooler Cooling
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16551C — Hose, Intercooler Cooling Water, NO.1
16551-0E010 note Hose, Intercooler Cooling Water, NO.1
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16551-0E010 Hose, Intercooler Cooling Water, NO.1
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16551-0E010 note Hose, Intercooler Cooling Water, NO.1
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16551-0E010 note Hose, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16551-0E010 note Hose, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16551-0E010 Hose, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16551-0E010 note Hose, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16551-0E010 note Hose, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16551D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16552C — Hose, Intercooler Cooling Water, NO.2
16552-0E010 note Hose, Intercooler Cooling Water, NO.2
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16552-0E010 Hose, Intercooler Cooling Water, NO.2
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16552-0E010 note Hose, Intercooler Cooling Water, NO.2
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16552-0E010 note Hose, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16552-0E010 note Hose, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16552-0E010 note Hose, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16552-0E010 Hose, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16552-0E010 note Hose, Intercooler Cooling Water, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16552-0E020 Hose, Intercooler Cooling Water, NO.2
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16552D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
90466-T0031 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0031 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16553D — Hose, Intercooler Cooling Water, NO.3
16553-0E010 Hose, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16553-0E010 note Hose, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16553-0E010 note Hose, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16553-0E010 note Hose, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16553-0E010 note Hose, Intercooler Cooling Water, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16553-0E010 note Hose, Intercooler Cooling Water, NO.3
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16553-0E010 note Hose, Intercooler Cooling Water, NO.3
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16553-0E010 Hose, Intercooler Cooling Water, NO.3
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16554C — Hose, Intercooler Cooling Water, NO.4
16554-0E010 Hose, Intercooler Cooling Water, NO.4
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16554-0E010 note Hose, Intercooler Cooling Water, NO.4
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16554-0E010 note Hose, Intercooler Cooling Water, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16554-0E010 note Hose, Intercooler Cooling Water, NO.4
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16554-0E010 note Hose, Intercooler Cooling Water, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16554-0E010 note Hose, Intercooler Cooling Water, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16554-0E010 Hose, Intercooler Cooling Water, NO.4
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16554-0E010 note Hose, Intercooler Cooling Water, NO.4
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16555C — Hose, Intercooler Cooling Water, NO.5
16555-0E010 Hose, Intercooler Cooling Water, NO.5
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16555-0E010 note Hose, Intercooler Cooling Water, NO.5
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16555-0E010 note Hose, Intercooler Cooling Water, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16555-0E010 Hose, Intercooler Cooling Water, NO.5
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16555D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
90466-T0017 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0017 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16556C — Hose, Intercooler Cooling Water, NO.6
16556-0E010 note Hose, Intercooler Cooling Water, NO.6
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16556-0E010 Hose, Intercooler Cooling Water, NO.6
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16556-0E010 note Hose, Intercooler Cooling Water, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16556-0E010 Hose, Intercooler Cooling Water, NO.6
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16556D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
90466-T0017 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0017 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16557B — Hose, Intercooler Cooling Water, NO.7
16555-0E020 note Hose, Intercooler Cooling Water, NO.7
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16555-0E020 Hose, Intercooler Cooling Water, NO.7
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16555-0E020 note Hose, Intercooler Cooling Water, NO.7
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16555-0E020 note Hose, Intercooler Cooling Water, NO.7
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16555-0E020 note Hose, Intercooler Cooling Water, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16555-0E020 note Hose, Intercooler Cooling Water, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16555-0E020 note Hose, Intercooler Cooling Water, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16555-0E020 Hose, Intercooler Cooling Water, NO.7
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16557C — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
90466-T0031 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16558 — Hose, Intercooler Cooling Water, NO.8
16556-0E020 Hose, Intercooler Cooling Water, NO.8
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16556-0E020 note Hose, Intercooler Cooling Water, NO.8
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16556-0E020 note Hose, Intercooler Cooling Water, NO.8
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16556-0E020 note Hose, Intercooler Cooling Water, NO.8
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16556-0E020 note Hose, Intercooler Cooling Water, NO.8
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16556-0E020 note Hose, Intercooler Cooling Water, NO.8
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16556-0E020 Hose, Intercooler Cooling Water, NO.8
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16556-0E020 note Hose, Intercooler Cooling Water, NO.8
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16558A — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0017 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0031 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
165A0 — Hose Assy, Intercooler Cooling Water, NO.1
165A0-0E010 Hose Assy, Intercooler Cooling Water, NO.1
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
165A0-0E010 note Hose Assy, Intercooler Cooling Water, NO.1
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
165A0-0E010 note Hose Assy, Intercooler Cooling Water, NO.1
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
165A0-0E010 note Hose Assy, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
165A0-0E010 note Hose Assy, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
165A0-0E010 note Hose Assy, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
165A0-0E010 Hose Assy, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
165A0-0E010 note Hose Assy, Intercooler Cooling Water, NO.1
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
165A0A — Clip, Hose
90466-T0031 note Clip, Hose
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 Clip, Hose
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0031 note Clip, Hose
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clip, Hose
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clip, Hose
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clip, Hose
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0031 note Clip, Hose
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0031 Clip, Hose
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16640 — Tank Assy, Intercooler Reserve
16640-0E010 Tank Assy, Intercooler Reserve
2023-08 → 2024-07 ended
1GDFTV GUN126 MHV;2GDFTV GUN125,135 +1 —
16640-0E010 note Tank Assy, Intercooler Reserve
2023-08 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16640-0E010 note Tank Assy, Intercooler Reserve
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16640-0E010 note Tank Assy, Intercooler Reserve
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16640-0E010 note Tank Assy, Intercooler Reserve
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16640-0E010 note Tank Assy, Intercooler Reserve
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16640-0E010 note Tank Assy, Intercooler Reserve
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16640-0E010 Tank Assy, Intercooler Reserve
2023-08 → 2024-08 ended
2GDFTV GUN125 SAP 6FC;1GDFTV +3 —
16640-0E020 Tank Assy, Intercooler Reserve
2024-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
