Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

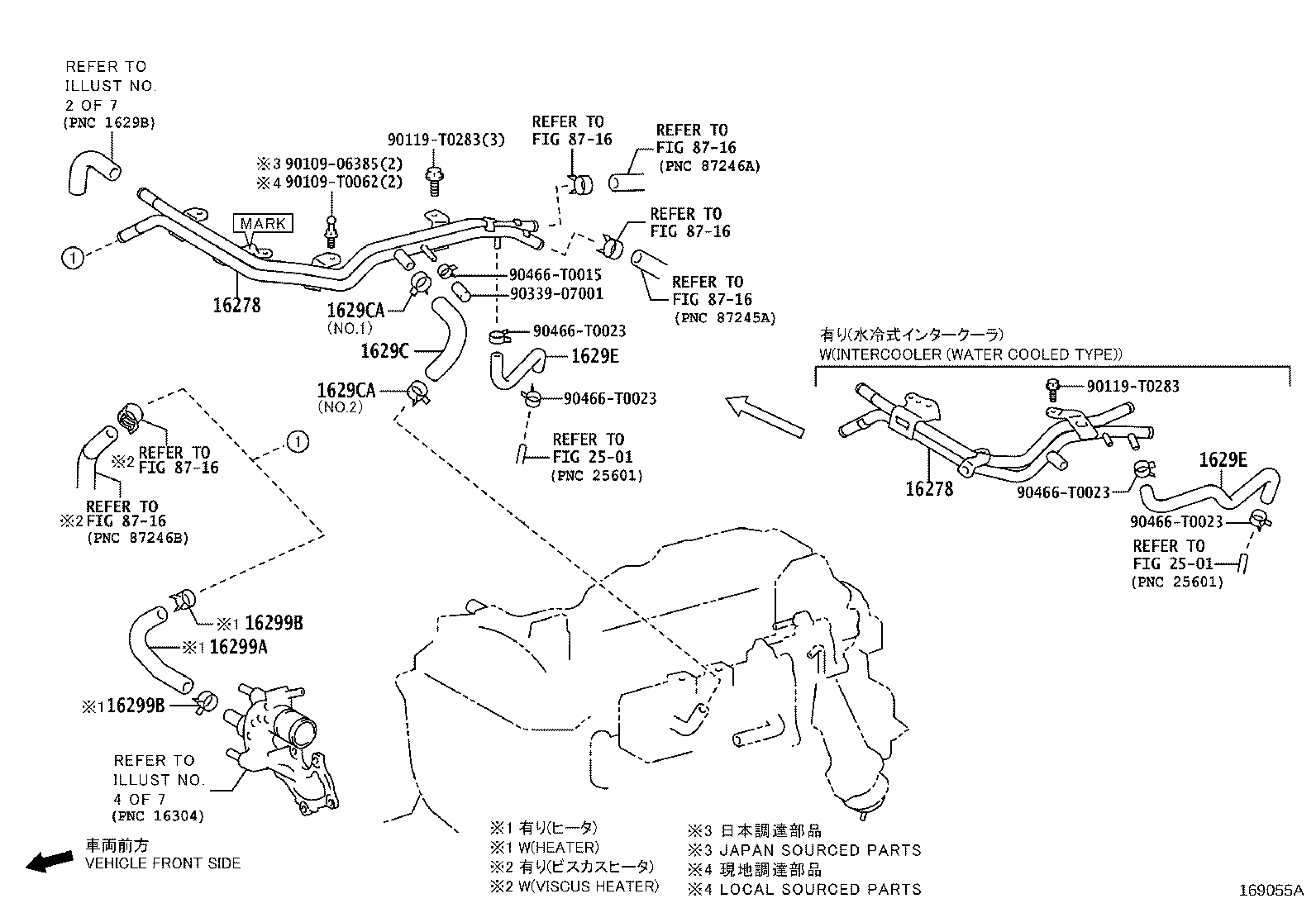

Exploded illustration 169055A 90466T0023 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 1629CA — CLIP(FOR WATER BY-PASS HOSE NO.16) (11 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 90466T0015 — not listed in this catalogue 9033907001 — not listed in this catalogue 16278 — PIPE, WATER BY-PASS, NO.2 (9 parts) 1629C — HOSE, WATER BY-PASS, NO.16 (9 parts) 1629CA — CLIP(FOR WATER BY-PASS HOSE NO.16) (11 parts) 90466T0023 — not listed in this catalogue 1629E — HOSE, WATER BY-PASS, NO.18 (9 parts) 2501 — not listed in this catalogue 90119T0283 — not listed in this catalogue 90466T0023 — not listed in this catalogue 1629E — HOSE, WATER BY-PASS, NO.18 (9 parts) 2501 — not listed in this catalogue 90466T0023 — not listed in this catalogue 16278 — PIPE, WATER BY-PASS, NO.2 (9 parts) 90119T0283 — not listed in this catalogue 9010906385 — not listed in this catalogue 90109T0062 — not listed in this catalogue 16299A — HOSE, WATER BY-PASS, NO.13 (1 parts) 16299B — CLIP(FOR WATER BY-PASS HOSE NO.13) (2 parts) 16299B — CLIP(FOR WATER BY-PASS HOSE NO.13) (2 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue
169055A · 10 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
16278 — Pipe, Water By-pass, NO.2
16278-0E030 Pipe, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16278-0E030 note Pipe, Water By-pass, NO.2
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16278-0E041 Pipe, Water By-pass, NO.2
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
16278-0E041 Pipe, Water By-pass, NO.2
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16278-0E041 note Pipe, Water By-pass, NO.2
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16278-0E041 note Pipe, Water By-pass, NO.2
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16278-0E041 note Pipe, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16278-0E041 note Pipe, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16278-0E041 note Pipe, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16299A — Hose, Water By-pass, NO.13
16299-0E010 Hose, Water By-pass, NO.13
2024-05 → 2024-10 ended
1GDFTV GUN126 RHD;2GDFTV GUN125 +5 —
16299B — Clip(FOR WATER BY-PASS HOSE NO.13)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2024-05 → 2024-10 ended
1GDFTV GUN126 RHD;2GDFTV GUN125 +5 —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2024-05 → 2024-10 ended
1GDFTV GUN126 RHD;2GDFTV GUN125 +5 —
1629C — Hose, Water By-pass, NO.16
1629C-0E010 Hose, Water By-pass, NO.16
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629C-0E010 note Hose, Water By-pass, NO.16
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
1629C-0E030 Hose, Water By-pass, NO.16
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
1629C-0E030 note Hose, Water By-pass, NO.16
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
1629C-0E030 note Hose, Water By-pass, NO.16
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
1629C-0E030 note Hose, Water By-pass, NO.16
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629C-0E030 note Hose, Water By-pass, NO.16
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629C-0E030 Hose, Water By-pass, NO.16
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
1629C-0E030 note Hose, Water By-pass, NO.16
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629CA — Clip(FOR WATER BY-PASS HOSE NO.16)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
1629E — Hose, Water By-pass, NO.18
1629E-0E010 Hose, Water By-pass, NO.18
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629E-0E010 note Hose, Water By-pass, NO.18
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
1629E-0E020 Hose, Water By-pass, NO.18
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
1629E-0E020 note Hose, Water By-pass, NO.18
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629E-0E020 note Hose, Water By-pass, NO.18
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629E-0E020 note Hose, Water By-pass, NO.18
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
1629E-0E020 note Hose, Water By-pass, NO.18
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
1629E-0E020 note Hose, Water By-pass, NO.18
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
1629E-0E020 Hose, Water By-pass, NO.18
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
