Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 169056 90119T0136 — not listed in this catalogue 90105T0120 — not listed in this catalogue 16207 — PIPE SUB-ASSY, WATER BY-PASS, NO.2 (12 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (15 parts) 16293 — HOSE, WATER BY-PASS, NO.10 (11 parts) 16293A — CLIP(FOR WATER BY-PASS HOSE NO.10) (4 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (4 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (4 parts) 1503 — not listed in this catalogue 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16279 — PIPE, WATER BY-PASS, NO.3 (3 parts) 16286 — HOSE, TURBO WATER, NO.3 (3 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (2 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (2 parts) 16264D — HOSE, WATER BY-PASS, NO.2 (9 parts) 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16293A — CLIP(FOR WATER BY-PASS HOSE NO.10) (4 parts) 1701 — not listed in this catalogue

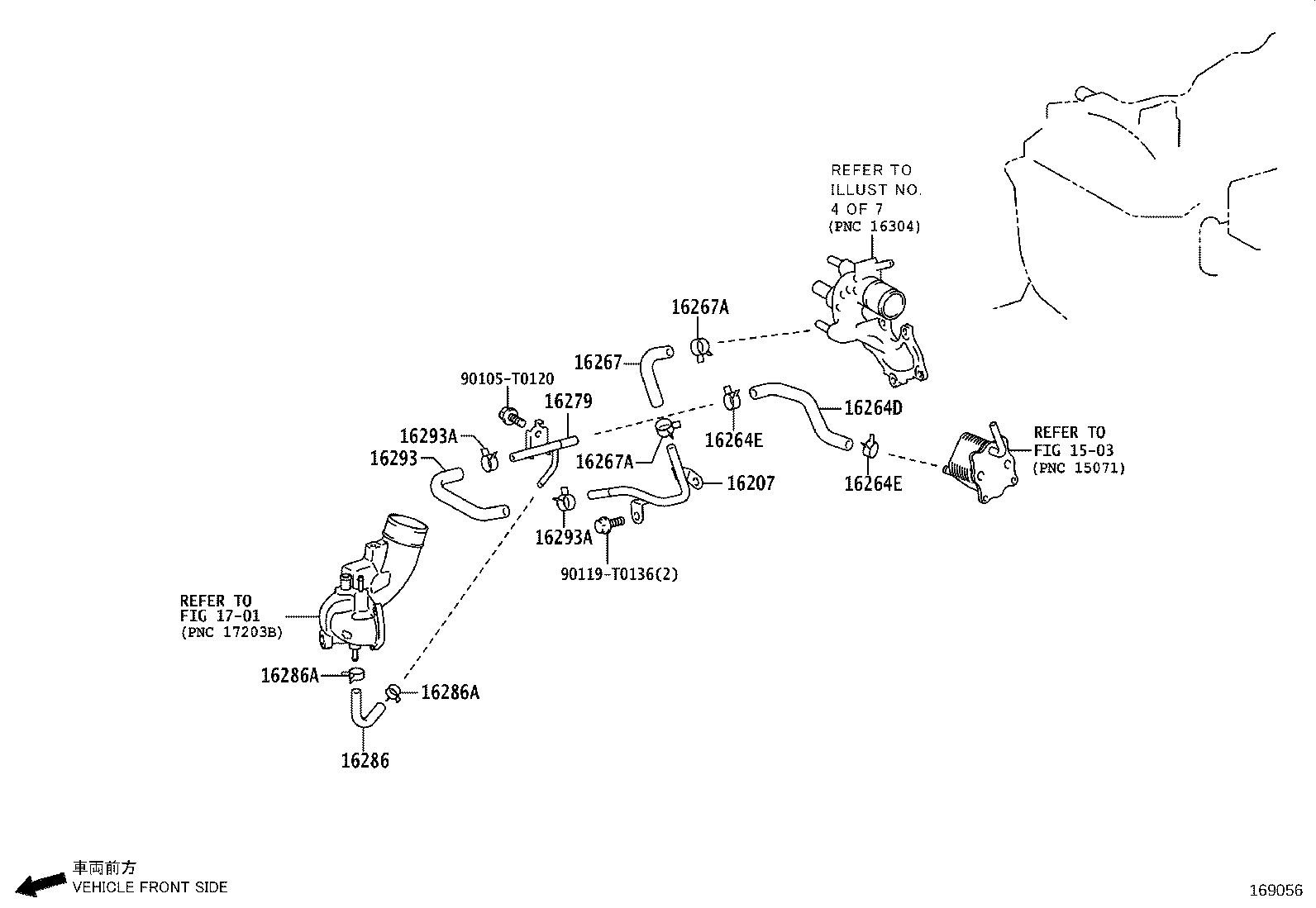

169056 · 14 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
16207 — Pipe Sub-assy, Water By-pass, NO.2
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-0E050 note Pipe Sub-assy, Water By-pass, NO.2
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16207-11030 note Pipe Sub-assy, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16207-11030 note Pipe Sub-assy, Water By-pass, NO.2
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16264D — Hose, Water By-pass, NO.2
16264-0E011 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16264-0E011 note Hose, Water By-pass, NO.2
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16264-0E021 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16264-0E021 note Hose, Water By-pass, NO.2
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16264-0E021 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16264-0E021 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16264-0E021 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16264-0E021 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16264-0E021 note Hose, Water By-pass, NO.2
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16264E — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-T0017 note Clip(FOR WATER BY-PASS HOSE NO.2)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0017 note Clip(FOR WATER BY-PASS HOSE NO.2)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16267 — Hose, Water By-pass, NO.3
16267-0E010 note Hose, Water By-pass, NO.3
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16267-0E010 note Hose, Water By-pass, NO.3
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E010 note Hose, Water By-pass, NO.3
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E010 note Hose, Water By-pass, NO.3
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16267-0E010 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E010 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E010 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E010 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16267-0E020 note Hose, Water By-pass, NO.3
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16267-0E020 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E020 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E020 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E020 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E020 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267-0E020 note Hose, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
90466-T0017 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0017 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
96136-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16279 — Pipe, Water By-pass, NO.3
16279-0E010 note Pipe, Water By-pass, NO.3
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16279-0E020 note Pipe, Water By-pass, NO.3
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16279-0E020 note Pipe, Water By-pass, NO.3
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16286 — Hose, Turbo Water, NO.3
16286-0E010 Hose, Turbo Water, NO.3
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16286-0E010 Hose, Turbo Water, NO.3
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16286-0E020 Hose, Turbo Water, NO.3
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16286A — Clip(FOR TURBO WATER HOSE NO.3)
90466-T0015 Clip(FOR TURBO WATER HOSE NO.3)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0015 Clip(FOR TURBO WATER HOSE NO.3)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16293 — Hose, Water By-pass, NO.10
16293-0E011 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16293-0E011 note Hose, Water By-pass, NO.10
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16293-0E030 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-0E030 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-0E030 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-0E030 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-0E030 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-0E030 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-0E030 note Hose, Water By-pass, NO.10
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16293-11020 note Hose, Water By-pass, NO.10
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16293-11020 note Hose, Water By-pass, NO.10
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16293A — Clip(FOR WATER BY-PASS HOSE NO.10)
90466-T0017 note Clip(FOR WATER BY-PASS HOSE NO.10)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0017 note Clip(FOR WATER BY-PASS HOSE NO.10)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.10)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.10)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
