Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 169093C 90119T0260 — not listed in this catalogue 90119T0342 — not listed in this catalogue 16025 — PIPE SUB-ASSY, WATER BY-PASS, NO.5 (9 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (12 parts) 16258C — GASKET(FOR WATER BY-PASS PIPE) (9 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (15 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (10 parts) 16571F — CLAMP OR CLIP(FOR WATER HOSE) (10 parts) 16571F — CLAMP OR CLIP(FOR WATER HOSE) (10 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (4 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (4 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (4 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (4 parts) 16571E — HOSE, WATER (8 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (12 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (12 parts) 1629D — HOSE, WATER BY-PASS, NO.17 (2 parts) 1629DA — CLIP(FOR WATER BY-PASS HOSE NO.17) (4 parts) 1629DA — CLIP(FOR WATER BY-PASS HOSE NO.17) (4 parts) 2501 — not listed in this catalogue 16581 — CLAMP, HOSE(FOR WATER HOSE) (2 parts) 16294 — HOSE, WATER BY-PASS, NO.11 (3 parts) 16294A — CLIP(FOR WATER BY-PASS HOSE NO.11) (2 parts) 16294A — CLIP(FOR WATER BY-PASS HOSE NO.11) (2 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (12 parts) 2606 — not listed in this catalogue 1629A — HOSE, WATER BY-PASS, NO.14 (2 parts) 1629AA — CLIP(FOR WATER BY-PASS HOSE NO.14) (2 parts) 1629AA — CLIP(FOR WATER BY-PASS HOSE NO.14) (2 parts)

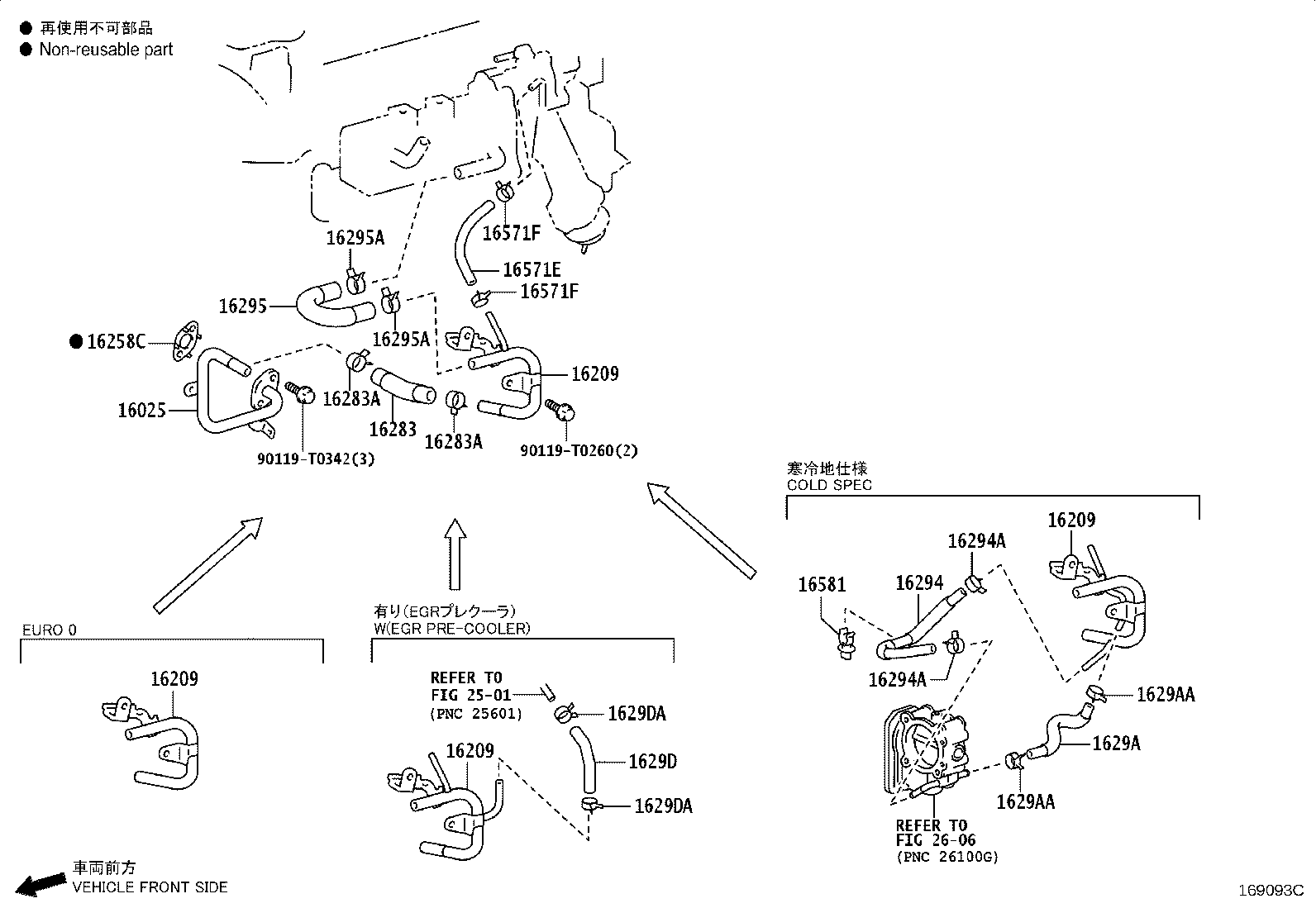

169093C · 25 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
98 parts on this figure
Part number Description Fitment Price
16025 — Pipe Sub-assy, Water By-pass, NO.5
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209 — Pipe Sub-assy, Water By-pass, NO.4
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16209-0E100 Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16209-0E100 Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16209-0E130 Pipe Sub-assy, Water By-pass, NO.4
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16258C — Gasket(FOR WATER BY-PASS PIPE)
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283 — Hose, Water By-pass, NO.6
16283-0E010 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16283-0E010 note Hose, Water By-pass, NO.6
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E010 note Hose, Water By-pass, NO.6
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E010 note Hose, Water By-pass, NO.6
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16283-0E020 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E020 note Hose, Water By-pass, NO.6
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16283-0E020 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E020 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E020 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E020 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283-0E020 note Hose, Water By-pass, NO.6
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16294 — Hose, Water By-pass, NO.11
16294-0E010 Hose, Water By-pass, NO.11
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16294-0E010 Hose, Water By-pass, NO.11
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16294-0E020 Hose, Water By-pass, NO.11
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16294A — Clip(FOR WATER BY-PASS HOSE NO.11)
90466-T0015 Clip(FOR WATER BY-PASS HOSE NO.11)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0015 Clip(FOR WATER BY-PASS HOSE NO.11)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16295 — Hose, Water By-pass, NO.7
16295-0E010 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16295-0E010 note Hose, Water By-pass, NO.7
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
16295-0E020 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16295-0E020 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16295-0E020 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16295-0E020 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16295-0E020 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16295-0E020 note Hose, Water By-pass, NO.7
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16295-0E020 note Hose, Water By-pass, NO.7
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16295-0E030 note Hose, Water By-pass, NO.7
2024-06 → 2024-10 ended
1GDFTV GUN126 MHV —
16295A — Clip(FOR WATER BY-PASS HOSE NO.7)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
1629A — Hose, Water By-pass, NO.14
1629A-0E010 Hose, Water By-pass, NO.14
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
1629A-0E010 Hose, Water By-pass, NO.14
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
1629AA — Clip(FOR WATER BY-PASS HOSE NO.14)
90466-T0015 Clip(FOR WATER BY-PASS HOSE NO.14)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0015 Clip(FOR WATER BY-PASS HOSE NO.14)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
1629D — Hose, Water By-pass, NO.17
1629D-0E011 Hose, Water By-pass, NO.17
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
1629D-0E011 Hose, Water By-pass, NO.17
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
1629DA — Clip(FOR WATER BY-PASS HOSE NO.17)
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
90466-T0042 Clip(FOR WATER BY-PASS HOSE NO.17)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
16571E — Hose, Water
99555-10200 note Hose, Water
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
99555-10200 note Hose, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
99555-10200 note Hose, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
99555-10200 note Hose, Water
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
99555-10200 note Hose, Water
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
99555-10200 note Hose, Water
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
99555-10200 note Hose, Water
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
99555-10200 note Hose, Water
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP;2GDFTV GUN125,135 +2 —
16571F — Clamp OR Clip(FOR WATER HOSE)
90466-T0015 Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-07 ended
2GDFTV GUN125,135 THP —
90466-T0015 Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-10 ended
1GDFTV,2GDFTV GUN12#,135 SAP 6FC +1 —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-10 ended
1GDFTV GUN126 6F;1GDFTV GUN126 +1 —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2024-05 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2024-04 → 2024-07 ended
2GDFTV GUN125 THP 6F —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-08 → 2024-07 ended
1GDFTV GUN126 THP —
16581 — Clamp, Hose(FOR WATER HOSE)
16581-0E010 Clamp, Hose(FOR WATER HOSE)
2023-08 → 2024-07 ended
1GDFTV,2GDFTV GUN12#,135 THP —
16581-0E010 Clamp, Hose(FOR WATER HOSE)
2023-08 → 2024-10 ended
1GDFTV GUN126 SAP DCRL;2GDFTV +3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
