Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

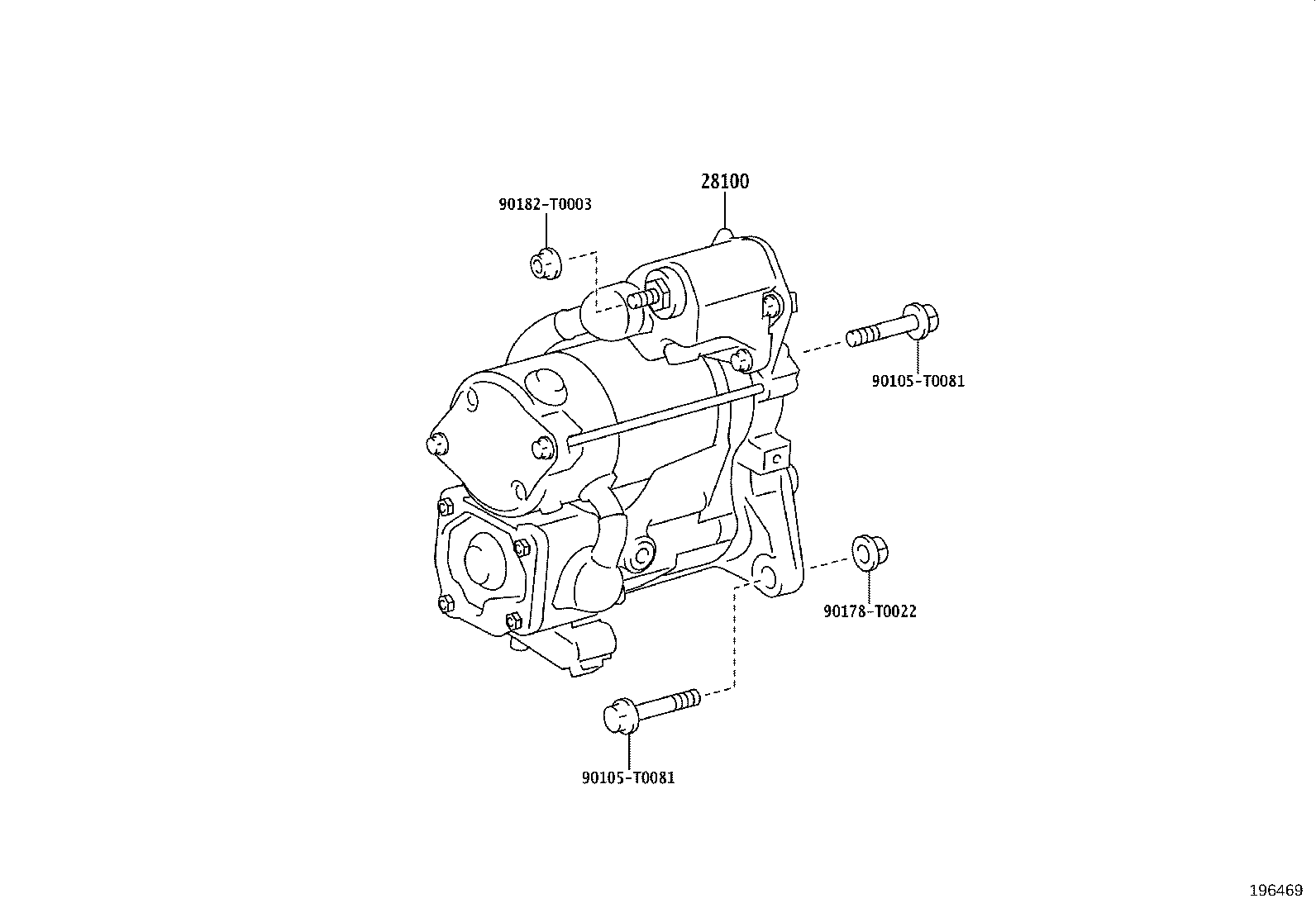

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28100 — Starter Assy | ||||
| 28100-0L052 note |
Starter Assy
2023-08 → 2024-07
ended
|
1GDFTV,2GDFTV GUN12#,135 THP | — | |
| 28100-0L052 note |
Starter Assy
2023-08 → 2024-08
ended
|
2GDFTV GUN125,135 SCB | — | |
| 28100-0L052 note |
Starter Assy
2024-02 → 2024-08
ended
|
2GDFTV GUN125 LHD DCB +2 | — | |
| 28100-0L052 note |
Starter Assy
2023-08 → 2024-10
ended
|
1GDFTV GUN126 MHV;2GDFTV GUN135 +2 | — | |
| 28100-0L052 note |
Starter Assy
2024-02 → 2024-10
ended
|
2GDFTV GUN125 LHD DCB +3 | — | |
| 28100-30110 note |
Starter Assy
2024-02 → 2024-08
ended
|
2GDFTV GUN125,135 (DCB,XTR) SAP +1 | — | |
| 28100-30110 note |
Starter Assy
2024-02 → 2024-10
ended
|
2GDFTV GUN125 SAP 6FC;1GDFTV +3 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
