Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

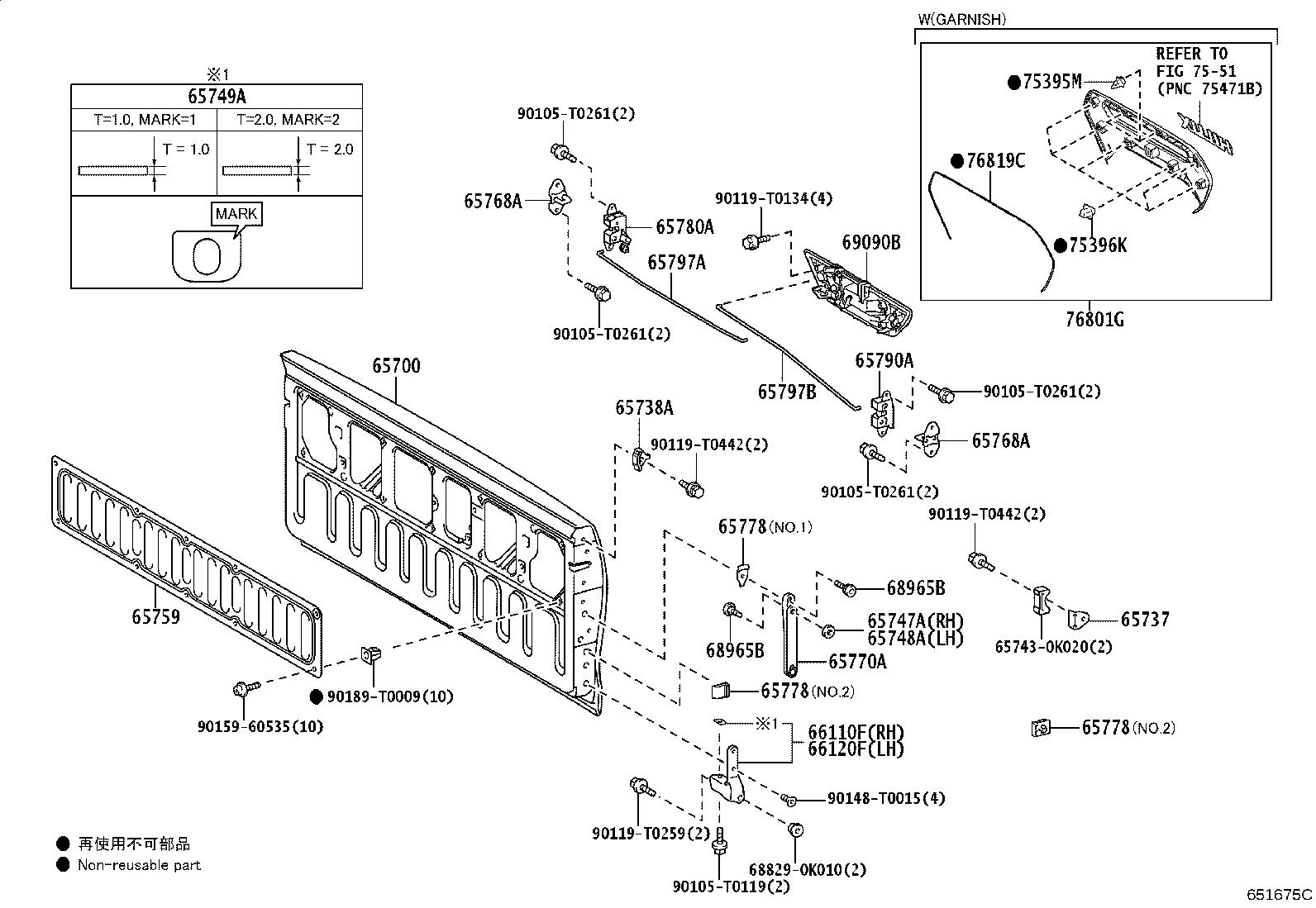

Exploded illustration 651675C 65700 — GATE ASSY, REAR BODY TAIL (14 parts) 65737 — STOP, TAIL GATE (3 parts) 65738A — STOPPER, TAIL GATE LOCK HINGE, NO.1 (3 parts) 65747A — PLATE, TAIL GATE SEAL, RH (3 parts) 65748A — PLATE, TAIL GATE SEAL, LH (3 parts) 65759 — COVER, TAIL GATE SERVICE HOLE (4 parts) 65768A — STRIKER, TAIL GATE LOCK (3 parts) 65768A — STRIKER, TAIL GATE LOCK (3 parts) 65770A — STAY ASSY, TAIL GATE (3 parts) 65778 — STOPPER, TAIL GATE STAY (6 parts) 65778 — STOPPER, TAIL GATE STAY (6 parts) 65778 — STOPPER, TAIL GATE STAY (6 parts) 65780A — LOCK ASSY, TAIL GATE, RH (3 parts) 65790A — LOCK ASSY, TAIL GATE, LH (3 parts) 65797A — LINK, TAIL GATE LOCK CONTROL (3 parts) 65797B — LINK, TAIL GATE LOCK CONTROL (3 parts) 68965B — SHAFT, TAIL GATE STAY (3 parts) 68965B — SHAFT, TAIL GATE STAY (3 parts) 69090B — HANDLE ASSY, TAIL GATE (48 parts) 75396K — CLIP, OUTSIDE MOULDING, NO.2 (8 parts) 76801G — GARNISH SUB-ASSY, TAIL GATE, OUTSIDE (9 parts) 75395M — CLIP, OUTSIDE MOULDING, NO.1 (8 parts) 76819C — SEAL, TAIL GATE OUTSIDE GARNISH (8 parts) 657430K020 — not listed in this catalogue 688290K010 — not listed in this catalogue 90105T0119 — not listed in this catalogue 90105T0261 — not listed in this catalogue 90105T0261 — not listed in this catalogue 90105T0261 — not listed in this catalogue 90105T0261 — not listed in this catalogue 90119T0134 — not listed in this catalogue 90119T0259 — not listed in this catalogue 90119T0442 — not listed in this catalogue 90119T0442 — not listed in this catalogue 90148T0015 — not listed in this catalogue 9015960535 — not listed in this catalogue 90189T0009 — not listed in this catalogue 66120F — HINGE ASSY, TAIL GATE, LH (3 parts) 66110F — HINGE ASSY, TAIL GATE, RH (3 parts) 7551 — not listed in this catalogue 65749A — PAD, TAIL GATE HINGE (4 parts)
651675C · 26 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
148 parts on this figure
Part number Description Fitment Price
65700 — Gate Assy, Rear Body Tail
65700-KK010 Gate Assy, Rear Body Tail
2023-08 → 2024-07 ended
GUN12#,135 THP —
65700-KK010 note Gate Assy, Rear Body Tail
2024-02 → 2024-03 ended
GUN125 6F H —
65700-KK010 Gate Assy, Rear Body Tail
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65700-KK010 note Gate Assy, Rear Body Tail
2024-06 → 2024-09 ended
GUN126 MHV —
65700-KK010 note Gate Assy, Rear Body Tail
2024-02 → 2024-09 ended
GUN126 6F H;GUN126 XTR +4 —
65700-KK010 note Gate Assy, Rear Body Tail
2023-08 → 2024-09 ended
GUN126 DCB SAP 6FC +1 —
65700-KK010 Gate Assy, Rear Body Tail
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65700-KK010 note Gate Assy, Rear Body Tail
2023-08 → 2024-07 ended
GUN12# THP H —
65700-KK170 Gate Assy, Rear Body Tail
2024-02 → 2024-08 ended
GUN125,135 SCB CBU —
65700-YP010 note Gate Assy, Rear Body Tail
2023-08 → 2024-07 ended
GUN12# THP H —
65700-YP010 note Gate Assy, Rear Body Tail
2023-08 → 2024-10 ended
GUN126 DCB SAP 6FC +1 —
65700-YP010 note Gate Assy, Rear Body Tail
2024-02 → 2024-10 ended
GUN126 6F H;GUN126 XTR +4 —
65700-YP010 note Gate Assy, Rear Body Tail
2024-06 → 2024-10 ended
GUN126 MHV —
65700-YP010 note Gate Assy, Rear Body Tail
2024-02 → 2024-08 ended
GUN125 6F H —
65737 — Stop, Tail Gate
65737-0K020 Stop, Tail Gate
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65737-0K020 Stop, Tail Gate
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65737-0K020 Stop, Tail Gate
2023-08 → 2024-07 ended
GUN12#,135 THP —
65738A — Stopper, Tail Gate Lock Hinge, NO.1
65738-KK010 Stopper, Tail Gate Lock Hinge, NO.1
2023-08 → 2024-07 ended
GUN12#,135 THP —
65738-KK010 Stopper, Tail Gate Lock Hinge, NO.1
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65738-KK010 Stopper, Tail Gate Lock Hinge, NO.1
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65747A — Plate, Tail Gate Seal, RH
65747-0K020 Plate, Tail Gate Seal, RH
2023-08 → 2024-07 ended
GUN12#,135 THP —
65747-0K020 Plate, Tail Gate Seal, RH
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65747-0K020 Plate, Tail Gate Seal, RH
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65748A — Plate, Tail Gate Seal, LH
65747-0K020 Plate, Tail Gate Seal, LH
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65747-0K020 Plate, Tail Gate Seal, LH
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65747-0K020 Plate, Tail Gate Seal, LH
2023-08 → 2024-07 ended
GUN12#,135 THP —
65749A — Pad, Tail Gate Hinge
65749-0K030 note Pad, Tail Gate Hinge
2024-02 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65749-0K030 note Pad, Tail Gate Hinge
2024-02 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65749-0K080 note Pad, Tail Gate Hinge
2024-02 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65749-0K080 note Pad, Tail Gate Hinge
2024-02 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65759 — Cover, Tail Gate Service Hole
65759-KK010 Cover, Tail Gate Service Hole
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65759-KK010 Cover, Tail Gate Service Hole
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65759-KK010 Cover, Tail Gate Service Hole
2023-08 → 2024-07 ended
GUN12#,135 THP —
65759-KK020 Cover, Tail Gate Service Hole
2024-02 → 2024-08 ended
GUN125,135 SCB CBU —
65768A — Striker, Tail Gate Lock
65768-0K010 Striker, Tail Gate Lock
2023-08 → 2024-07 ended
GUN12#,135 THP —
65768-0K010 Striker, Tail Gate Lock
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65768-0K010 Striker, Tail Gate Lock
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65770A — Stay Assy, Tail Gate
65770-0K030 Stay Assy, Tail Gate
2023-08 → 2024-07 ended
GUN12#,135 THP —
65770-0K030 Stay Assy, Tail Gate
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65770-0K030 Stay Assy, Tail Gate
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65778 — Stopper, Tail Gate Stay
65778-0K020 note Stopper, Tail Gate Stay
2023-08 → 2024-07 ended
GUN12#,135 THP —
65778-0K020 note Stopper, Tail Gate Stay
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65778-0K020 note Stopper, Tail Gate Stay
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65778-0K030 note Stopper, Tail Gate Stay
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
65778-0K030 note Stopper, Tail Gate Stay
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65778-0K030 note Stopper, Tail Gate Stay
2023-08 → 2024-07 ended
GUN12#,135 THP —
65780A — Lock Assy, Tail Gate, RH
65780-0K010 Lock Assy, Tail Gate, RH
2023-08 → 2024-07 ended
GUN12#,135 THP —
65780-0K010 Lock Assy, Tail Gate, RH
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65780-0K010 Lock Assy, Tail Gate, RH
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65790A — Lock Assy, Tail Gate, LH
65790-0K010 Lock Assy, Tail Gate, LH
2023-08 → 2024-07 ended
GUN12#,135 THP —
65790-0K010 Lock Assy, Tail Gate, LH
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65790-0K010 Lock Assy, Tail Gate, LH
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65797A — Link, Tail Gate Lock Control
65797-0K070 Link, Tail Gate Lock Control
2023-08 → 2024-07 ended
GUN12#,135 THP —
65797-0K070 Link, Tail Gate Lock Control
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65797-0K070 Link, Tail Gate Lock Control
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
65797B — Link, Tail Gate Lock Control
65797-0K080 Link, Tail Gate Lock Control
2023-08 → 2024-07 ended
GUN12#,135 THP —
65797-0K080 Link, Tail Gate Lock Control
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
65797-0K080 Link, Tail Gate Lock Control
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
66110F — Hinge Assy, Tail Gate, RH
66110-0K020 Hinge Assy, Tail Gate, RH
2023-08 → 2024-07 ended
GUN12#,135 THP —
66110-0K070 Hinge Assy, Tail Gate, RH
2024-02 → 2024-08 ended
GUN125,135 SAP 6F CBU —
66110-0K070 Hinge Assy, Tail Gate, RH
2024-02 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
66120F — Hinge Assy, Tail Gate, LH
66120-0K020 Hinge Assy, Tail Gate, LH
2023-08 → 2024-07 ended
GUN12#,135 THP —
66120-0K070 Hinge Assy, Tail Gate, LH
2024-02 → 2024-08 ended
GUN125,135 SAP 6F CBU —
66120-0K070 Hinge Assy, Tail Gate, LH
2024-02 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
68965B — Shaft, Tail Gate Stay
68965-0K020 Shaft, Tail Gate Stay
2023-08 → 2024-07 ended
GUN12#,135 THP —
68965-0K020 Shaft, Tail Gate Stay
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
68965-0K020 Shaft, Tail Gate Stay
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
69090B — Handle Assy, Tail Gate
69090-0K080 Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K080 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP 6F —
69090-0K080 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K080 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K080 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K280 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K280 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K280 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K280 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K290 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 THP H —
69090-0K290 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 THP H —
69090-0K290 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 S —
69090-0K290 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 S —
69090-0K290 Handle Assy, Tail Gate
2023-08 → 2024-10 ended
GUN126 SAP H;GUN125 SAP +2 —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-10 ended
GUN126 DCB 6F S;GUN125 +6 —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-08 ended
GUN125 DCB SAP S +1 —
69090-0K290 Handle Assy, Tail Gate
2023-08 → 2024-08 ended
GUN125 6F H —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125,135 THP S —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
69090-0K290 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
69090-0K290 Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP H —
69090-0K330 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K330 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K330 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP 6F —
69090-0K330 Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
69090-0K340 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K340 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP 6F —
69090-0K340 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125 THP S —
69090-0K350 Handle Assy, Tail Gate
2023-08 → 2024-10 ended
GUN126 6F S;GUN125,135 SAP +2 —
69090-0K350 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 THP H —
69090-0K350 Handle Assy, Tail Gate
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP S +1 —
69090-0K350 note Handle Assy, Tail Gate
2024-02 → 2024-08 ended
GUN125 6F H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-10 ended
GUN126 DCB SAP 6FC —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-10 ended
GUN126 DCB SAP 6FC —
69090-0K350 note Handle Assy, Tail Gate
2024-02 → 2024-10 ended
GUN126 6F H;GUN126 XTR +4 —
69090-0K350 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 THP H —
69090-0K350 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 THP H —
69090-0K350 Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN125,135 THP S —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN12# THP H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN12# THP H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 S —
69090-0K350 note Handle Assy, Tail Gate
2024-05 → 2024-07 ended
GUN126 THP H —
69090-0K350 note Handle Assy, Tail Gate
2023-08 → 2024-07 ended
GUN126 THP H —
75395M — Clip, Outside Moulding, NO.1
75395-0K010 note Clip, Outside Moulding, NO.1
2024-05 → 2024-07 ended
GUN126 THP H —
75395-0K010 note Clip, Outside Moulding, NO.1
2024-02 → 2024-10 ended
GUN126 6F H;GUN126 XTR +4 —
75395-0K010 note Clip, Outside Moulding, NO.1
2023-08 → 2024-10 ended
GUN126 DCB SAP 6FC —
75395-0K010 note Clip, Outside Moulding, NO.1
2024-02 → 2024-08 ended
GUN125 6F H —
75395-0K010 note Clip, Outside Moulding, NO.1
2024-05 → 2024-07 ended
GUN126 THP H —
75395-0K010 note Clip, Outside Moulding, NO.1
2023-08 → 2024-07 ended
GUN12# THP H —
75395-0K010 note Clip, Outside Moulding, NO.1
2023-08 → 2024-07 ended
GUN126 THP H —
75395-0K010 note Clip, Outside Moulding, NO.1
2023-08 → 2024-07 ended
GUN126 THP H —
75396K — Clip, Outside Moulding, NO.2
75396-35020 note Clip, Outside Moulding, NO.2
2024-02 → 2024-10 ended
GUN126 6F H;GUN126 XTR +4 —
75396-35020 note Clip, Outside Moulding, NO.2
2023-08 → 2024-10 ended
GUN126 DCB SAP 6FC —
75396-35020 note Clip, Outside Moulding, NO.2
2024-02 → 2024-08 ended
GUN125 6F H —
75396-35020 note Clip, Outside Moulding, NO.2
2024-05 → 2024-07 ended
GUN126 THP H —
75396-35020 note Clip, Outside Moulding, NO.2
2023-08 → 2024-07 ended
GUN12# THP H —
75396-35020 note Clip, Outside Moulding, NO.2
2023-08 → 2024-07 ended
GUN126 THP H —
75396-35020 note Clip, Outside Moulding, NO.2
2023-08 → 2024-07 ended
GUN126 THP H —
75396-35020 note Clip, Outside Moulding, NO.2
2024-05 → 2024-07 ended
GUN126 THP H —
76801G — Garnish Sub-assy, Tail Gate, Outside
76801-YP040 note Garnish Sub-assy, Tail Gate, Outside
2023-08 → 2024-07 ended
GUN126 THP H —
76801-YP040 note Garnish Sub-assy, Tail Gate, Outside
2023-08 → 2024-07 ended
GUN126 THP H —
76801-YP040 note Garnish Sub-assy, Tail Gate, Outside
2023-08 → 2024-07 ended
GUN125 THP H —
76801-YP040 note Garnish Sub-assy, Tail Gate, Outside
2024-05 → 2024-07 ended
GUN126 THP H —
76801-YP040 note Garnish Sub-assy, Tail Gate, Outside
2024-05 → 2024-07 ended
GUN126 THP H —
76801-YP050 note Garnish Sub-assy, Tail Gate, Outside
2023-08 → 2024-07 ended
GUN126 THP H —
76801-YP070 note Garnish Sub-assy, Tail Gate, Outside
2024-02 → 2024-08 ended
GUN125 6F H —
76801-YP070 note Garnish Sub-assy, Tail Gate, Outside
2024-05 → 2024-10 ended
GUN126 DCB SAP 6FC —
76801-YP070 note Garnish Sub-assy, Tail Gate, Outside
2024-02 → 2024-10 ended
GUN126 6F H;GUN126 XTR +4 —
76819C — Seal, Tail Gate Outside Garnish
76819-YP010 note Seal, Tail Gate Outside Garnish
2023-08 → 2024-07 ended
GUN126 THP H —
76819-YP010 note Seal, Tail Gate Outside Garnish
2023-08 → 2024-07 ended
GUN126 THP H —
76819-YP010 note Seal, Tail Gate Outside Garnish
2023-08 → 2024-07 ended
GUN12# THP H —
76819-YP010 note Seal, Tail Gate Outside Garnish
2024-05 → 2024-07 ended
GUN126 THP H —
76819-YP010 note Seal, Tail Gate Outside Garnish
2024-05 → 2024-07 ended
GUN126 THP H —
76819-YP020 note Seal, Tail Gate Outside Garnish
2024-02 → 2024-08 ended
GUN125 6F H —
76819-YP020 note Seal, Tail Gate Outside Garnish
2024-02 → 2024-10 ended
GUN126 6F H;GUN126 XTR +4 —
76819-YP020 note Seal, Tail Gate Outside Garnish
2024-05 → 2024-10 ended
GUN126 DCB SAP 6FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
