Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

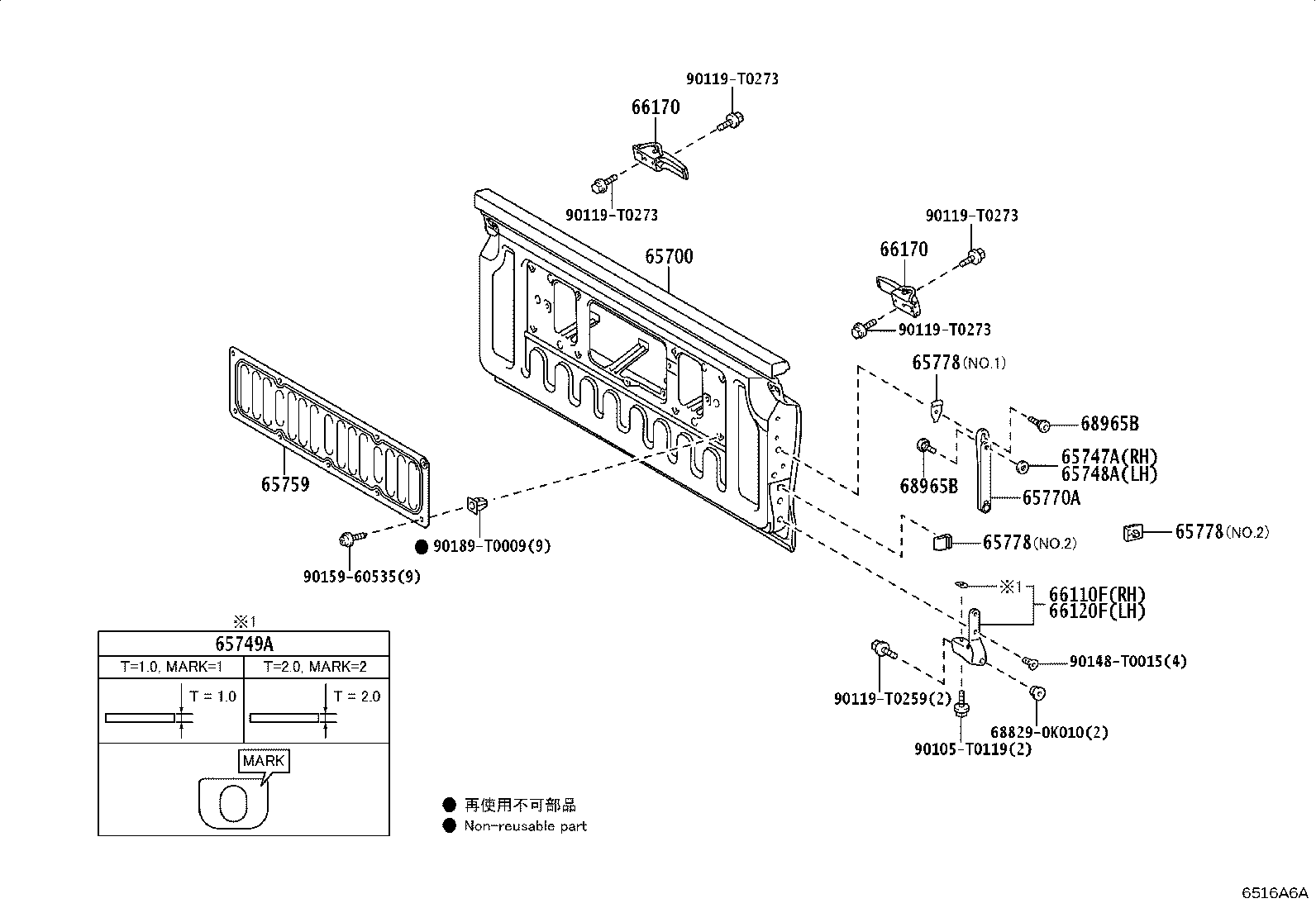

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 65700 — Gate Assy, Rear Body Tail | ||||
| 65700-KK010 |
Gate Assy, Rear Body Tail
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65700-KK010 note |
Gate Assy, Rear Body Tail
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 65700-KK010 note |
Gate Assy, Rear Body Tail
2024-02 → 2024-03
ended
|
GUN125 6F H | — | |
| 65700-KK010 |
Gate Assy, Rear Body Tail
2023-08 → 2024-08
ended
|
GUN125,135 (DCB,XTR) SAP 6F +1 | — | |
| 65700-KK010 note |
Gate Assy, Rear Body Tail
2023-08 → 2024-09
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 65700-KK010 note |
Gate Assy, Rear Body Tail
2024-02 → 2024-09
ended
|
GUN126 6F H;GUN126 XTR +4 | — | |
| 65700-KK010 note |
Gate Assy, Rear Body Tail
2024-06 → 2024-09
ended
|
GUN126 MHV | — | |
| 65700-KK010 |
Gate Assy, Rear Body Tail
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65700-KK170 |
Gate Assy, Rear Body Tail
2024-02 → 2024-08
ended
|
GUN125,135 SCB CBU | — | |
| 65700-YP010 note |
Gate Assy, Rear Body Tail
2023-08 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 65700-YP010 note |
Gate Assy, Rear Body Tail
2024-06 → 2024-10
ended
|
GUN126 MHV | — | |
| 65700-YP010 note |
Gate Assy, Rear Body Tail
2024-02 → 2024-10
ended
|
GUN126 6F H;GUN126 XTR +4 | — | |
| 65700-YP010 note |
Gate Assy, Rear Body Tail
2024-02 → 2024-08
ended
|
GUN125 6F H | — | |
| 65700-YP010 note |
Gate Assy, Rear Body Tail
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 65747A — Plate, Tail Gate Seal, RH | ||||
| 65747-0K020 |
Plate, Tail Gate Seal, RH
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65747-0K020 |
Plate, Tail Gate Seal, RH
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65747-0K020 |
Plate, Tail Gate Seal, RH
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65748A — Plate, Tail Gate Seal, LH | ||||
| 65747-0K020 |
Plate, Tail Gate Seal, LH
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65747-0K020 |
Plate, Tail Gate Seal, LH
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65747-0K020 |
Plate, Tail Gate Seal, LH
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65749A — Pad, Tail Gate Hinge | ||||
| 65749-0K030 note |
Pad, Tail Gate Hinge
2024-02 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65749-0K030 note |
Pad, Tail Gate Hinge
2024-02 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65749-0K080 note |
Pad, Tail Gate Hinge
2024-02 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65749-0K080 note |
Pad, Tail Gate Hinge
2024-02 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65759 — Cover, Tail Gate Service Hole | ||||
| 65759-KK010 |
Cover, Tail Gate Service Hole
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65759-KK010 |
Cover, Tail Gate Service Hole
2023-08 → 2024-08
ended
|
GUN125,135 (DCB,XTR) SAP 6F +1 | — | |
| 65759-KK010 |
Cover, Tail Gate Service Hole
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65759-KK020 |
Cover, Tail Gate Service Hole
2024-02 → 2024-08
ended
|
GUN125,135 SCB CBU | — | |
| 65770A — Stay Assy, Tail Gate | ||||
| 65770-0K030 |
Stay Assy, Tail Gate
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65770-0K030 |
Stay Assy, Tail Gate
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65770-0K030 |
Stay Assy, Tail Gate
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65778 — Stopper, Tail Gate Stay | ||||
| 65778-0K020 note |
Stopper, Tail Gate Stay
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 65778-0K020 note |
Stopper, Tail Gate Stay
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65778-0K020 note |
Stopper, Tail Gate Stay
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65778-0K030 note |
Stopper, Tail Gate Stay
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 65778-0K030 note |
Stopper, Tail Gate Stay
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 65778-0K030 note |
Stopper, Tail Gate Stay
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 66110F — Hinge Assy, Tail Gate, RH | ||||
| 66110-0K020 |
Hinge Assy, Tail Gate, RH
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 66110-0K070 |
Hinge Assy, Tail Gate, RH
2024-02 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 66110-0K070 |
Hinge Assy, Tail Gate, RH
2024-02 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 66120F — Hinge Assy, Tail Gate, LH | ||||
| 66120-0K020 |
Hinge Assy, Tail Gate, LH
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 66120-0K070 |
Hinge Assy, Tail Gate, LH
2024-02 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 66120-0K070 |
Hinge Assy, Tail Gate, LH
2024-02 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 66170 — Latch Assy, Rear Body Tail Gate | ||||
| 66170-KK011 |
Latch Assy, Rear Body Tail Gate
2024-02 → 2024-08
ended
|
GUN125,135 SCB CBU | — | |
| 68965B — Shaft, Tail Gate Stay | ||||
| 68965-0K020 |
Shaft, Tail Gate Stay
2023-08 → 2024-07
ended
|
GUN12#,135 THP | — | |
| 68965-0K020 |
Shaft, Tail Gate Stay
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F CBU | — | |
| 68965-0K020 |
Shaft, Tail Gate Stay
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
