Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

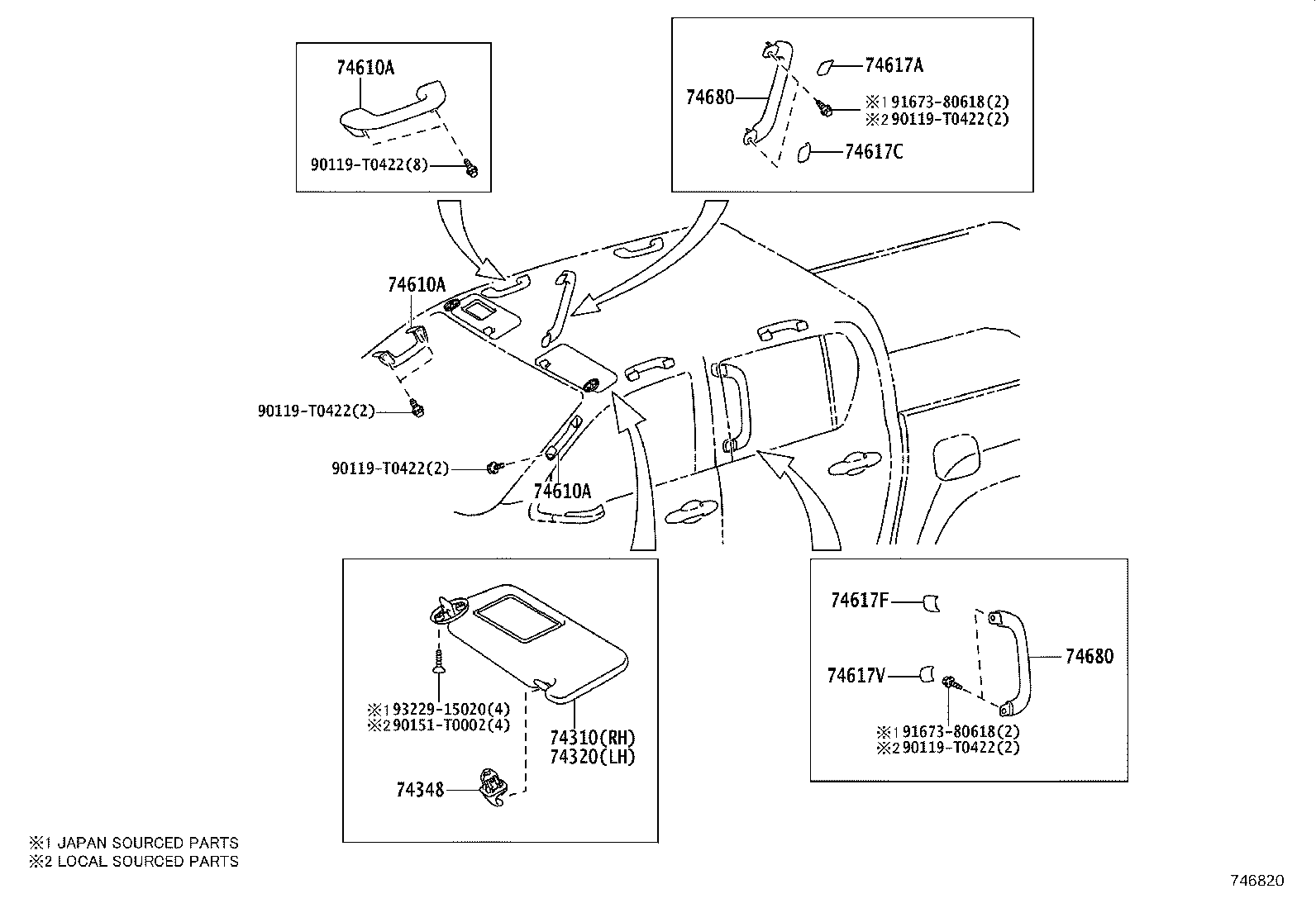

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-0KC30-B1 note |
Visor Assy, RH
2024-02 → 2024-10
ended
|
GUN126 RHD S | — | |
| 74310-0KC30-B1 note |
Visor Assy, RH
2024-02 → 2024-08
ended
|
GUN125 RHD S | — | |
| 74310-0KC30-B1 note |
Visor Assy, RH
2024-02 → 2024-08
ended
|
GUN125 RHD 6F H | — | |
| 74310-0KC30-B1 note |
Visor Assy, RH
2024-02 → 2024-10
ended
|
GUN126 RHD H;GUN125 RHD +1 | — | |
| 74310-0KC30-C1 note |
Visor Assy, RH
2024-05 → 2024-10
ended
|
GUN126 RHD 6FC DCRL | — | |
| 74310-0KC30-C1 note |
Visor Assy, RH
2024-02 → 2024-10
ended
|
GUN125 RHD 6FC;GUN126 RHD +4 | — | |
| 74310-0KC30-C1 note |
Visor Assy, RH
2024-02 → 2024-08
ended
|
GUN125 RHD 6F H | — | |
| 74310-0KF10-B1 note |
Visor Assy, RH
2024-02 → 2024-10
ended
|
GUN126 LHD 6F S;GUN125,135 +3 | — | |
| 74310-0KF10-B1 note |
Visor Assy, RH
2024-02 → 2024-08
ended
|
GUN125,135 LHD SAP (L,S) | — | |
| 74310-0KJ00-B1 note |
Visor Assy, RH
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74310-0KJ00-B1 note |
Visor Assy, RH
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74310-0KJ00-B1 note |
Visor Assy, RH
2023-08 → 2024-10
ended
|
GUN126 LHD SAP H;GUN125 +4 | — | |
| 74310-0KJ00-B1 note |
Visor Assy, RH
2023-08 → 2024-08
ended
|
GUN125 LHD 6F H | — | |
| 74310-0KJ00-C1 note |
Visor Assy, RH
2023-08 → 2024-10
ended
|
GUN126 XTR H;GUN126 LHD +9 | — | |
| 74310-0KJ00-C1 note |
Visor Assy, RH
2023-08 → 2024-08
ended
|
GUN125 LHD 6F H | — | |
| 74310-0KJ00-C1 note |
Visor Assy, RH
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74310-0KJ00-C1 note |
Visor Assy, RH
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74310-0KJ00-C1 note |
Visor Assy, RH
2024-05 → 2024-10
ended
|
GUN126 LHD DCB SAP +2 | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-0KA90-B1 note |
Visor Assy, LH
2024-02 → 2024-10
ended
|
GUN126 RHD S | — | |
| 74320-0KA90-B1 note |
Visor Assy, LH
2024-02 → 2024-08
ended
|
GUN125 RHD S | — | |
| 74320-0KB00-B1 note |
Visor Assy, LH
2024-02 → 2024-10
ended
|
GUN126 RHD H;GUN125 RHD +1 | — | |
| 74320-0KB00-B1 note |
Visor Assy, LH
2024-02 → 2024-08
ended
|
GUN125 RHD 6F H | — | |
| 74320-0KB00-C1 note |
Visor Assy, LH
2024-05 → 2024-10
ended
|
GUN126 RHD 6FC DCRL | — | |
| 74320-0KB00-C1 note |
Visor Assy, LH
2024-02 → 2024-10
ended
|
GUN125 RHD 6FC;GUN126 RHD +4 | — | |
| 74320-0KB00-C1 note |
Visor Assy, LH
2024-02 → 2024-08
ended
|
GUN125 RHD 6F H | — | |
| 74320-0KF60-B1 note |
Visor Assy, LH
2023-08 → 2024-08
ended
|
GUN125 LHD 6F H | — | |
| 74320-0KF60-B1 note |
Visor Assy, LH
2023-08 → 2024-08
ended
|
GUN125,135 LHD SAP (L,S) | — | |
| 74320-0KF60-B1 note |
Visor Assy, LH
2023-08 → 2024-10
ended
|
GUN126 LHD SAP H;GUN125 +4 | — | |
| 74320-0KF60-B1 note |
Visor Assy, LH
2023-08 → 2024-10
ended
|
GUN126 LHD 6F S;GUN125,135 +3 | — | |
| 74320-0KF60-B1 note |
Visor Assy, LH
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74320-0KF60-B1 note |
Visor Assy, LH
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74320-0KF60-C1 note |
Visor Assy, LH
2024-05 → 2024-10
ended
|
GUN126 LHD DCB SAP +2 | — | |
| 74320-0KF60-C1 note |
Visor Assy, LH
2023-08 → 2024-08
ended
|
GUN125 LHD 6F H | — | |
| 74320-0KF60-C1 note |
Visor Assy, LH
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74320-0KF60-C1 note |
Visor Assy, LH
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74320-0KF60-C1 note |
Visor Assy, LH
2023-08 → 2024-10
ended
|
GUN126 XTR H;GUN126 LHD +9 | — | |
| 74348 — Holder, Visor | ||||
| 74348-0K070-B0 note |
Holder, Visor
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74348-0K070-B0 note |
Holder, Visor
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74348-0K070-C0 note |
Holder, Visor
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74348-0K070-C0 note |
Holder, Visor
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74348-0K080-B0 note |
Holder, Visor
2024-02 → 2024-08
ended
|
GUN125,135 SAP (L,S) | — | |
| 74348-0K080-B0 note |
Holder, Visor
2024-02 → 2024-08
ended
|
GUN125 6F H | — | |
| 74348-0K080-B0 note |
Holder, Visor
2024-02 → 2024-10
ended
|
GUN126 SAP H;GUN125 SAP +2 | — | |
| 74348-0K080-B0 note |
Holder, Visor
2024-02 → 2024-10
ended
|
GUN126 6F S;GUN125,135 SAP +2 | — | |
| 74348-0K080-C0 note |
Holder, Visor
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74348-0K080-C0 note |
Holder, Visor
2024-02 → 2024-08
ended
|
GUN125 6F H | — | |
| 74348-0K080-C0 note |
Holder, Visor
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 6F H;GUN126 +5 | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125,135 (SCB,XTR) (L,S) | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 XTR 6F H | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 XTR S;GUN125 XTR +2 | — | |
| 74603-0K070-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 XTR H;GUN125 XTR +2 | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 XTR H;GUN125 XTR +2 | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 XTR 6F H | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74603-0K070-C0 note |
Grip Sub-assy, Assist
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 XTR S;GUN125 XTR +2 | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 XTR H;GUN125 XTR +2 | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 XTR 6F H | — | |
| 74603-KK010-B0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125,135 (SCB,XTR) (L,S) | — | |
| 74603-KK010-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 XTR 6F H | — | |
| 74603-KK010-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74603-KK010-C0 note |
Grip Sub-assy, Assist
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74603-KK010-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74603-KK010-C0 note |
Grip Sub-assy, Assist
2024-02 → 2024-10
ended
|
GUN126 XTR H;GUN125 XTR +2 | — | |
| 74617A — Plug, Assist Grip | ||||
| 74637-0K010-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74637-0K010-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74637-0K010-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74637-0K010-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74637-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74637-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74637-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74637-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74637-KK010-C0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74637-KK010-C0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74637-KK010-C0 note |
Plug, Assist Grip
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74617C — Plug, Assist Grip | ||||
| 74637-0K020-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74637-0K020-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74637-0K020-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74637-0K020-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74637-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74637-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74637-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74637-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74637-KK020-C0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74637-KK020-C0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74637-KK020-C0 note |
Plug, Assist Grip
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74617F — Plug, Assist Grip | ||||
| 74638-0K010-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74638-0K010-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74638-0K010-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74638-0K010-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74638-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74638-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74638-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74638-KK010-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74638-KK010-C0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74638-KK010-C0 note |
Plug, Assist Grip
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74638-KK010-C0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74617V — Plug, Assist Grip | ||||
| 74638-0K020-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74638-0K020-B0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74638-0K020-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74638-0K020-C0 note |
Plug, Assist Grip
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74638-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74638-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74638-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74638-KK020-B0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74638-KK020-C0 note |
Plug, Assist Grip
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74638-KK020-C0 note |
Plug, Assist Grip
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74638-KK020-C0 note |
Plug, Assist Grip
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74680 — Grip Assy, Pillar Assist | ||||
| 74680-0K010-B0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74680-0K010-B0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74680-0K010-C0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74680-0K010-C0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74680-0K020-B0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN12# THP H | — | |
| 74680-0K020-B0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN12#,135 THP S | — | |
| 74680-0K020-C0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 74680-0K020-C0 note |
Grip Assy, Pillar Assist
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 74680-KK010-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74680-KK010-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74680-KK010-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74680-KK010-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74680-KK010-C0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74680-KK010-C0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74680-KK010-C0 note |
Grip Assy, Pillar Assist
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74680-KK020-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-08
ended
|
GUN125,135 DCB SAP S | — | |
| 74680-KK020-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 74680-KK020-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 74680-KK020-B0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-10
ended
|
GUN126 DCB 6F S;GUN125,135 +4 | — | |
| 74680-KK020-C0 note |
Grip Assy, Pillar Assist
2024-05 → 2024-10
ended
|
GUN126 DCB SAP 6FC +1 | — | |
| 74680-KK020-C0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-10
ended
|
GUN126 MHV;GUN126 DCB 6F +5 | — | |
| 74680-KK020-C0 note |
Grip Assy, Pillar Assist
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
