Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

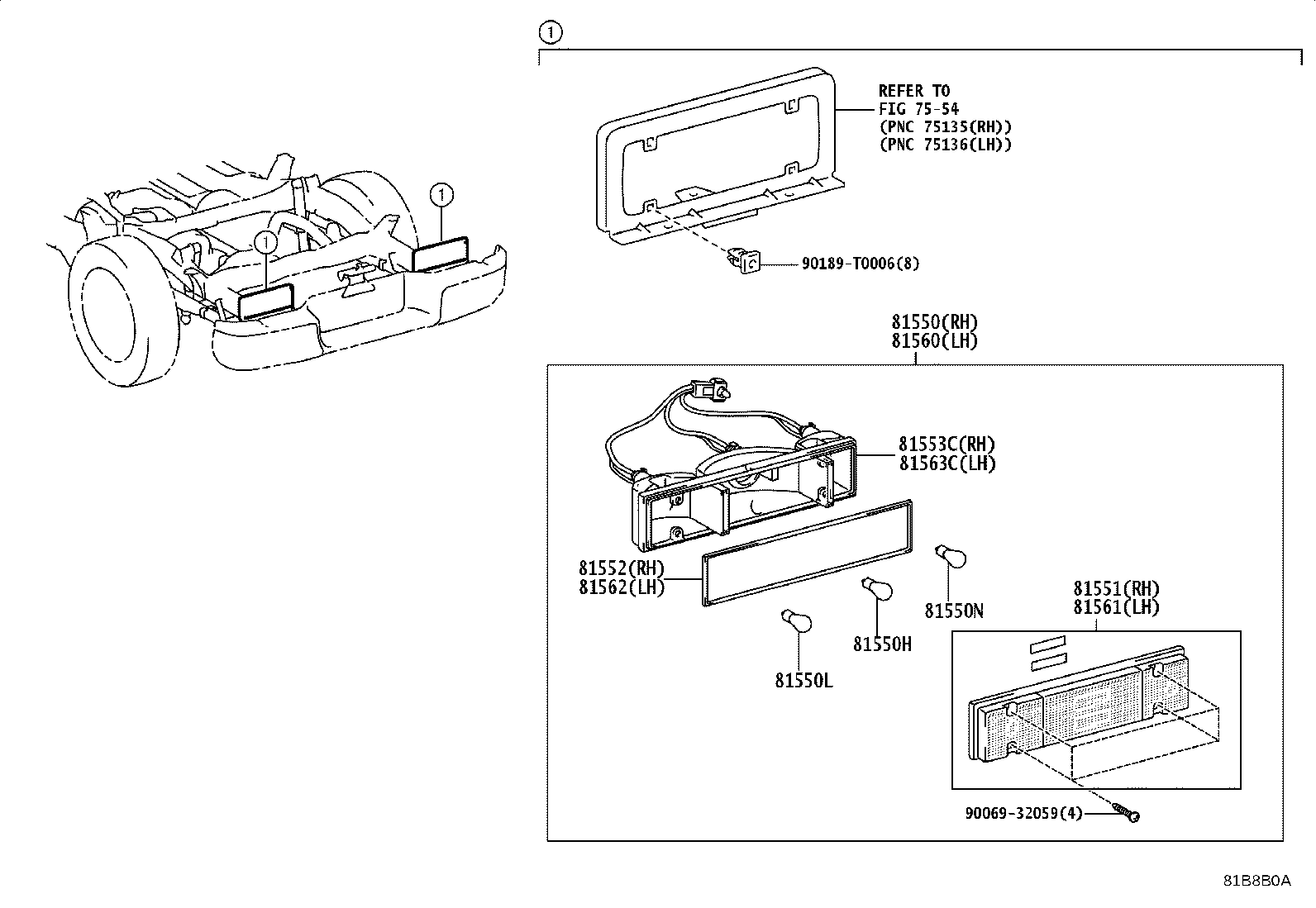

Exploded illustration 81B8B0A 7554 — not listed in this catalogue 81550N — BULB, BACK UP LAMP (7 parts) 81550H — BULB, TAIL & STOP LAMP (7 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (4 parts) 81550 — LAMP ASSY, REAR COMBINATION, RH (19 parts) 81560 — LAMP ASSY, REAR COMBINATION, LH (19 parts) 81552 — GASKET, REAR COMBINATION LAMP LENS, RH (1 parts) 81551 — LENS, REAR COMBINATION LAMP, RH (1 parts) 81561 — LENS, REAR COMBINATION LAMP, LH (1 parts) 9006932059 — not listed in this catalogue 90189T0006 — not listed in this catalogue 81553C — BODY, REAR COMBINATION LAMP, RH (1 parts) 81563C — BODY, REAR COMBINATION LAMP, LH (1 parts) 81562 — GASKET, REAR COMBINATION LAMP LENS, LH (1 parts)
81B8B0A · 11 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
81550 — Lamp Assy, Rear Combination, RH
81550-0K261 Lamp Assy, Rear Combination, RH
2023-08 → 2024-02 ended
GUN126 S —
81550-0K261 note Lamp Assy, Rear Combination, RH
2023-08 → 2024-07 ended
GUN126 THP H;GUN125,135 THP —
81550-0K261 note Lamp Assy, Rear Combination, RH
2024-02 → 2024-07 ended
GUN126 S —
81550-0K281 note Lamp Assy, Rear Combination, RH
2024-02 → 2024-10 ended
GUN126 LHD SAP;GUN125,135 LHD +2 —
81550-0K281 Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125,135 LHD SCB CBU —
81550-0K281 note Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125,135 LHD (DCB,XTR) SAP +2 —
81550-0K291 note Lamp Assy, Rear Combination, RH
2024-02 → 2024-10 ended
GUN126 RHD;GUN125 RHD 6FC —
81550-0K291 Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125 RHD SCB —
81550-0K291 note Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125 RHD (DCB,XTR) 6F +1 —
81550-0K360 Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81550-0K690 note Lamp Assy, Rear Combination, RH
2023-08 → 2024-02 ended
GUN126 S —
81550-0K690 Lamp Assy, Rear Combination, RH
2023-08 → 2024-07 ended
GUN126 THP H;GUN125,135 THP —
81550-0K690 note Lamp Assy, Rear Combination, RH
2023-08 → 2024-02 ended
GUN126 S —
81550-0K690 Lamp Assy, Rear Combination, RH
2024-02 → 2024-07 ended
GUN126 S —
81550-0K730 Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125,135 LHD (DCB,XTR) SAP +2 —
81550-0K730 Lamp Assy, Rear Combination, RH
2024-02 → 2024-10 ended
GUN126 LHD SAP;GUN125,135 LHD +2 —
81550-0K750 Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125 RHD (DCB,XTR) 6F +1 —
81550-0K750 note Lamp Assy, Rear Combination, RH
2024-02 → 2024-08 ended
GUN125 RHD SCB —
81550-0K750 Lamp Assy, Rear Combination, RH
2024-02 → 2024-10 ended
GUN126 RHD;GUN125 RHD 6FC —
81550H — Bulb, Tail & Stop Lamp
90981-13094 note Bulb, Tail & Stop Lamp
2023-08 → 2024-08 ended
GUN125,135 SCB CBU —
90981-13094 note Bulb, Tail & Stop Lamp
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
90981-13094 note Bulb, Tail & Stop Lamp
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
90981-13094 note Bulb, Tail & Stop Lamp
2024-02 → 2024-07 ended
GUN126 S —
90981-13094 note Bulb, Tail & Stop Lamp
2023-08 → 2024-07 ended
GUN126 THP H;GUN125,135 THP —
90981-13094 note Bulb, Tail & Stop Lamp
2023-08 → 2024-02 ended
GUN126 S —
90981-TD004 note Bulb, Tail & Stop Lamp
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81550L — Bulb, Rear Turn Signal Lamp
90981-15028 note Bulb, Rear Turn Signal Lamp
2023-08 → 2024-07 ended
GUN12#,135 THP —
90981-15028 note Bulb, Rear Turn Signal Lamp
2023-08 → 2024-08 ended
GUN125,135 SAP 6F CBU —
90981-15028 note Bulb, Rear Turn Signal Lamp
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
90981-TD003 note Bulb, Rear Turn Signal Lamp
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81550N — Bulb, Back UP Lamp
90981-13093 note Bulb, Back UP Lamp
2023-08 → 2024-10 ended
GUN126 SAP;GUN125,135 SAP 6FC —
90981-13093 note Bulb, Back UP Lamp
2023-08 → 2024-07 ended
GUN126 THP H;GUN125,135 THP —
90981-13093 note Bulb, Back UP Lamp
2023-08 → 2024-08 ended
GUN125,135 (DCB,XTR) SAP 6F +1 —
90981-13093 note Bulb, Back UP Lamp
2024-02 → 2024-07 ended
GUN126 S —
90981-13093 note Bulb, Back UP Lamp
2023-08 → 2024-02 ended
GUN126 S —
90981-13093 note Bulb, Back UP Lamp
2023-08 → 2024-08 ended
GUN125,135 SCB CBU —
90981-TD003 note Bulb, Back UP Lamp
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81551 — Lens, Rear Combination Lamp, RH
81551-0K360 Lens, Rear Combination Lamp, RH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81552 — Gasket, Rear Combination Lamp Lens, RH
81552-0K360 Gasket, Rear Combination Lamp Lens, RH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81553C — Body, Rear Combination Lamp, RH
81553-0K360 Body, Rear Combination Lamp, RH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81560 — Lamp Assy, Rear Combination, LH
81560-0K271 Lamp Assy, Rear Combination, LH
2023-08 → 2024-02 ended
GUN126 S —
81560-0K271 note Lamp Assy, Rear Combination, LH
2023-08 → 2024-07 ended
GUN126 THP H;GUN125,135 THP —
81560-0K271 note Lamp Assy, Rear Combination, LH
2024-02 → 2024-07 ended
GUN126 S —
81560-0K281 Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125 RHD SCB —
81560-0K281 note Lamp Assy, Rear Combination, LH
2024-02 → 2024-10 ended
GUN126 RHD;GUN125 RHD 6FC —
81560-0K281 note Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125 RHD (DCB,XTR) 6F +1 —
81560-0K291 Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125,135 LHD SCB CBU —
81560-0K291 note Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125,135 LHD (DCB,XTR) SAP +2 —
81560-0K291 note Lamp Assy, Rear Combination, LH
2024-02 → 2024-10 ended
GUN126 LHD SAP;GUN125,135 LHD +2 —
81560-0K400 Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81560-0K700 Lamp Assy, Rear Combination, LH
2024-02 → 2024-07 ended
GUN126 S —
81560-0K700 Lamp Assy, Rear Combination, LH
2023-08 → 2024-07 ended
GUN126 THP H;GUN125,135 THP —
81560-0K700 note Lamp Assy, Rear Combination, LH
2023-08 → 2024-02 ended
GUN126 S —
81560-0K700 note Lamp Assy, Rear Combination, LH
2023-08 → 2024-02 ended
GUN126 S —
81560-0K730 Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125 RHD (DCB,XTR) 6F +1 —
81560-0K730 note Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125 RHD SCB —
81560-0K730 Lamp Assy, Rear Combination, LH
2024-02 → 2024-10 ended
GUN126 RHD;GUN125 RHD 6FC —
81560-0K740 Lamp Assy, Rear Combination, LH
2024-02 → 2024-08 ended
GUN125,135 LHD (DCB,XTR) SAP +2 —
81560-0K740 Lamp Assy, Rear Combination, LH
2024-02 → 2024-10 ended
GUN126 LHD SAP;GUN125,135 LHD +2 —
81561 — Lens, Rear Combination Lamp, LH
81561-0K400 Lens, Rear Combination Lamp, LH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81562 — Gasket, Rear Combination Lamp Lens, LH
81552-0K360 Gasket, Rear Combination Lamp Lens, LH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
81563C — Body, Rear Combination Lamp, LH
81563-0K400 Body, Rear Combination Lamp, LH
2024-02 → 2024-08 ended
GUN125,135 IV3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
