Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

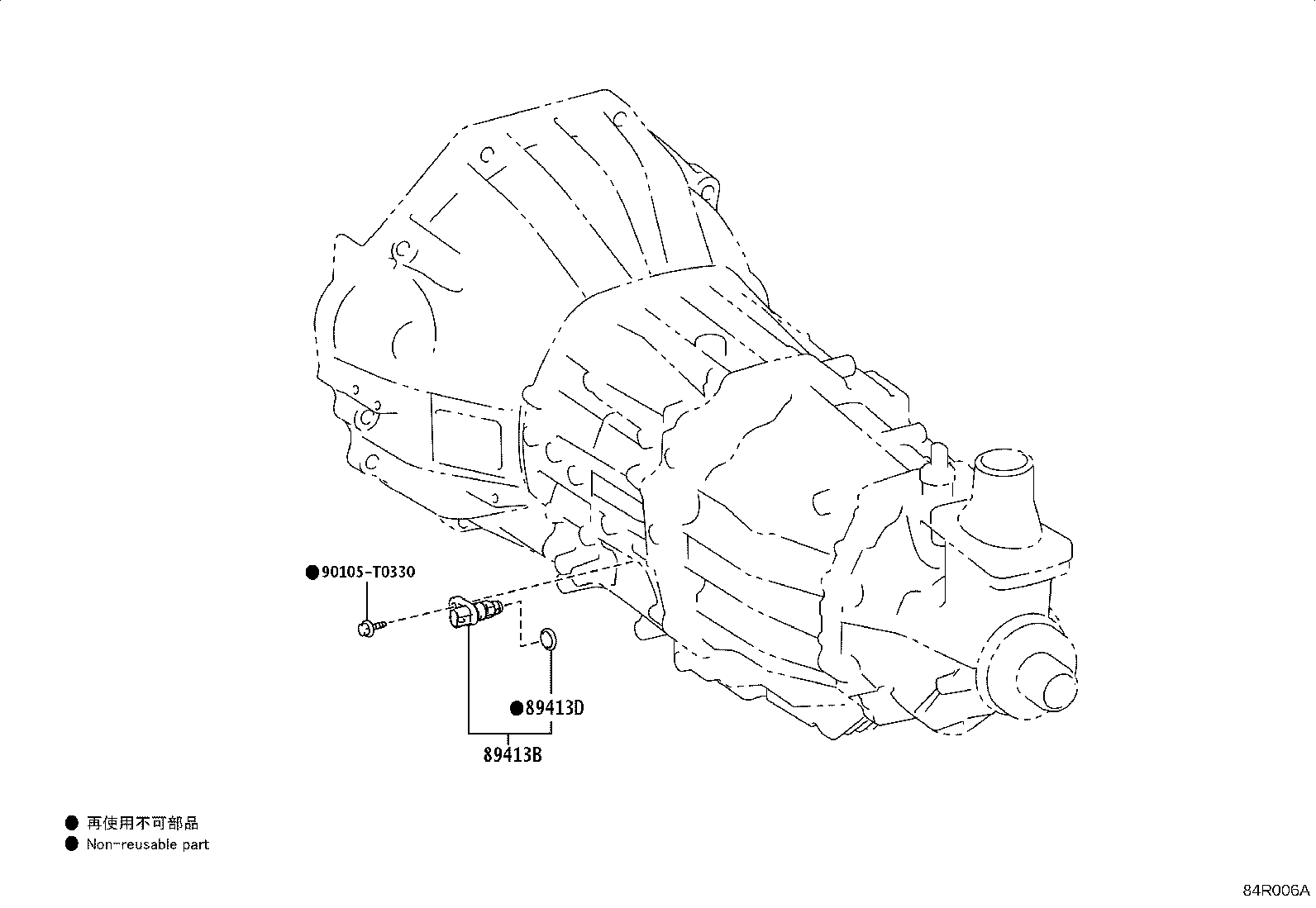

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89413B — Sensor, Transmission Revolution | ||||
| 89413-28011 |
Sensor, Transmission Revolution
2024-06 → 2024-10
ended
|
GUN126 RHD 6F H | — | |
| 89413-28011 note |
Sensor, Transmission Revolution
2024-06 → 2024-10
ended
|
GUN126 LHD 6F | — | |
| 89413D — Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-08 → 2024-07
ended
|
GUN126 THP | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-08 → 2024-07
ended
|
GUN125,135 THP 6FC | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-08 → 2024-10
ended
|
GUN126 RHD 6F H | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-08 → 2024-10
ended
|
GUN12#,135 SAP 6FC | — | |
| 90301-11008 note |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2024-06 → 2024-10
ended
|
GUN126 LHD 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
