Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

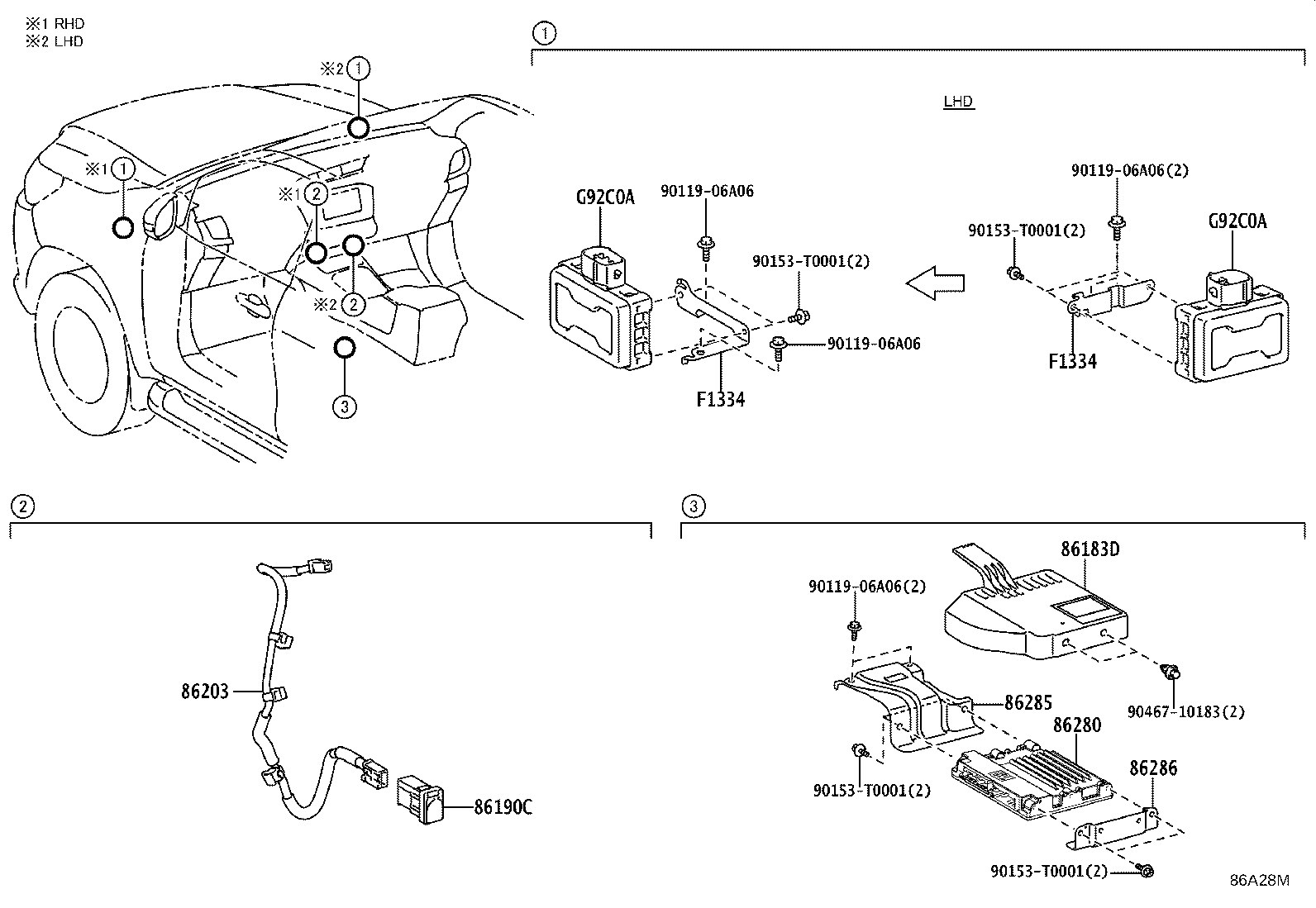

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86183D — Cover, Audio Amplifier | ||||
| 86183-0K020 note |
Cover, Audio Amplifier
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86183-0K020 note |
Cover, Audio Amplifier
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86183-0K020 note |
Cover, Audio Amplifier
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86183-0K020 note |
Cover, Audio Amplifier
2023-08 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 86183-0K020 note |
Cover, Audio Amplifier
2023-08 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 86183-0K020 note |
Cover, Audio Amplifier
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-35020 note |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN125,135 THP S | — | |
| 86190-35020 note |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN126 S | — | |
| 86190-35020 note |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN126 S | — | |
| 86190-35020 note |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN125,135 THP | — | |
| 86190-35020 note |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN125 THP S | — | |
| 86190-35020 note |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN125 THP 6F | — | |
| 86190-35020 |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86190-71020 |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-10
ended
|
GUN126 SAP;GUN125,135 SAP 6FC | — | |
| 86190-71020 |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-08
ended
|
GUN125,135 SAP 6F | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86190-71020 note |
Adapter Assy, Stereo Jack, NO.1
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86190-71020 |
Adapter Assy, Stereo Jack, NO.1
2023-08 → 2024-07
ended
|
GUN125,135 THP | — | |
| 86203 — Wire, Radio | ||||
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 S | — | |
| 86203-0K100 note |
Wire, Radio
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86203-0K100 |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN125,135 THP | — | |
| 86203-0K120 note |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN126 S | — | |
| 86203-0K120 note |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN125,135 THP | — | |
| 86203-0K120 note |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN125,135 THP S | — | |
| 86203-0K120 note |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN125 THP S | — | |
| 86203-0K120 note |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN125 THP 6F | — | |
| 86203-0K120 |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 86203-0K120 note |
Wire, Radio
2023-08 → 2024-07
ended
|
GUN126 S | — | |
| 86203-71220 |
Wire, Radio
2024-02 → 2024-08
ended
|
GUN125 RHD 6F | — | |
| 86203-71220 |
Wire, Radio
2024-02 → 2024-10
ended
|
GUN126 RHD;GUN125 RHD 6FC | — | |
| 86203-71260 |
Wire, Radio
2024-02 → 2024-10
ended
|
GUN126 LHD SAP;GUN125,135 LHD +2 | — | |
| 86203-71260 |
Wire, Radio
2024-02 → 2024-08
ended
|
GUN125,135 LHD SAP 6F | — | |
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-0K050 note |
Amplifier Assy, Stereo Component
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 86280-0K050 note |
Amplifier Assy, Stereo Component
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86280-0K120 note |
Amplifier Assy, Stereo Component
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 86280-0K120 note |
Amplifier Assy, Stereo Component
2024-02 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| 86280-0K130 note |
Amplifier Assy, Stereo Component
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86280-0K130 note |
Amplifier Assy, Stereo Component
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86285 — Bracket, Amplifier, NO.1 | ||||
| 86285-0K010 note |
Bracket, Amplifier, NO.1
2024-06 → 2024-10
ended
|
GUN126 MHV | — | |
| 86285-KK010 note |
Bracket, Amplifier, NO.1
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 86285-KK010 note |
Bracket, Amplifier, NO.1
2023-08 → 2024-10
ended
|
GUN125 DCB SAP 6FC +5 | — | |
| 86285-KK010 note |
Bracket, Amplifier, NO.1
2023-08 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 86285-KK010 note |
Bracket, Amplifier, NO.1
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86285-KK010 note |
Bracket, Amplifier, NO.1
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86285-KK010 note |
Bracket, Amplifier, NO.1
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86286 — Bracket, Amplifier, NO.2 | ||||
| 86286-KK010 note |
Bracket, Amplifier, NO.2
2023-08 → 2024-07
ended
|
GUN126 THP H | — | |
| 86286-KK010 note |
Bracket, Amplifier, NO.2
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86286-KK010 note |
Bracket, Amplifier, NO.2
2023-08 → 2024-07
ended
|
GUN125 THP H | — | |
| 86286-KK010 note |
Bracket, Amplifier, NO.2
2024-05 → 2024-07
ended
|
GUN126 THP H | — | |
| 86286-KK010 note |
Bracket, Amplifier, NO.2
2023-08 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| 86286-KK010 note |
Bracket, Amplifier, NO.2
2023-08 → 2024-10
ended
|
GUN126 DCB SAP H;GUN125 +4 | — | |
| F1334 — Bracket, Converter Control, NO.1 | ||||
| F1334-KK010 note |
Bracket, Converter Control, NO.1
2024-02 → 2024-08
ended
|
GUN125 RHD 6F H | — | |
| F1334-KK010 note |
Bracket, Converter Control, NO.1
2024-02 → 2024-10
ended
|
GUN125 RHD 6FC;GUN126 RHD +2 | — | |
| F1334-KK030 note |
Bracket, Converter Control, NO.1
2024-02 → 2024-08
ended
|
GUN125 LHD DCB 6F +1 | — | |
| F1334-KK030 note |
Bracket, Converter Control, NO.1
2024-02 → 2024-10
ended
|
GUN125 LHD DCB SAP +7 | — | |
| G92C0A — Converter Assy, Eco-run Vehicle | ||||
| G92C0-30020 note |
Converter Assy, Eco-run Vehicle
2024-02 → 2024-08
ended
|
GUN125 DCB 6F H | — | |
| G92C0-30020 note |
Converter Assy, Eco-run Vehicle
2024-02 → 2024-10
ended
|
GUN125 DCB SAP 6FC +5 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
