Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

17 part groups · 2 illustrations

Illustrations

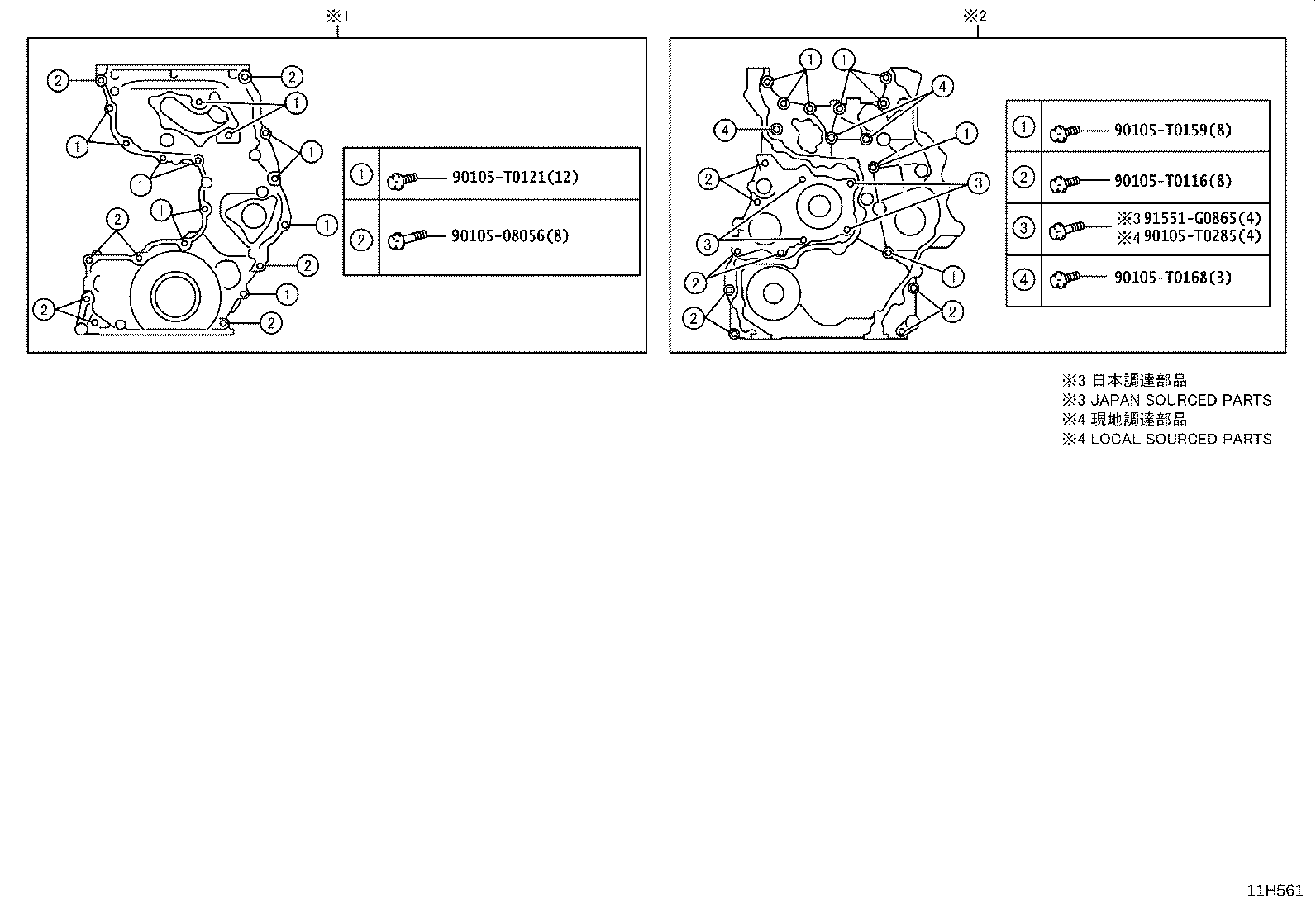

Figure 11H560 11H560 2023-08 → — Figure 11H561 11H561 2023-08 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11303A Seal, Oil(FOR CRANKSHAFT FRONT)
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11328A Gasket, Timing Belt Cover, NO.1
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15133B Plug, Oil Pump Relief Valve
15350 Valve Assy, Oil Pressure Switching
15605C Valve Sub-assy, Oil Check
31121C Cover, Clutch Housing Adapter Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
