Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 4 illustrations

Illustrations

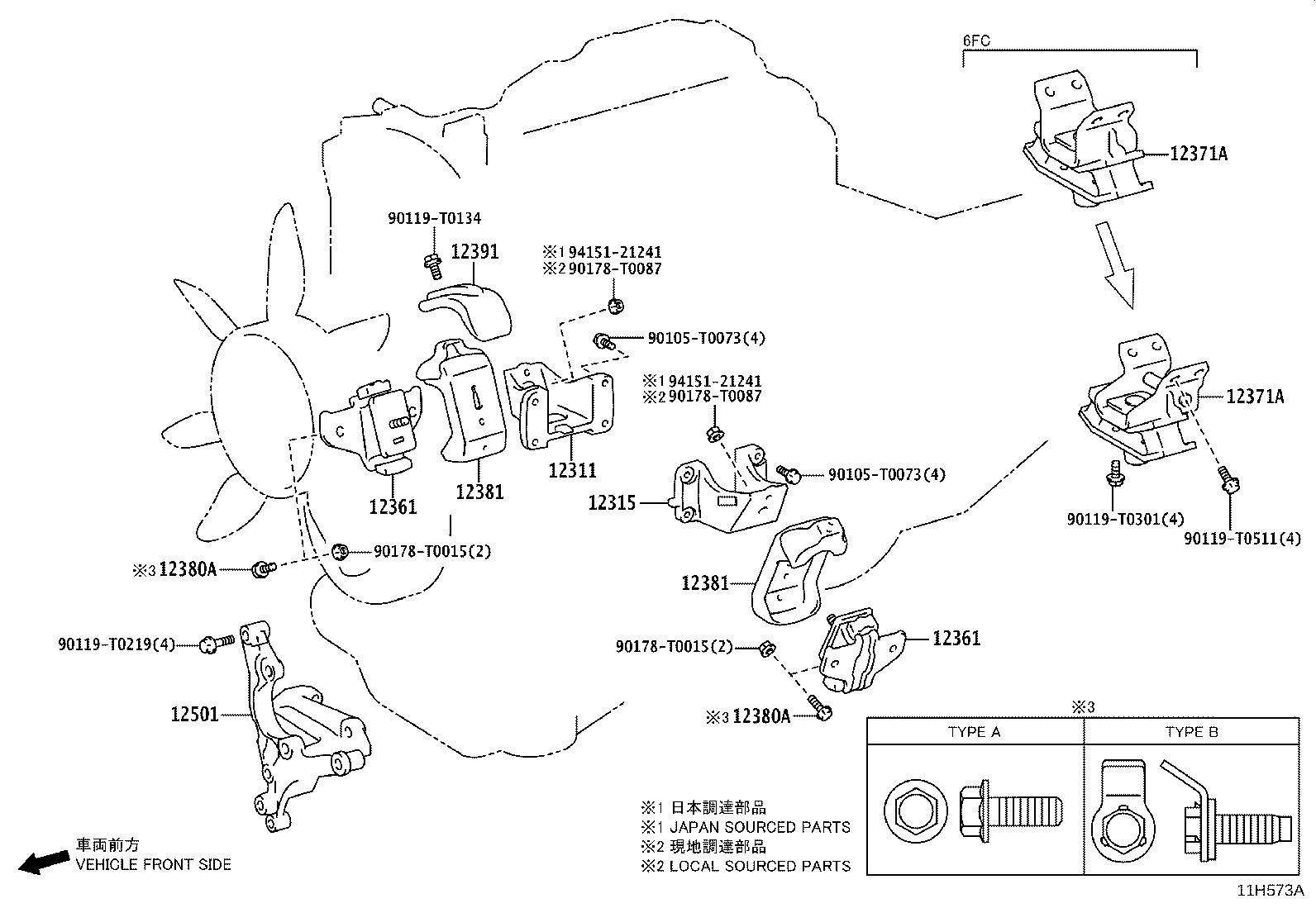

Figure 11H572A 11H572A 2023-08 → — Figure 11H572A 11H572A 2023-08 → — Figure 11H573A 11H573A 2023-08 → — Figure 11H573A 11H573A 2023-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371A Insulator, Engine Mounting, Rear
12380A Bolt(FOR ENGINE MOUNTING INSURATOR)
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
