Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

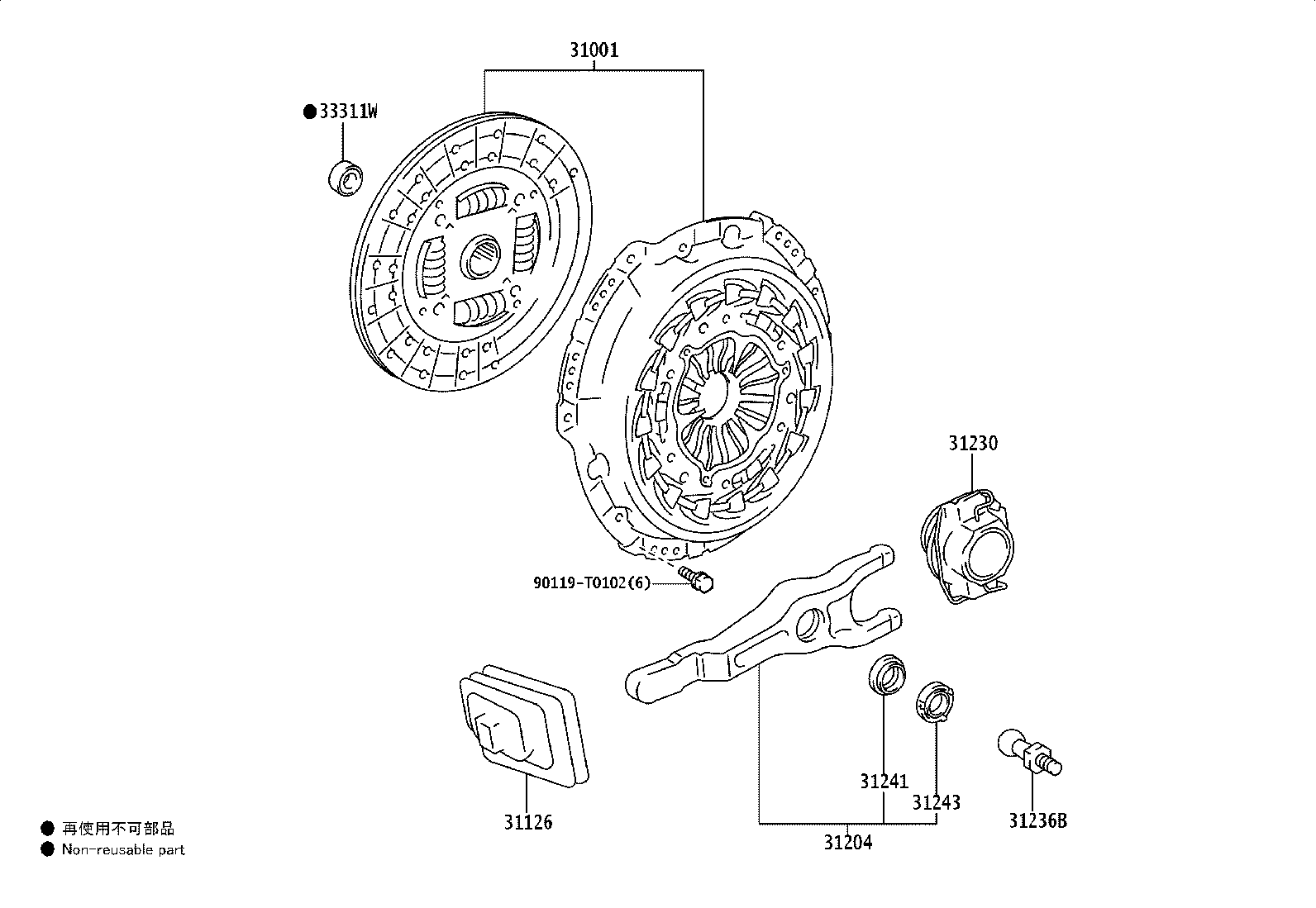

Clutch & Release Fork
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31001 | Clutch Set, Cover & Disc |
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31236B | Support, Release Fork |
| 31241 | Seal, Clutch Release Fork Dust |
| 31243 | Collar, Clutch Release Fork |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
