Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07
Transfer Case & Extension Housing
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33309B | Flange Sub-assy, Output Shaft Companion |
| 33309C | Flange Sub-assy, Output Shaft Companion |
| 33309D | Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 33309F | Nut (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 33309H | Washer, Transfer Output Shaft |
| 33449D | Magnet (FOR TRANSFER CASE) |
| 35015F | Ring, Hole Snap(FOR TRANSFER ADAPTER) |
| 35015H | Pin, Ring(FOR TRANSFER CASE) |
| 35015U | Ring, O(FOR TRANSMISSION CASE ADAPTER) |
| 35015X | Plug, Refill(FOR TRANSMISSION CASE ADAPTER) |
| 35157B | Receiver, Transfer Case Rear Adapter Oil |
| 36101 | Case Sub-assy, Transfer |
| 36102 | Cover Sub-assy, Transfer Case |
| 36102G | Retainer Sub-assy, Transfer Front Bearing |
| 36102J | Seal, Type T Oil (FOR TRANSFER COVER) |
| 36102K | Ring, O |
| 36102L | Seal, Type T Oil(FOR TRANSFER FRONT BEARING) |
| 36103A | Bolt (FOR TRANSFER CASE) |
| 36103C | Case, Transfer, Front |
| 36107A | Adapter Sub-assy, Transfer |
| 36111A | Spring, Compression (FOR TRANSFER CASE) |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111C | Plug (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36111T | Tube (FOR TRANSFER CASE) |
| 36112 | Case, Transfer, Rear |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36114F | Plug (FOR TRANSFER DRAIN) |
| 36114G | Gasket (FOR TRANSFER DRAIN PLUG) |
| 36115 | Housing, Transfer Extension |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36117A | Seal, Oil(FOR TRANSFER ADAPTER) |
| 36117L | Tube(FOR TRANSFER ADAPTER) |
| 36117M | Cap(FOR TRANSFER ADAPTER) |
| 36128 | Deflector, Breather Oil |
| 36149B | Tube, Transfer Breather |
| 36179 | Protector, Transfer Case Lower |

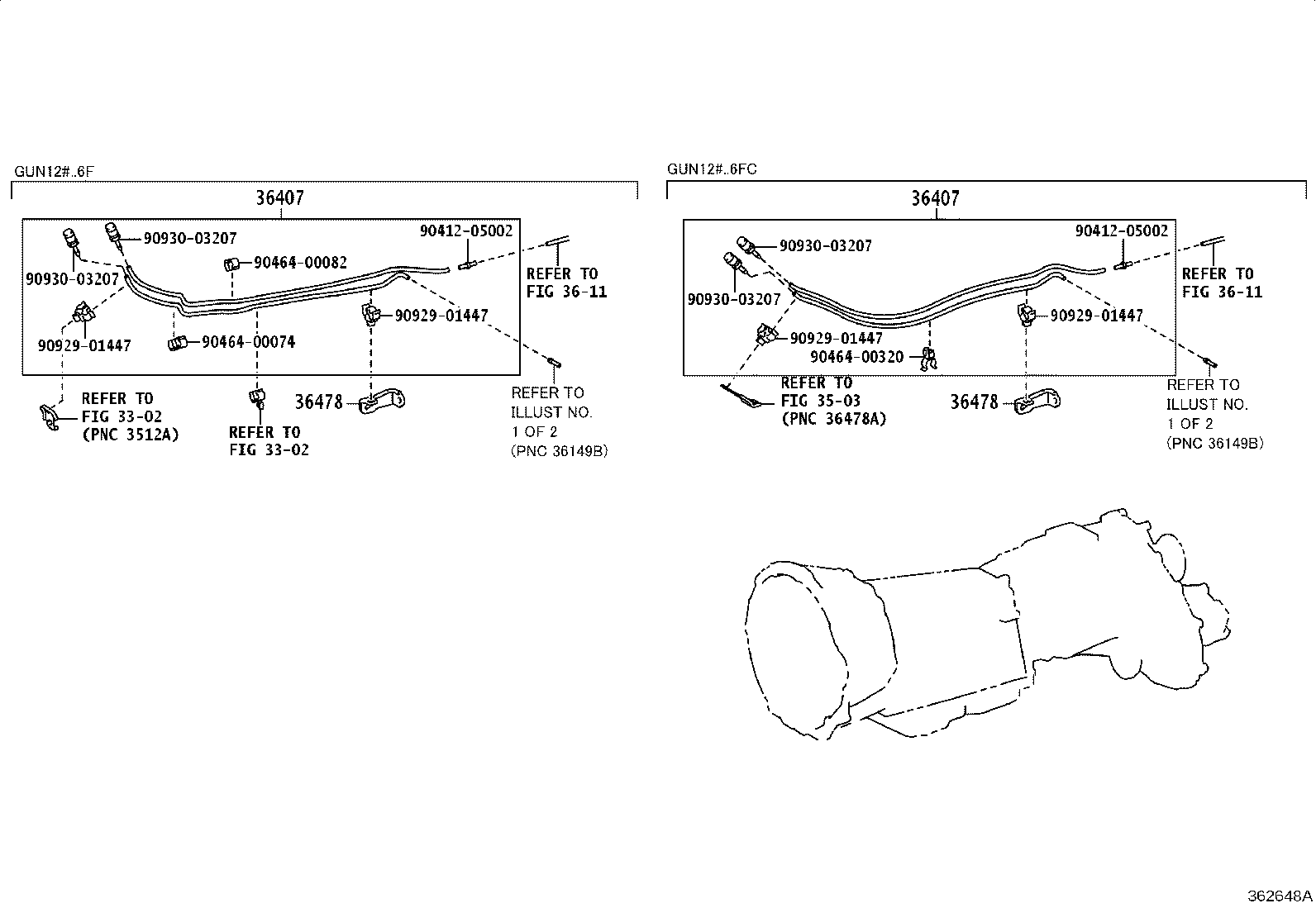

| 36407 | Hose Sub-assy, Transfer Breather |
| 36478 | Bracket, Transfer Breather |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
