Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 4 illustrations

Illustrations

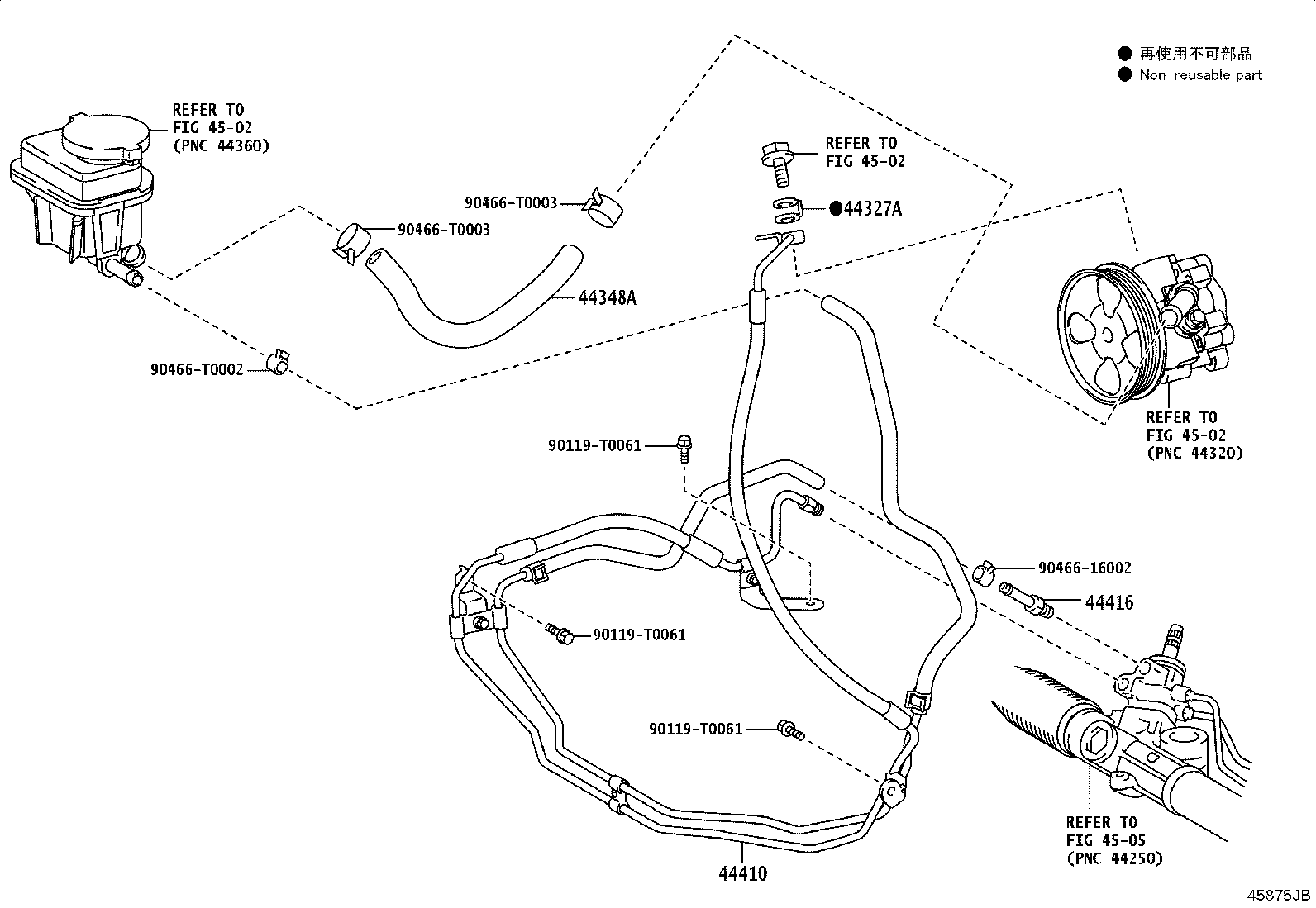

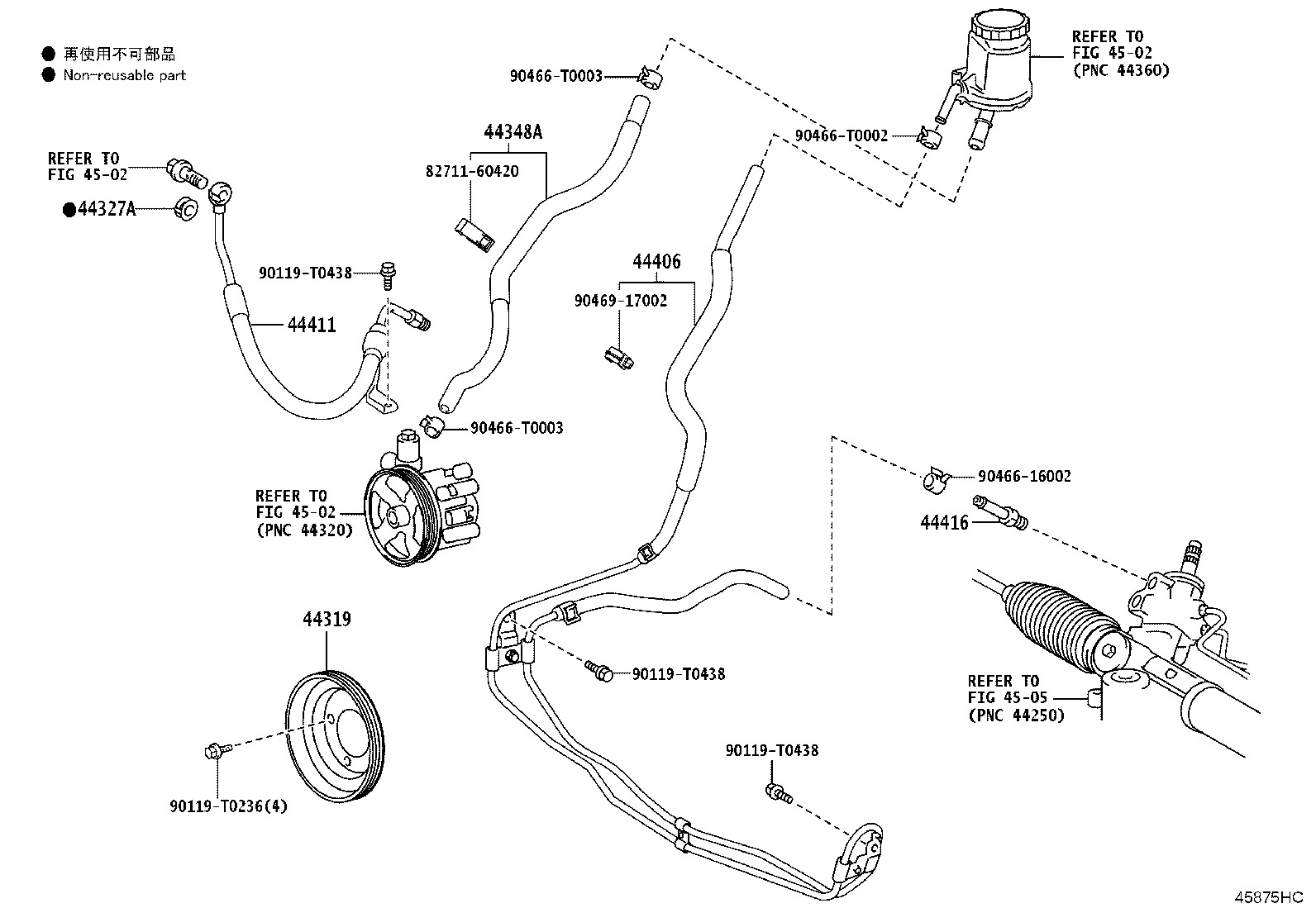

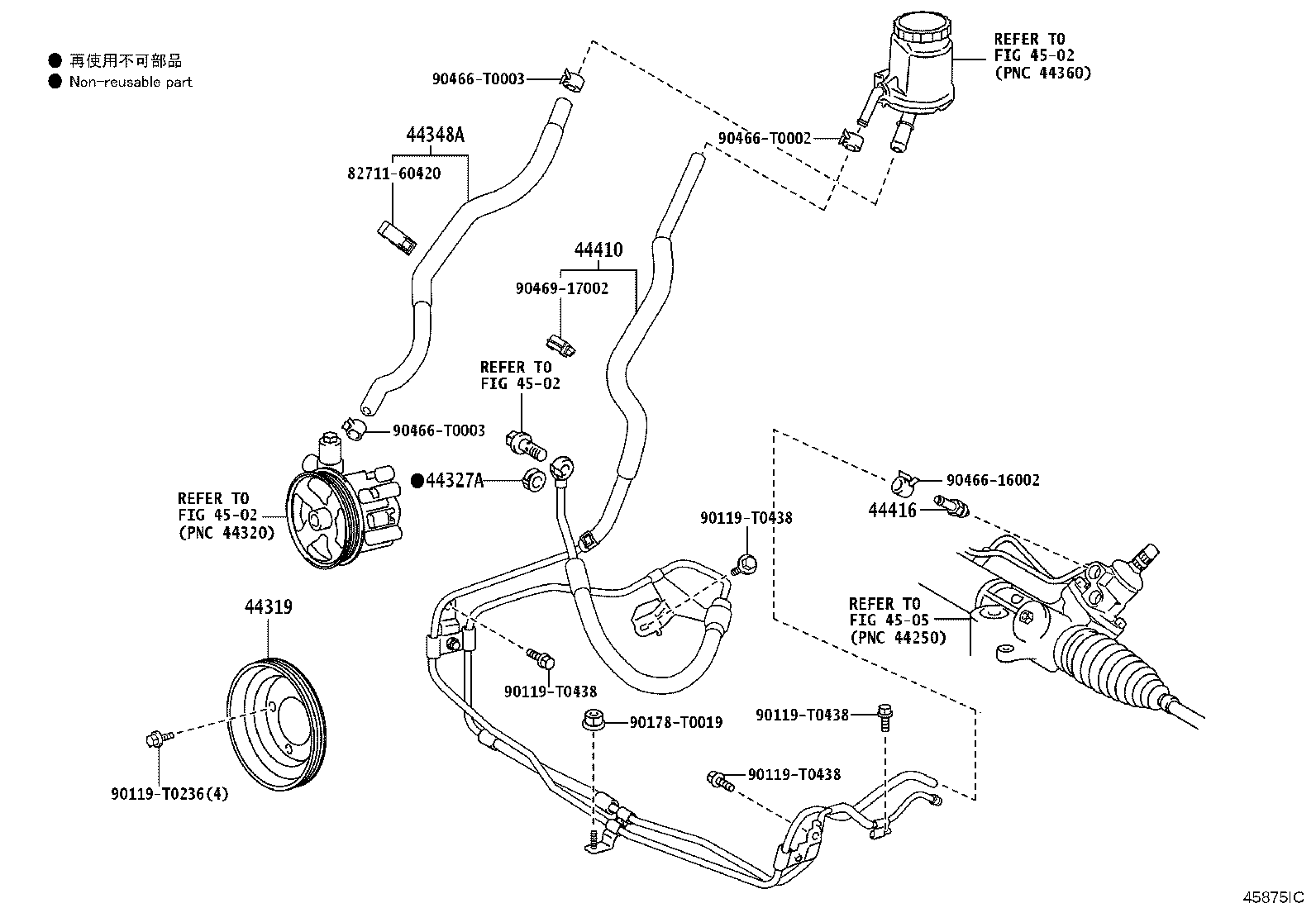

Figure 458672B 458672B 2023-08 → — Figure 45875JB 45875JB 2024-02 → — Figure 45875IC 45875IC 2024-06 → — Figure 45875HC 45875HC 2024-06 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
