Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

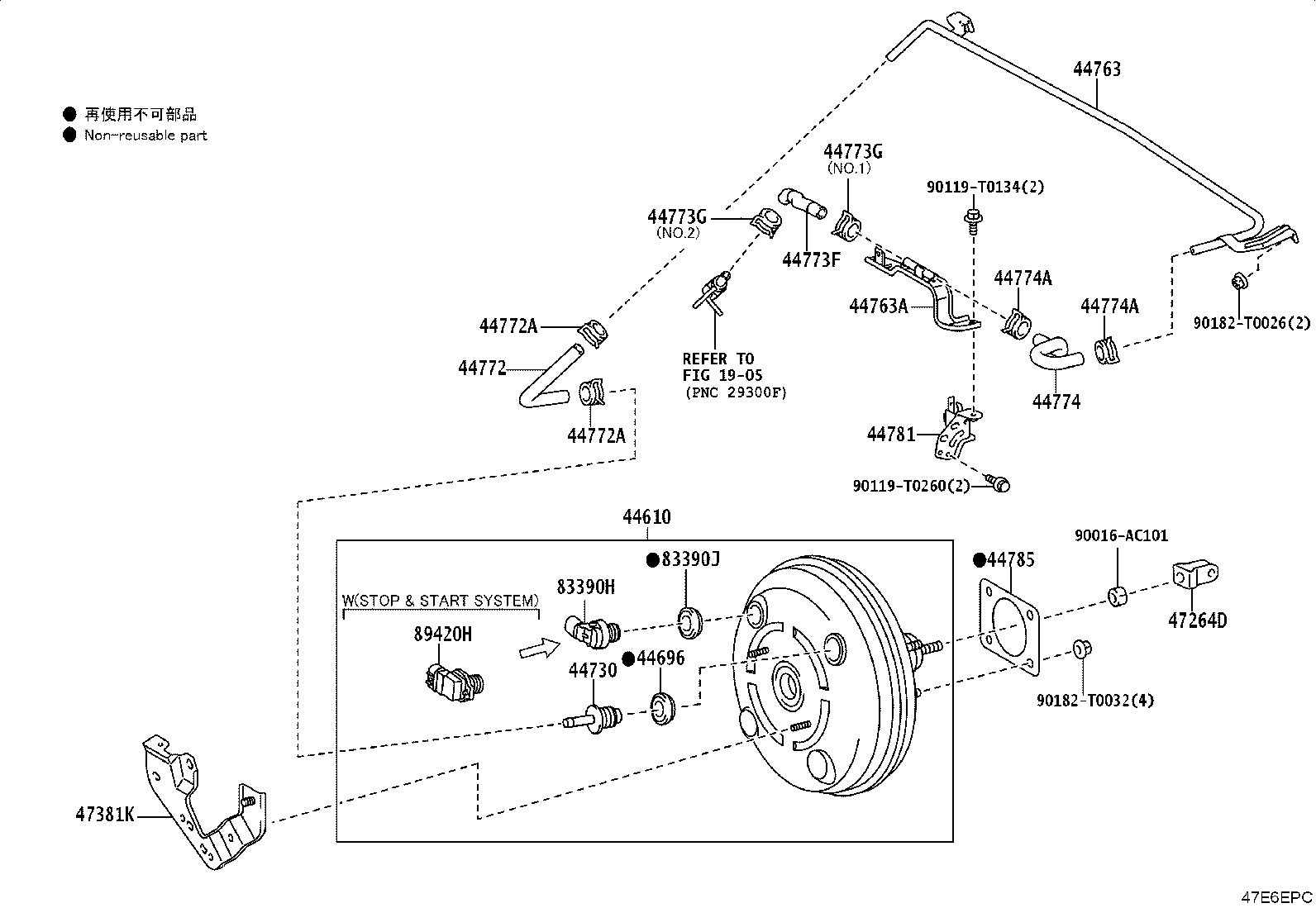

Brake Booster & Vacuum Tube
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44763 | Tube, Booster Vacuum |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44781 | Bracket, Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 47381K | Bracket, Brake Booster Tube Clamp |
| 83390H | Switch Assy, Vacuum Warning |
| 83390J | Grommet, Vacuum Warning Switch |
| 89420H | Sensor Assy, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
