Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

15 part groups · 3 illustrations

Illustrations

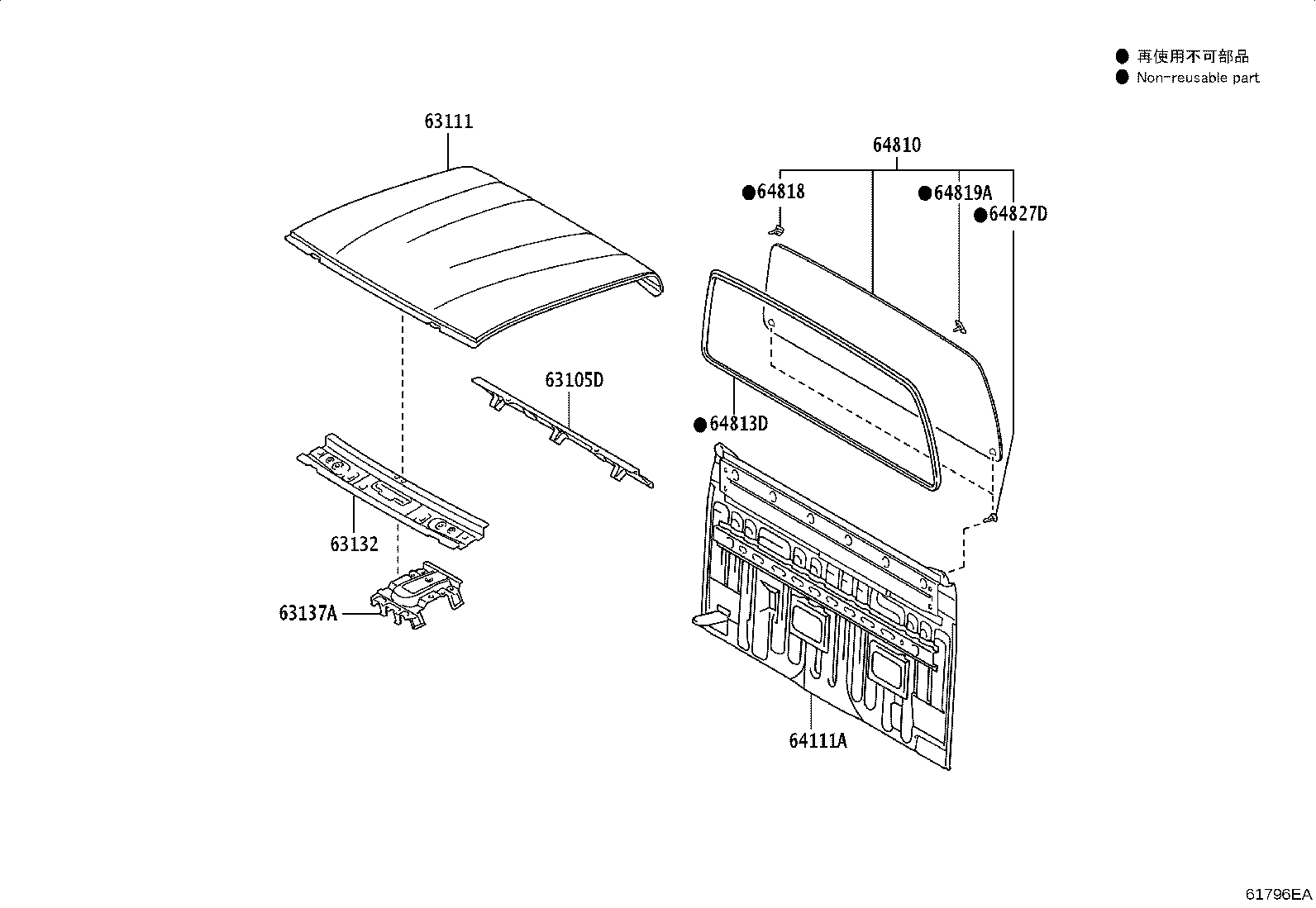

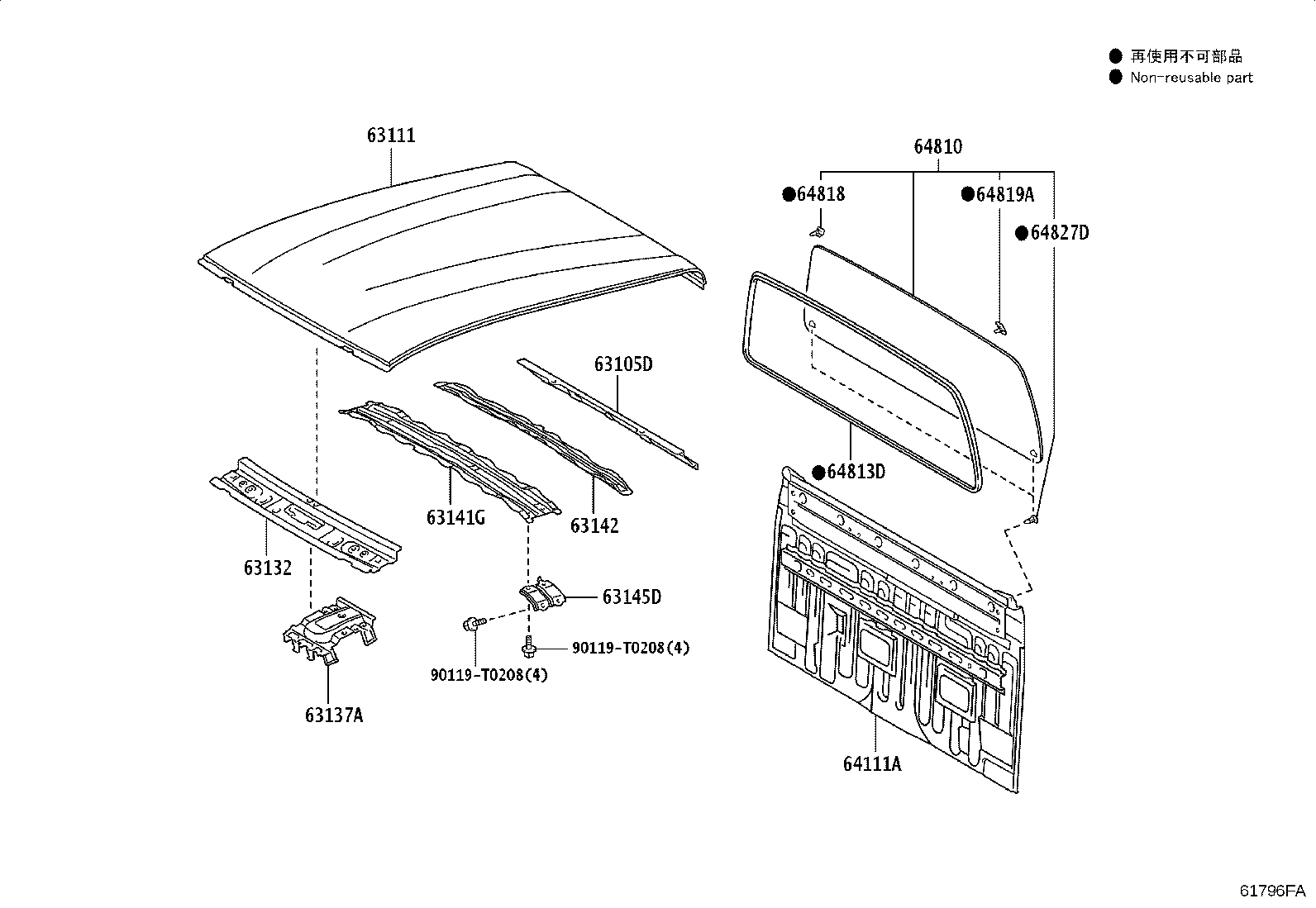

Figure 617869A 617869A 2023-08 → — Figure 61796EA 61796EA 2024-02 → — Figure 61796FA 61796FA 2024-02 → —

Part groups

PNCDescription
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63137A Bracket, Dome Lamp, NO.1
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63145D Bracket, Roof Reinforcement
64111A Panel, Back
64147D Plate, Back Panel Corner, Upper
64810 Window Assy, Back
64813D Dam, Back Window Glass Adhesive
64818 Spacer, Back Window Glass
64819A Spacer, Back Window Glass, NO.2
64827D Clip, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
