Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07

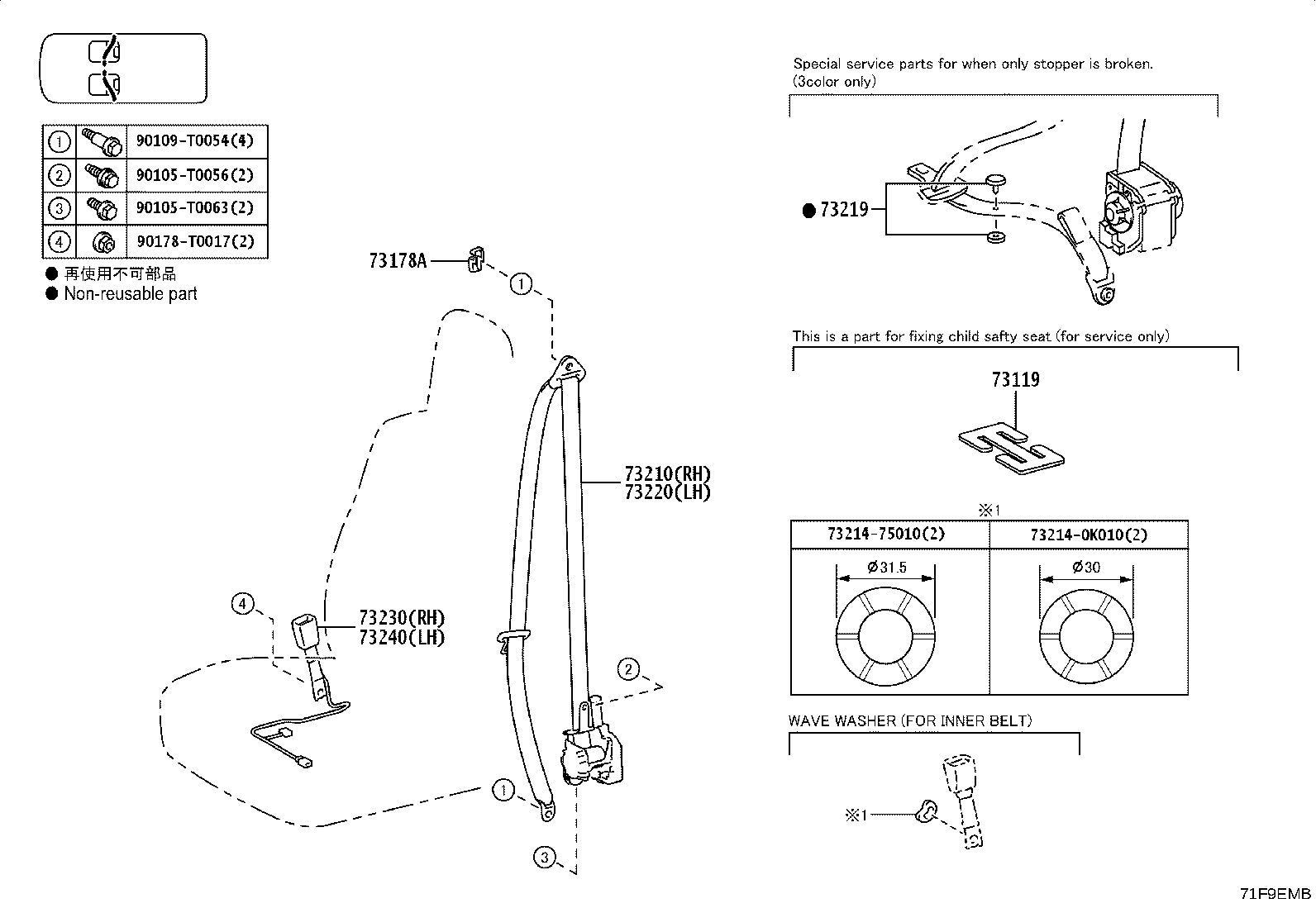

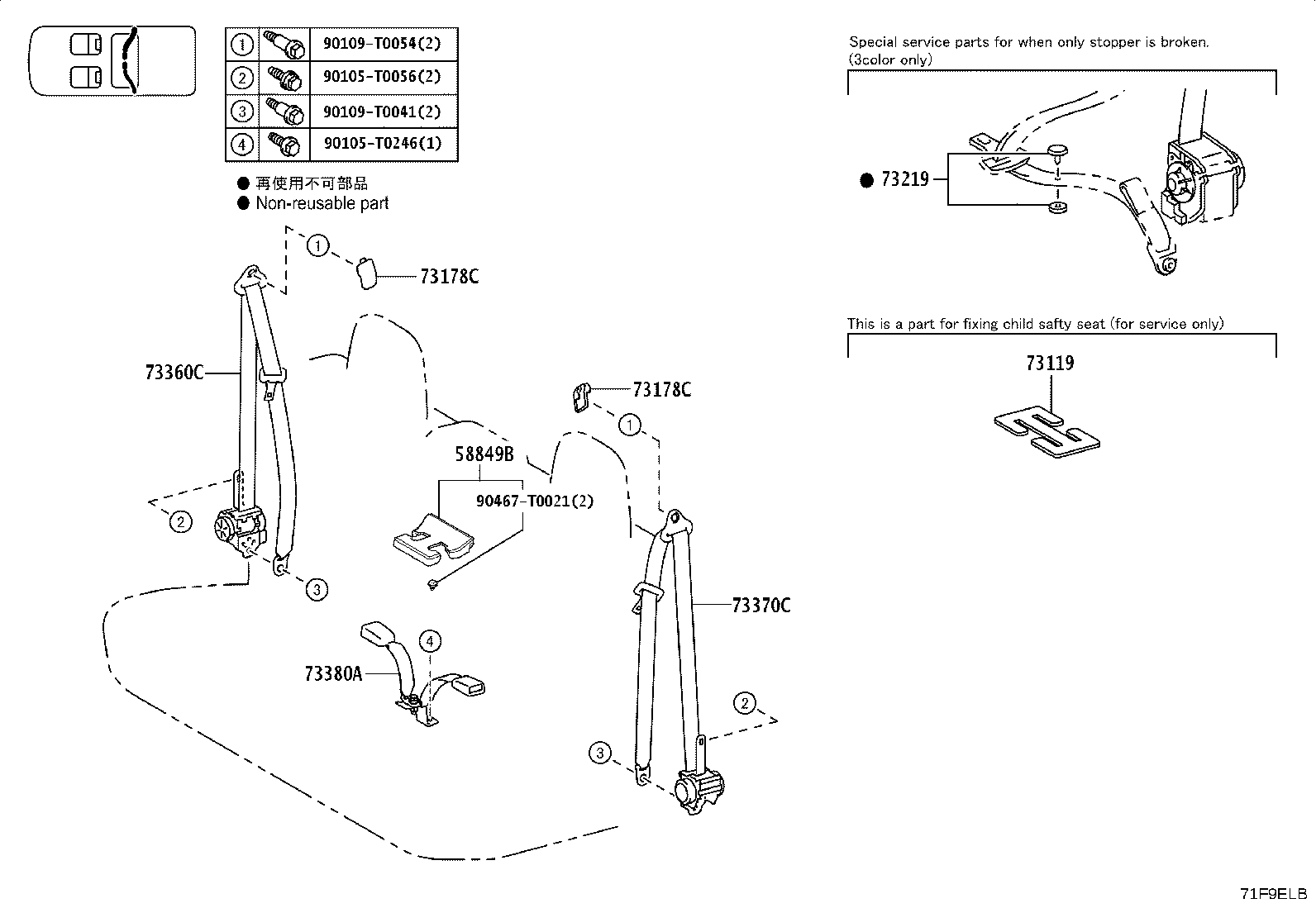

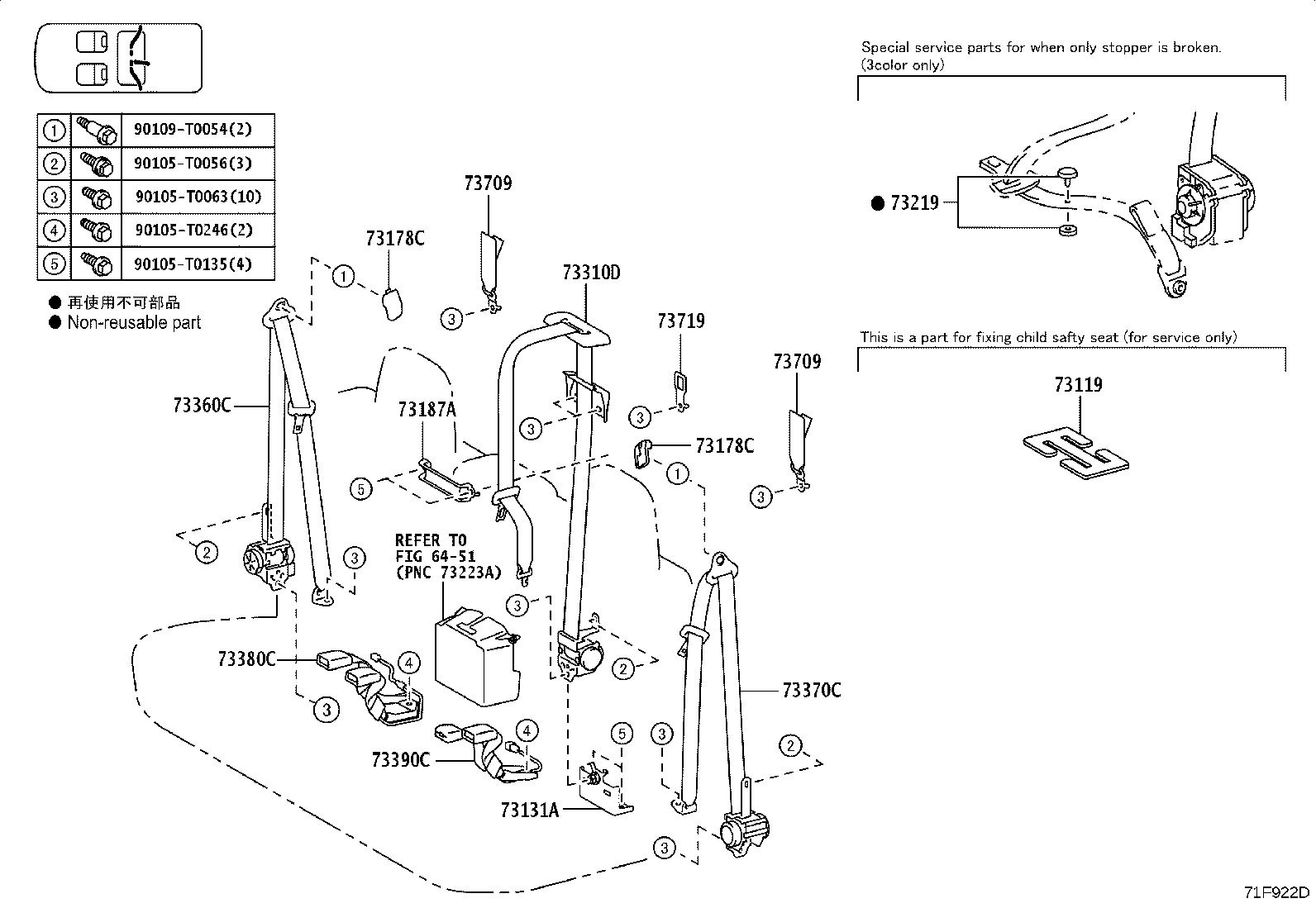

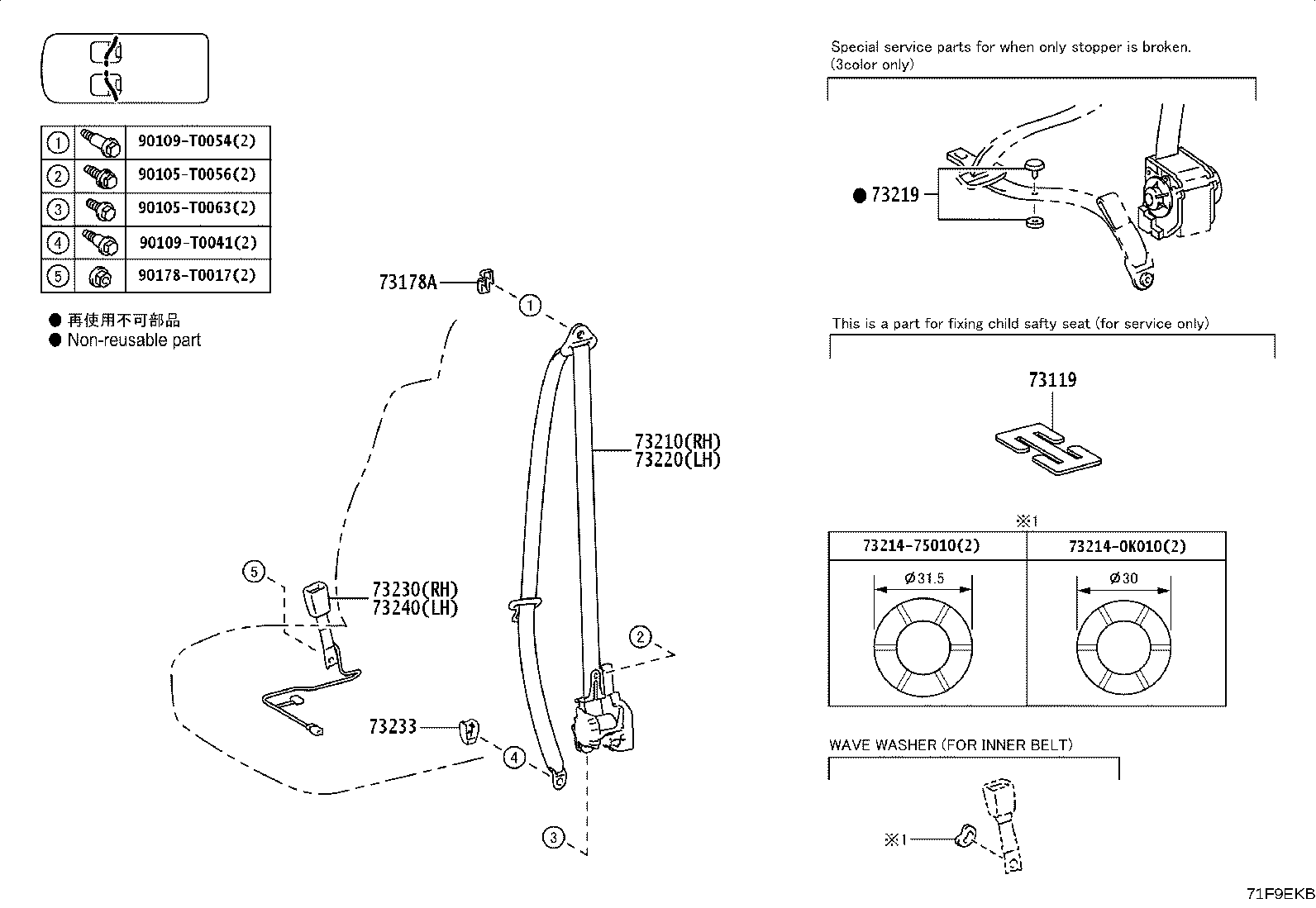

Seat Belt
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58849B | Cover, Console Box Hole, NO.2 |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73131A | Bracket, Seat Belt |
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73136A | Cover, Shoulder Belt Anchor, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73178C | Cap, Seat Belt Anchor Cover |
| 73187A | Guide, Rear Seat Shoulder Belt |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310D | Belt Assy, Rear Seat 3 Point Type, Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73709 | Bracket Sub-assy, Tether Anchor |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
