Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 2 illustrations

Illustrations

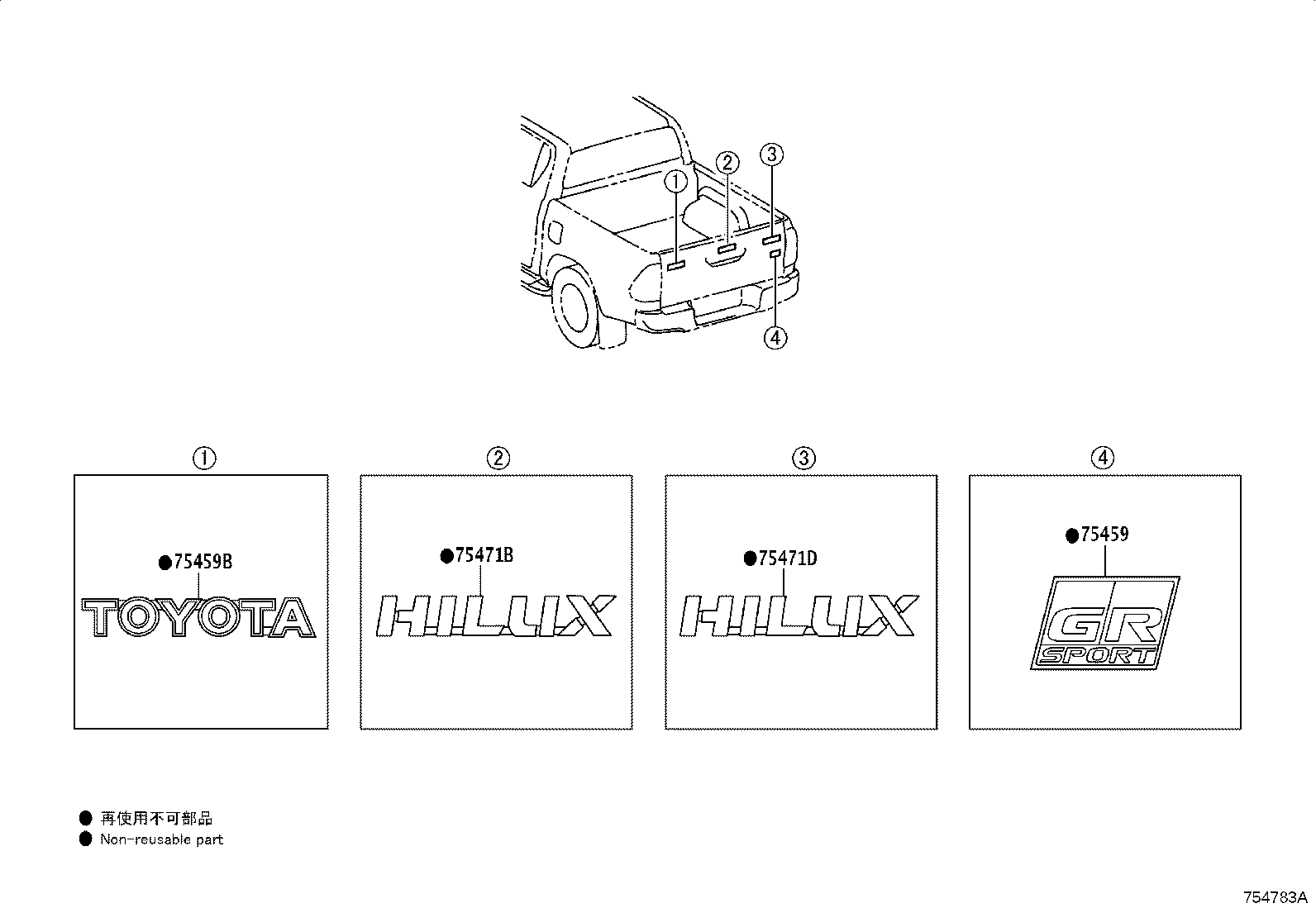

Figure 754782C 754782C 2023-08 → — Figure 754783A 754783A 2023-08 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75310B Nut, Spring
75311A Plate, Front Name, NO.1
75312A Plate, Front Name, NO.2
75427 Plate, Front Door Name
75459 Mark, Tail Gate
75459B Mark, Tail Gate, NO.2
75471B Plate, Rear Body Name, NO.1
75471D Plate, Rear Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
