Toyota Hilux (DCB/SCB/XTR)

2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

9 part groups · 2 illustrations

Illustrations

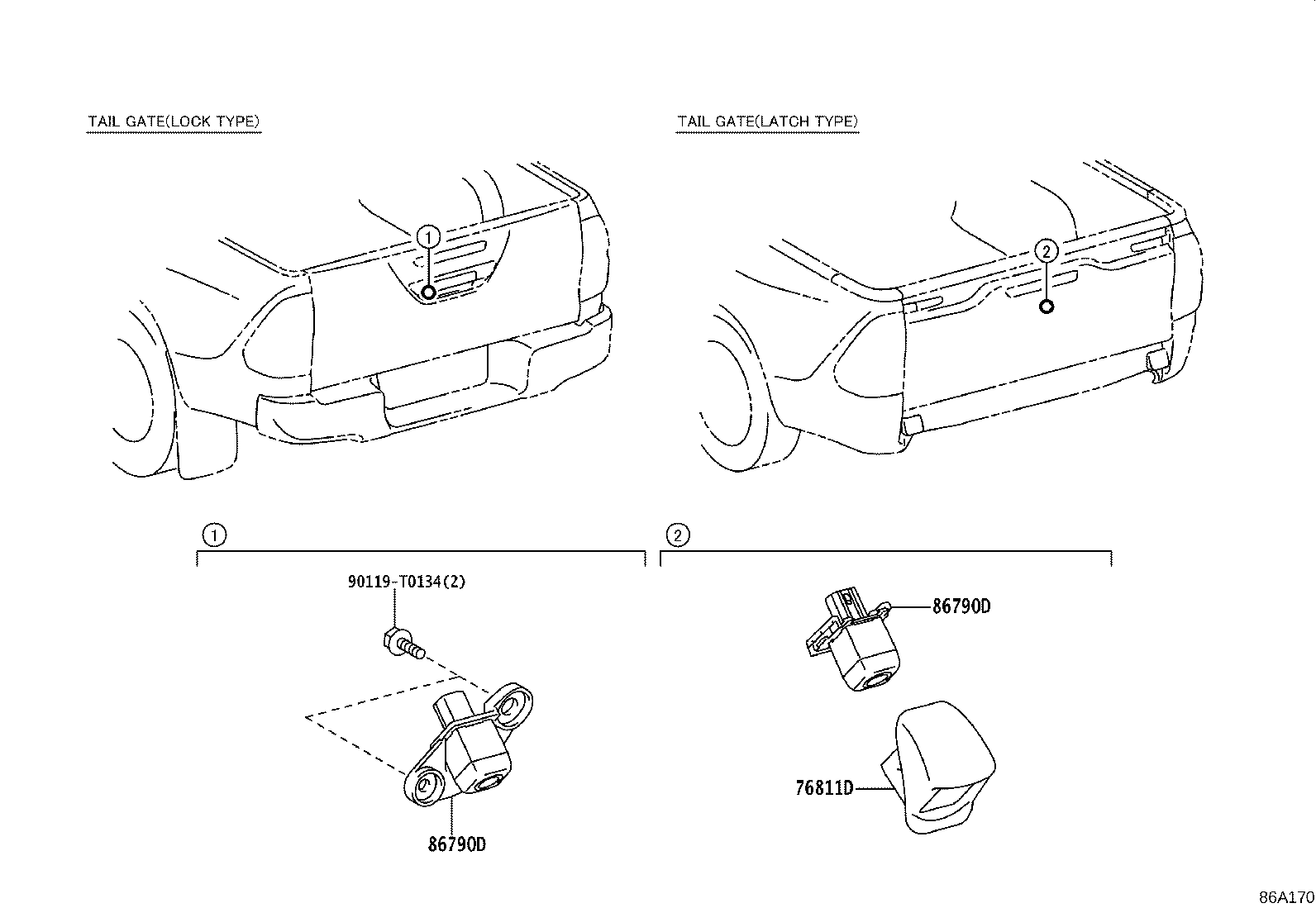

Figure 86A169A 86A169A 2023-08 → — Figure 86A170 86A170 2023-08 → —

Part groups

PNCDescription
76811D Garnish, Rear Body Tail Gate
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86791C Bracket, Computer Parking Assist, NO.1
86791D Bracket, Computer Parking Assist, NO.2
86792C Computer, Parking Assist
86799 Wire, Television Camera
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
