Toyota Hilux (DCB/SCB/XTR)
2023-08 → present · chassis GUN12#,135 · catalogue 6725D0 · Europe
Supported model
Data version 2024-07
Heating & Air Conditioning - Compressor

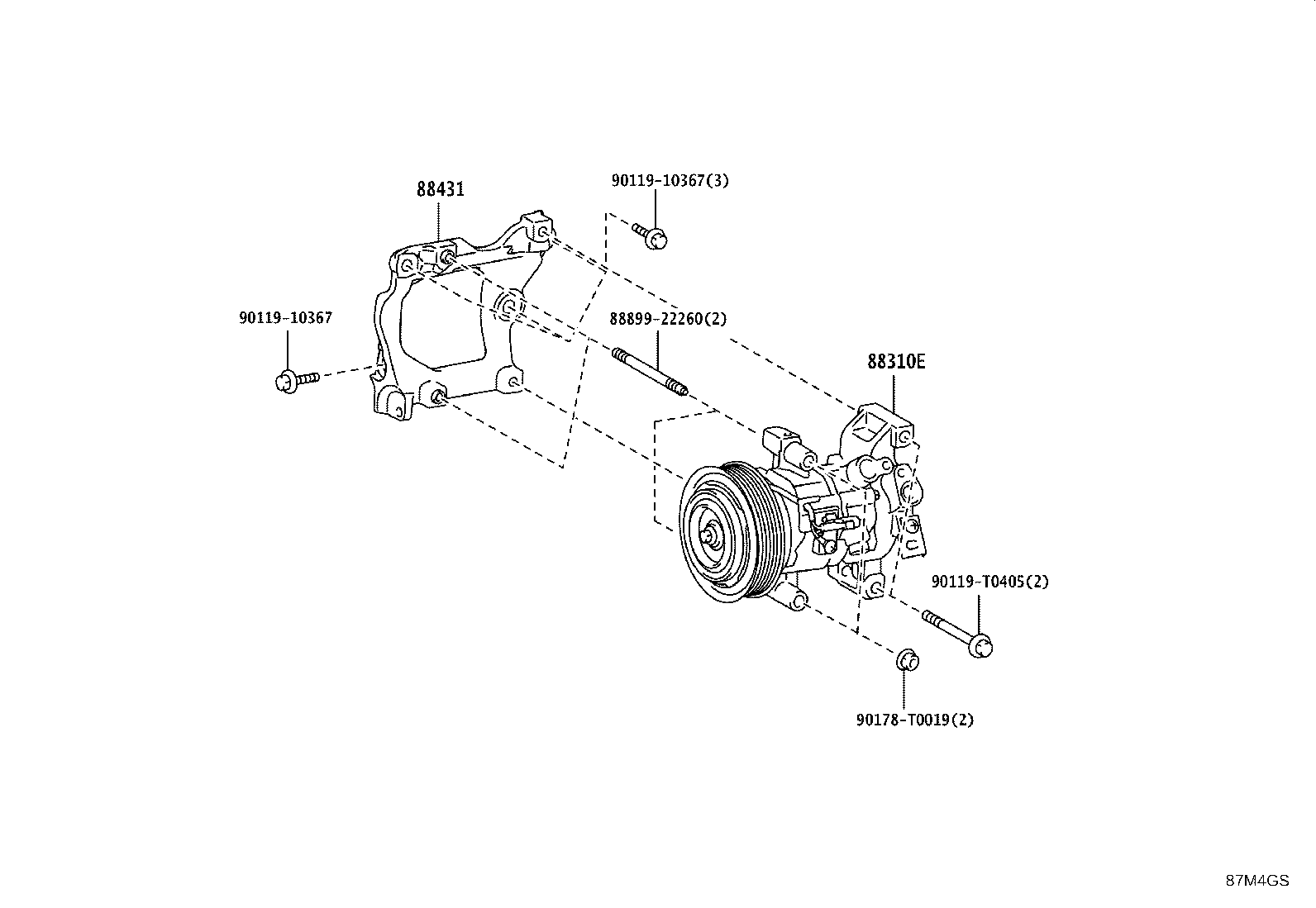

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88310E | Compressor, W/Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88329E | Bolt, Compressor, NO.1 |
| 88335 | Gasket Kit, Overhaul |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
