Toyota Hilux (DCB/SCB/XTR)
2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe
Supported model
Data version 2024-10

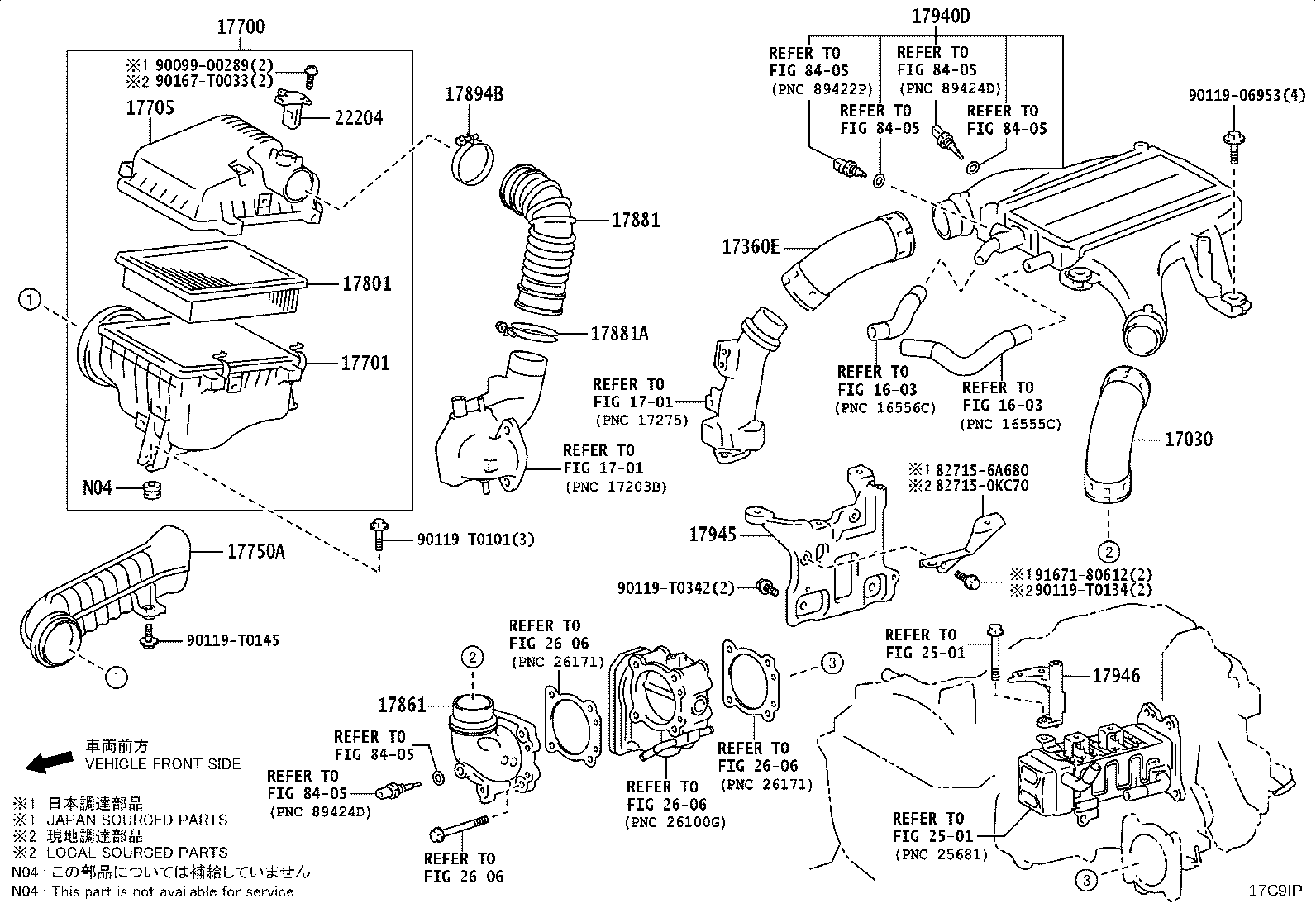

Air Cleaner
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17030 | Hose Assy, Air |
| 17302B | Hose Sub-assy, Air |
| 17341F | Hose, Air, NO.1 |
| 17360E | Tube Assy, Air, NO.1 |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750A | Inlet Assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17861 | Connector, Intake Air |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 17940D | Intercooler Assy |
| 17945 | Bracket, Intercooler Support |
| 17946 | Bracket, Intercooler Support, NO.2 |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
