Toyota Hilux (DCB/SCB/XTR)
2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe
Supported model
Data version 2024-10
Starter
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |

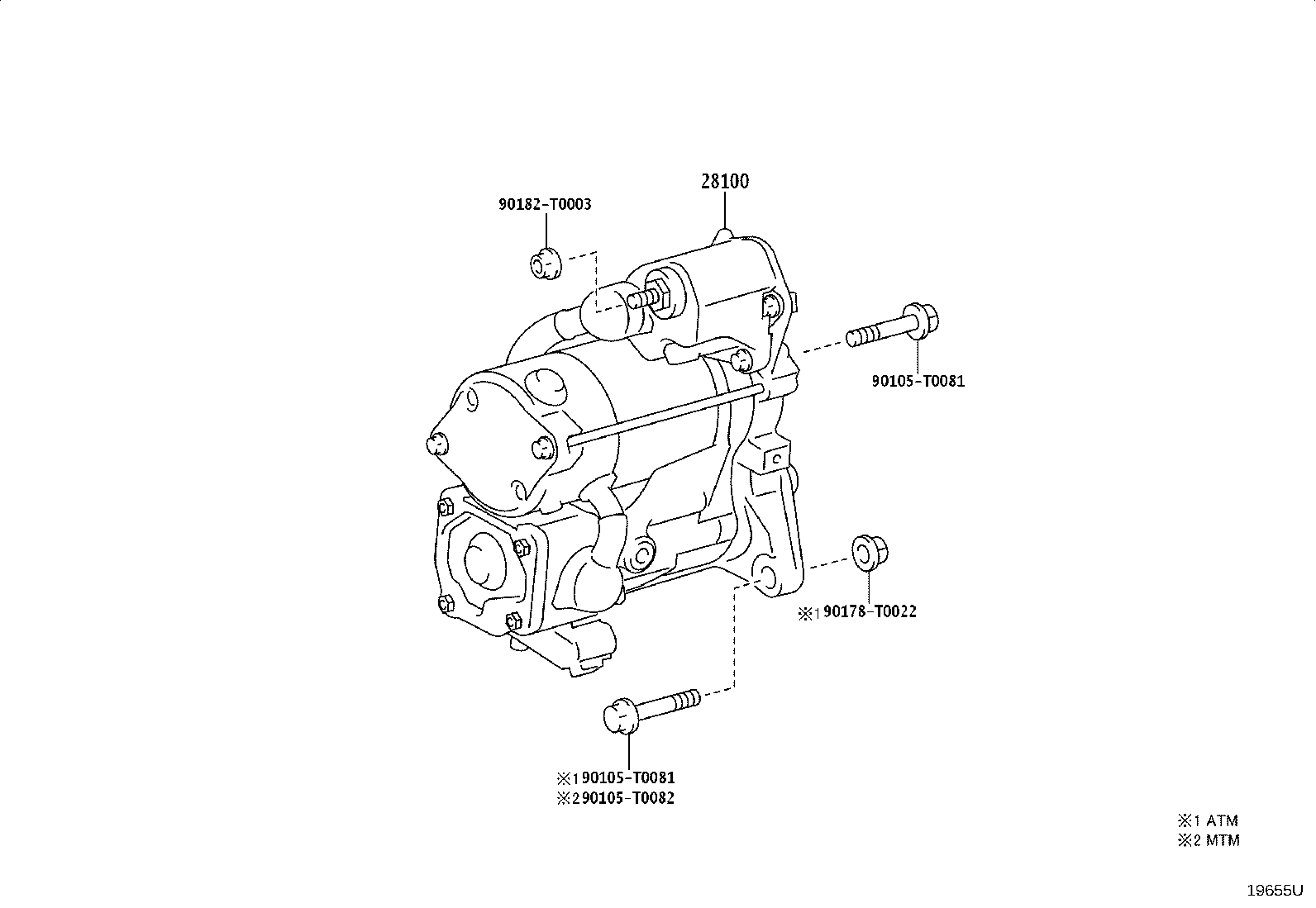

| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |

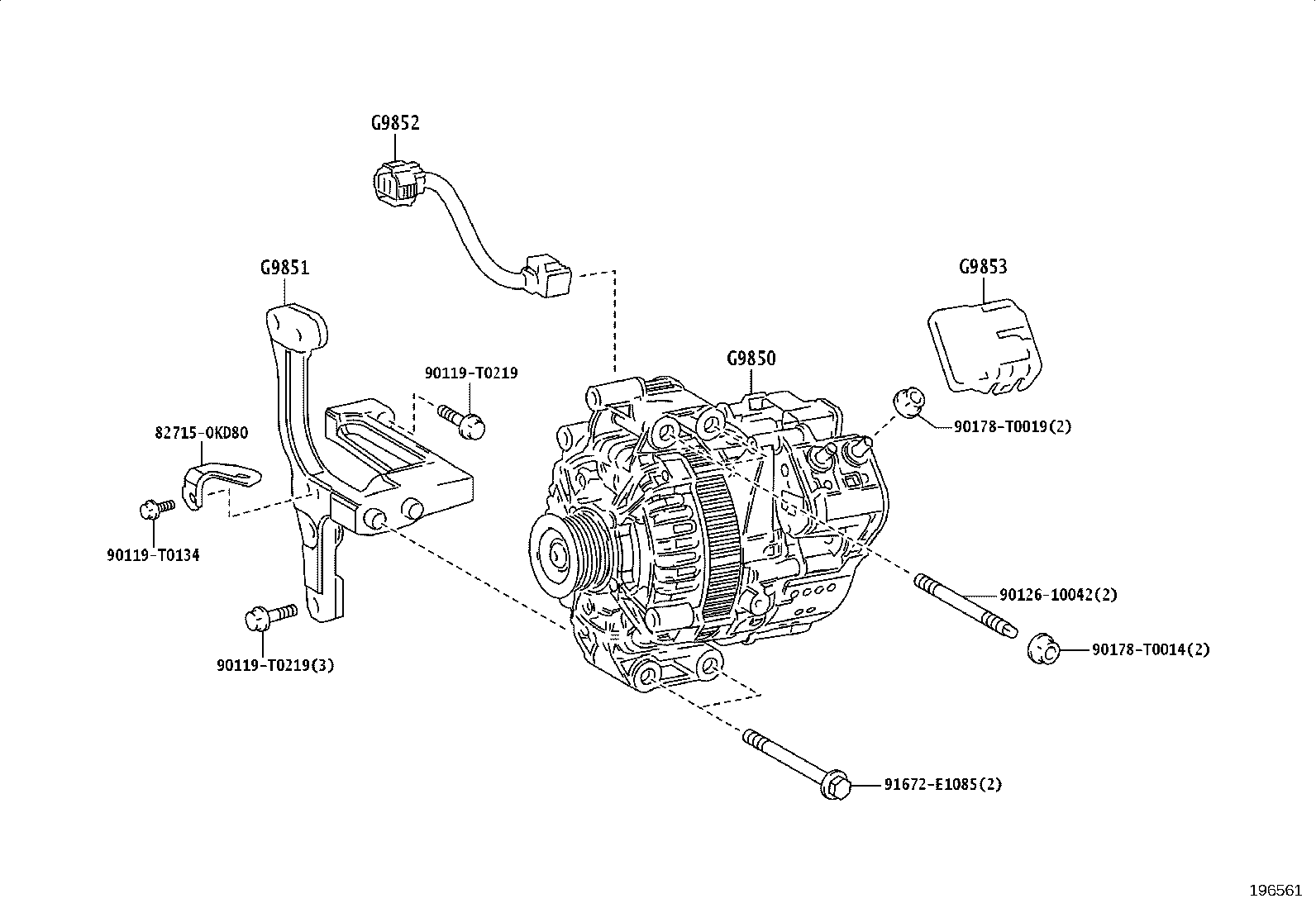

| G9850 | Motor Assy, 48V Control Starter Generator |
| G9851 | Bracket, 48V Control Starter Generator |
| G9852 | Wire, 48V Control Starter Generator |
| G9853 | Cover, 48V Control Starter Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
