Toyota Hilux (DCB/SCB/XTR)

2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

11 part groups · 2 illustrations

Illustrations

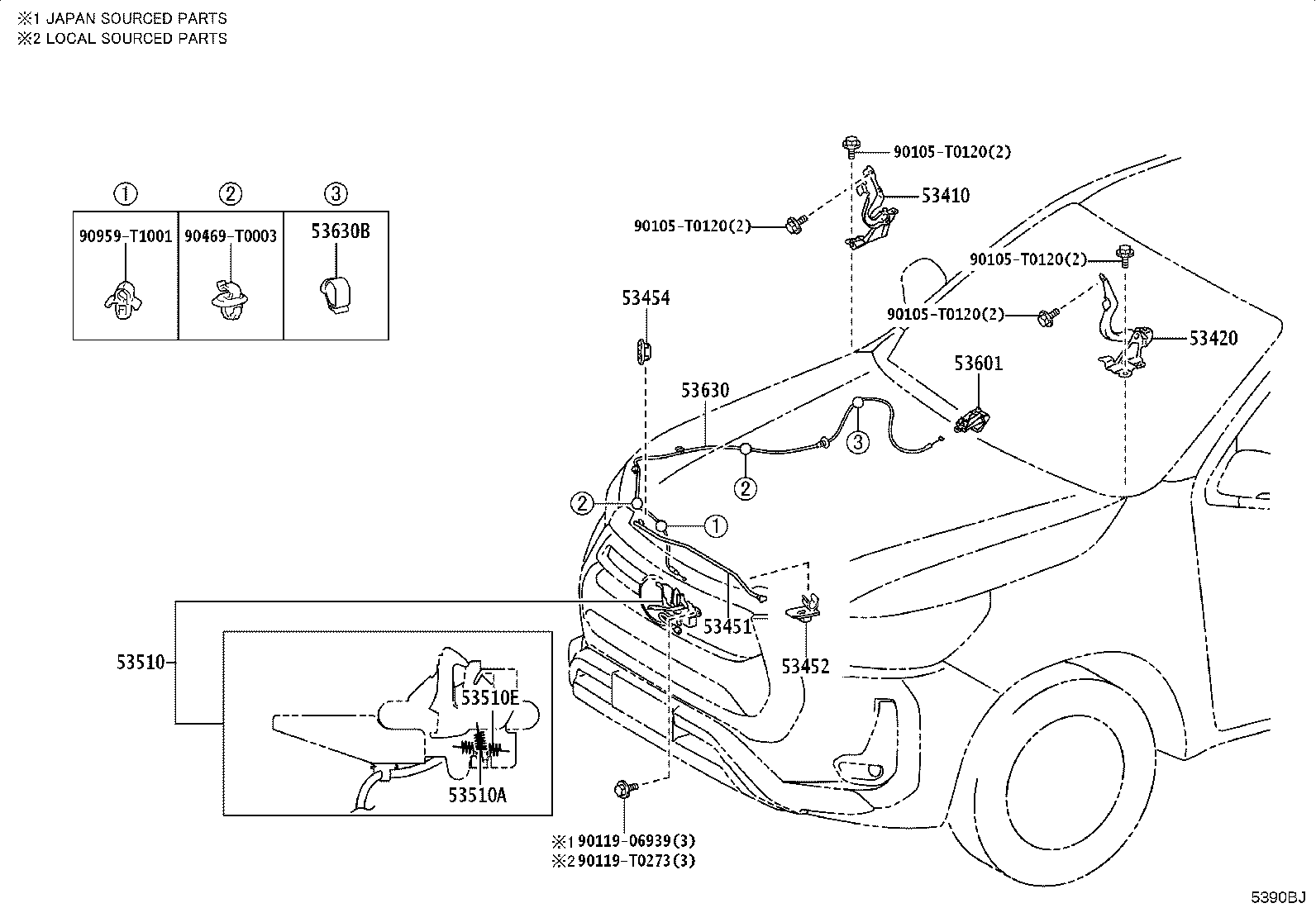

Figure 5390BI 5390BI 2024-08 → — Figure 5390BK 5390BK 2024-11 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53452 Holder, Hood Stay
53454 Clip, Hood Support Rod
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
