Toyota Hilux (DCB/SCB/XTR)

2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

20 part groups · 8 illustrations

Illustrations

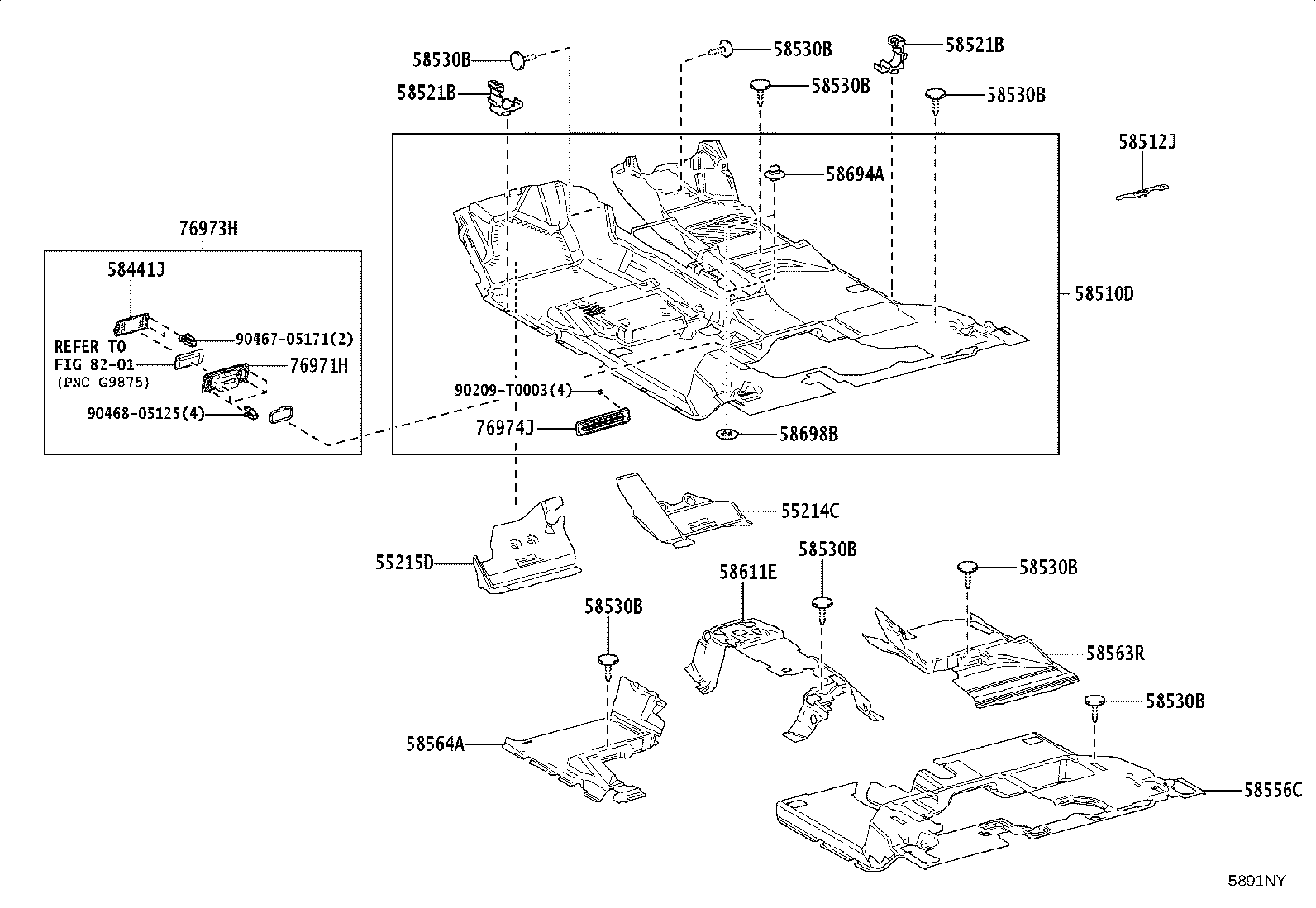

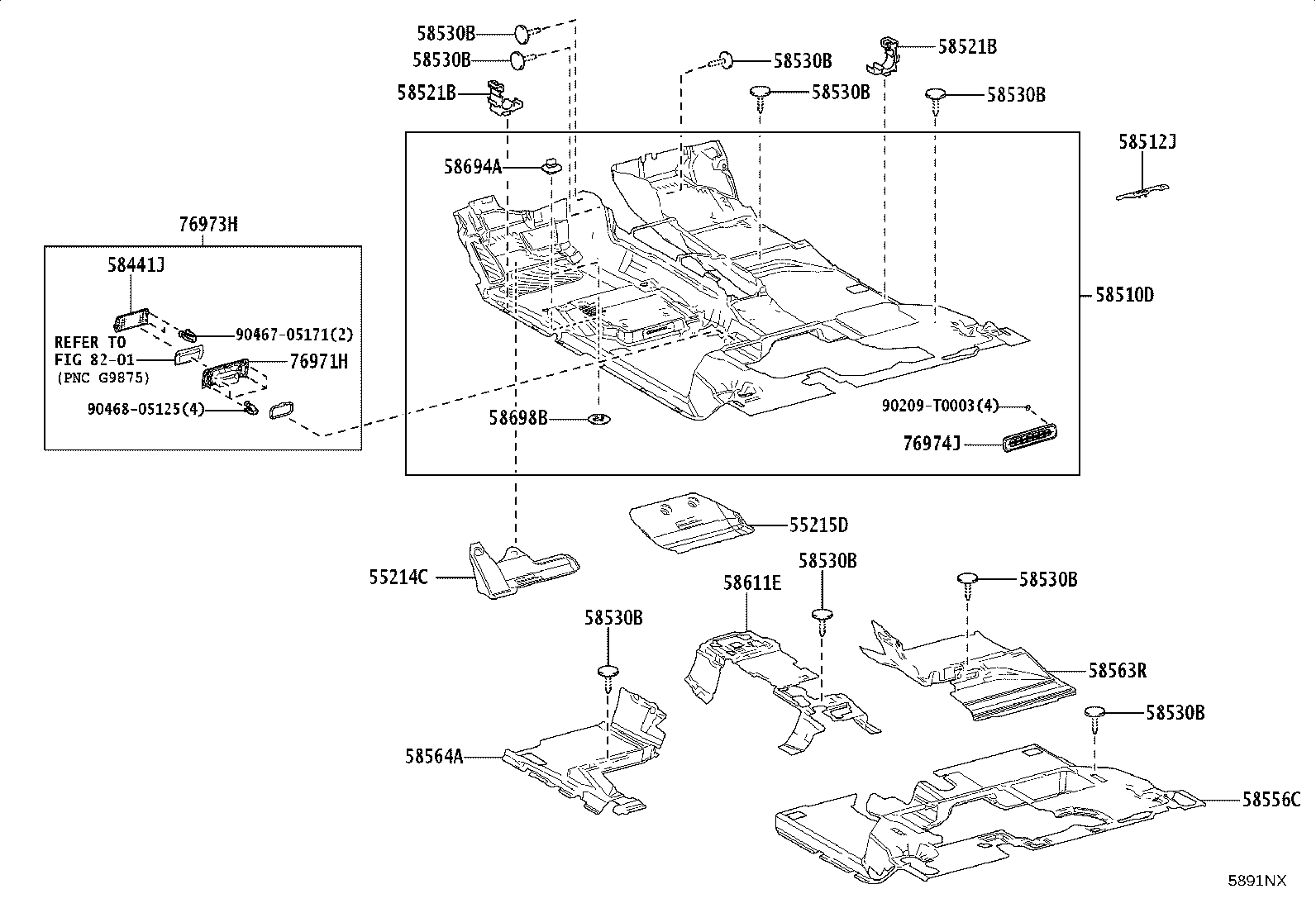

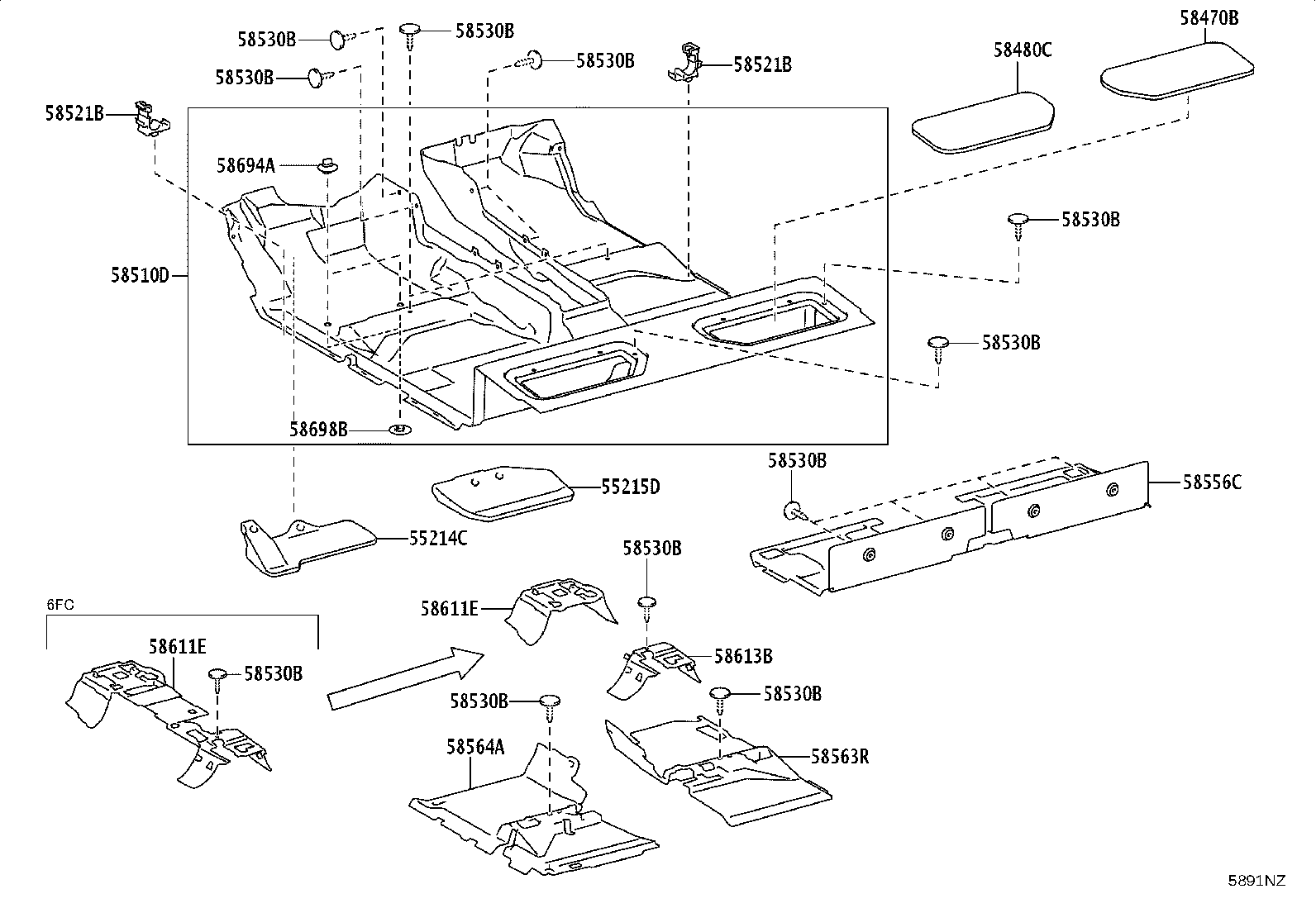

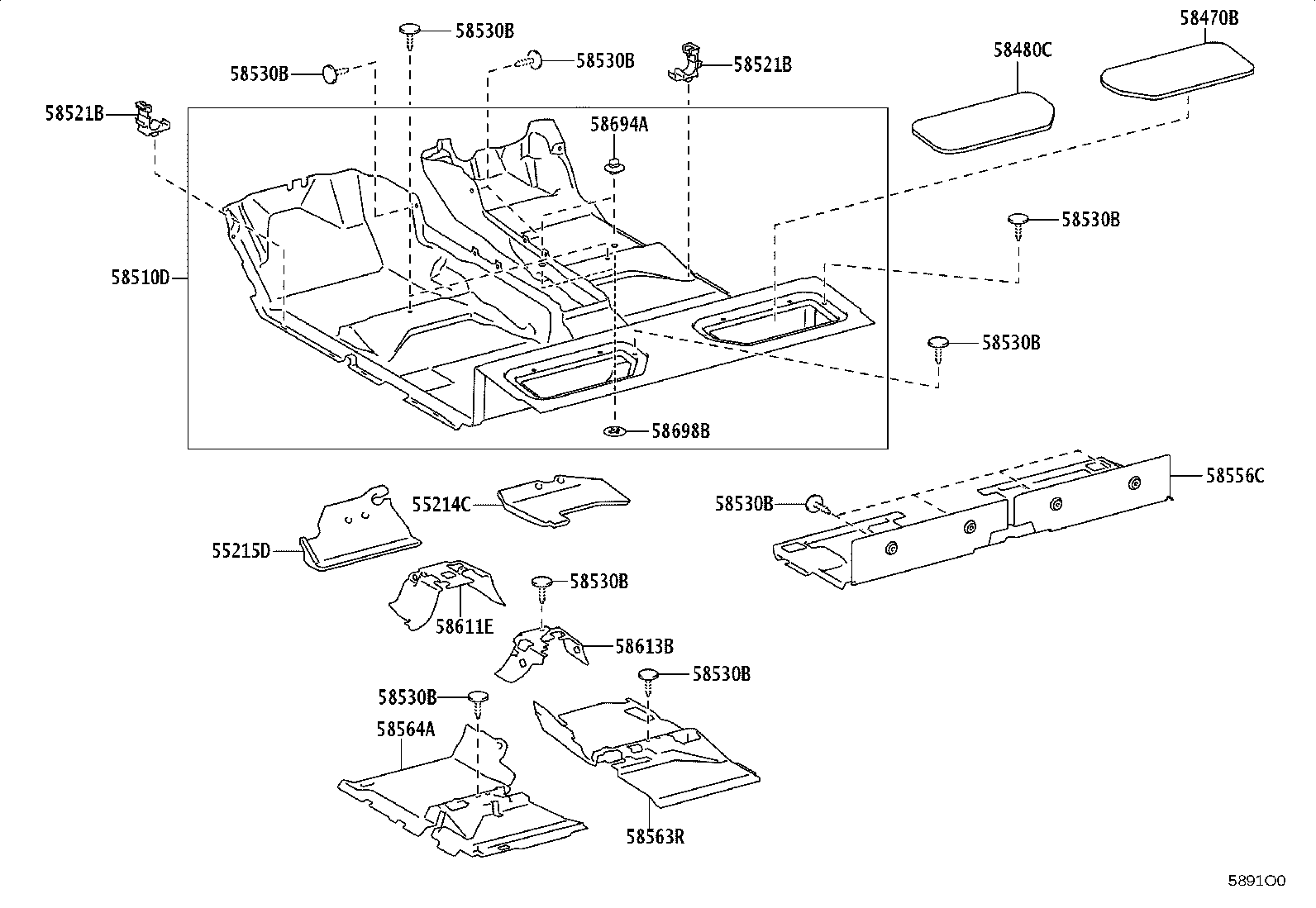

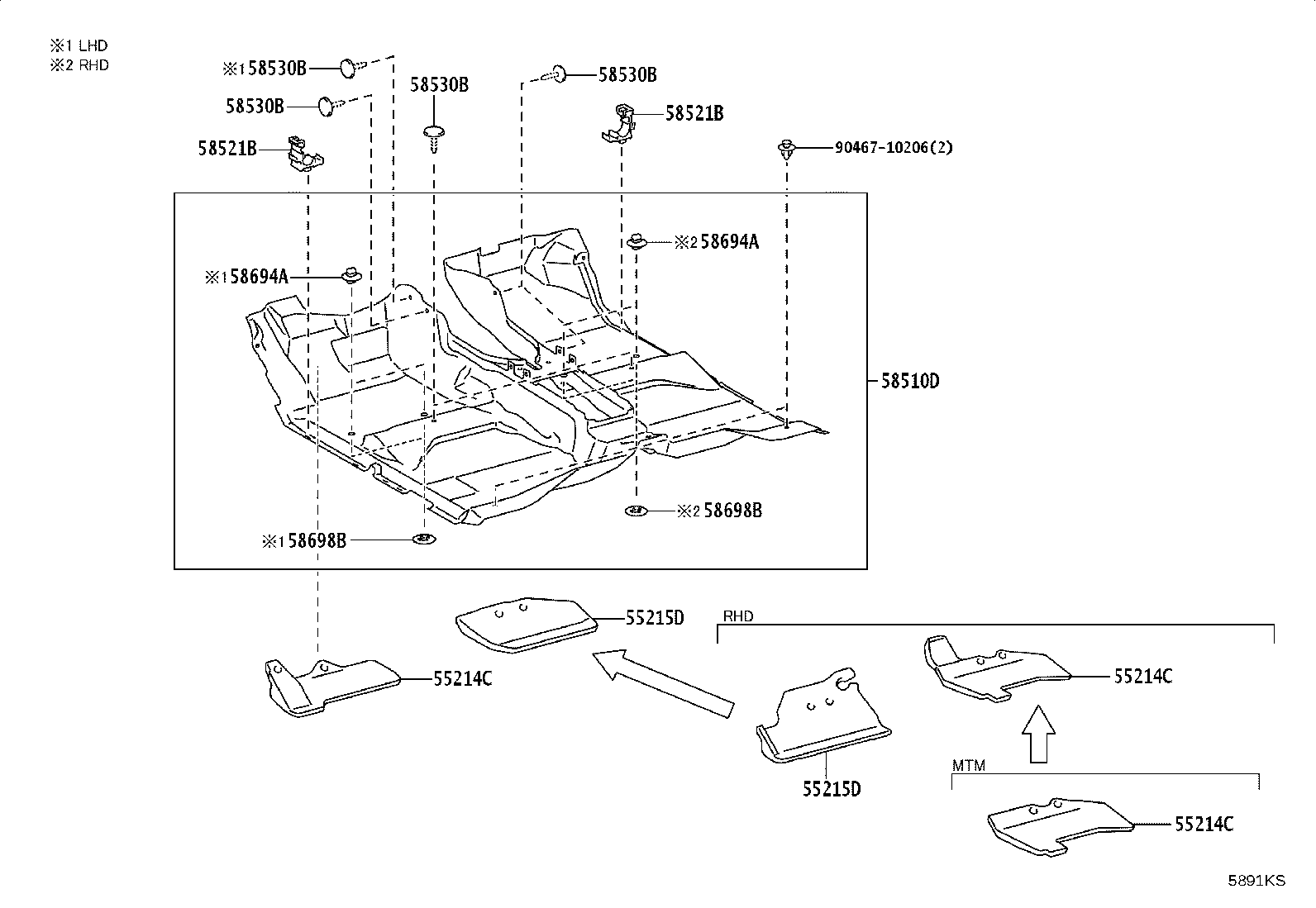

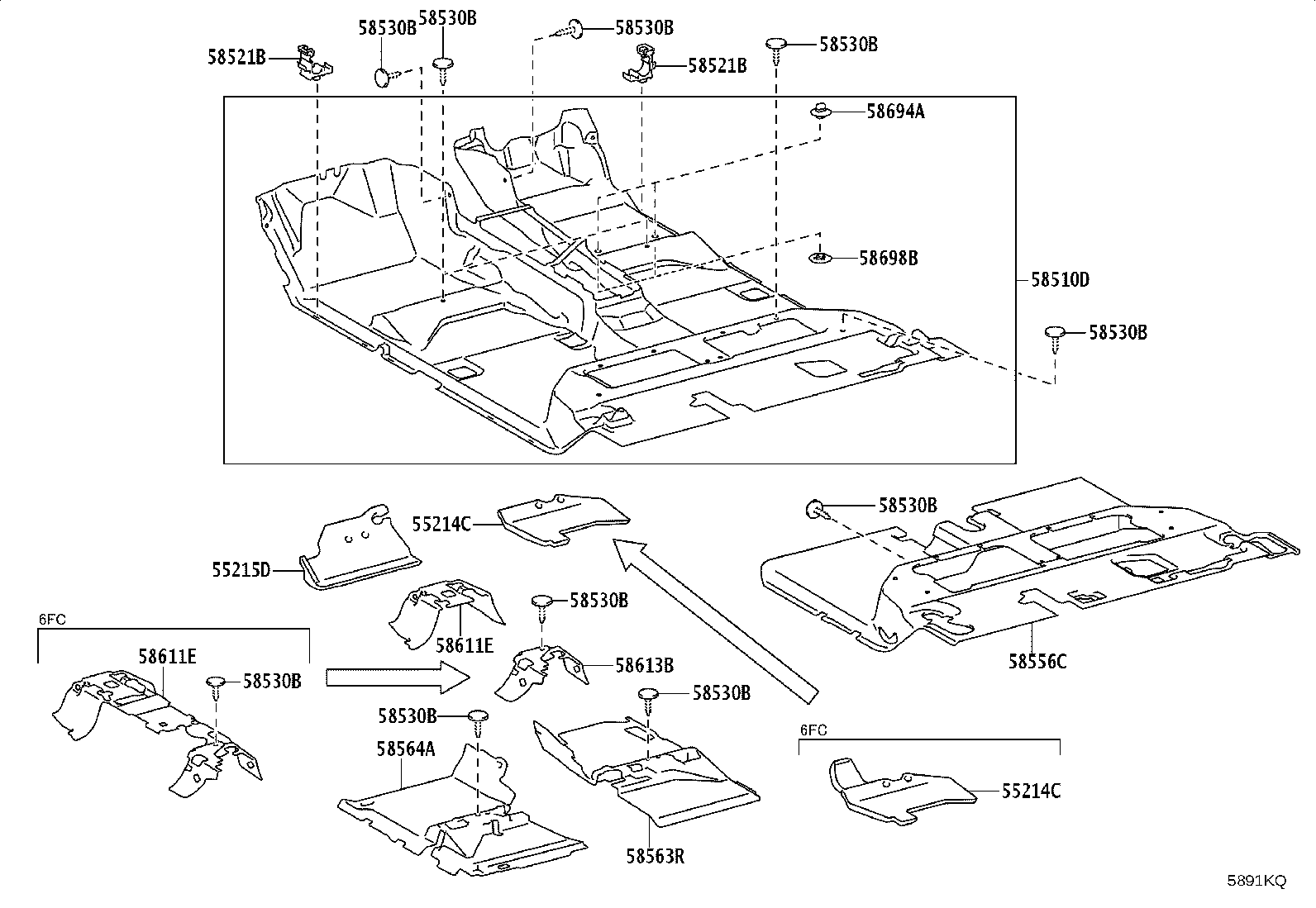

Figure 5891KV 5891KV 2024-08 → — Figure 5891KQ 5891KQ 2024-11 → — Figure 5891O1 5891O1 2024-11 → — Figure 5891NX 5891NX 2024-11 → — Figure 5891NZ 5891NZ 2024-11 → — Figure 5891NY 5891NY 2024-11 → — Figure 5891O0 5891O0 2024-11 → — Figure 5891KS 5891KS 2024-11 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441J Cover, Battery Service Hole
58470B Cover Assy, Seat Floor Service Hole, RH
58480C Cover Assy, Seat Floor Service Hole, LH
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58512J Mat, Floor, NO.2
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58563R Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58611E Sheet, Front Floor Silencer
58613B Sheet, Front Floor Silencer, Center
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
76971H Cover, Rear Under
76973H Cover, Rear Under Side, RH
76974J Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
